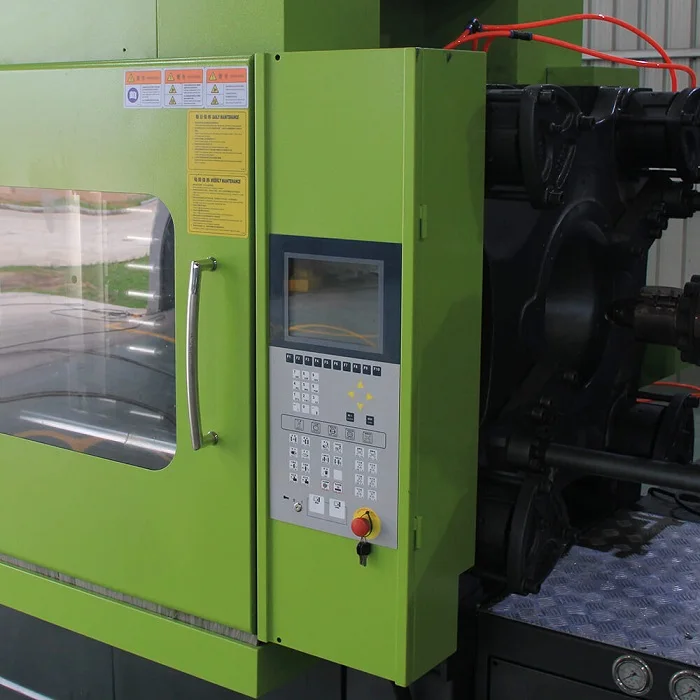

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.
Shoot Weight – 4975g(Max)
Clamping Force – 128~680(Ton)
Motor Type – Servo Or Variable
Applications – Specialized For Different Sizes Of PET Preform
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
|CLAMPING UNIT||Clamping force||KN||2880|
|Space between bars||mm||610*610|

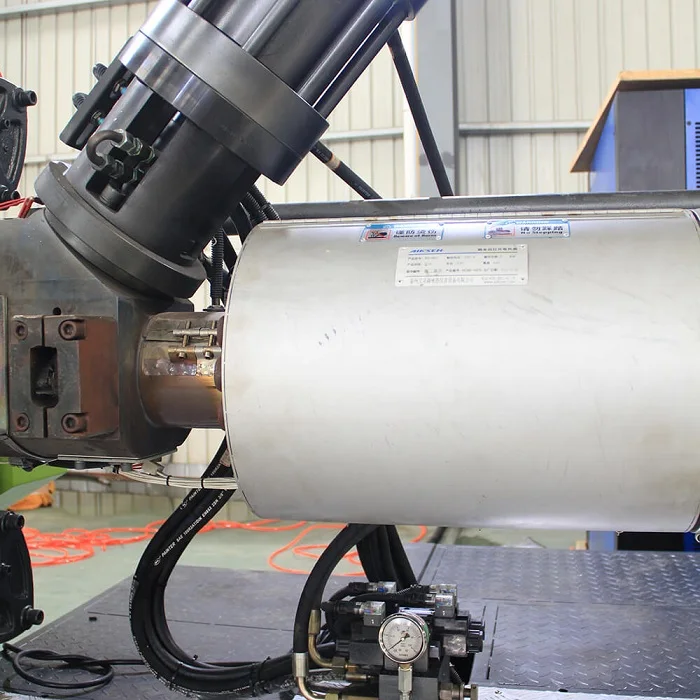

|INJECTION UNIT||Screw diameter||mm||75|
|POWER UNIT||Hydraulic system Pressure||MPa||17.5|
|Pump motor power||KW||30|
