INDUSTRY FURNACE FOR CERAMICS 70 l
- Category: >>>
- Supplier: BALTEA D.C. - DIGITAL CERAMIC S.R.L.
Share on (62540899619):
Product Overview
Description

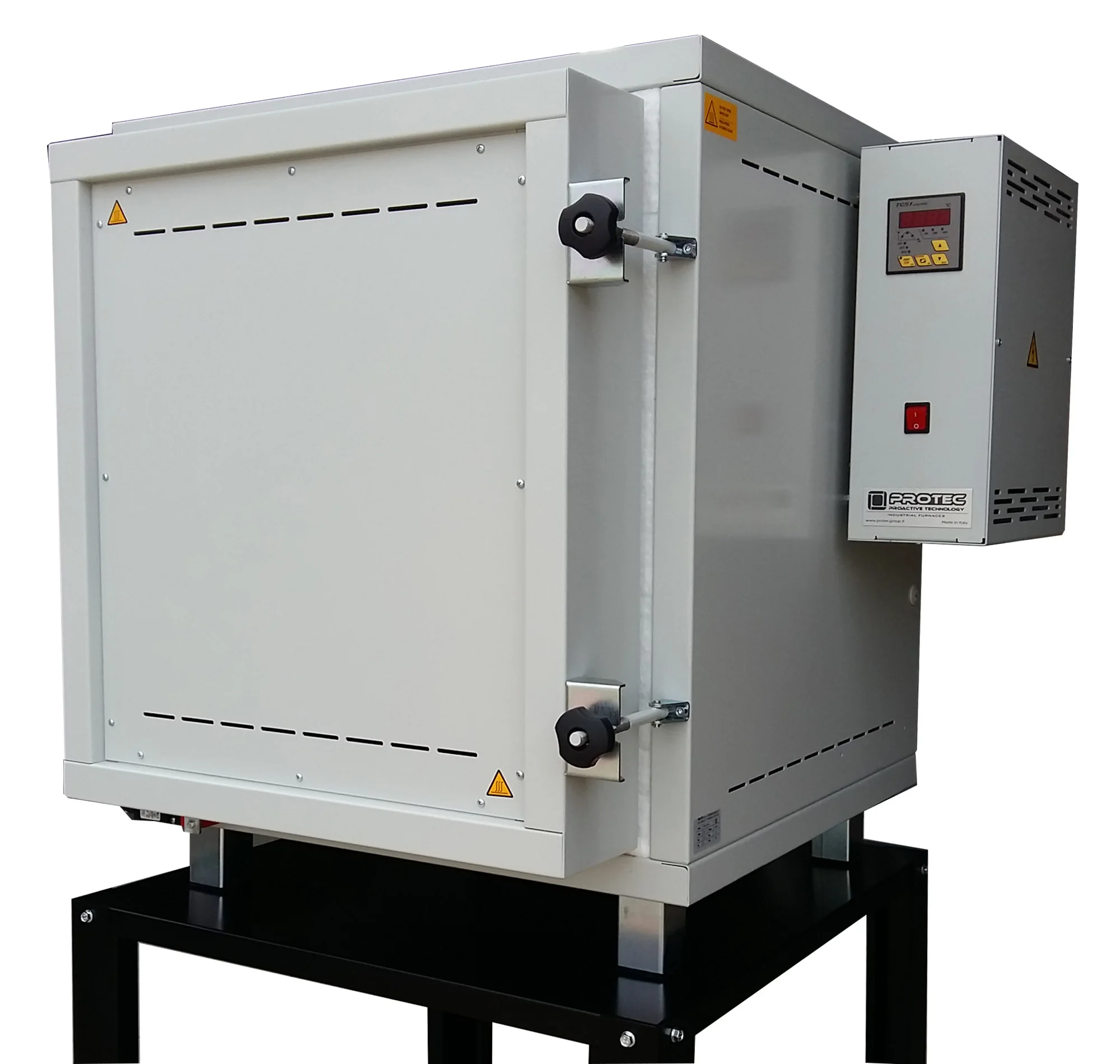

ELECTRIC KILNS
Table electric KILNS
for Ceramics
Electric Kilns designed for Ceramics, photo-ceramics and Glass decoration up to 1100°C or up to 1300°C keen for gres and porcelain.
DESCRIPTION
STRUCTURE:
THERMICAL PART
Front loading kilns
Table steel structure – industrial painted
Swing door
Basement on request (already included only for art. FCHE300)
THERMICAL PART
* Heating over 2 sides in model FCH/FCHE 30
* Heating over 3 sides in all other articles
Heating elements in Kanthal alloy, inserted in the wall chamber grooves (for an easy maintenance and replacement)
Manual cooling by exhaust air valve:
* Upper valve in mod. FCHE30 – 150
* Upper and bottom valves in mod. FCHE300
INSULATION
multilayer insulation:
FCHE SERIES 1100°C : by Biosoluble Fibre (no RCF) boards for kilns up to 1100°C: same low thermal conductivity as RCF and same output (Kw), but exonerated and not classified as carcinogenic by IARC and Regulation EC no. 1272/2008 (CLP)
FCH SERIES 1300°C : by Refractory Ceramic Fiber (RCF) boards, for kilns up to 1300°C (RCF): material classified as carcinogenic by IARC and Regulation EC no. 1272/2008 (CLP)
CONTROL PANEL
Thermocouple: K type up to 1100°C or S type up to 1280°C

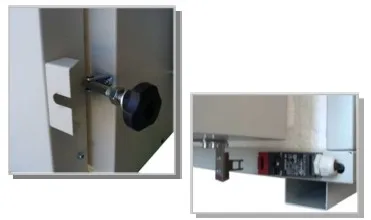

Security device : interrupting automatically the power when opening the door
Controller: allowing the programming of the firing cycle and the automatic restarting in case of short-term power loss.
mod. TC51 storing up to 9 programs and 12 steps,
Double contactors /heating control by SSR: silent and wear-less Solid State Relay for accurate and precise temperature control).
CE declaration of Conformity
TECHNICAL DETAILS
| Model | Computer | Chamber L x P x H | Overall measures L x P x H | Volt | Kw | Weight Kg |
| FCHE 30 | TC51 | 30 x 30 x 35 | 68 x 65 x 62 | 230 | 2.2 | 60 |
| FCHE 50 | TC51 | 35 x 35 x 42 | 80 x 70 x 85 | 230 | 2.5 | 100 |
| FCHE 70 | TC51 | 40 x 40 x 45 | 85 x 80 x 88 | 230 | 2.8 | 115 |
| FCHE 90 | TC51 | 44 x 50 x 40 | 90 x 98 x 80 | 230 | 3.0 | 120 |
| FCHE 100 | TC51 | 40 x 60 x 45 | 85 x 80 x 105 | 230 | 4.5 | 130 |
| FCHE 150 | TC51 | 50 x 60 x 50 | 95 x 90 x 105 | 230 / 400 | 5.8 | 150 |
| FCHE 300 | TC51 | 60 x 60 x 85 | 105 x 108 x 160 | 400 | 9.0 | 240 |
