8k Mac address Port based vlan switch 8GE port 4096 vlan IP address webpage browser interface managed switch
- Category: >>>
- Supplier: Shenzhen Cc Tech Co. Ltd.
Share on (62541007833):
Product Overview
Description
Product Description
8k Mac address Port based vlan switch 8GE port 4096 vlan IP address web interface managed switch

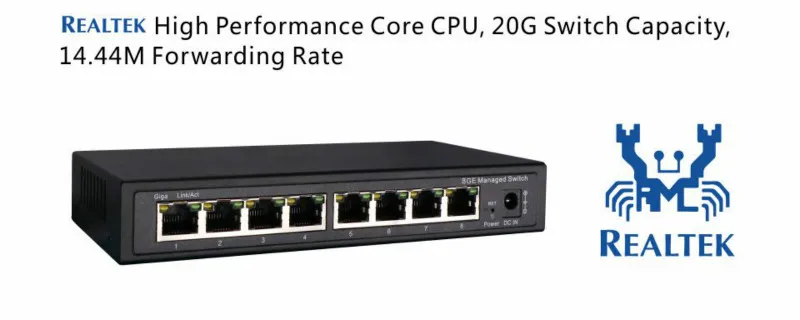

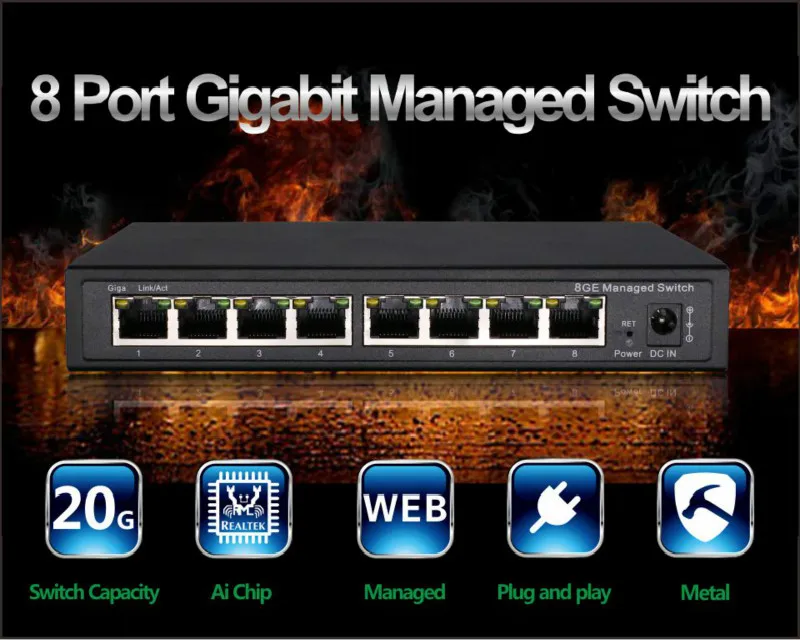

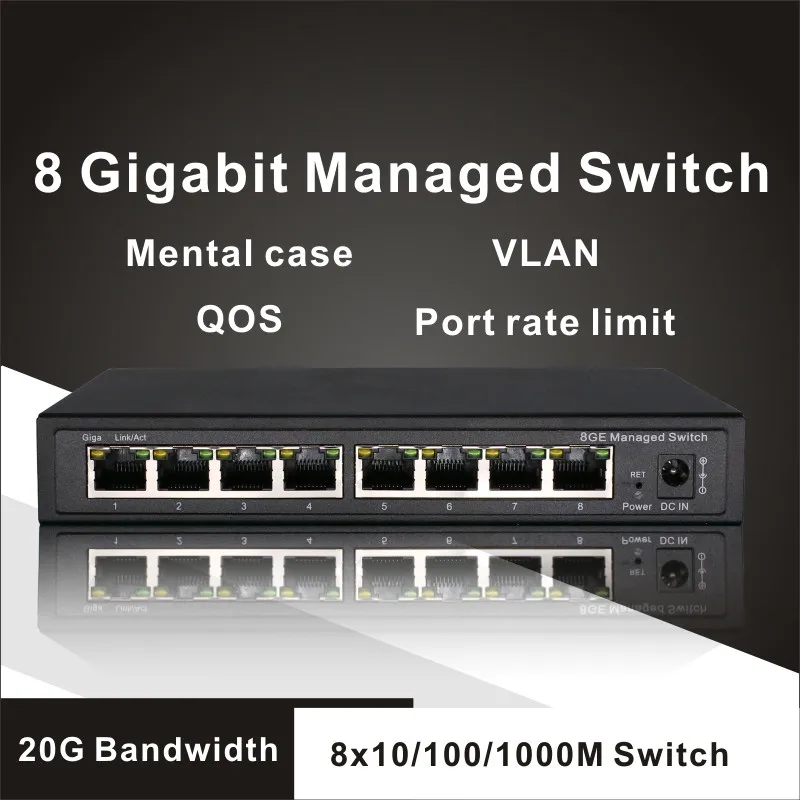

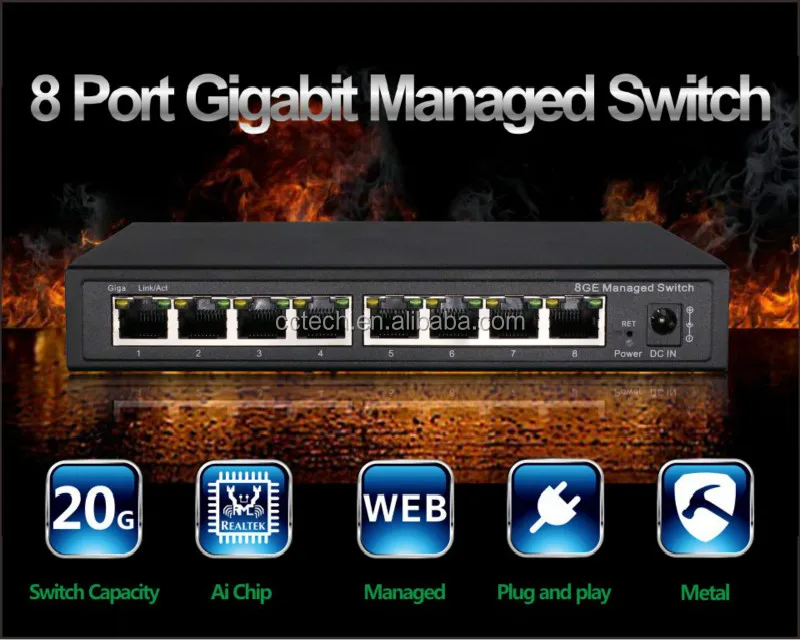

S800W-8GS is a high quality original chipset design 8 port gigabit web smart management ethernet switch.
It provides 8 10/100/1000mbps auto-sensing rj45 port.Power supply 12v0.5a DC.
It's widely used for soho/factory/hotel/school/campus/building etc network deployment engineering project.

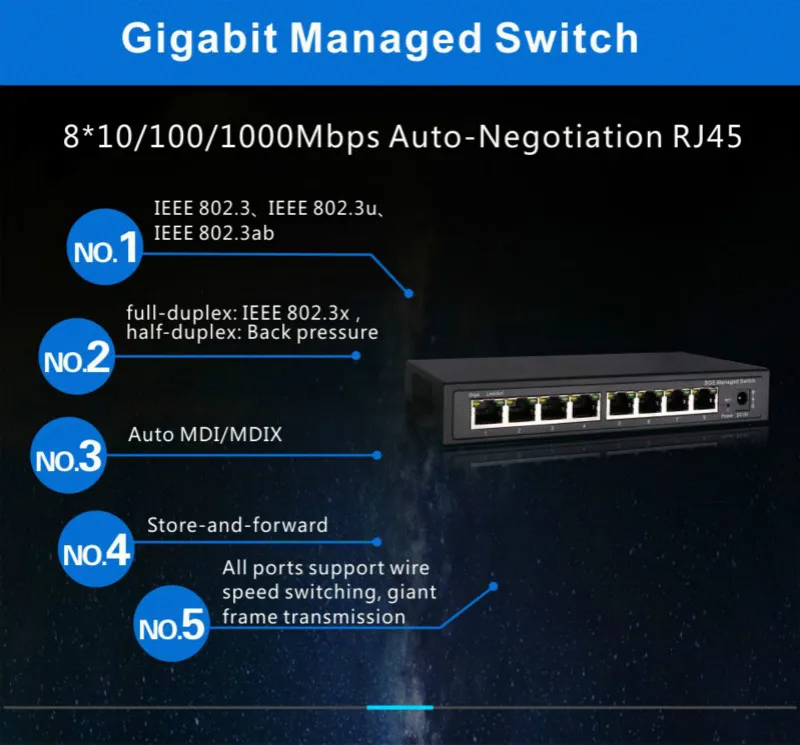

Features
1,All 8 10/100/1000mbps rj45
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3az
4,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
5,Auto MDI/MDIX.
6,Support port vlan,port mirror,port trunk,QoS,IGMP,SNMP
7,Store-and-forward.
8,All ports support wire speed store-and-forward, jumbo frame transmission.
9,LED indicators monitor working status,supporting simple trouble shooting

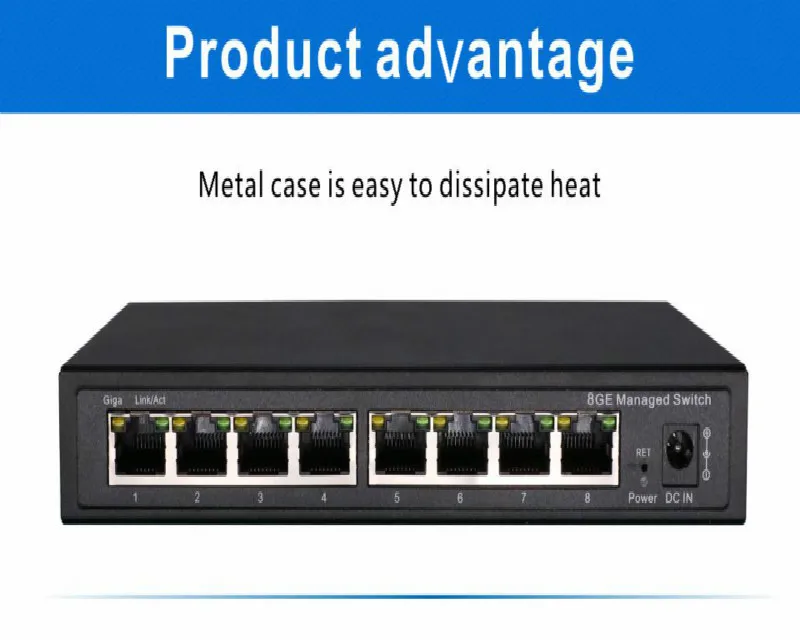

10,desktop/wall-mounted metal housing case
11,12v 0.5a power adapter
Model | S800W-8GS | ||||||
Port | 8 10/100/1000mbps rj45 | ||||||

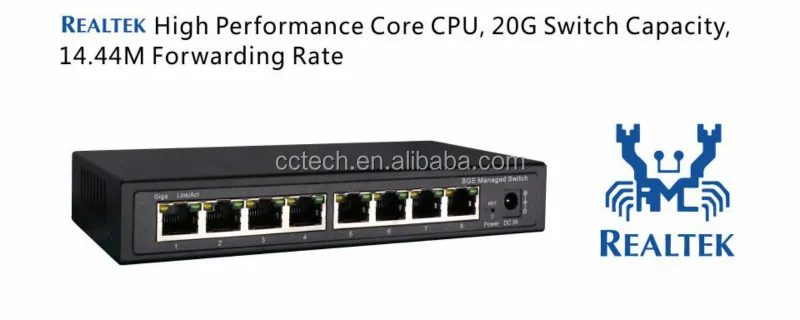

Bandwidth | 20Gbps | ||||||
Packet forwarding | 14.44M | ||||||
Cache | 2.5M | ||||||
Environment | Working temperature: -25℃~75℃ Storage temperature: -40℃~90℃ Working humidity:10%~90%RHNot congealed Storage t humidity 5%~95% RH Not congealed | ||||||

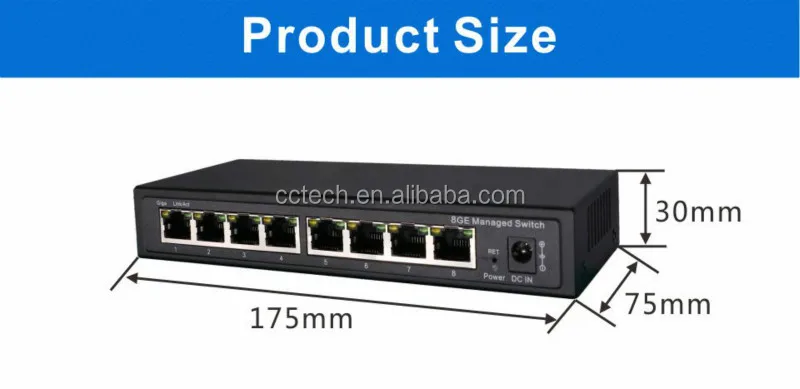

Size | 175*75*30mm | ||||||
Net weight | 0.5kgs | ||||||
Power adapter | 12v 0.5a | ||||||
Power consumption | ≤5W | ||||||
Standard | IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX IEEE 802.3ab, 1000BASE-T IEEE 802.3az IEEE 802.3x, flow control | ||||||
MAC address | 8k | ||||||
VLAN configure | Support port based VLAN Up to 4096 VLAN | ||||||
Port trunking | Support | ||||||
SPAN | Supporting Port Mirroring of the receiving and transmission | ||||||
Loop Guard | Loop protection function, real-time detection, rapid alarm, accurate positioning, intelligent blocking, automatic recovery | ||||||
Isolation | Support downlink ports isolated from each other and communicate with upstream port | ||||||
Flow control | Half duplex based back control Full duplex based on PAUSE frames | ||||||
Line rate | Support port based input/output bandwidth management | ||||||
IGMP | Support | ||||||
Storm suppression | Supporting Unknown Multicast, Unknown Multicast and Broadcast Types storm Suppression | ||||||
Security | Support user port+ IP address+ MAC Security properties of port based MAC address quantities | ||||||
QOS | port queue priority algorithm | ||||||
Port | Auto-MDIX, Auto negotiation | ||||||
Negotiation mode | Port support for automatic negotiation (self-negotiation transmission rate and duplex mode) | ||||||
System maintenance | Upgrade package upload System log view WEB restore factory configuration | ||||||
Network management | Support WEB Interface management | ||||||

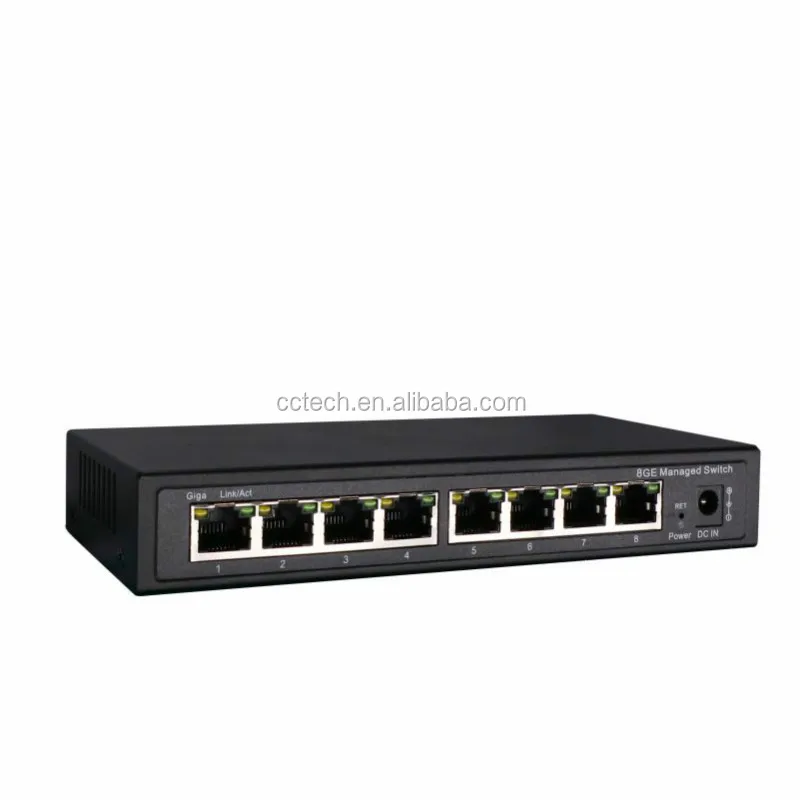

Detailed Images
Packing & Delivery
Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
40pcs/ctn,kraft paper box or OEM package.
FAQ
How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome here.
Is there MOQ limited?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
How long warranty period?
All products offered by CCTECH provides 1 year warranty.
