N type male rf connector for RG213 cable
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (62541019777):
Product Overview
Description

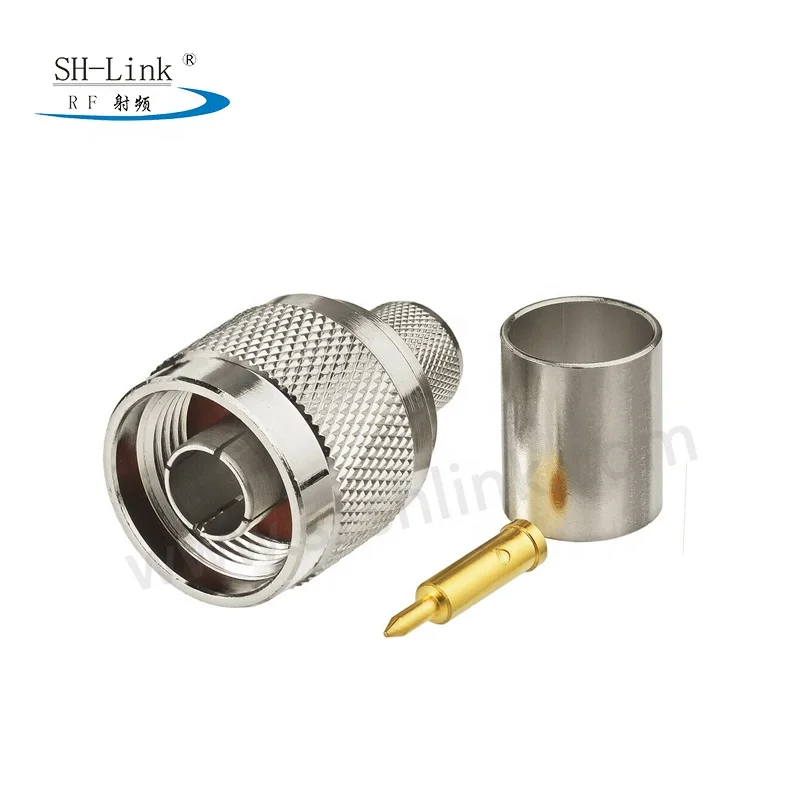

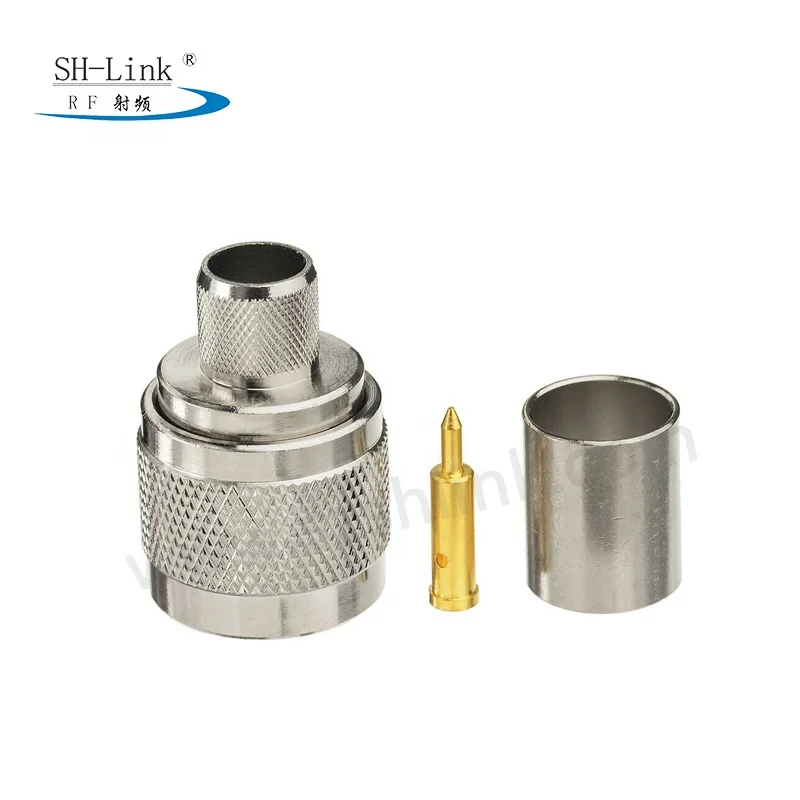

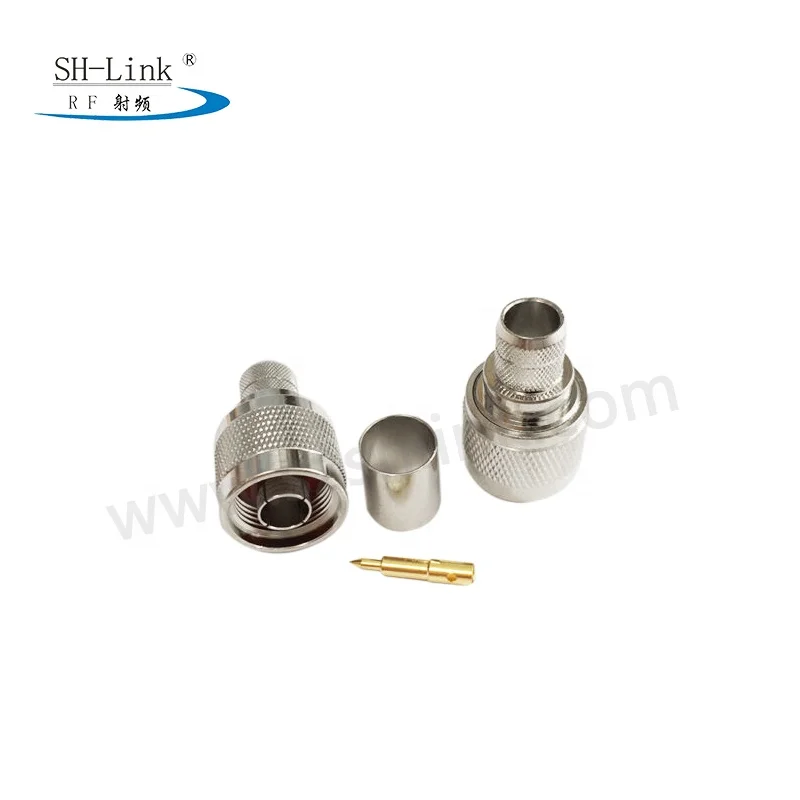

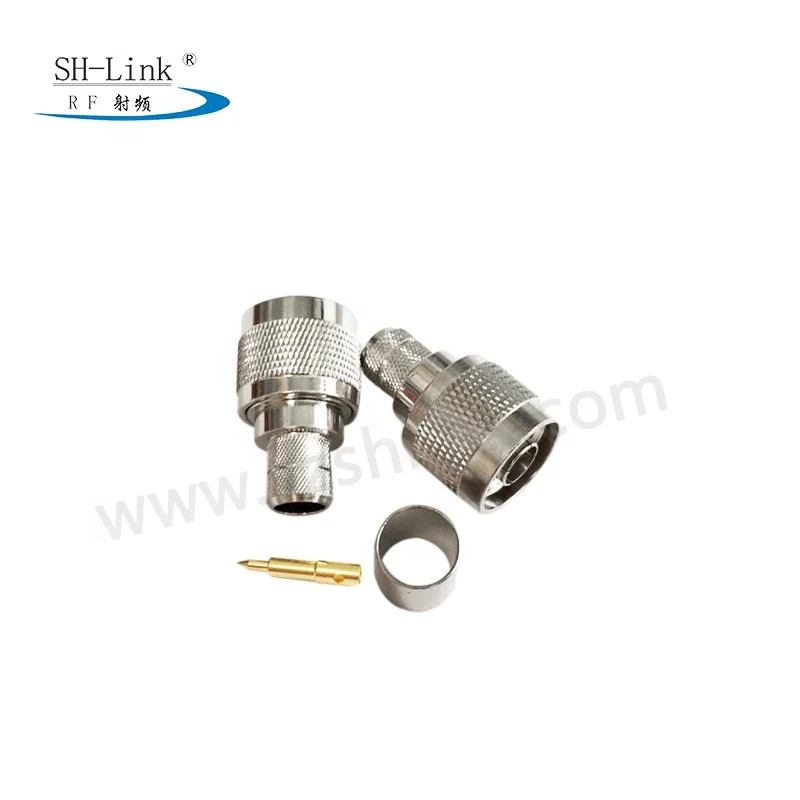

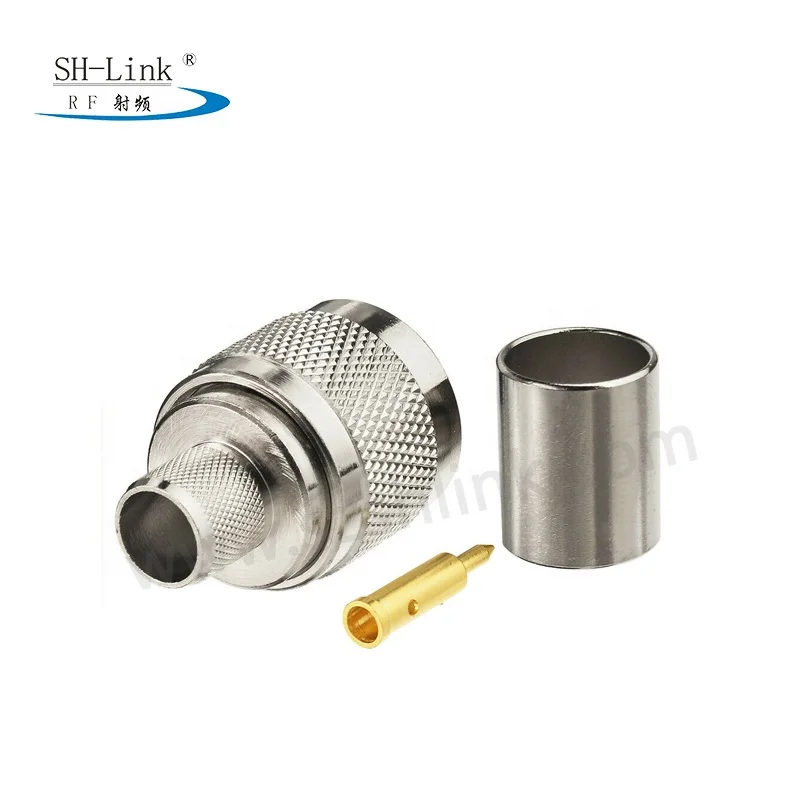

N type male rf connector for RG213 cable
Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connector is high reliability,great vibration performance,excellent mechanical and electrical performance etc.they are used in connection with RF coaxial cable in radio instrument,communication equipment,microwave test and ground launch system at vibration and inclement weather circumstance.By using semi-rigid or semi-flex cable,this type will gain smaller VSWR,and the frequency can by up to 11 GHz.
MAJOR TECHNICAL CHARACTERISTICS
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | ||
| Vibration | 100m/S²(10-500Hz)10g | ||
| Impedance | 50Ω | ||
| Frequency range | DC-11GHz | ||
| Working voltage | 500V r.m.s at sea level | ||
| Withstanding voltage | 2500V r.m.s at sea level | ||
| Contact resistance | |||
| Center contact | ≤1 mΩ | ||
| Outer contact | ≤1 mΩ | ||
| Insulation resistance | ≥5000MΩ | ||
| Center conductor retention force | ≥0.56N | ||
| Insertion loss | ≤0.24dB(6GHz) | ||
| Voltage Standing Wave Ratio | |||
| Straight | ≤1.15/6GHz | ||
| Right angle | ≤1.25/6GHz | ||
| Coupling nut retention force | 450N | ||
| Durability(mating) | ≥500(Cycles) | ||
