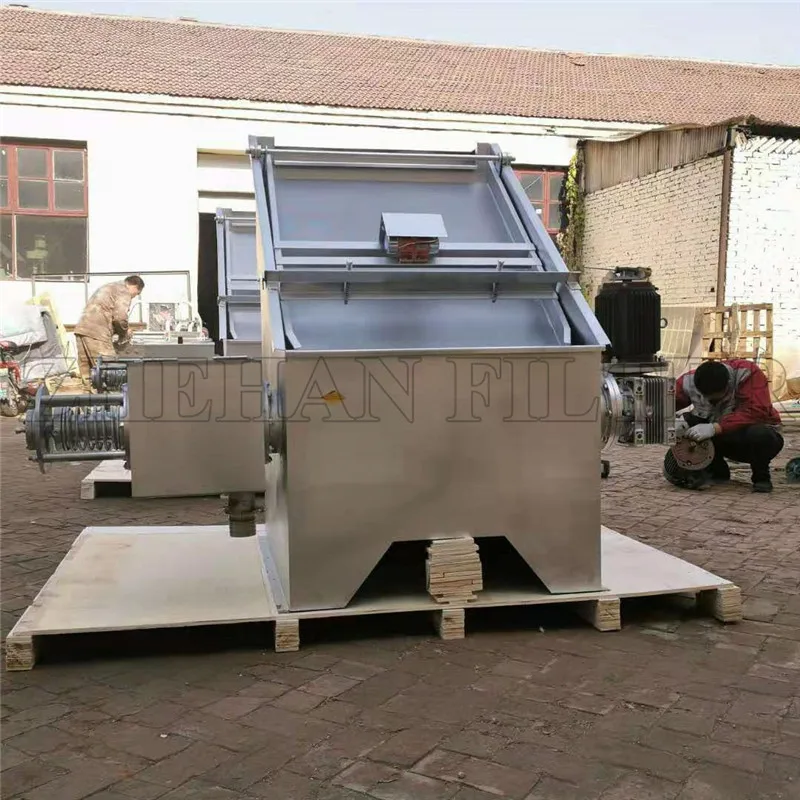

High efficient and energy efficient Screw type sludge dewatering machine used on printing and dyeing mill

The solid liquid separator widely used in reduce water from the materials. Such as animal manure, food residue, sludge, biogas
residue liquid ect. As a chicken, cow, horse and all kinds of intensive farms for animal feces, distillers, dregs, starch dregs,
sauce dregs, slaughtering plant and other high concentration of organic sewage separation.

This machine solve the problems that manure pollutes the environment. And also can produce high economic benefit.

Product feature:

This series of solid-liquid separator has been developed by our company after repeating trials, tests and continuous improvement.

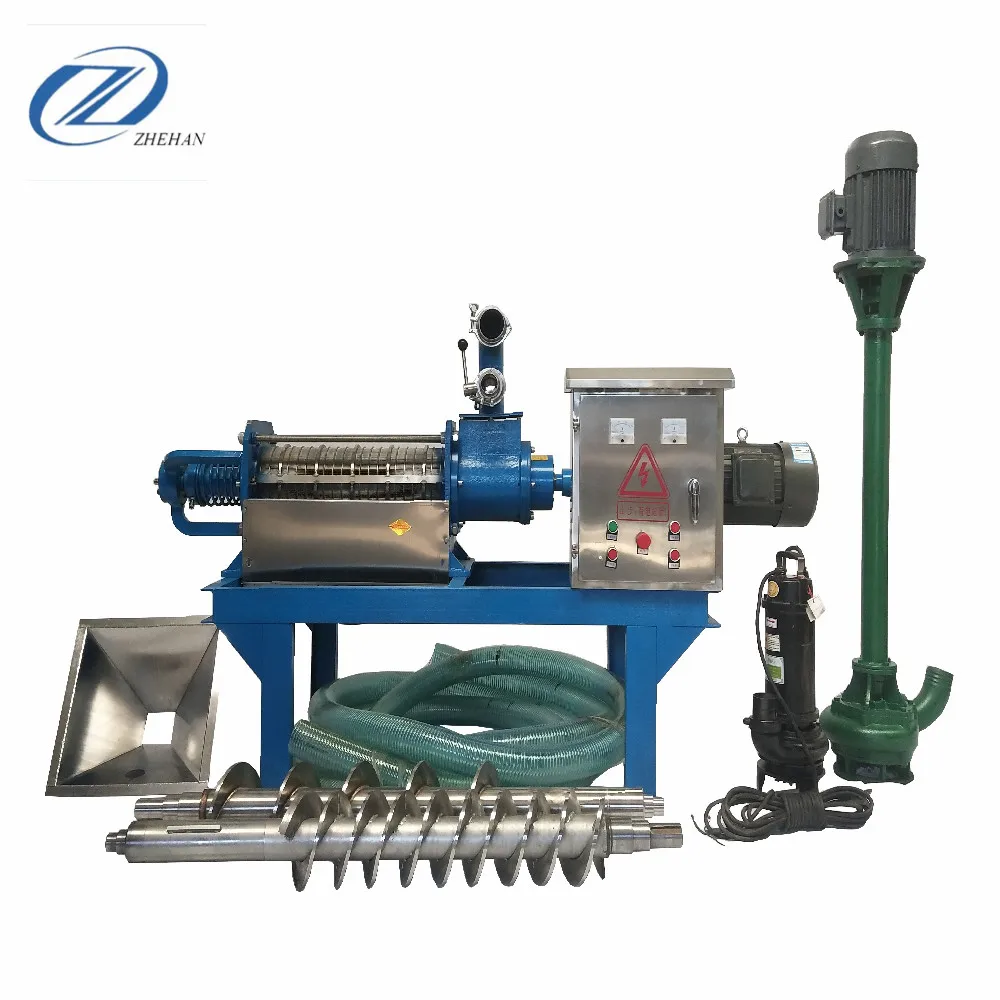

The machine is mainly composed of screw extruder and submerged non-blocking pump. The machine has the characteristics of
reasonable design structure, reliable performance, simple operation, good separation effect and convenient maintenance, etc.

Econimic benefit:
1. Solid excrement after separation is conducive to transportation and higher price for sale.
2. After the separation, the excrement is mixed into the grass bran to stir well, it can be made into compound organic fertilizer
after granulation.
3. The separated excrement can be directly used to improve soil quality, and it can also be used to breed earthworms, grow
mushrooms and feed fish.
4. The separated liquid can directly enter the biogas pool, the biogas production efficiency is higher, and the biogas pool will
not be blocked to prolong the service life.

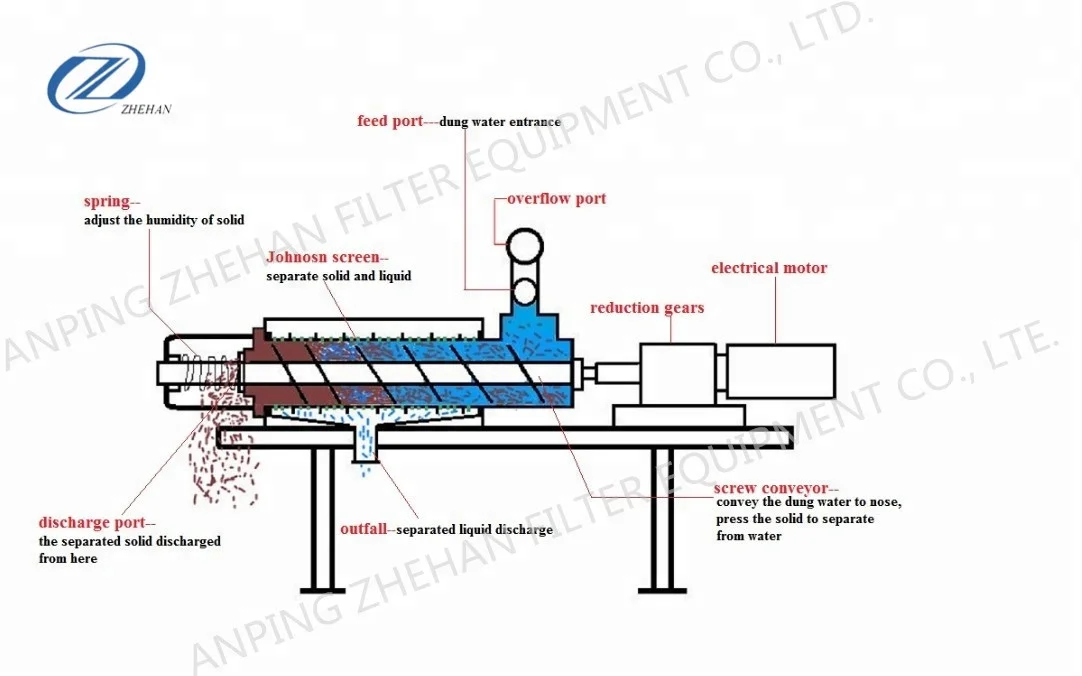

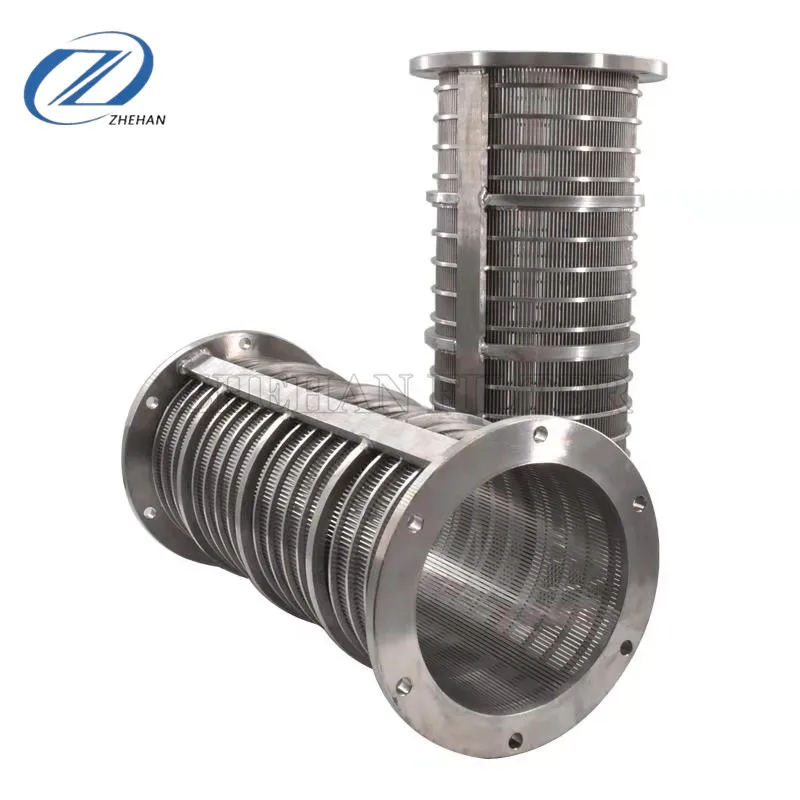

The solid-liquid separator use pump conveying the dung water to the host, the host spiral squeezing dung water under dynamic drive, pushed the dung water into the screen body, constantly push discharge port, the more material, the pressure is higher of the front end. With the increasing pressure of screen body, fibrous solid by screening out and push to discharge port, when the extrusion pressure is big enough, the liquid will be squeezed and separation from the solid, through the discharge outlet, the separated solid material would be squeezed and out from the discharge port.
The solid liquid separator is continuous, dung water into the screen body unceasingly, host front filter layer piled up, mounting pressure, when pressure is big enough, the discharge port open baffle, solid is out machine.
