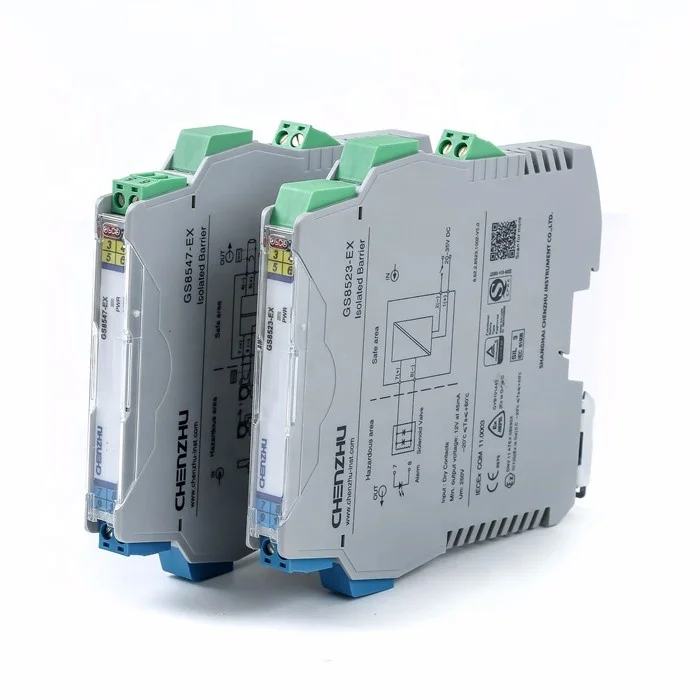

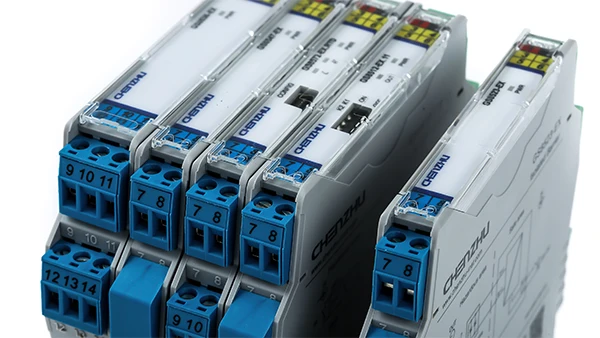

CHENZHU GS8535 EX isolated barrier TUV SIL2 analog input isolated barrier 1 input 2 outputs intrinsic safety barrier
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (62541230429):
Product Overview
Description
Product Description
Product Application
Intrinsically Safe Isolator: 2-wire HART transmitter, 3-wire transmitter, current source input isolated barrier(1 input, 2
outputs), provide isolated dc supplies for transmitters which located in hazardous area. Transfer 4~20mA signal(or current source signal) which generated by the transmitter form hazardous area to safe area separately, also allows bi–directional transmission of HART communication signals . The product needs an independent power supply.Input circuit,output circuit and power supply are each galvanically isolated
Technichal Data | ||||||
Basic Parameter | Number of channels | 1input/2outputs | ||||
Temperature drift | 0.005%F.S./℃ | |||||
Response time | ms | Reach 90% of final value in 2ms | ||||
Security Data | Input signal | 0-20mA, 4-20mA, HART | ||||
Output signal | 0-20mA, 4-20mA, HART, 0-5V, 1-5V | |||||
Supply voltage(Ue) | DC | 20~35V DC | ||||
Other | Power protection | Reverse protection of power supply | ||||
Power supply mode | Independent power supply | |||||
Dimensions | D*H*W | 118.9*106*12.5 mm | ||||
Main Features:
1) G3 Coating
2) 3-way isolation with max.dielectric strength≥4000V AC

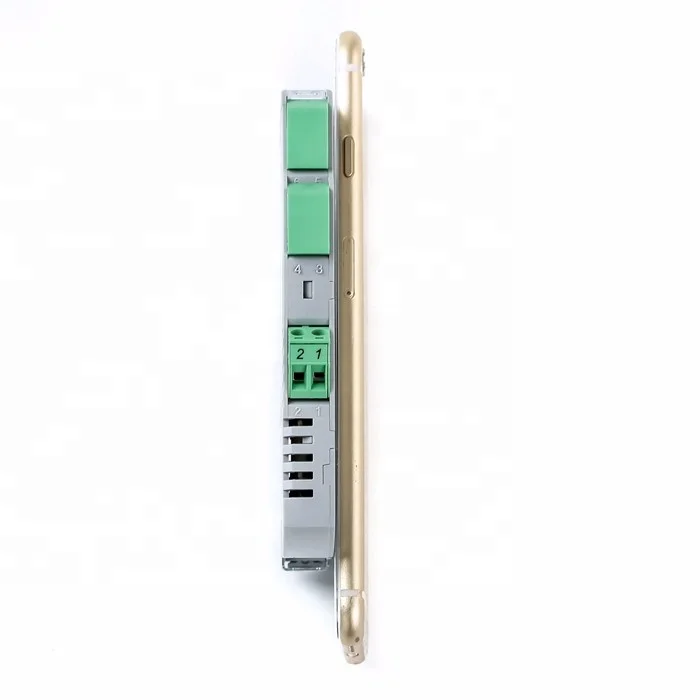

3) Ultra-thin structure with low power dissipation design 0.05%F.S.
4) Housing protection level (IEC 60529): IP20
5) Easy install DIN35mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 5 years warranty.
* Professional training.
* Fast respone.
Packing & Delivery
Unit Packaging | ||
Size | 140(L) * 115 (W) * 12.5 (D) mm | |
Net Weight | 0.4 KG | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Outer Packaging | ||
Size | 170 (L) * 145 (W) * 130 (D) mm | |
Carton Weight | 0.05 Kg | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Our Factory
Max capability of production reached to 1,000,000 pcs/year
Our factory created a versatlie smart production approach through system integation and establishment of information network in order to offer customer reliable, high efficiency, and high quality products.
Our Laboratory
FAQ
Q: What information should I provide before order?
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
