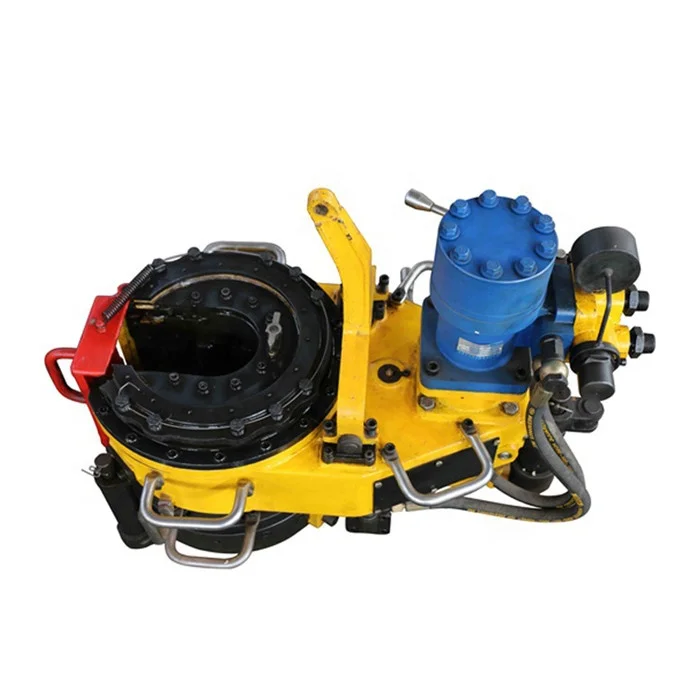

XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong
XQ series hydraulic tubing power tong

XQ series hydraulic tubing power tong

Share on (62541302803):


Price:

Quantity:


Product Overview

Description


Product Description

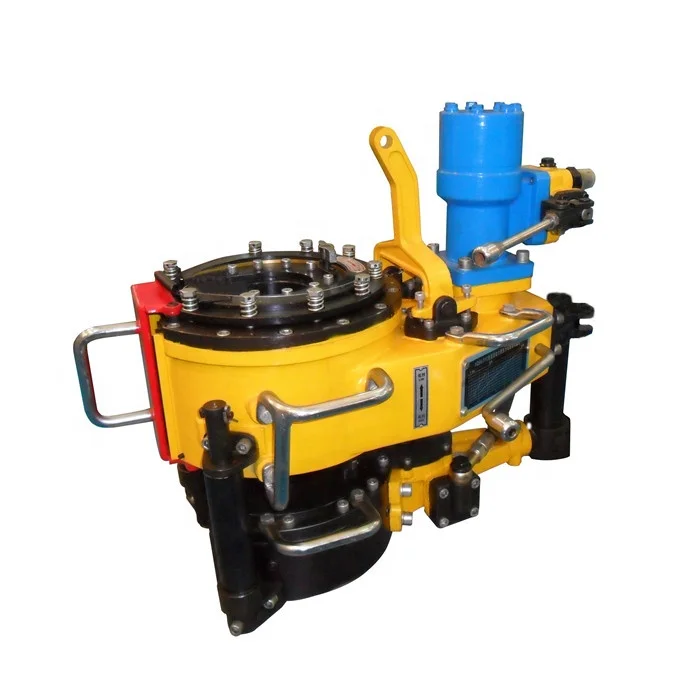

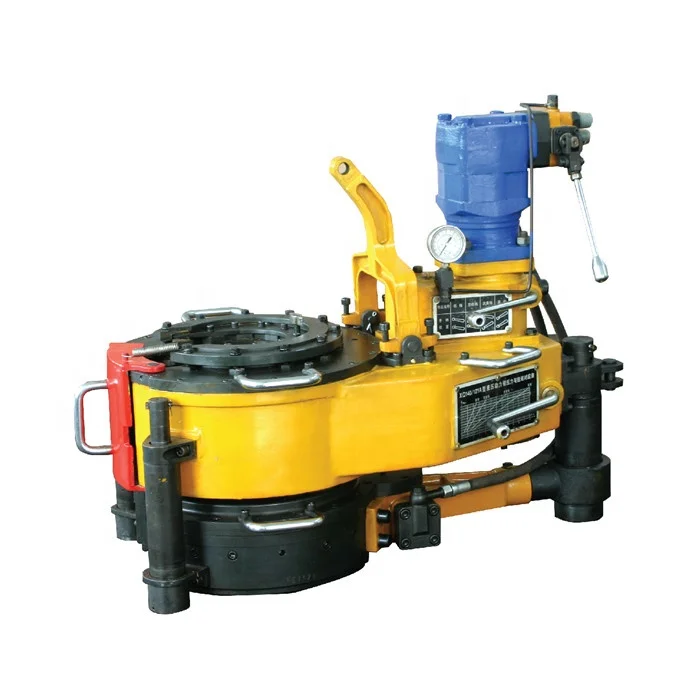

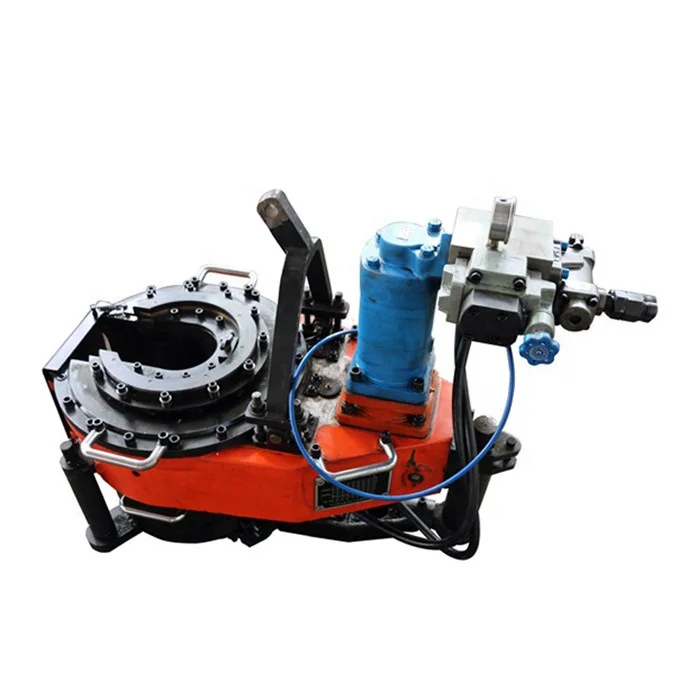

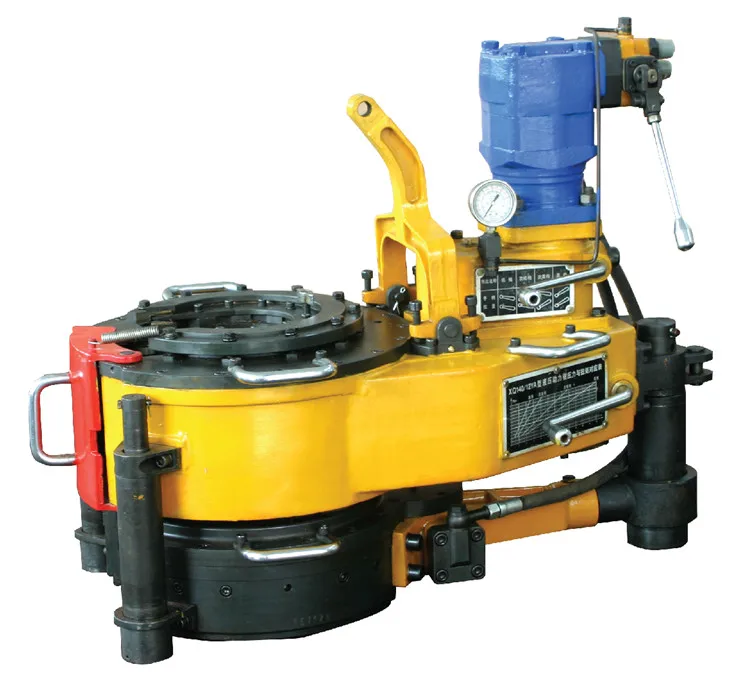

XQ series hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

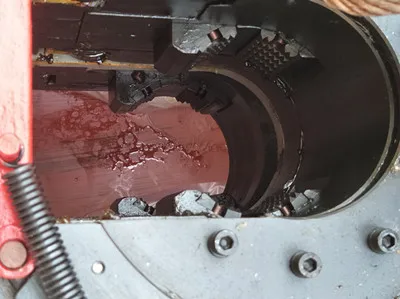

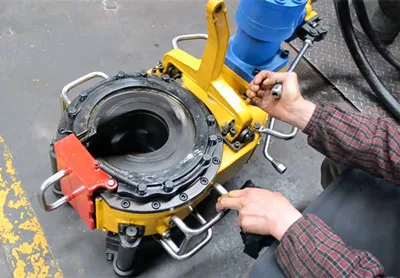

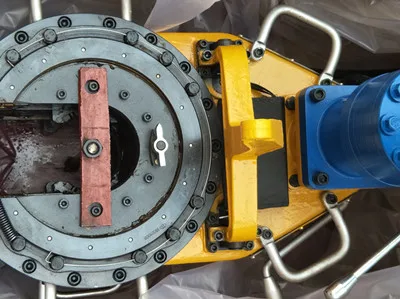

The master tongs and backup tongs will work together if workers operate the manual reversing valve. Both the master tongs and backup tongs adopt two-way clamping mechanism of the internal curved surface roller grade climbing to clamp the tubing. Their structure are simple but reliable. The master tongs are equipped with automatic safety-gates which have functions of safety and protection. The tongs have torque control systems.
It can equip bilateral sequence control apparatus that is specialized in tubing tong according to the need, so it can realize that the backup tong clamps the tubing tong in advance of master tong sand it is more reliable and safer to make up or break out tubing.
Model


XQ89/3Y3YC
XQ114/6YB
XQ140/12Y
XQ140/12Y-T
Applicable range main tong

mm
60-89
60-114
60-140
48-140


in
23/8~31/2
23/8~41/2
23/8~51/2
1.9~51/2
Applicable range backup tong

mm
60-114
73-141.5
73-156
60-156


in
27/8~41/8
27/8~51/8
27/8~61/8
23/8~61/8
Hi-gear rated tofque

kN.m
1100
1500
2600
2600


ft.lbf
811
1106
1918
1918
Lo-gear rated tofque

kN.m
3300
6000
12000
12000


ft.lbf
2213
4425
8851
8851
Ratek Speed
High gear
rpm
90
85
72
72

Low gear
rpm
30
20
14
14
Rated pressure

MPa
10
11
12
12


psi
1450
1595
1740
1740
Max.oil supply

L/min
80
100
120
120


gpm
21
26
32
32
Size

mm
650x430x550
750x500x600
1024x582x539
1050x620x900


in
25.6x16.9x21.7
29.5x19.7x23.6
40.3x22.9x21.2
41.3x24.4x35.4
Weight

kg
158
220
480
480


lb
348
485
1060
1060
Packing&Shipping

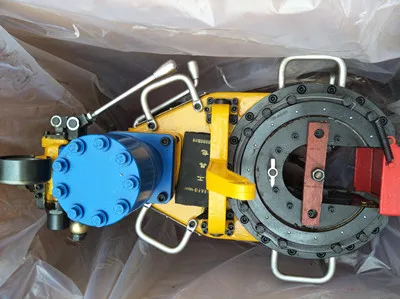

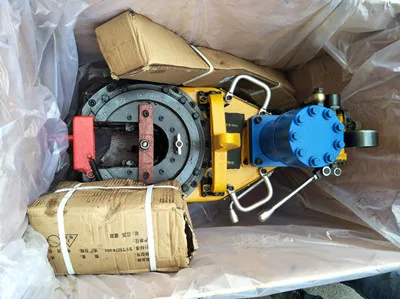

The power tong will be packed in plywood wooden box.
Goods will be delivered by sea, train, truck, etc.

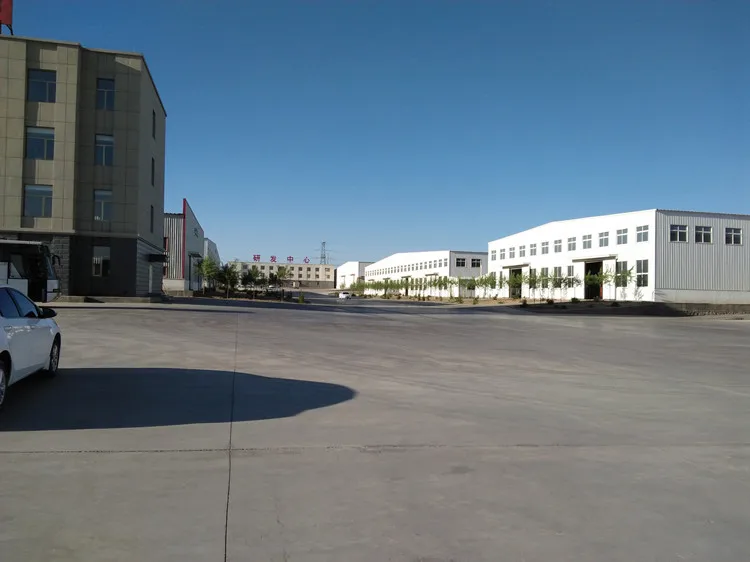

Company Introduction
Our main products include welllhead tools: XQ tubing tong, ZQ drill pipe tong, TQ casing tong, WSXQ power tong, WSTQ casing tong, YNJ tubing make-up & break-out unit, YNJ casing make-up & break-out unit, YD160 hydraulic unit, etc. Our products sell well both in domestic oilfields and Europe, Russia, America, southeast Asia, the Middle East and so on, enjoying a good reputation among customers.
Our Services & Strength
XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
FAQ
1. Are the power tongs in stock?
A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the power tongs according to my requirements?
A: Yes, we can produce power tongs as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?
Welcome to our company any time you like.
