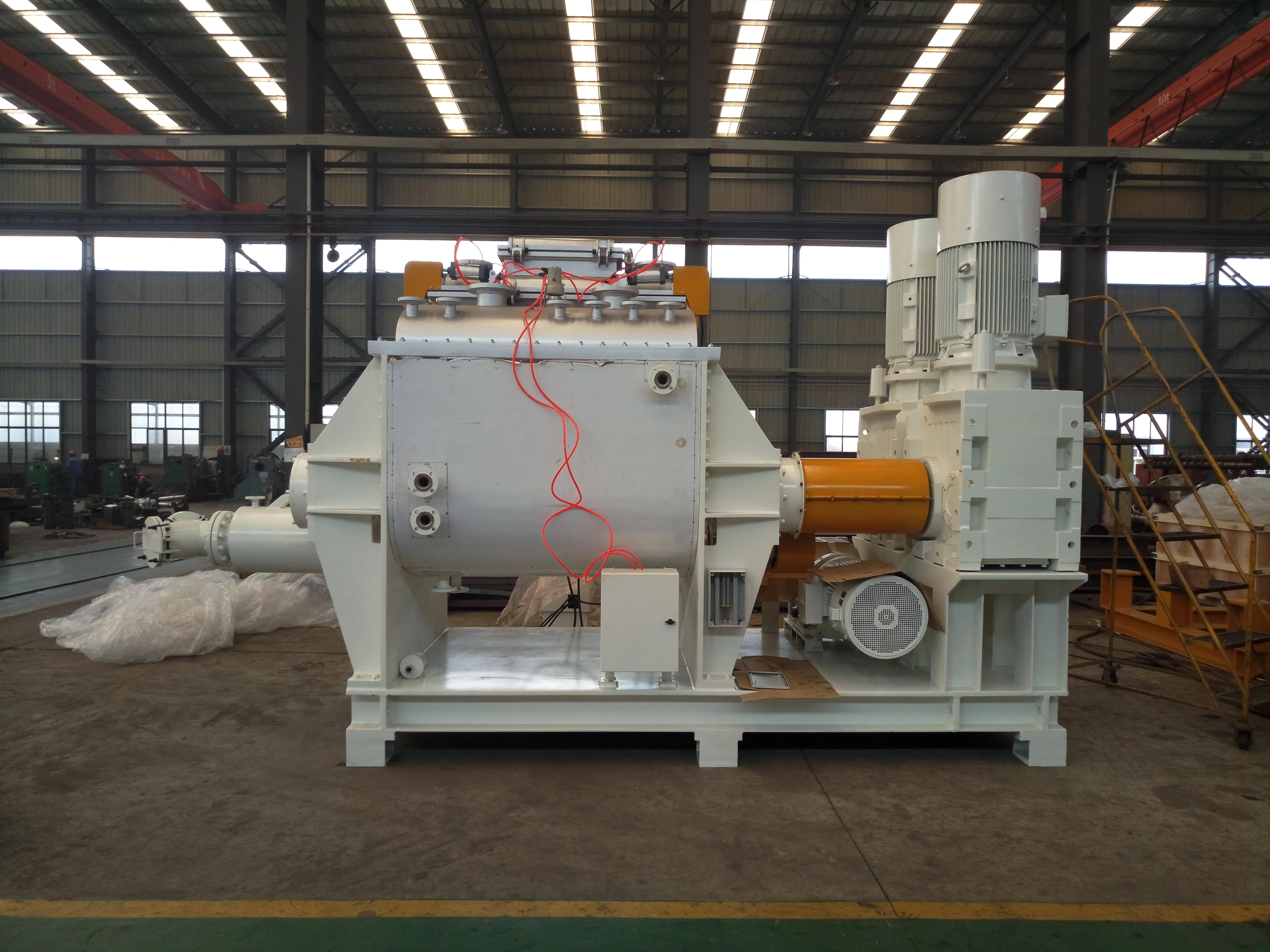

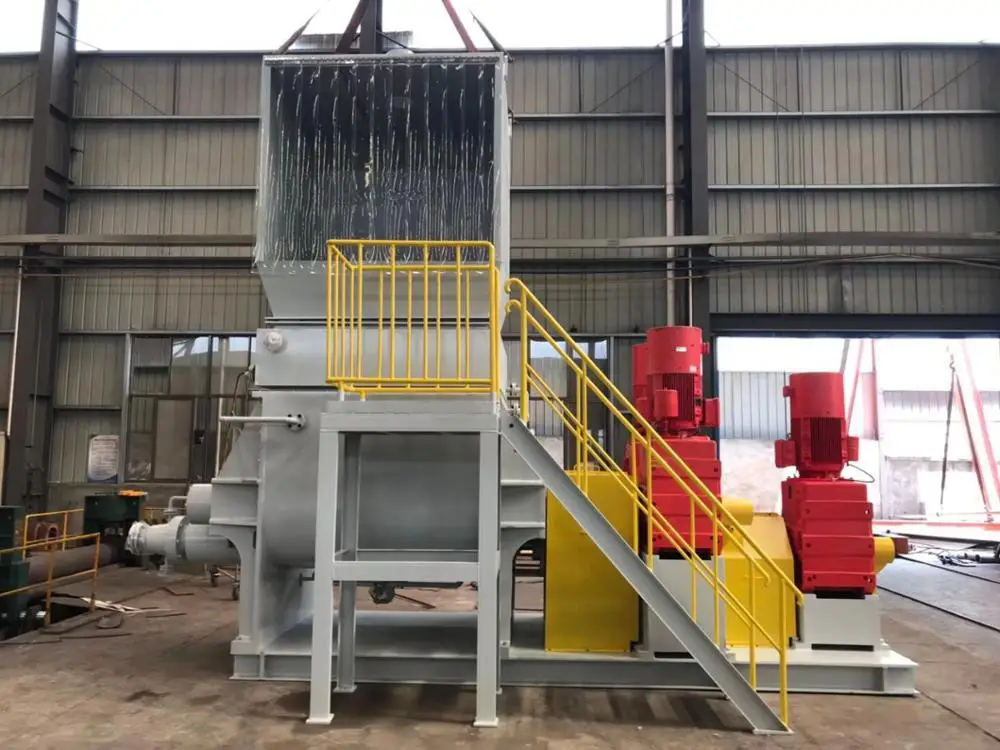

CMC/BMC/SMC Screw Discharging Kneader

Product Overview

Description

Mainly used in ink silion rubber, plasti, pencils,heat shrinkable material,paints,mosquitcoils,carbon graphite.oil,gum base,various viscosity of CMC,modified starch,BMC,SMC,composit manholecover,pharmaceuticals industry etc.Agitator and the part contact with material is made of stainless steel,whichcould corrosion-resistant and non-rust,also ensure the material chemical properties. Bearing support usesself-aligning bearing with the feature of no movement along shaft .

Type	Volume/L	Electrical power/kw	Power/kw	Steam/Mpa	Speed/rpm
NHL-5L	5	0.75-1.5	0.15	0.3	N1=59,N2=35
NHL-40L	40	2.2-5.5	3	0.3	N1=59,N2=35
NHL-100L	100	4-11	4	0.3	N1=40,N2=21
NHL-300L	300	11-22	8	0.3	N1=40,N2=21
NHL-500L	500	15-30	16	0.3	N1=36,N2=21
NHL-1000L	1000	18.5-55	24	0.3	N1=33,N2=22
NHL-1500L	1500	22-55	36	0.3	N1=38,N2=21
NHL-2000L	2000	37-75	48	0.3	N1=25,N2=17
NHL-3000L	3000	45-90	60	0.3	N1=25,N2=18
NHL-4000L	4000	55-110	66	0.3	N1=33,N2=20
NHL-5000L	5000	90-132		0.3	N1=36,N2=21
