Fuel Dispenser Gas Station M2 Series CMD1687SK G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE
Fuel Dispenser Gas Station M2 Series CMD1687SK-G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE
Fuel Dispenser Gas Station M2 Series CMD1687SK-G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE
Fuel Dispenser Gas Station M2 Series CMD1687SK-G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE
Fuel Dispenser Gas Station M2 Series CMD1687SK-G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE

Fuel Dispenser Gas Station M2 Series CMD1687SK G Oil Filling ATEX,MID HONGYANG Requirements CN;ZHE

Share on (62541518700):


Price:$850.00

Quantity:


Product Overview

Description

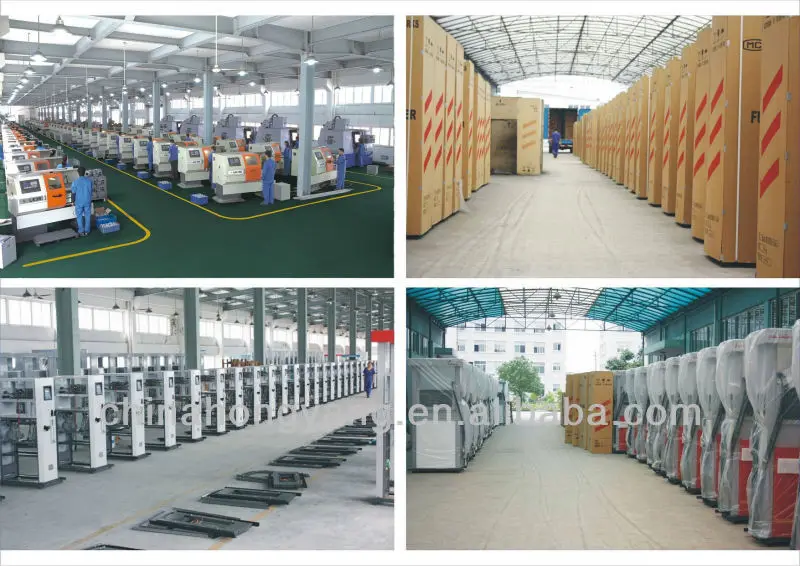

11.jpgHONGYANG Certificate.JPG



Specifications:
fuel dispenserM2 Series CMD1687SK-G
PumpTypeOptional
Inlet Pressure≥54kPa.
Flow rate (L/min.)55±5
Suction Distance (m)6(verticalmente) / 50(orizzontalmente)
FlowMeterTypeOptional
Accuracy±0.2%
MotorVoltage(V)110V/220V/380V,50Hz/60Hz
Capacity(hp)1HP(0.75kw)
Input Voltage110V/220V/380V,50Hz/60Hz
NozzleAuto Shut-off Nozzle
Environmental Condition-40°C~~+55°C
Control TypeSolenold Vale Control Type
PresetFunction Provided(Small LCDIndicator)
Display(Counter)TypeLCD and Bright Backlight
Digit of Volume0~~999,999(6 Digits),Decimal point can be changed
Digit of Amount0~~999,999(6 Digits),Decimal point can be changed
Digit of Unit price0~~9999(4 Digits),Decimal point can be changed
Digit of Total Range0~~99,999,999,99
Optional DisplayTypeLCD and Bright Backlight
Digit of Volume0~~99,999,999(8 Digits),Decimal point can be changed
Digit of Amount0~~99,999,999(8 Digits),Decimal point can be changed
Digit of Unit price0~~999999(6 Digits),Decimal point can be changed
Digit of Total Range0~~99,999,999,99
Totalizer1~~9,999,999
Hose4.5m
Weight205kg
Dimension(L×W×H)1060*550*1620(mm)
Dimension(L×W×H)Of Qty of Container40ft: 44     20ft: 22
