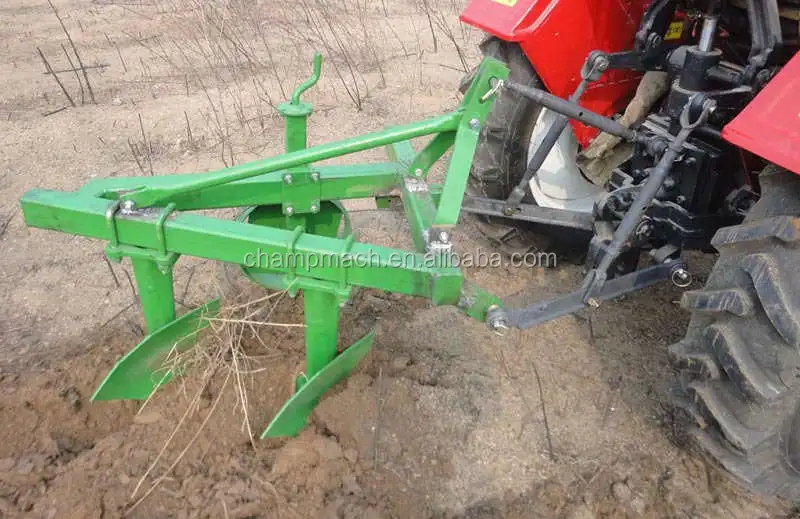

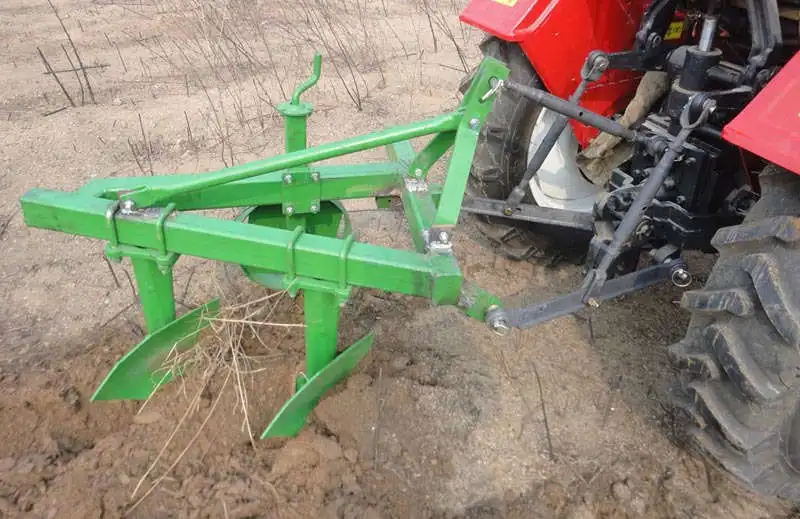

1.1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam, the sand loam , cultivated and dry land.
2..This tractor farm plow has good efficiency
3.The mouldboard plow is in simple adjustment,has Wide scope of application
4.The width of plow share could be 20cm,25cm,30cm,35cm.
5.Material of plough tip is 65Mn steel
6.Working depth could be adjusted

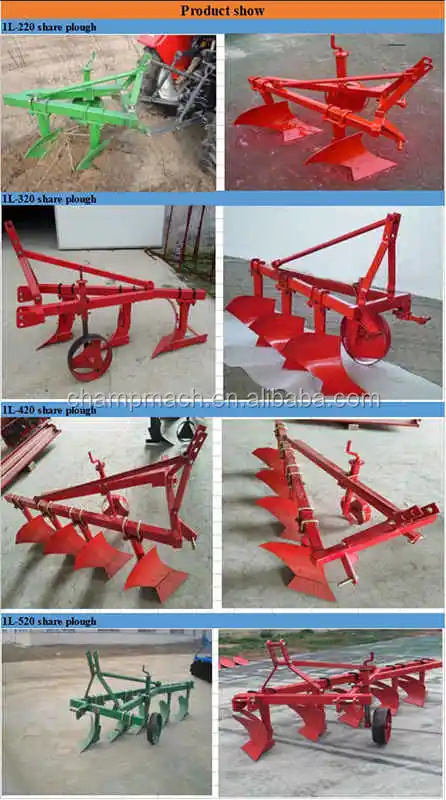

| Model | 1L-220 | 1L-320 | 1L-420 | 1L-520 | 1L-225 | 1L-325 | 1L-425 | 1L-525 | |
| Working width | mm | 400 | 600 | 800 | 1000 | 500 | 750 | 1000 | 1250 |
| Working depth | mm | 200~250 | |||||||
| Number of bottoms | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 | |
| Total weight | kg | 64 | 100 | 130 | 170 | 125 | 170 | 240 | 270 |
| Matched power | hp | 15~25 | 25~35 | 35~45 | 50~60 | 25 | 40 | 50 | 65 |
| Linkage | Three-point I suspension type | ||||||||
