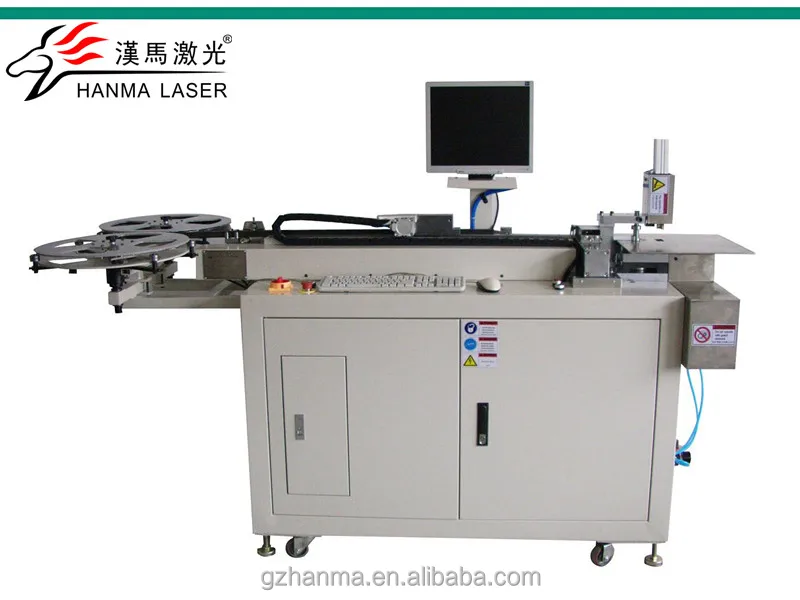

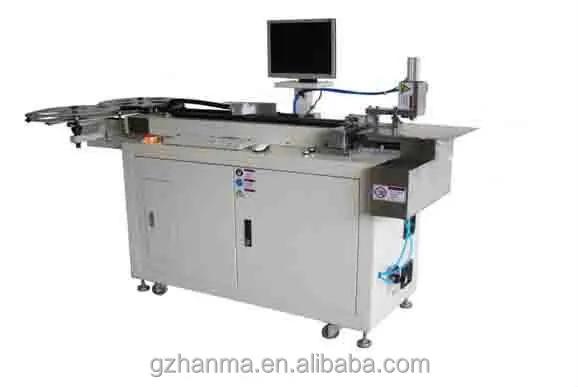

Excellent design Auto GBC330F 0.71mm steel Knife Bending Machine for die cutting/acrylic Bender Machine

Product Overview

Description

  GBC330F Auto 0.71mm steel bar bender Machine/Knife Bending Machine for die cutting/acrylic Bender Machine











Model:GBC330F



Parameter	Steel Rules Thickness(mm)
	0.45	0.53		0.71		1.07
Steel Rules Height(mm)	8-25	8-25		8-32		32
Max. Angle	110º	110º		100º		90º
Min. Arc 90º Radium (mm)	0.5	0.7		1.0		1.5
Min. Foreside Bending Length (mm)	1.5	1.5		1.8		2.5
Min. Rearward Cutting Length (mm)	1.0	1.0		1.5		2.0
Feed-in Accuracy	±0.03mm
Straight Cutting	Swaying off or Automatic Straight-cut
Bridges	Automatic Bridge Marking
Broaching	Automatic Sharp Broaching
File Format	dxf,wd
Weight	480kg		(mm) Size		2650×1200×990
Power Requirements	110V/220V Single-Phase 50/60Hz		Air Pressure		5-7kgf/cm2
Power	2.5kw		Computer Collocate		P4,1G,17″LCD
Outfit Dies	1. 0.53,0.71 Two sets of Bending Mould 2. One set of Straight Cutting Mould 3. One set of Sharp Broaching Mould 4. Two sets of Bridge Marking Mould







  GBC330F Steel Wire Steel Rule Bending /Knife Bending Machine/ Strip Bending Machine/ Steel Rule Bending Machine





1:Fixed optical(laser head fixed,plate movement)

2: The two sides of the import of precise ball screw driving(More accurate than the general accuracy), Error of 0.05mm Precision Electronic Die cutter

3:It can cut the thinkness 18-22mm one time  ,absolutely straight and uniform ,the cutting speed is 0.5 mm/per min,can finish one colourful box with half and hour.

4: Low power consumption,low cost, 220 one-way electric, 3 kWh / hr (300W power models),the type of 700w consumes 10/one hour

5:stability of high-strength machine,,about one ton,cant distort and contort for long work.

6:unnecessary to use assistant gas during the work(type of 300w),the type of 700w will consume gas around 2000RMB/year

7:Can immeditately to use once start-up the computers,Dont need to wait power shoutdown to save time and consuptions.

8:It is easy to operate dimming focus,and can be operate after easy traning.





















Quality / after sale insurance

- All machine will be quality test by CE standard before delivery

- reply No later than 24 hours when received the client's Email ,and give out the solution No later than 24 hours also.



Delivery & Packing - PACKING: Standard Packing for Exporting. - TIME OF SHIPMENT: Within 30 days After the Seller receives full T/T payment
