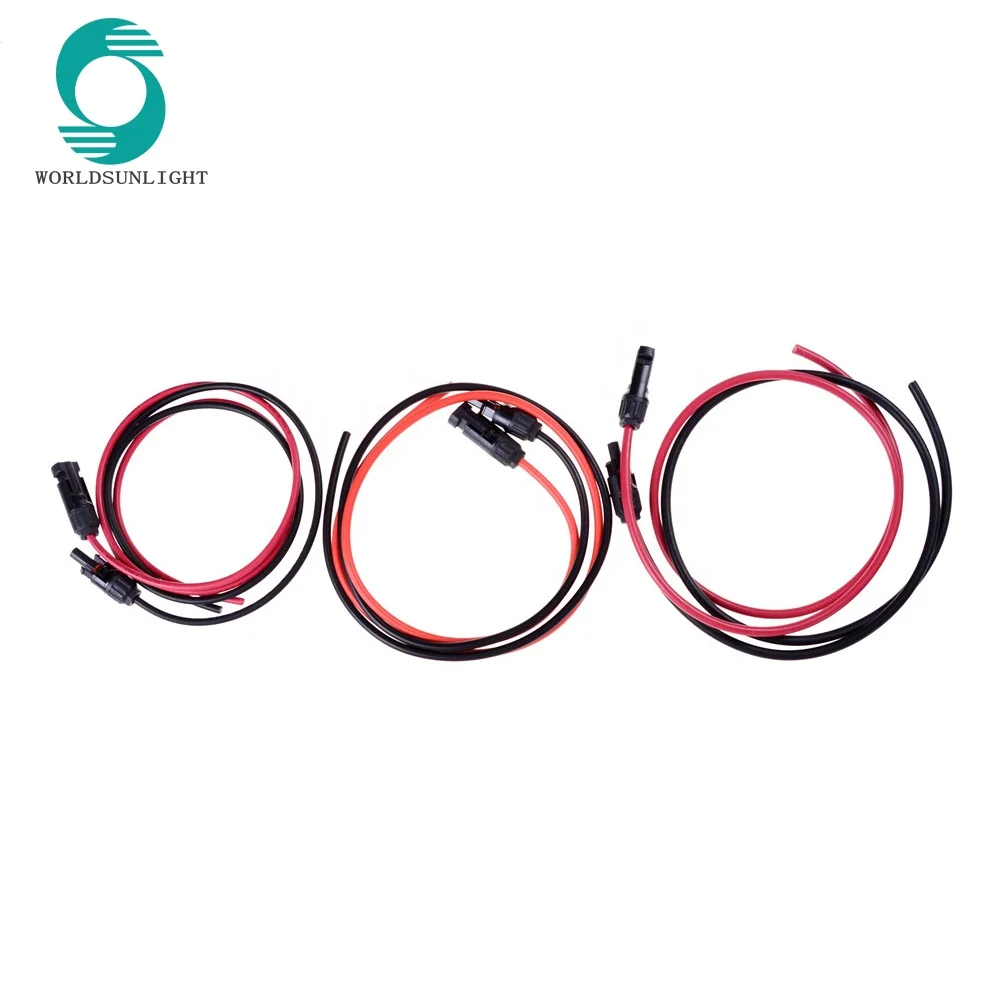

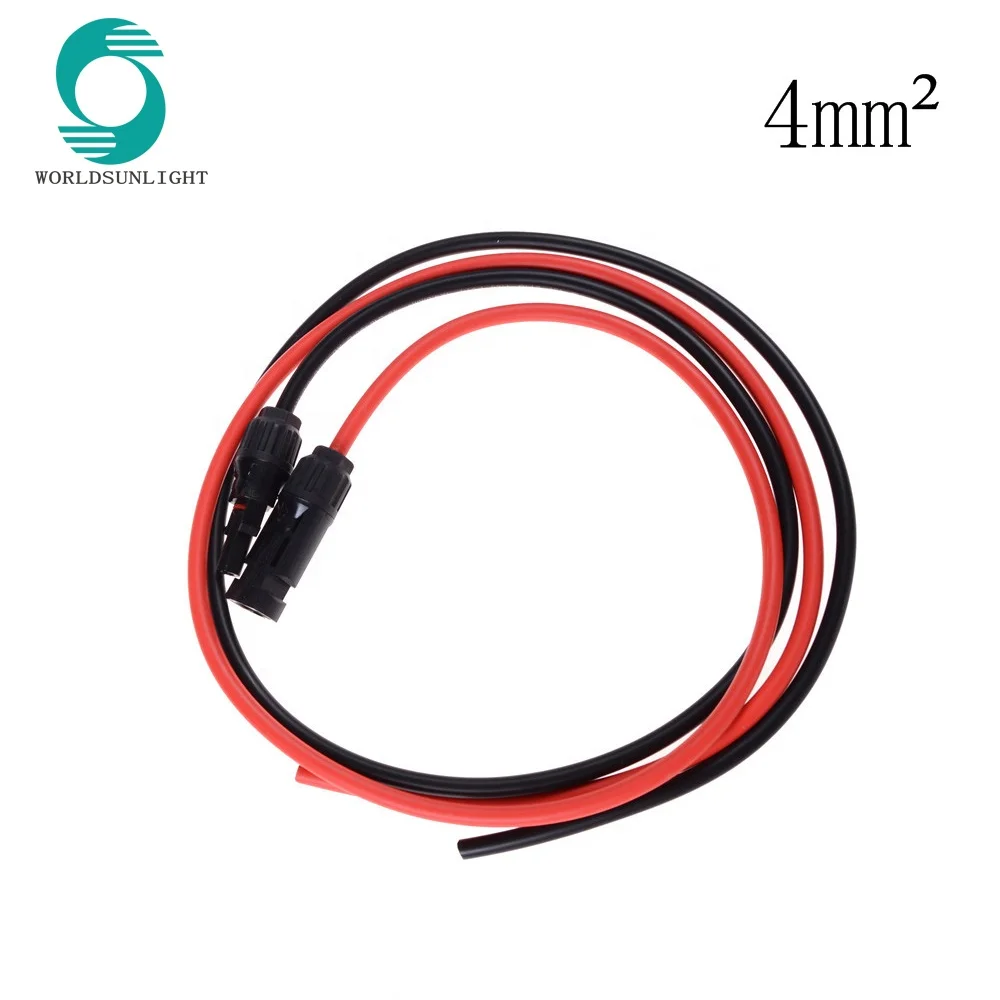

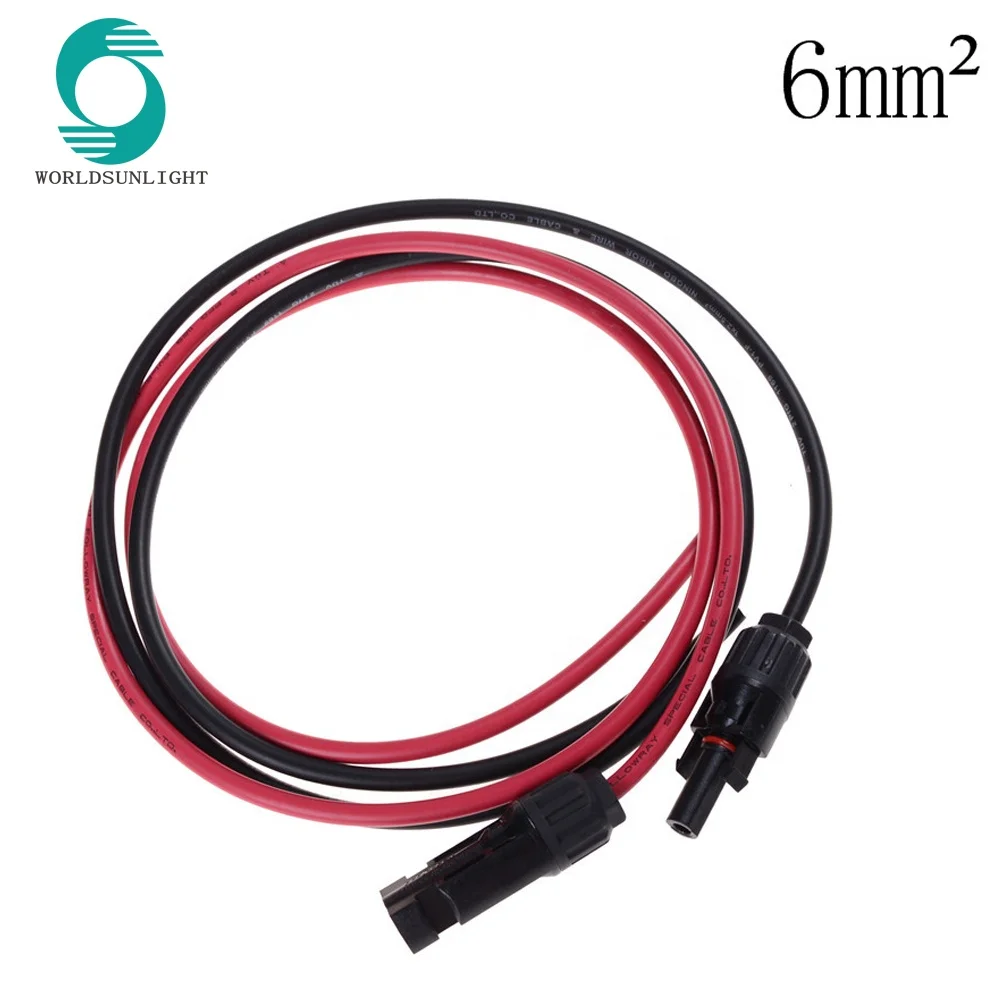

Solar PV Cable 12 AWG 4mm2 with solar connector Tinned Copper Conductor TUV approved XLPE insulation solar cable wire
- Category: >>>
- Supplier: Yueqing Xianglang Electric Co. Ltd.
Share on (62541667376):
Product Overview
Description
Product Description
SOLAR Cable Specification:
Conductor: Stranded Tinned Copper
Insulation: Halogen Free Crosslinked Polyolefin
Sheath: Halogen Free Crosslinked Polyolefin

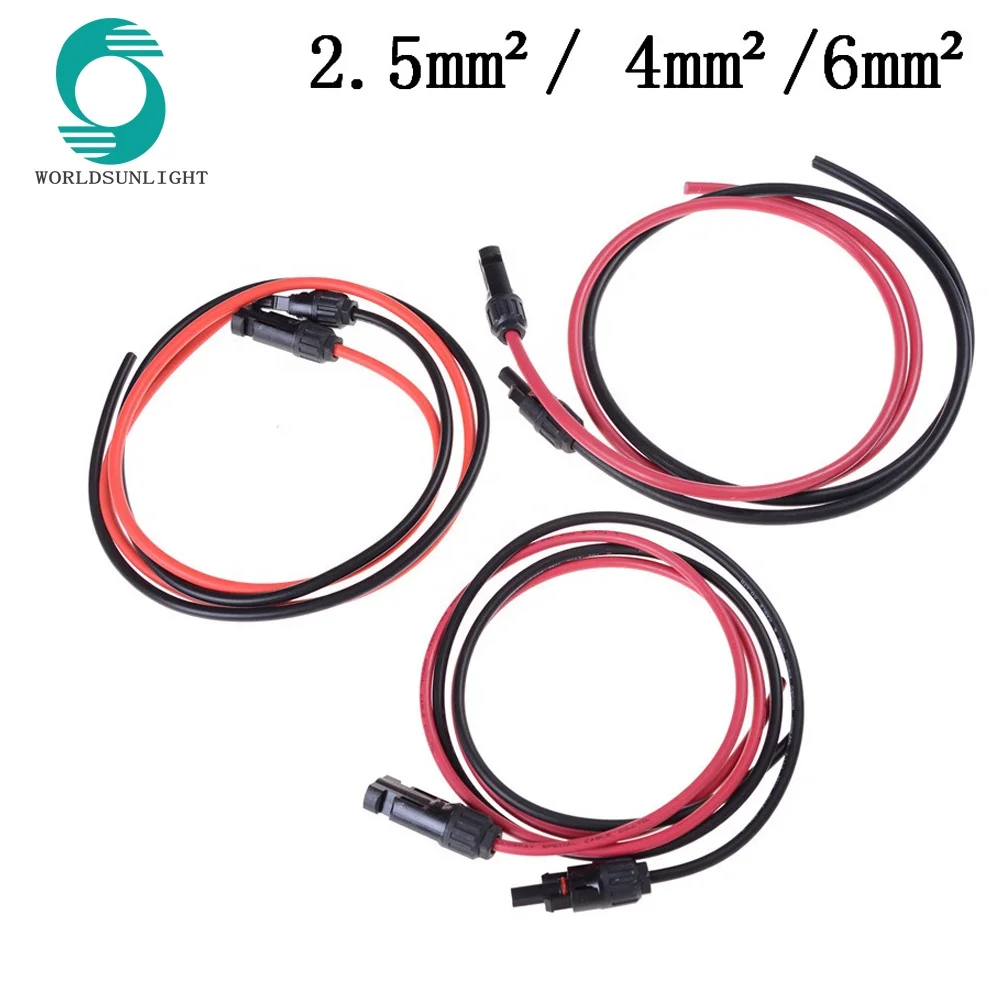

Nominal Cross-Section:2.5, 4.0, 6.0mm2
Rated Temperature: -40~﹢90℃
Rated Voltage DC: 1/1.8kV
Rated Voltage AC: 0.6kV
Rated Current: 33~57a
Weathering Resistance: Sun Res.
Burning Behavior: (IEC60332-1)
Black Cable Connector: Male
Red Cable Connector: Female
SOLAR CONNECTOR Specification:
Item | SOLAR CONNECTOR |
Model Number | WSPVCC |
Test Voltage | 1000V DC |
Overvoltage Type/Pollution Degree | 6000V(50Hz, 1min) |
Contact Resistance Of Plug Connector | CAT III /2 |
Contact Resistance Of Plug Connector | ImΩ |
Contact Material | Copper, Tin-plated |
Insulation Material | PPO |
Degree Of Protection | IP2X/IP67 |
Flame Class | UL94-VO |
Safety Class | II |
Suitable Cable | OD 4.5-8.5(2.5-6.0mm2) |
Insertion Force/Withdrawal Force | ≤ 50N/ ≥ 50N |
Connecting System | Crimp connection |
Temperature Range | -40℃ ~ +125℃ |
Detailed Images
How to connect?
Our service
Quick reply
Average response time 2.75 hours
Quick delivery
1000 PCS＜7 Day
Photography service
Free photos and videos of your products
Production visualization
Synchronize the progress of your product production for you
Barrier-free communication
English major level 8 to improve communication efficiency
After-sales service
Two-year warranty and timely communication
Certifications
Company Profile
Yueqing Xianglang Electric Co., Ltd., with over a decade of experience in the solar accessories industry, has been dedicated tothe manufacturing and R&D of solar products. With a factory spanning 10,700 square meters, the company's annual output exceeds US$20 million. Specializing in miniature circuit breakers, SPDs, fuses, solar connectors, distribution boxes, and combiner boxes,the company boasts CE, TUV, IEC, and ISO9001 certifications. Each product undergoes stringent quality control and testing. With over 10,000 project experiences, Yueqing Xianglang Electric Co., Ltd. has earned a reputation for high-quality products,competitive pricing, prompt delivery, and exceptional after-sales service. We look forward to a long-term partnership and mutual growth with you.
31 automated injection molding machines
15 solar connector automatic assembly machines
7 production lines and 125 employees
4200m2 of inventory warehouse
Global Exhibition
Welcome to our factory to learn more
Shipment
SOLAR CONNECTOR Packing Details:
500 PAIRS PER CARTON: 500 pairs per carton/54*26*22cm/11.6kg
SOLAR CONNECTOR Delivery Time:
1-10 days after confirming order,detail delivery date should be decided according to production season and order quantity.
SOLAR CONNECTOR Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Feedback from Customers
FAQ
Q: If I'm interested in your SOLAR CONNECTOR when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your SOLAR CONNECTOR quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 10 days.
Q:How's the warranty period for your SOLAR CONNECTOR?
A:We offer two year warranty for our customer.
