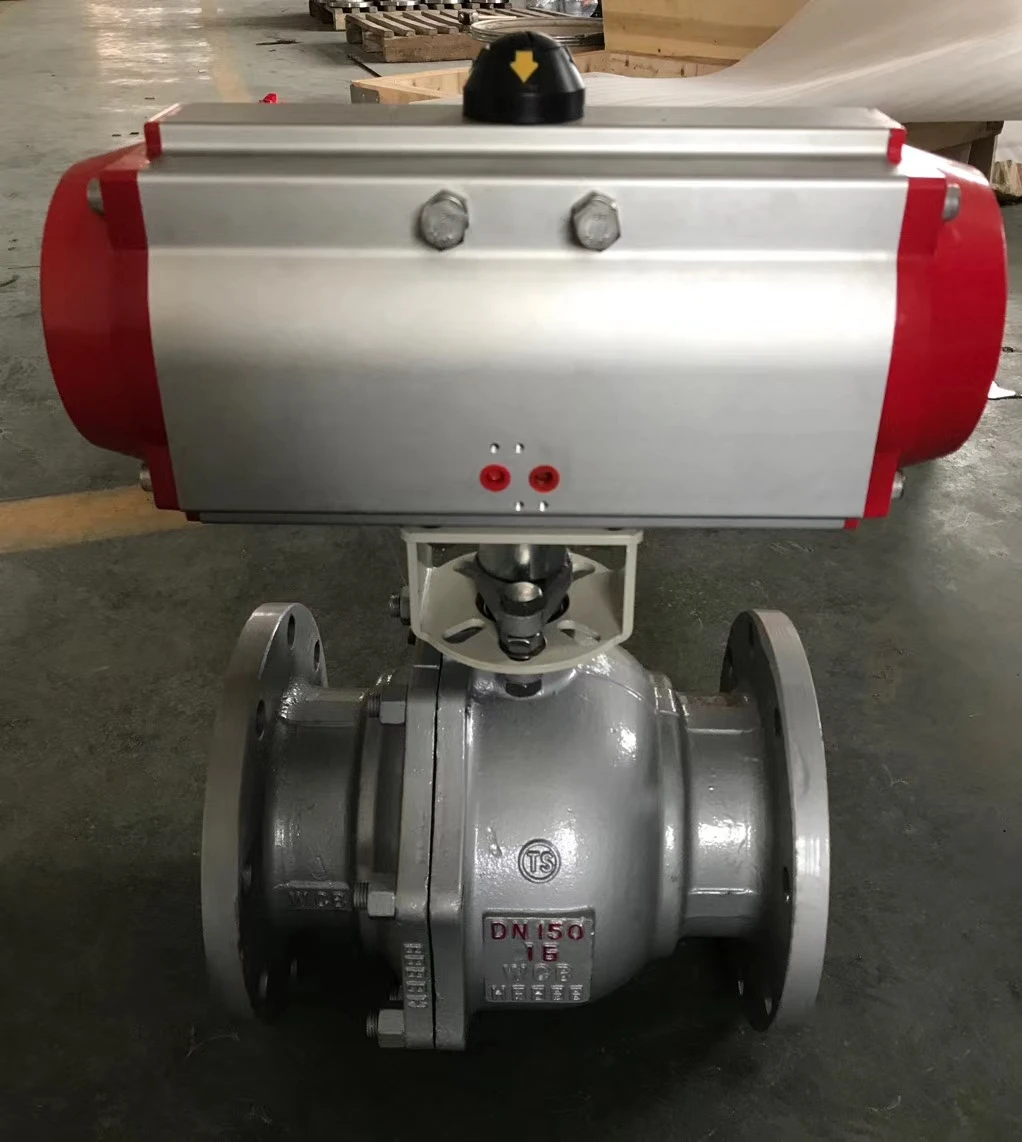

Carbon Steel air actuated pneumatic ball valve
- Category: >>>
- Supplier: Tianjin Tanggu Jinbin Valve Co. Ltd.
Share on (62541761046):
Product Overview
Description
Product Description
Brief introduction
According to the characteristics of the pneumatic ball valve, it is divided into two types, namely, the quick acting type and the pneumatic type. When the flanged pneumatic ball valve is opened, the valve channel and the connecting pipe diameter form a through port, and the medium can flow through without resistance. In addition to oil, gas, liquid and other media, it is also suitable for controlling sewage and medium containing fibrous impurities. Flanged pneumatic ball valve is equipped with valve positioner to input 4-20mA analog signal, which can control the valve core opening of ball valve from 0 to 90 degrees, so as to achieve the proportional adjustment of medium flow, temperature, pressure and other parameters.
Features
1. According to the working conditions, the flanged pneumatic ball valve can be divided into soft seal (- 30 ~ 180 ℃) and hard seal (- 40 ~ 450 ℃), so as to be used in different media, temperature and pressure.
2. The power source of flanged pneumatic ball valve is gas, which will not contact with sparks. Theoretically, it has explosion-proof function and is relatively safe. And if there is air leakage, the gas can be directly discharged, no pollution to the environment, at the same time, it has high safety.
3. From the perspective of valve diameter, due to torque force, manual ball valve can only be equipped with ball valve with diameter below DN300, while flanged pneumatic ball valve can be configured with a wide range of diameters, including not only small diameter ball valve, but also large diameter ball valve. At present, the height of pneumatic ball valve can reach DN 1200.
2. The power source of flanged pneumatic ball valve is gas, which will not contact with sparks. Theoretically, it has explosion-proof function and is relatively safe. And if there is air leakage, the gas can be directly discharged, no pollution to the environment, at the same time, it has high safety.
3. From the perspective of valve diameter, due to torque force, manual ball valve can only be equipped with ball valve with diameter below DN300, while flanged pneumatic ball valve can be configured with a wide range of diameters, including not only small diameter ball valve, but also large diameter ball valve. At present, the height of pneumatic ball valve can reach DN 1200.
Optional Accessories of pneumatic ball valve
1.Limit switch: remote feedback switch signal (explosion proof optional)
2. Solenoid valve: two position five way for double action and two position three-way for single action (explosion-proof optional)
3. Positioner: input 4 ~ 20mA signal to realize valve regulation function
4. Manual mechanism: manual operation mechanism, which can be opened or closed manually
2. Solenoid valve: two position five way for double action and two position three-way for single action (explosion-proof optional)
3. Positioner: input 4 ~ 20mA signal to realize valve regulation function
4. Manual mechanism: manual operation mechanism, which can be opened or closed manually
Performance specification | ||||||||
Nominal Pressure | PN10 / PN16/150LB | |||||||
Testing Pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. | |||||||
Working Temperature | ≤425°C | |||||||
Suitable Media | water, oil, gas etc. | |||||||
Material of main parts | ||||||||
Body material | WCB | |||||||
Ball material | Stainless steel | |||||||
Sealing material | PTFE | |||||||
Stem material | Stainless steel | |||||||
Related Products
Company Introduction
Tianjin Tanggu Jinbin Valve Co., ltd with brand THT is large manufacture in China engaged in research, development and production of valves.
Tianjin tanggu jinbin valve co.,ltd was founded in 2004,with registered capital of 113 million yuan,covering an area of 20000 square meters,including 15100 square meters for factories and offices.
THT products have been exported to more than 30 countries and region, such as UK, USA, UAE, Russia, South Korea, region of mid-east, south and south east Asia, South America and Africa!
Our customers
Certifications
Production process
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
