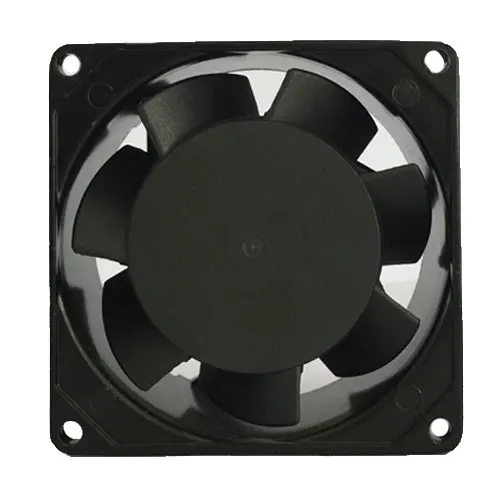

Small AC Fan 80x80x38mm electric motor cooling fan
- Category: >>>
- Supplier: Dongguan Runhuang Electronic Technology Co. Ltd.
Share on (62541828329):
Product Overview
Description
Product Description
1.Size: 80x80x38mm
2.Voltage: 110/220V
3.Fan Speed: 2400/2800RPM
4.Air Flow: 25.92~30.22CFM
5.Bearing: Sleeve bearing/Two ball bearing
6.Noise: 26~30dBA
7.Rated Current: 0.07~0.18A
8.Operation Temperature: -10ºC~70ºC
9.Frame & Impeller material: Plastic
Model No. | Bearing System | Rated Voltage (V) | Speed Type | Rated Current (A) | Rated Speed (RPM) | Air Flow (CFM) | Air Pressure (mmAg) | Noise (dBA) |
KDA8038S110H | S | 110 | H | 0.18 | 2800 | 30.22 | 4.60 | 30.0 |
KDA8038S110M | S | 110 | M | 0.10 | 2400 | 25.92 | 3.20 | 26.0 |
KDA8038S220H | S | 220 | H | 0.10 | 2800 | 30.22 | 4.60 | 30.0 |
KDA8038S220M | S | 220 | M | 0.07 | 2400 | 25.92 | 3.20 | 26.0 |
KDA8038D110H | D | 110 | H | 0.18 | 2800 | 30.22 | 4.60 | 30.0 |
KDA8038D110M | D | 110 | M | 0.10 | 2400 | 25.92 | 3.20 | 26.0 |
KDA8038D220H | D | 220 | H | 0.10 | 2800 | 30.22 | 4.60 | 30.0 |
KDA8038D220M | D | 220 | M | 0.07 | 2400 | 25.92 | 3.20 | 26.0 |
Packaging & Shipping
Packaging: carton box or according to customer requirement.
Shipping:
1.Fans could be delivered by express ( FedEx, DHL, UPS or TNT ) for under 100 kg.
2.Large Measure are shipped by sea or air as customer's requirements.
