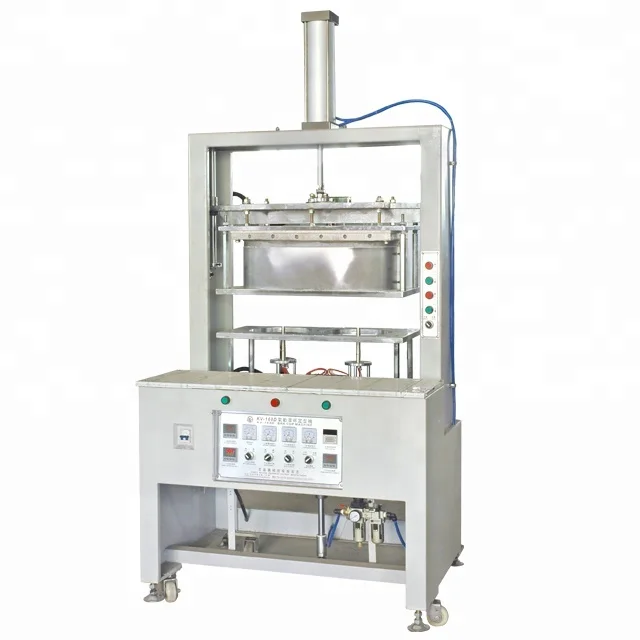

KV 168D/D 11 Bullet Heads Bra Fabric Cover Cup Molding Machine

Product Overview

Description





Usage of machine: It is used for molding rigid fabric material(non-stretch polyamide or polyester fabric etc)to make fabric cups.



Merits of machine: Each upper and lower mold with separate temperature control and with air cylinder pressing plates to prevent wrinkle problem during molding.



Features:

(1) The bullet head moulds can be replaced freely according to the different requirements.



(2) It is easy to operate and it is of time-saving and consistent molding.



(3) The buttons are controlled by both hands, ensuring the production safety.

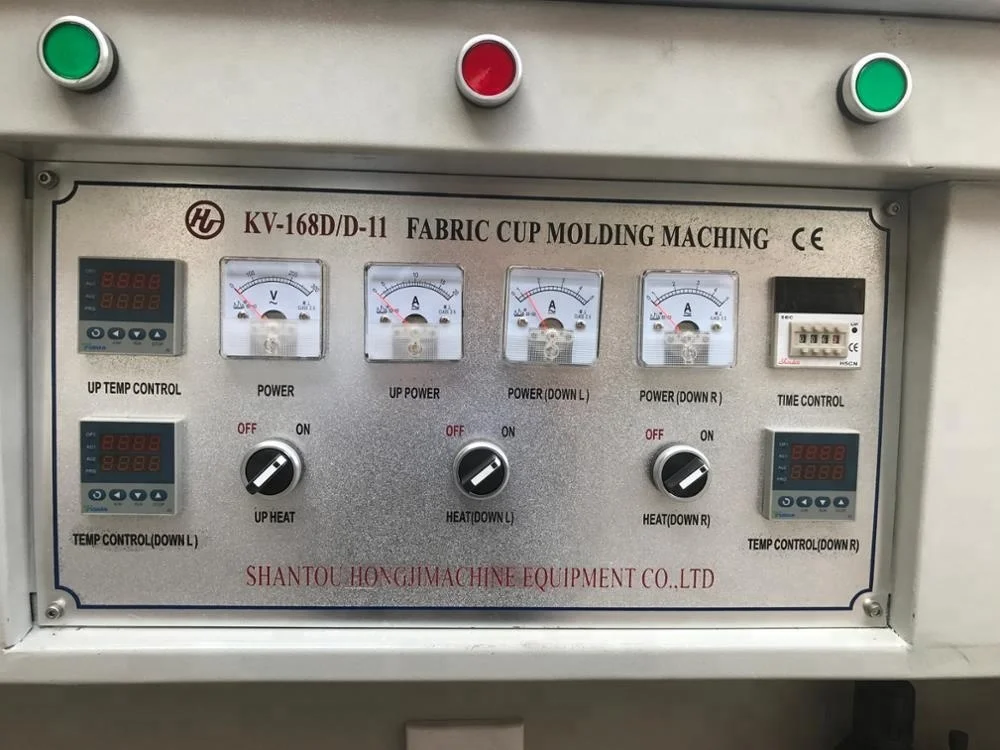

(4) All setting of temperature and times are adjustable with digital timers and thermoregulators.



Technical parameter:

Power supply / power	220V/4.4KW
Heating pipe specification	Φ12×250mm×500W-220V; Φ 16×150mm×700W-220V
Molding table size	700mm×330mm
Max. diameter of mould	Φ 215
Machine size	1000mm×670mm×2100mm
Applicable materials	fabric materials
Applicable moulds	bullet head moulds
Weight	650KG

We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.







1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



If above details are still not clear for you, kindly please contact me without delay!

Looking forward to cooperating with you for long term!
