И укрепления здоровья G IK08 3,0 интерфейс межсоединений интегральных схем на заказ 1280*800 10 дюймов емкостный сенсорный экран с сенсорной панелью
- Category: Touch Screen Monitors >>>
- Supplier: Disea Electronics Co. Limited
Share on (62541977449):
Product Overview
Description
Our Advantages
Factory Price/ Low MOQ/ 100% Quality Assurance
1.We are a professional designer manufacturer of LCD module and capacitive touch module.
2.We have IATF16949 certificate issued by TUV, which can produce LCD module of automotive display module.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
Product Description
Feature | Specification | Unit | ||
Display Specification | Brand | Disea | - | |
Size | 10.1 | inch | ||
Screen Ratio | 16:9 | - | ||

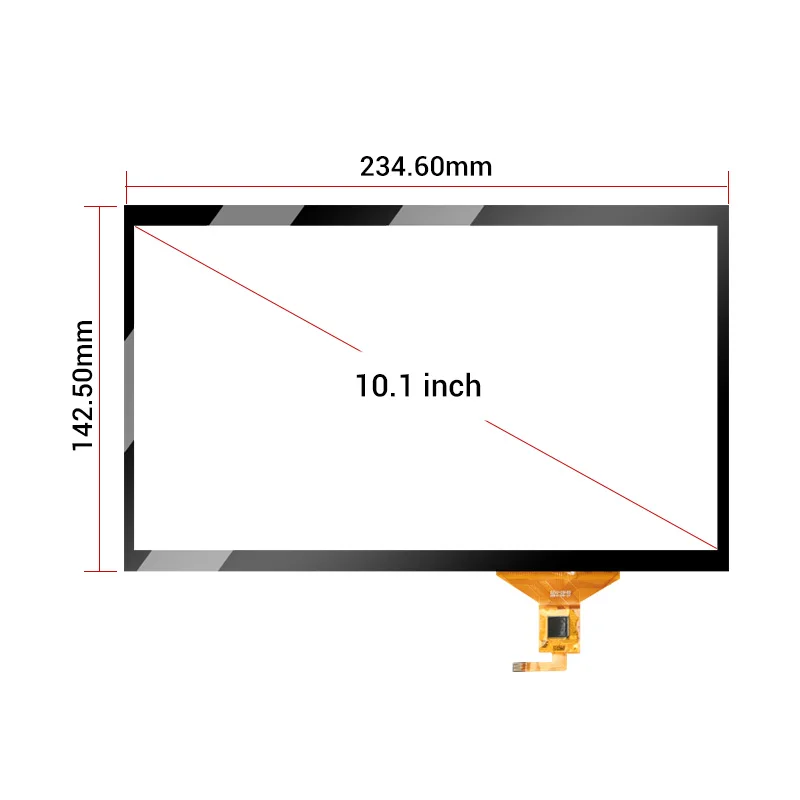

Outline (W x H x D) | 234.60*142.50*4.4 | mm | ||
Viewing Area | 223.72*126.28 | mm | ||
Cover Glass (T) | 3 | mm | ||
Structure | G+G | - | ||

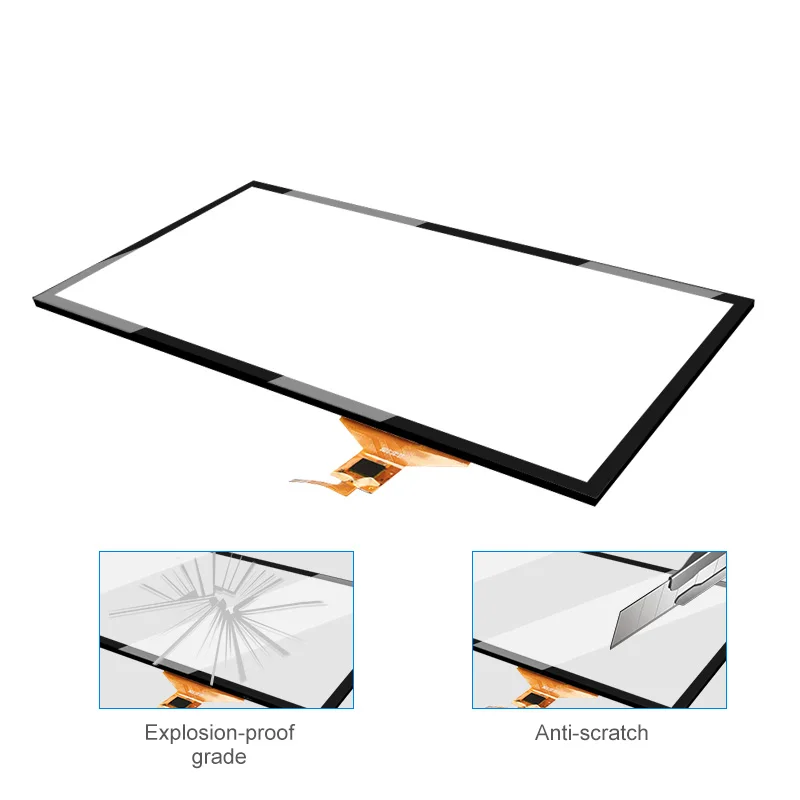

Mechanical Characteristics | Surface Treatment | IK08 3.0mm cover | - | |
Surface Hardness | 7H | - | ||
Transmission | 90% | % | ||
Operating Temperature | -20℃~+70℃ | ℃ | ||
Storage Temperature | -30℃~+80℃ | ℃ | ||
Electrical Characteristics | Touch controller | GT938 | - | |
Interface | IIC | - | ||
Pin number | 6 | - | ||
Operation voltage | 2.8-3.3 | v | ||
I/O voltage | 1.8/3.3 | v | ||
Packing & Delivery
We attach great importance to the packaging and transportation of our products. We use multiple packaging methods to ensure the integrity of the goods in transit
Delivery
More Products
OEM&ODM
We can according to your demand to customized your display.
Such as:
1.Customized the frame,
2.Backlight brightness,
3.Backlight shape,
4.long-life led wick,
5.FPC shape and interface definition,
6.Silk-printing your Logo and so on.
We also can according to your demand to customized your touch screen.
Such as:
1.Customized cover glass's shape,
2.Silk-printing color,
3.Touch with water,
4.With salt water touch,
5.With gloves and so on.
Customized process | DISEA process | ||||
1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. | ||||
2> Disea provides solutions: | Evaluate and propose solutions according to customer requirements. | ||||
3> Customer confirmation: | The customer confirm the solution provided by Disea. | ||||
4> Disea offer: | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. | ||||
5> Customer payment model fee: | Customer pays the tooling cost. | ||||
6> For drawing: | Disea design and issue formal drawings for customer's confirmation. | ||||
7> Customer confirms drawings: | The customer has confirmed whether the engineering drawings of Disea meet the requirements. Please sign back. Our company will change to meet the requirements if necessary. | ||||
8> Make Tooling: | According to the drawing confirmed by the customer, Disea will make the sample. | ||||
9> Sample confirmation: | Send the sample to customer for confirmation within the agreed time. | ||||
10> Sample debugging: | If customers encounter any difficulties in sample debugging, Disea's engineers will provide technical support as soon as possible. | ||||
11> Sample confirmation: | Customer's sample debugging is completed, and the specification and effect are satisfied. | ||||
12> Production: | Determine the final unit price, quantity and delivery time after customer orders to Disea. | ||||
13> Production arrangement: | According to the final sample confirmed by the customer, Disea arranges the material for production scheduling. | ||||
14> Delivery order: | Arrange shipment according to customer's quality requirement or Disea standard. | ||||
15> After-sales service: | Warranty within one year, provide follow-up technical support. | ||||
Company Profile
Shenzhen Disea Electronics Co., Limited
DISEA Electronics Co., Ltd. established in 2011 in Shenzhen, China.Currently we have total 320 staffs including 60 engineers for project development and technical support. All the engineers in our project core team are from the leading LCD enterprises,and they have more than 10 years experience in LCD industry.
DISEA devotes itself to the research, development and manufacturing of various of industrial TFT-LCD, with capacitive touch panels, and with AD boards. We mainly offer the customization service to the customers who need small and medium size color LCD
modules.
modules.

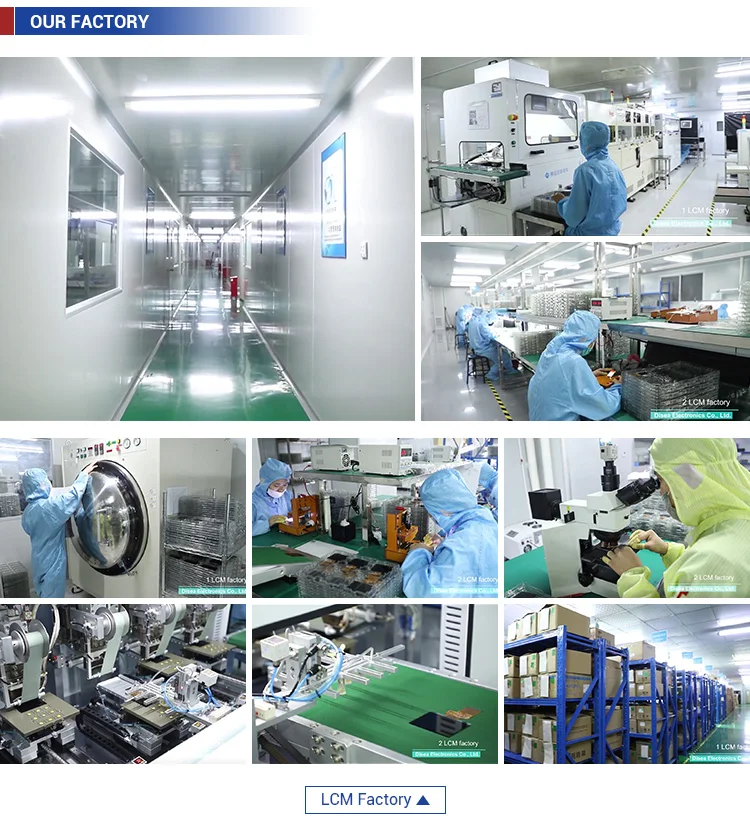

In Disea Electronics, aging is being a normal procedure for production and it makes a much lower defect ratio. Rely on our professional quality engineers and thorough quality control system, the Disea product quality is acknowledged by customers especially we have 100PPM defect ratio for automitive products.
Certifications
IATF 16949
Design and Manufacture of Liquid Crystal Display Module
ISO 9001:2015
Design and Manufacture of Liquid Crystal Display Module
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.
Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q:The product specification is in Chinese or English?
A:The version of product specification is English.
Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto and AOI, etc.
