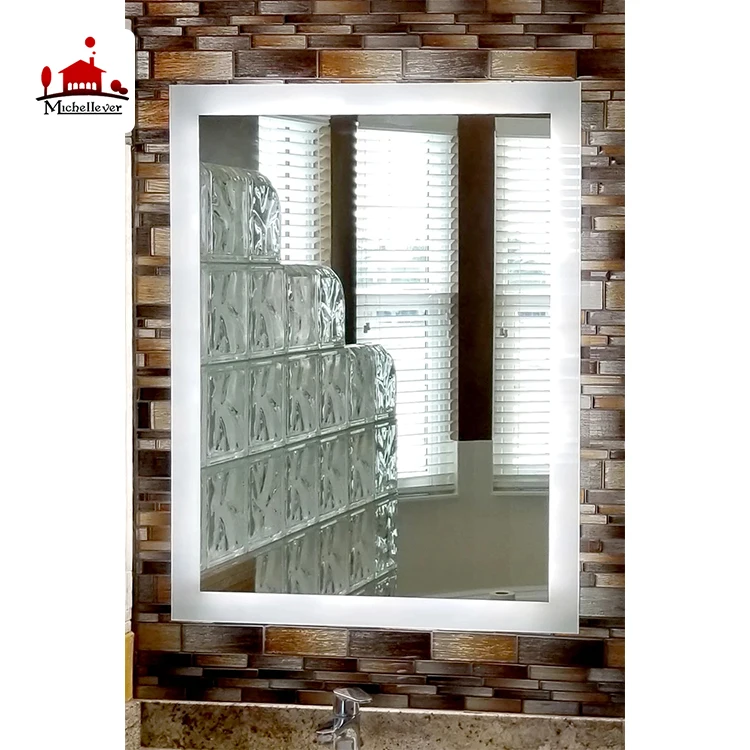

Rectangular side-lighted LED Mirror (backlit projection lighting).
Frame
Aluminium with Back Cover （4 sided round corner）
Mirror Dimensions / Orientation:
24 inches wide, 36 inches tall (mounts only one way).
More details
Built-in LED DRiver, input 110V-240V, 20-60Hz

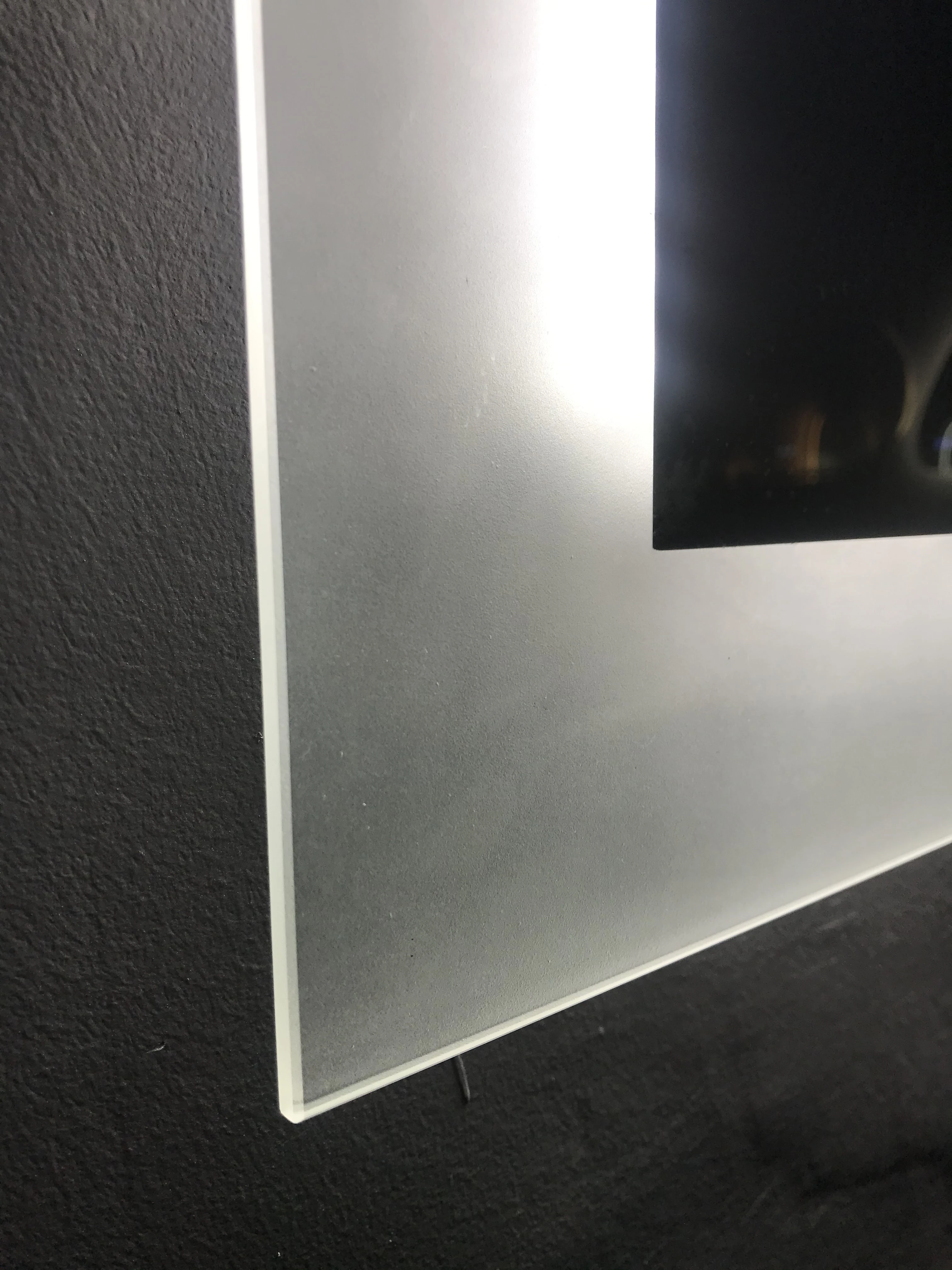

Mirror Glass:
5 mm (close to 1/4 inch) with polished edges, copper-free, lifetime moisture-proof backing.
Can be hung vertically or horizontally

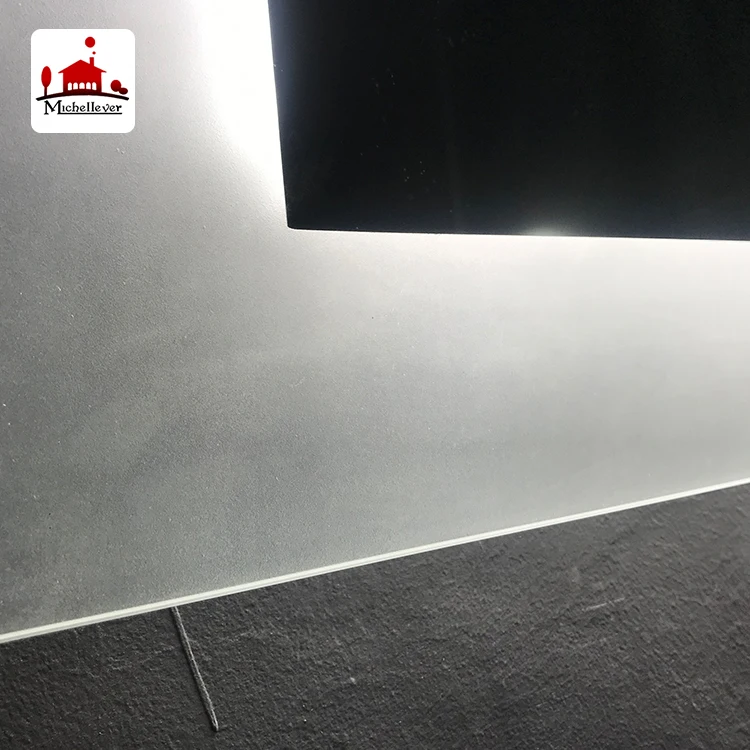

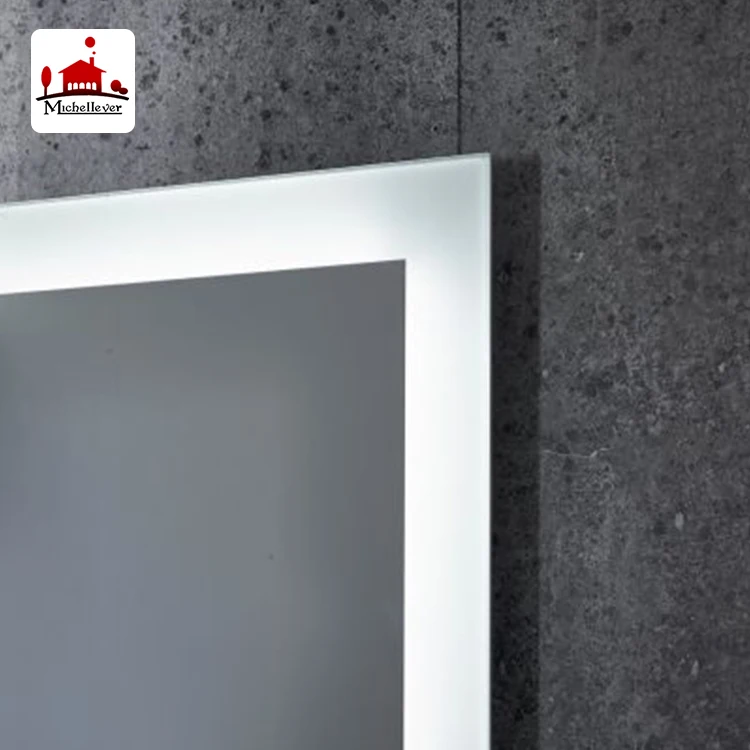

Frosted / Lighted Area:
Frosted area approximately 3 inches wide.
Anti-fog included
Two touch switch included
Frame Material:
Anodized aluminum frame, stainless steel screws.

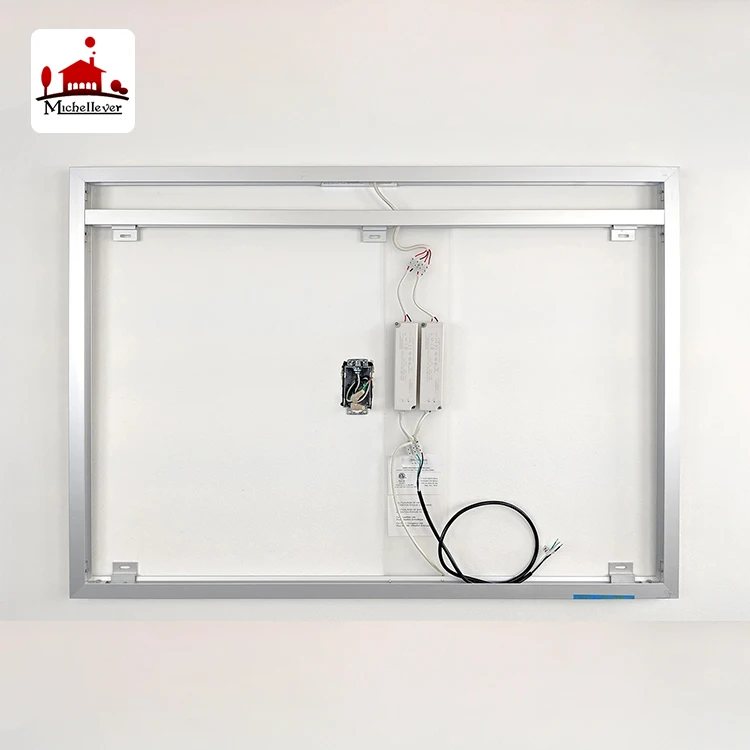

Frame Dimensions:
Frame depth approximately 1.45 inches. Frame perimeter approximately 2.5 inches inside of mirror perimeter. Frame width approximately 1.5 inches. Top mounting bar approximately 5.25 inches from top edge of mirror.
Mounting Hardware:
Frame has 4-5 integrated aluminum mounting brackets attached to the frame used to secure the frame to the wall. 4 heavy duty screw-in wall anchors are included. The mirror has 2-3 mounting brackets installed on the rear of the mirror that slide into the cross-bars on the aluminum frame, allowing the mirror to be mounted after the frame has been installed.
LED Lumens and Watts:

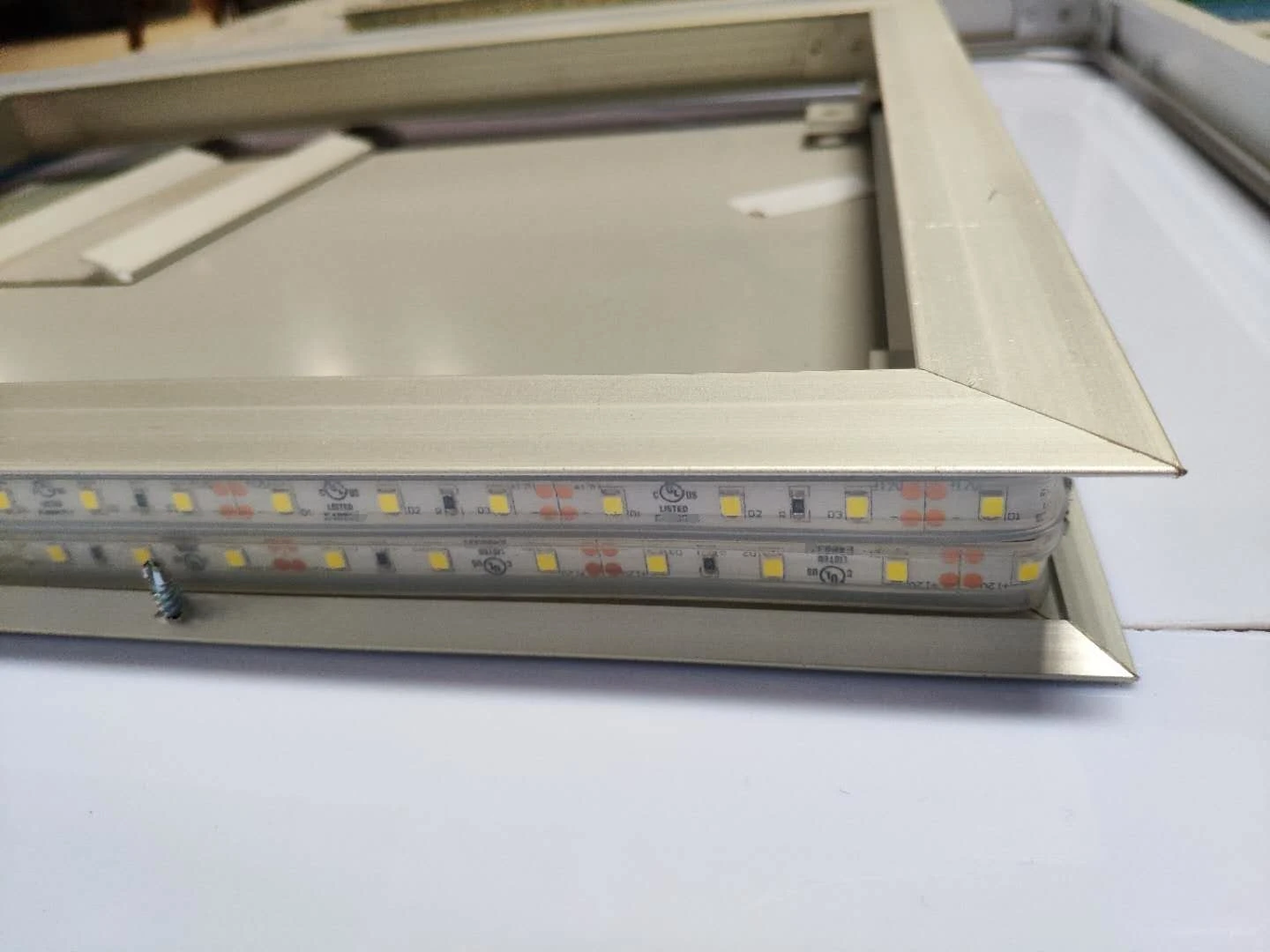

Double LED Strip: 40 LEDs per foot, 22 lumens per LED. Approximate watts: 39.4. Approximate lumens: 7,187.
LED Expected Lifetime:
50,000 Hours.
LED Color Temperature and CRI:
6,000 Kelvin (3,000 Kelvin upgrade available). Color Rendering Index (CRI) = 90.
Power / Connection:
Driver - UL quality- Input Voltage 100-240v AC. Output voltage: 12v DC. Connects to standard switched lighting circuit. Not dimmable without upgrade.
Protections:
Short circuit / over current / over voltage / over temperature.
ETL Certification:
ETL-listed for US and Canada, conforms to UL Std. 962, certified to CSA Std. C22.2 No. 250.0.
Switch:
Touch switch on mirror surface available
Installation Instructions:
Mirror Installation Instructions.
Warranty:
5-year warranty on frame, 2-year warranty on electronic components.
Detailed Images

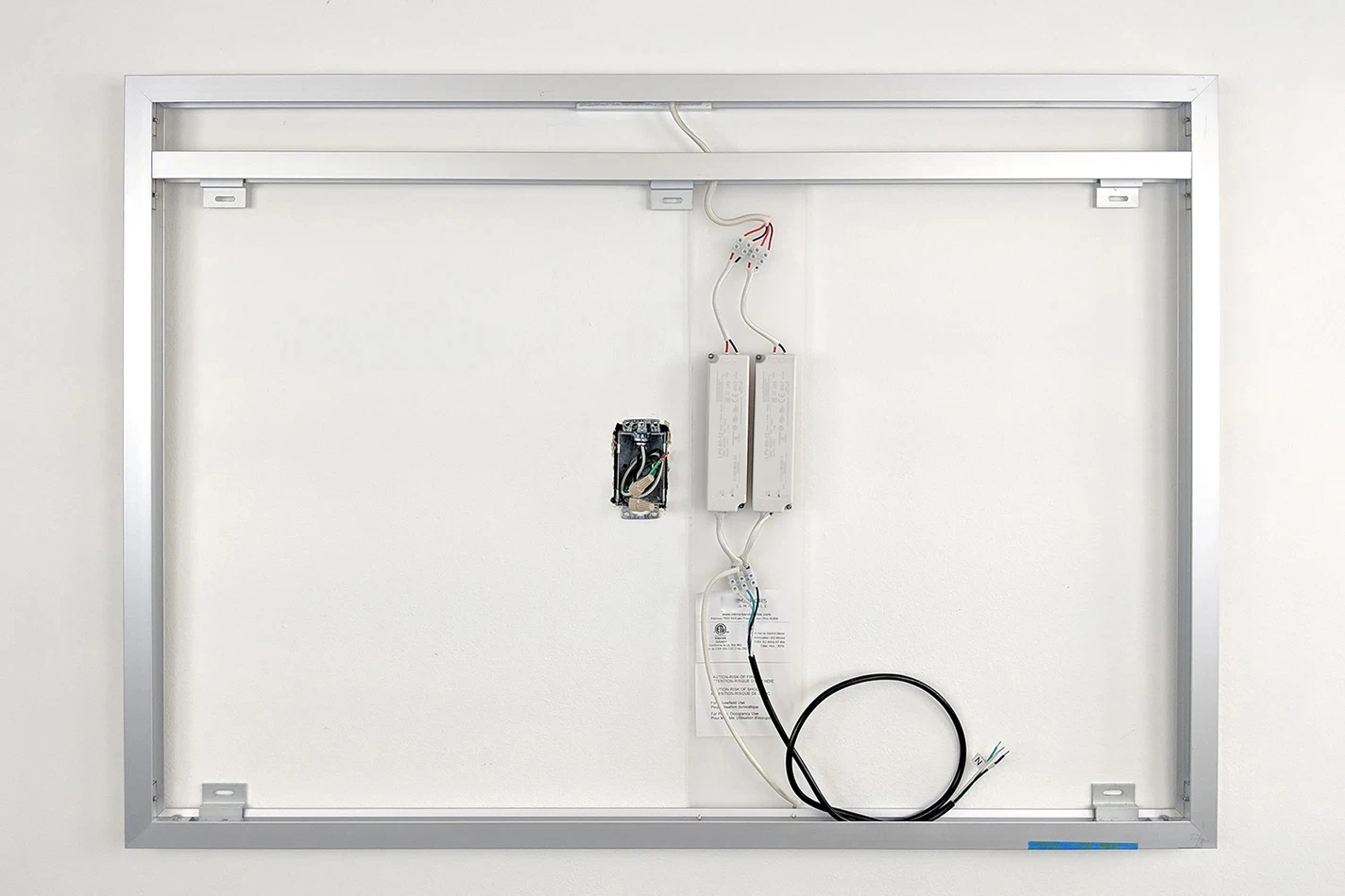

Frame Dimensions:
Frame depth approximately 1.45 inches.
Frame perimeter approximately 2.5 inches inside of mirror perimeter.
Frame width approximately 1.5 inches.
Top mounting bar approximately 5.25 inches from top edge of mirror.
Mirror Dimensions / Orientation:
24 inches wide,
36 inches tall
(mounts only one way).
Everything can be customized

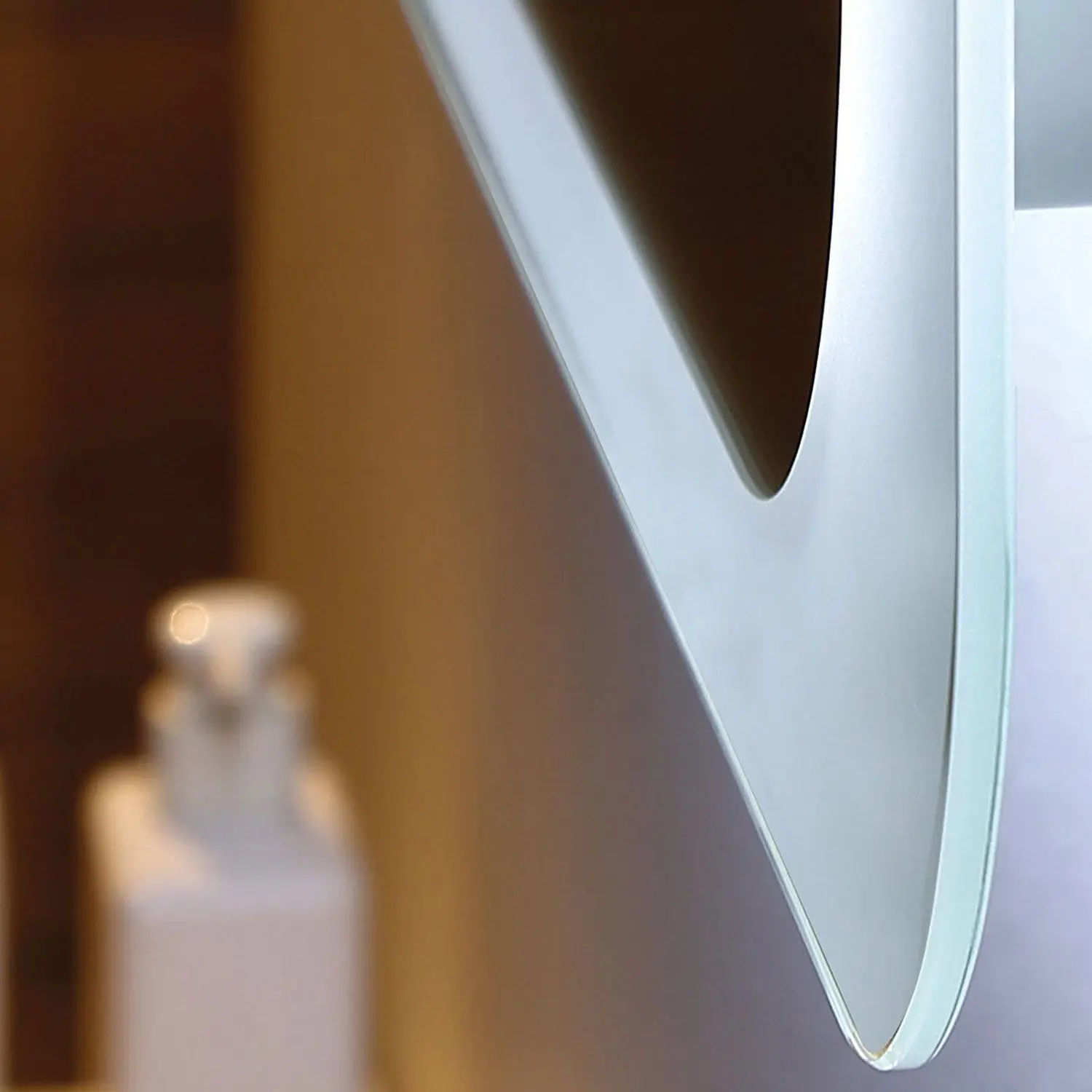

Any shape with the features you want
Rectangle, square, circle, ellipse, irregular, etc.
Defogging, magnifying glass, bluetooth, clock, sensor switch, etc.
Warm white light, white light, cold white light, etc.
If you have a drawing design, we can also tailor it to you.
Thousands of combinations are possible, there is always one for you.Everything can be customized
Any shape with the features you want
Rectangle, square, circle, ellipse, irregular, etc.
Defogging, magnifying glass, bluetooth, clock, sensor switch, etc.
Warm white light, white light, cold white light, etc.
If you have a drawing design, we can also tailor it to you.
Thousands of combinations are possible, there is always one for you.

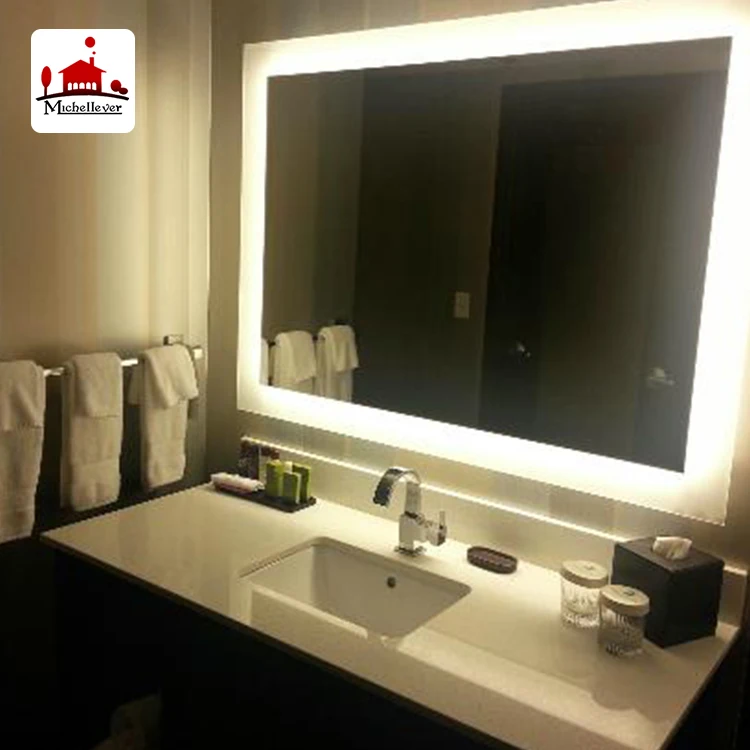

Application
Related Products
Packing&Shipping
Company Introduction
Enterprise History
Since our establishment in 2012, we have developed from a small enterprise into a comprehensive group, integrating the R&D, manufacture and sale of LED Mirror, Hotel Mirror, Bathroom Mirror and Lighted Mirror.
Enterprise Strength
We staff 42 personnel, including 6 professional engineers with high education and 22 skilled workers with strict training. We also boast complete production lines, ranging from Mirror Polishing Machine to Logo Engraving Machine, which ensure high productivity and efficient production. Meanwhile, backed by stable material suppliers, we produce up to 10,000 Pieces monthly, 50 percent of which are for export.
Enterprise Markets
Selling well throughout the domestic market, our products are also warmly welcomed by clients in North America Area, Europe Area, Oceanic Area, Mid East Area. We are looking forward to cooperating with more clients worldwide for common development and mutual benefits. Contact us today to benefit from what we offer.
FAQ
Q: Do you accept Customize A: Yes, most of our orders are customized. We love to recommend some new design to you.
Q: Can you print our logo or company name? A: Sure. We can print your Logo or Company Name on both products& Cartons.
Q: How about the MOQ? A: MOQ is based on the actual model, Normally it is 50 pieces.
Q: It is possible to get a sample? A: Stock samples are free, shipping cost you collect. For Customized Sample, we will reduce the sample and shipping cost by your next big quantity order.
Q: What size do you have? A: All sizes are available. Just send me the photos or drawings of your project, we may give suggestions for your reference.
Q: Do you allow to do quality check after order completed? A: Yes. Welcome to our Factory to do quality check.
Q: What about the Lead Time? A: 25-30 Days. Depends on the order Quantity. Delivery on Time.Q: Do you accept Customize A: Yes, most of our orders are customized. We love to recommend some new design to you.
Q: Can you print our logo or company name? A: Sure. We can print your Logo or Company Name on both products& Cartons.
Q: How about the MOQ? A: MOQ is based on the actual model, Normally it is 50 pieces.
Q: It is possible to get a sample? A: Stock samples are free, shipping cost you collect. For Customized Sample, we will reduce the sample and shipping cost by your next big quantity order.
Q: What size do you have? A: All sizes are available. Just send me the photos or drawings of your project, we may give suggestions for your reference.
Q: Do you allow to do quality check after order completed? A: Yes. Welcome to our Factory to do quality check.
Q: What about the Lead Time? A: 25-30 Days. Depends on the order Quantity. Delivery on Time.
