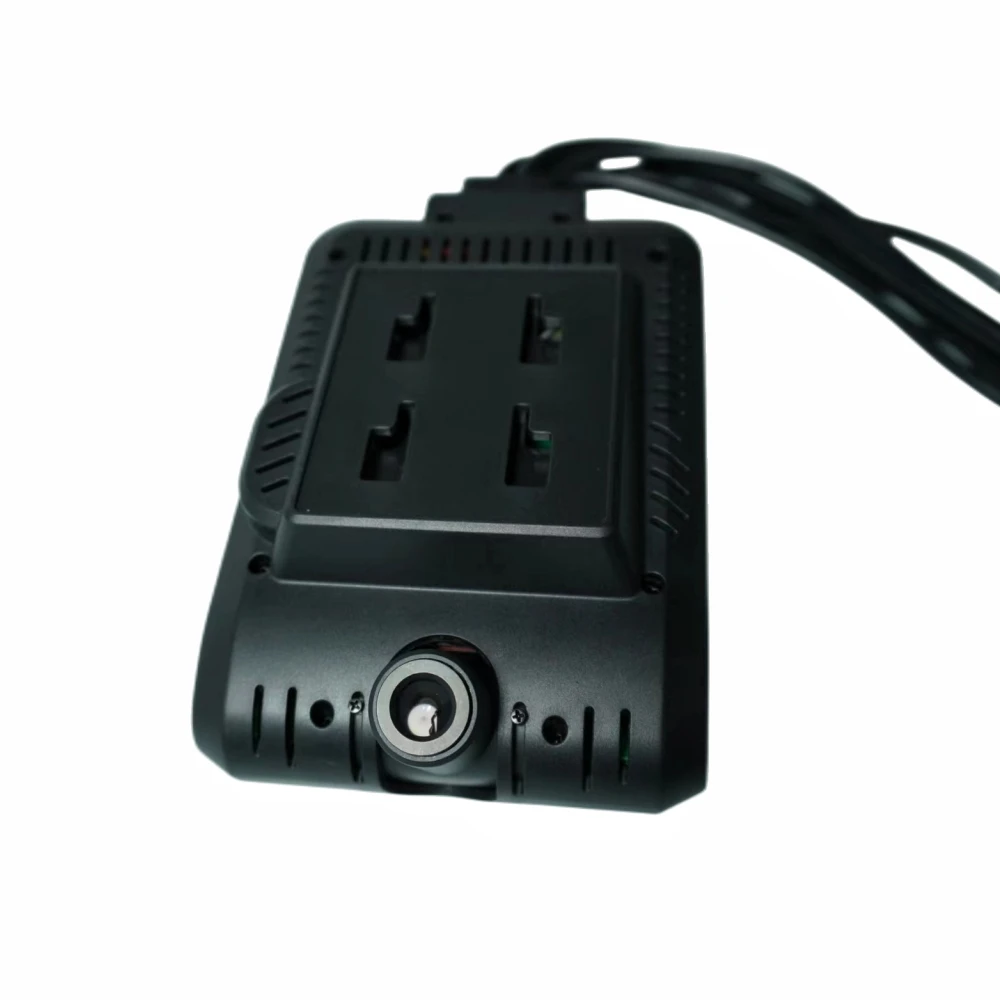

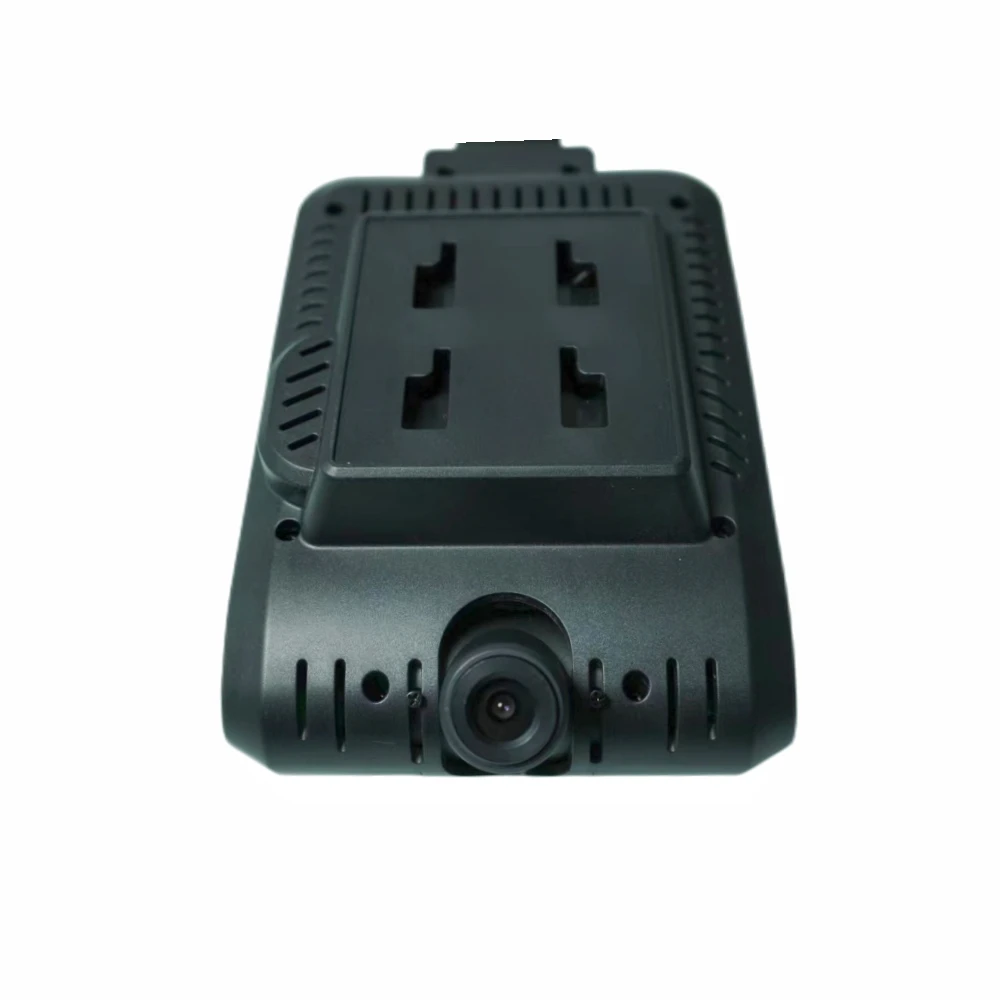

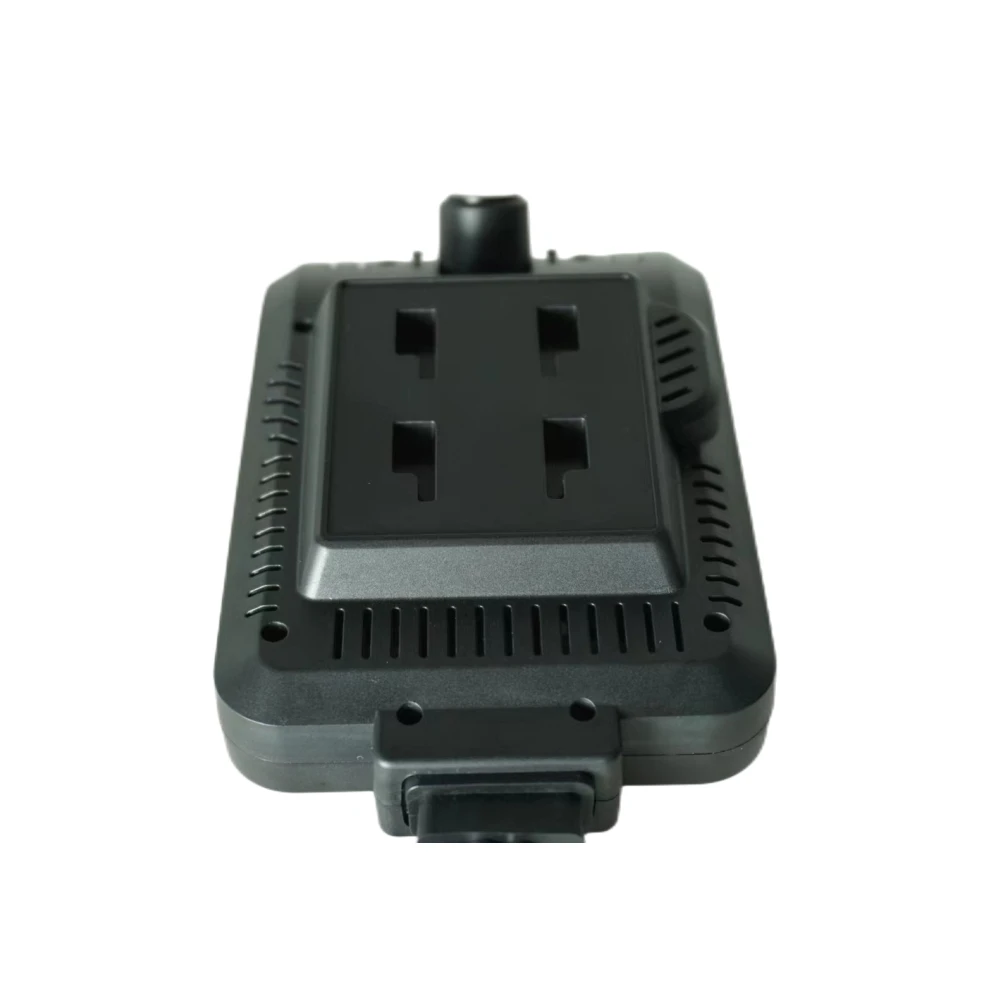

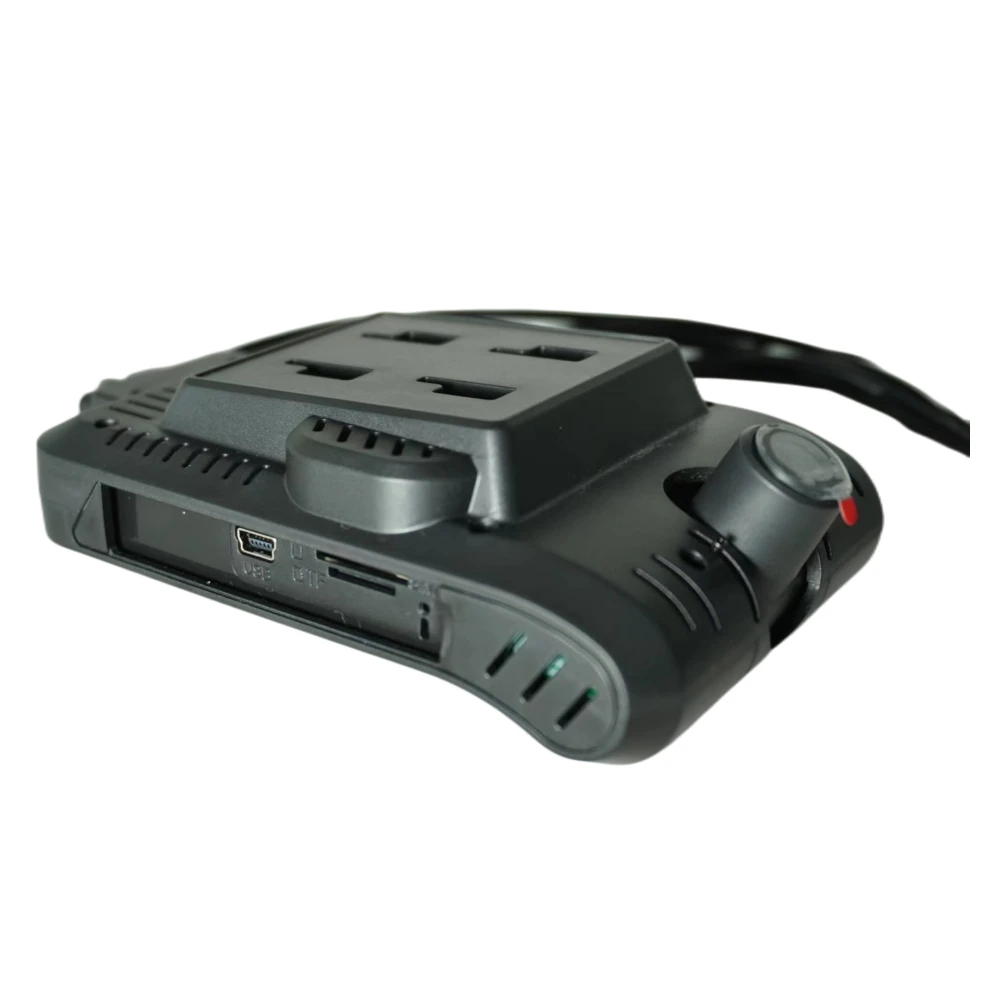

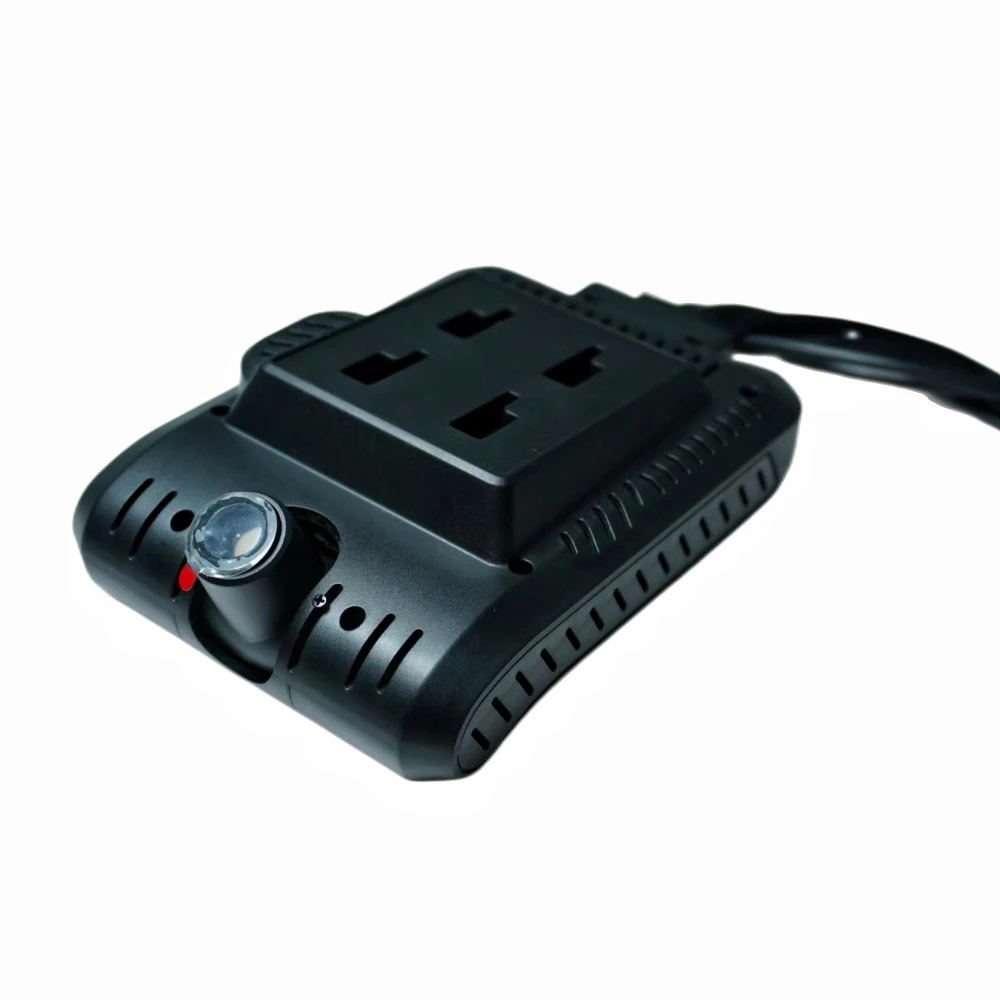

2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR
2ch Dash Cam Dual Lens Car Camera Dashboard DVR

2ch Dash Cam Dual Lens Car Camera Dashboard DVR

Share on (62542017642):


Price:

Quantity:


Product Overview

Description



Specification


project
Parameter specification
4CH
System
Operating language
Chinese/English
operating system
Linux
Operation interface
Graphical menu operation interface (OSD menu), character superposition function;
GUI
Yes, system parameters can be set through remote control operation (remote control + screen is optional)
Or configure the parameters through the mobile phone APP
Video and recording system
Video input
Built in 1-way AHD camera: 1080P resolution, low light 0.01LUX, angle of view 82 °
External 3-channel camera, supporting resolutions of 1080P, 720P, D1, etc
Video output
1-channel CVBS, 1.0Vp-p, 75 Ω, supporting full screen and 4-channel splitting
Video standards
PAL system, NTSC system
Video compression format
H. 264/H.265 compressed format
Preview function
Single channel, 4-screen splicing preview, support manual/event triggered full screen display function
Recording resolution
Support 1080P, 720P, D1, HD1, CIF options, total encoding resources 1080P 60 frames
Video quality
1 to 8 levels of image quality, the best level 1, the lowest level 8
Recording rate
PAL: 100 frames/s, CCIR625 line, 50 fields
NTSC: 120 frames/s, CCIR525 line, 60 fields;
CIF: 256Kbps~1.5Mbps, multi-level image quality optional
HD1: 600Kbps~2.5Mbps, multi-level image quality optional
D1: 800Kbps~3Mbps, multi-level image quality is optional
720P: 1Mbps - 4Mbps, multi-level image quality optional
1080P: 1Mbps~8Mbps, multi-level image quality is optional
Video recording mode
Default automatic recording, support ignition recording, alarm recording, etc
Video playback
4-way synchronous playback, supporting 2, 4, 8, 16X fast forward or backward
Audio
Audio input
1 channel built-in MIC input
Audio output
1 way, built-in speaker
Compressed format
G. 711A compressed format
Recording method
Simultaneous recording of sound and video
IO alarm input
Support 2-way switch input and one button SOS alarm;
Alarm output
Nothing
Communication interface
One RS232 interface, reserved for communication with peripherals
Sensor
Built in 3-axis acceleration sensor
GPS positioning
Support for built-in GPS/BD module
Wireless transmission
4G
1 SIM card interface
WIFI
802.11b/g/n, built-in 4G wireless communication module, TDD-LTE, FDD-LTE
Disk
TF Card
One TF card with maximum 256 capacity for recording
USB
reserved USB interface
Upgrade method
TF card upgrade, FTP remote automatic upgrade
Storage mode
Proprietary raw disk storage mode
AI algorithm (optional)
ADAS
Lane departure, collision alarm, distance detection, etc
DSM
Fatigue driving detection, smoking, making phone calls, shielding, unsafe driving habits detection
Power supply and power consumption
Power management
Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions;
It supports the functions of timing on/off and delayed shutdown.
Input voltage
DC:+10V ~ +36V
power waste
Normal working state ＜ 7.5W (without peripherals)
Working environment
Temperature
-10℃ to +60℃
Humidity
20% to 80%
Security management
Password access
Two level management of user password and administrator password
Platform access
JT/T808-2011，JT/T808-2019
External dimensions
138mm*85mm*45mm
Net weight
0.3kg


Product Description

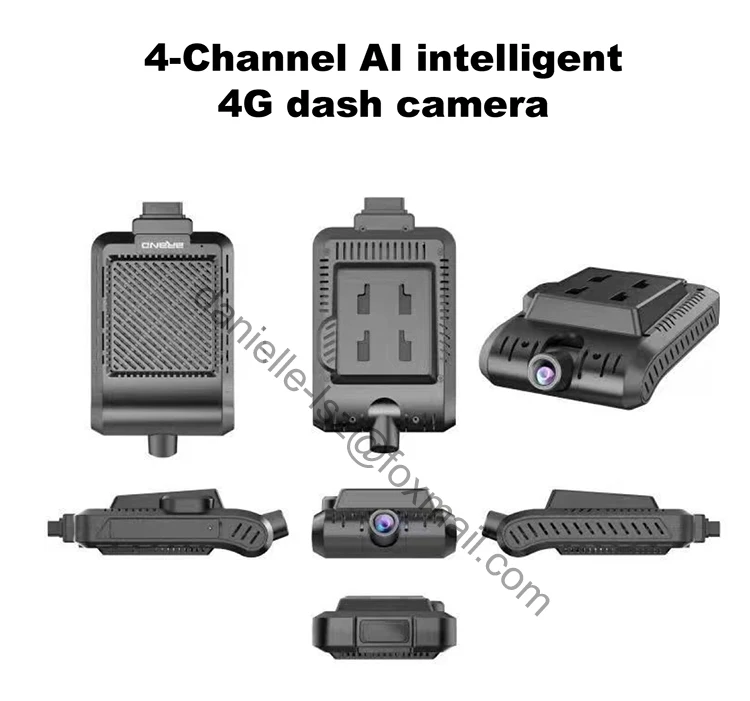

Product Features

1.H.265&H.264 codec is adopted to save storage space and transmission flow;
2.Support 4-circuit 1080P * 15FPS/2-circuit 1080P * 30FPS, 4-circuit 720P, D1 and other codecs;

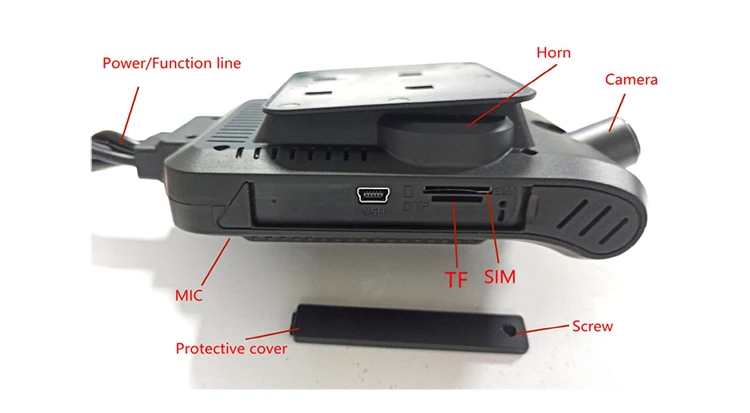

3.A built-in 1080P camera and an external three high-definition camera are convenient for installation;
4.Built in two-way AI intelligent algorithm, which can support ADAS and DMS functions;
5.Built in GPS+Beidou dual mode precise positioning;
6.Support one TF card and super capacitor to double guarantee the integrity of video files;
7.Support 1 SIM card, 4G module can support global frequency band;
8.Support WIFI hotspot;
9.Support mobile APP, client, platform software preview video and parameter configuration;
10.Support two IO alarm inputs and one RS232;
11.Built in speaker and microphone to support two-way voice intercom between equipment and platform; TTS voice broadcast;
12.One button SOS emergency call; Support low power sleep;
13.Dedicated file system to improve disk reading and writing efficiency and make video recording more stable;




Company Introduction

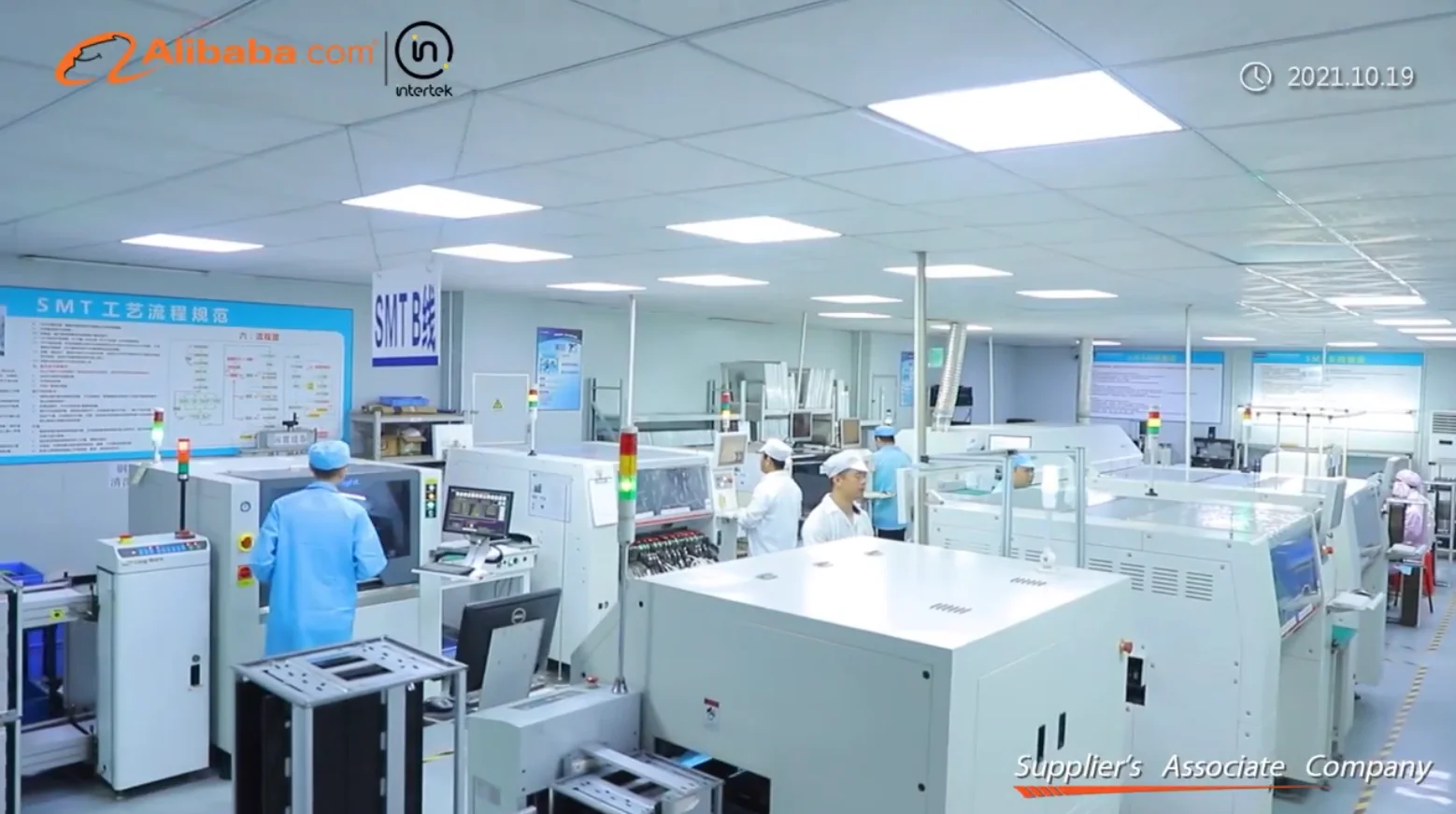

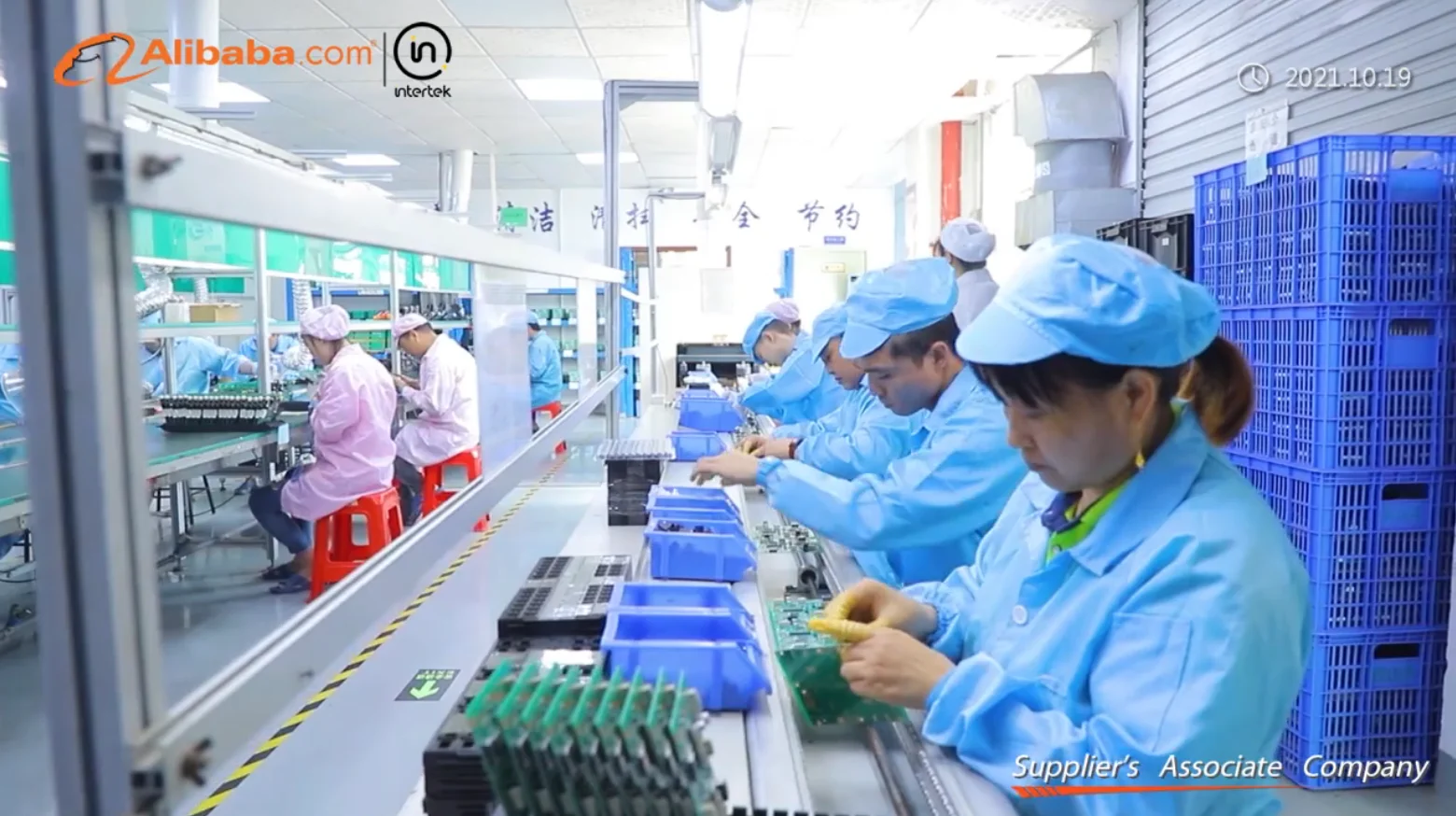

Shenzhen Tianyou Security Technology Co., Ltd. ,a leading manufacturer of vehicle mobile video surveillance solutions,was established in 2010, mainly engaged in R & D, production of high-definition hybrid vehicle mobile digital video recorder (MDVR),vehicle camera, IPC network camera and various vehicle monitoring peripheral accessories.
