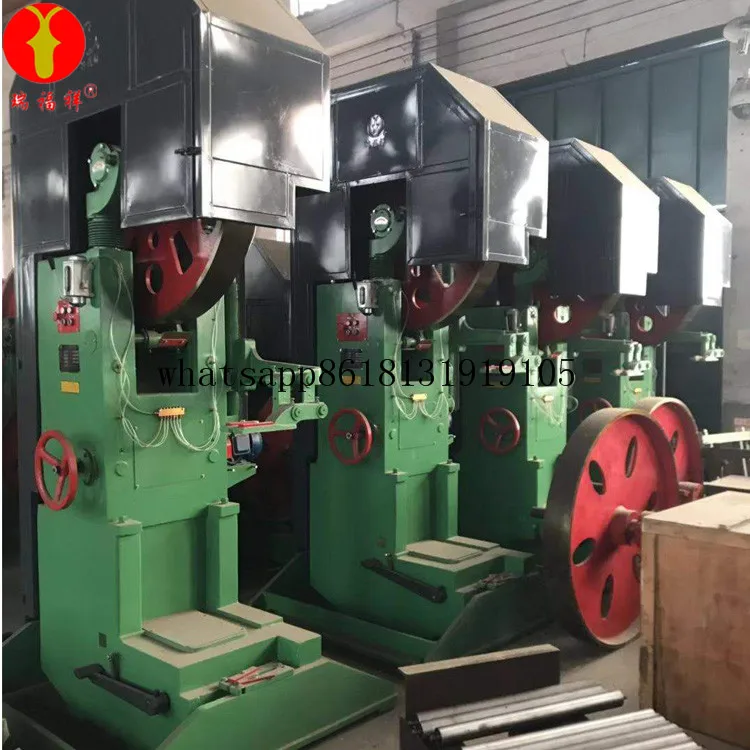

RFX MJ3210B Woodworking Heavy Duty Band Saw Machine with 1060mm Saw Wheel

Product Overview

Description





Bandsaw description

      This kind of band saw are large bandsaws that make the initial cuts in a log.  they can accommodate large-diameter timber with smaller kerf (cut size), which results in less waste.

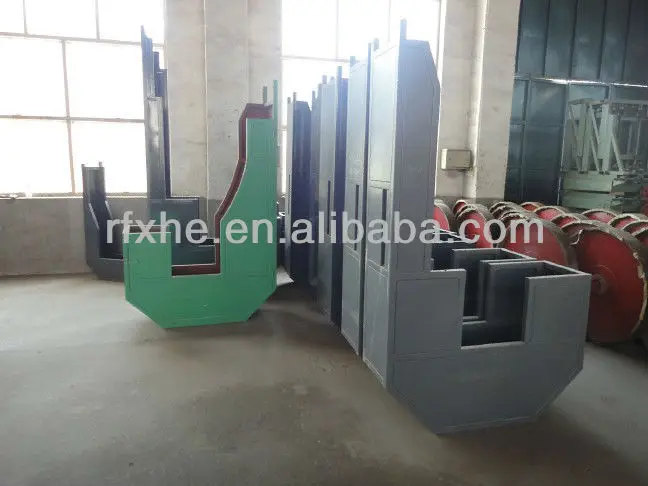

        It consists of Main body, Upper and lower saw wheel, Upper and lower saw card device, Security cover, the shield, Transmission parts etc. It can produce many kinds of thickness single wood boards in high speed.



How to choose a band saw

1.Application: for cutting logs or cutting planks

2.Log diameter or plank height and width

3.wood hardness degree

4.If use it frenquently,we suggest to buy a band saw with a larger cutting diameter.



Parater technical of MJ3210  saw woodworking tool



Technical parameter	MJ3210	MJ3210b
Saw wheel Dia	1000mm	1060mm
Rotating speed	750r/min	700r/min
Width of saw blade	125mm	125mm
Length of saw blade	6900mm	7100mm
Max log cutting Dia	800mm	800mm
Motor power	22kw	22kw
Overall size(L x W x H)	1260 x 1000 x 2300mm	1360 x 1060 x 2400mm

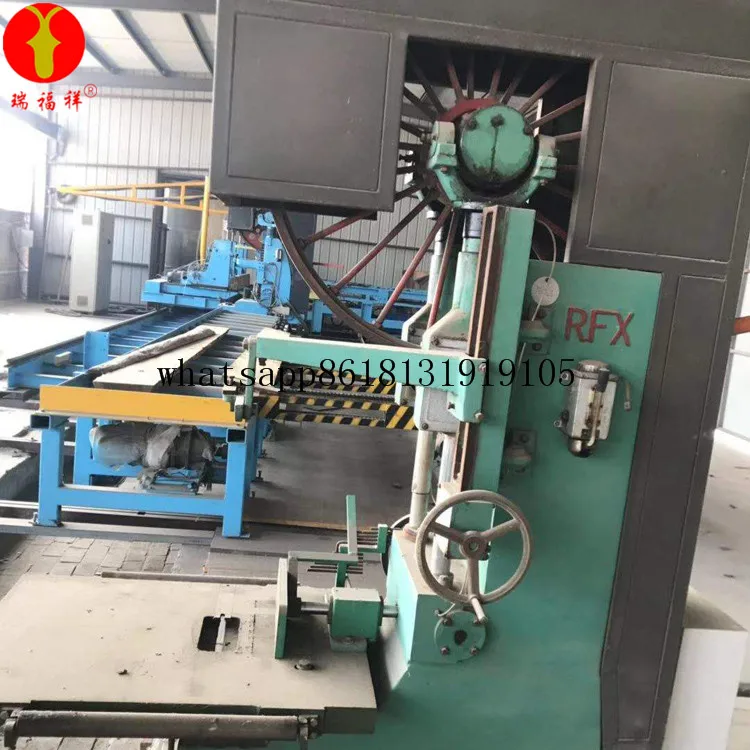

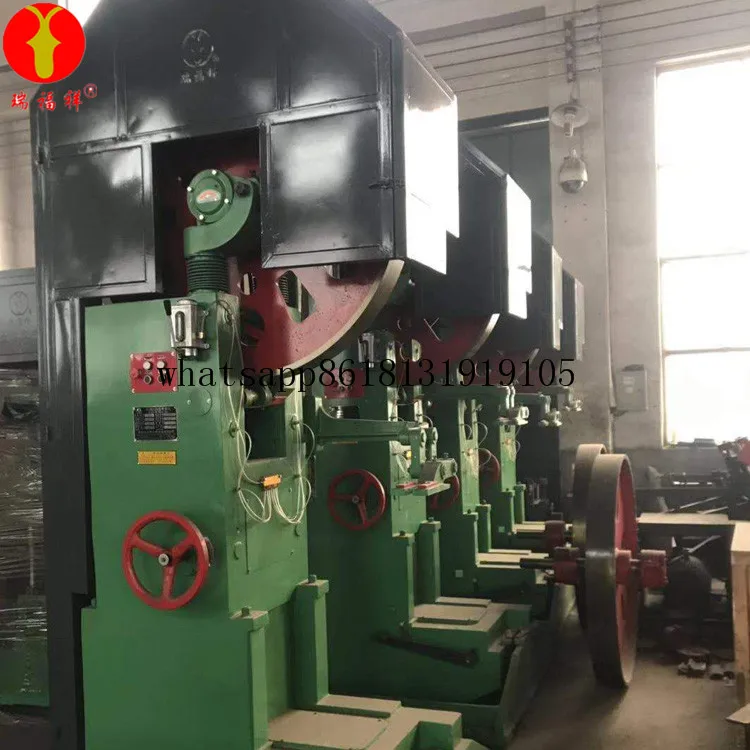

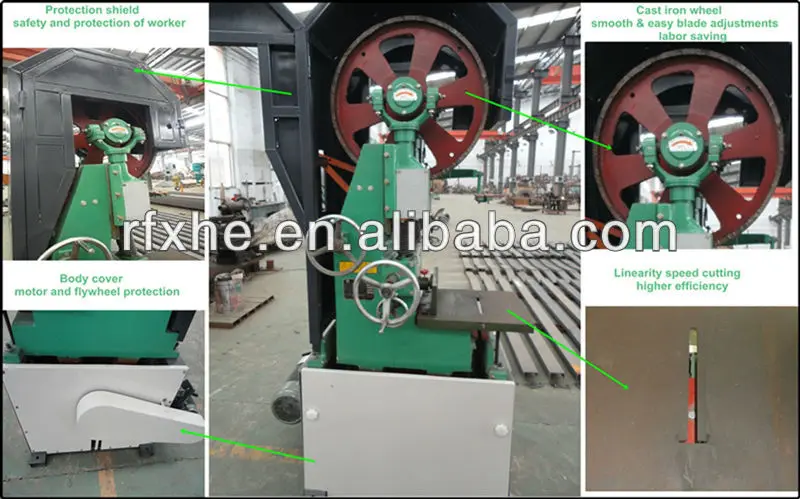

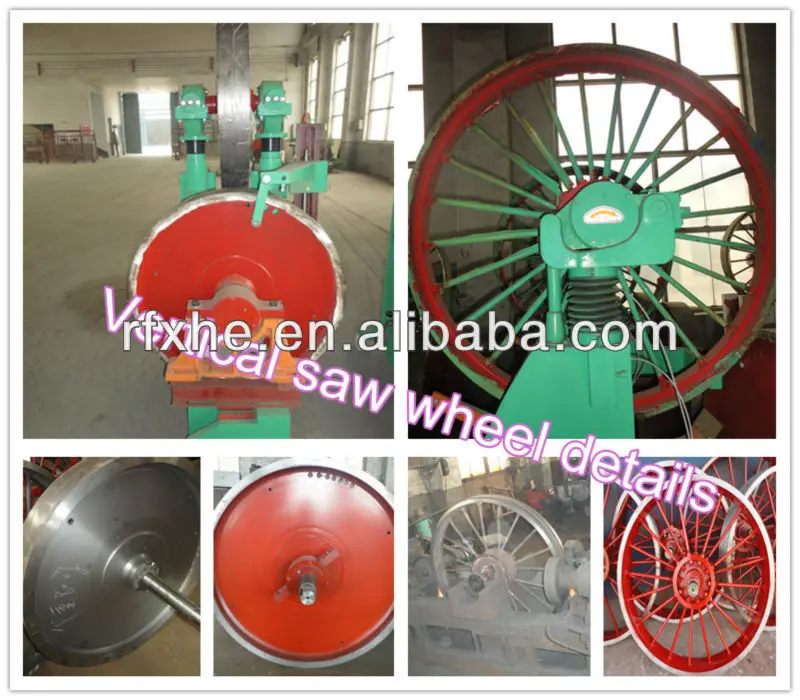

Detail of RFX woodworking band saw machine

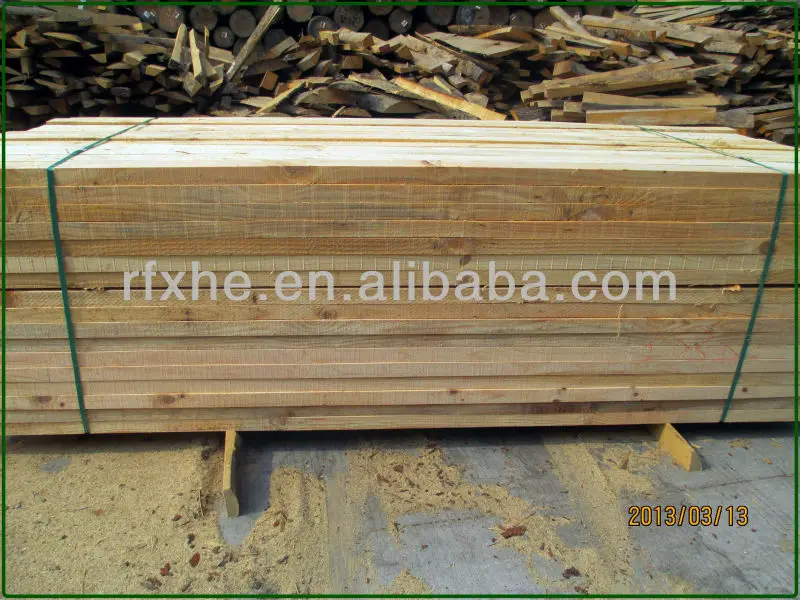

Final Products :



Certificate

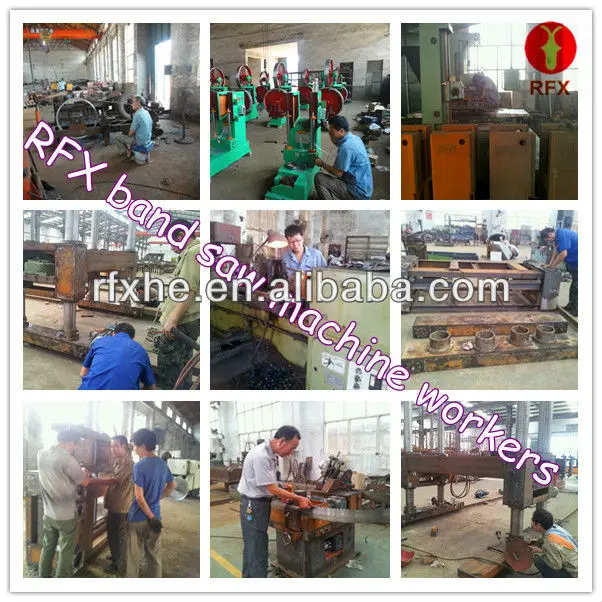

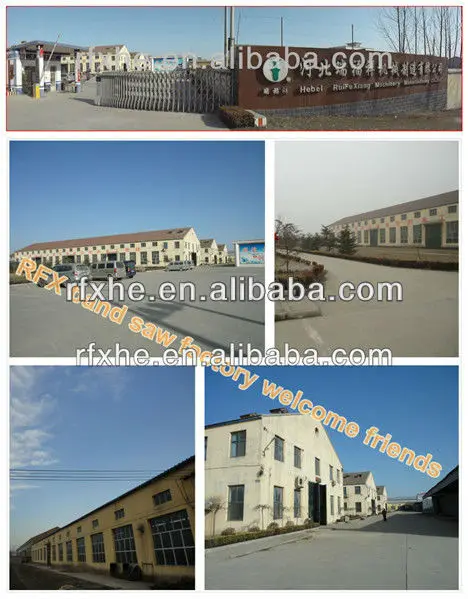

 Factory show
