Stainless steel electrical heating mixing agitator storage holding chocolate melting tank

Product Overview

Description

Product Description:

1. This chocolate melting machine is used for storage of fine grinded chocolate paste to keep required temperature of chocolate.The temperature control system in machine can keep required temperature of chocolate by control temperature of water in jacket layer.

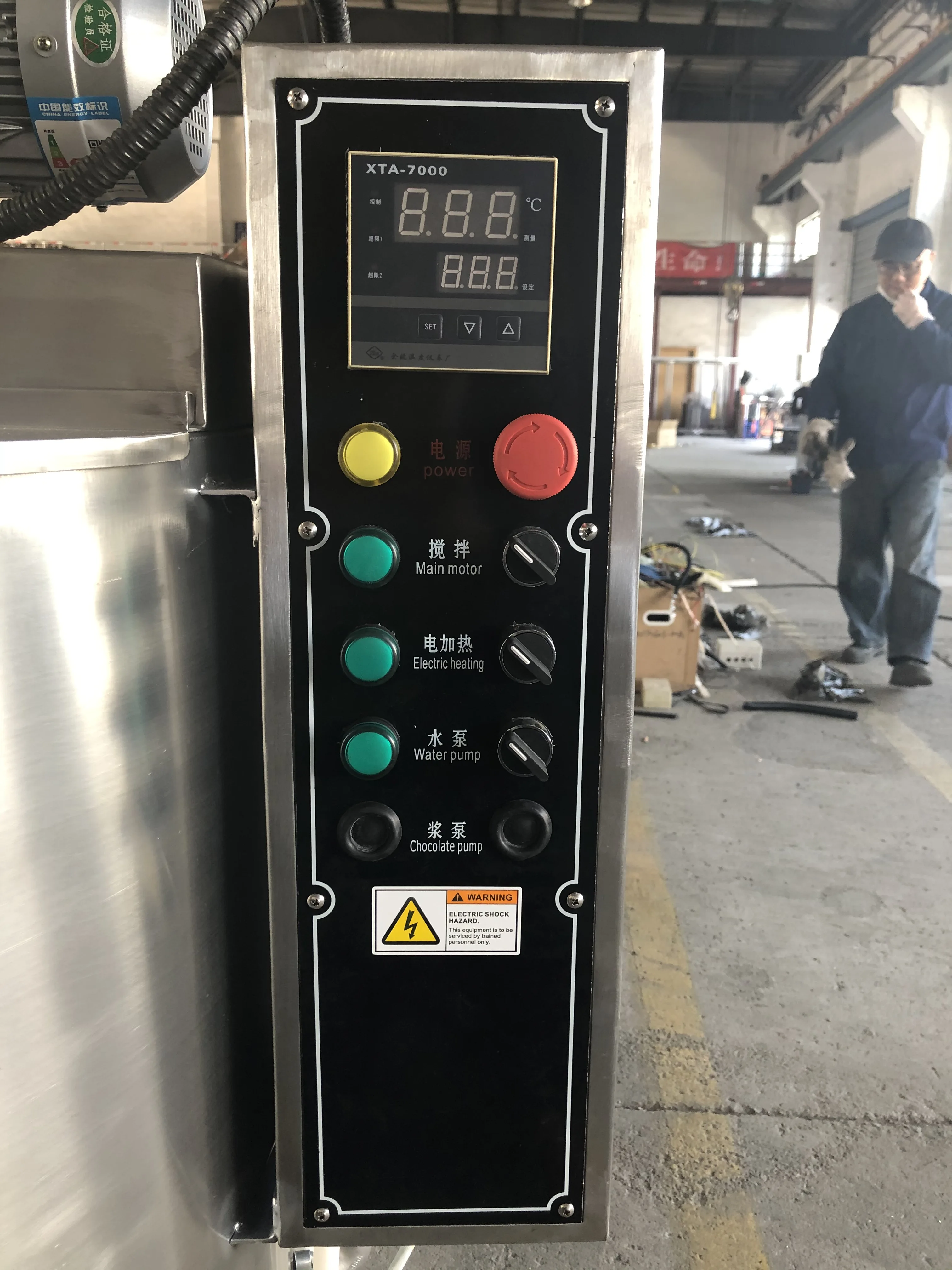

2. Chocolate melting machine has functions of temperature decrease, rise and keeping; you can set required temperature on control panel.

3. Meantime, it also has functions of degasification, desmelling, dehydration and preventing the chocolate paste from separation of chocolate fat by continuous stirring of agitator.



Technical Parameters :



Model	Total Volume ( L )	Motor Power (kw)	Net Weight (kg)	Outside Dimenison (diameter *height mm)
BGW-100	100	0.37	150	700*1250
BGW-200	200	1.1	180	800*1250
BGW-300	300	1.1	200	900*1250
BGw-500	500	1.5	600	1000*1380
BGW-1000	1000	2.2	1000	1220*1850
BGW-2000	2000	3	1500	1400*2500
BGW-3000	3000	5.5	2000	1700*2500
BGW-5000	5000	7.5	3000	2000*2710

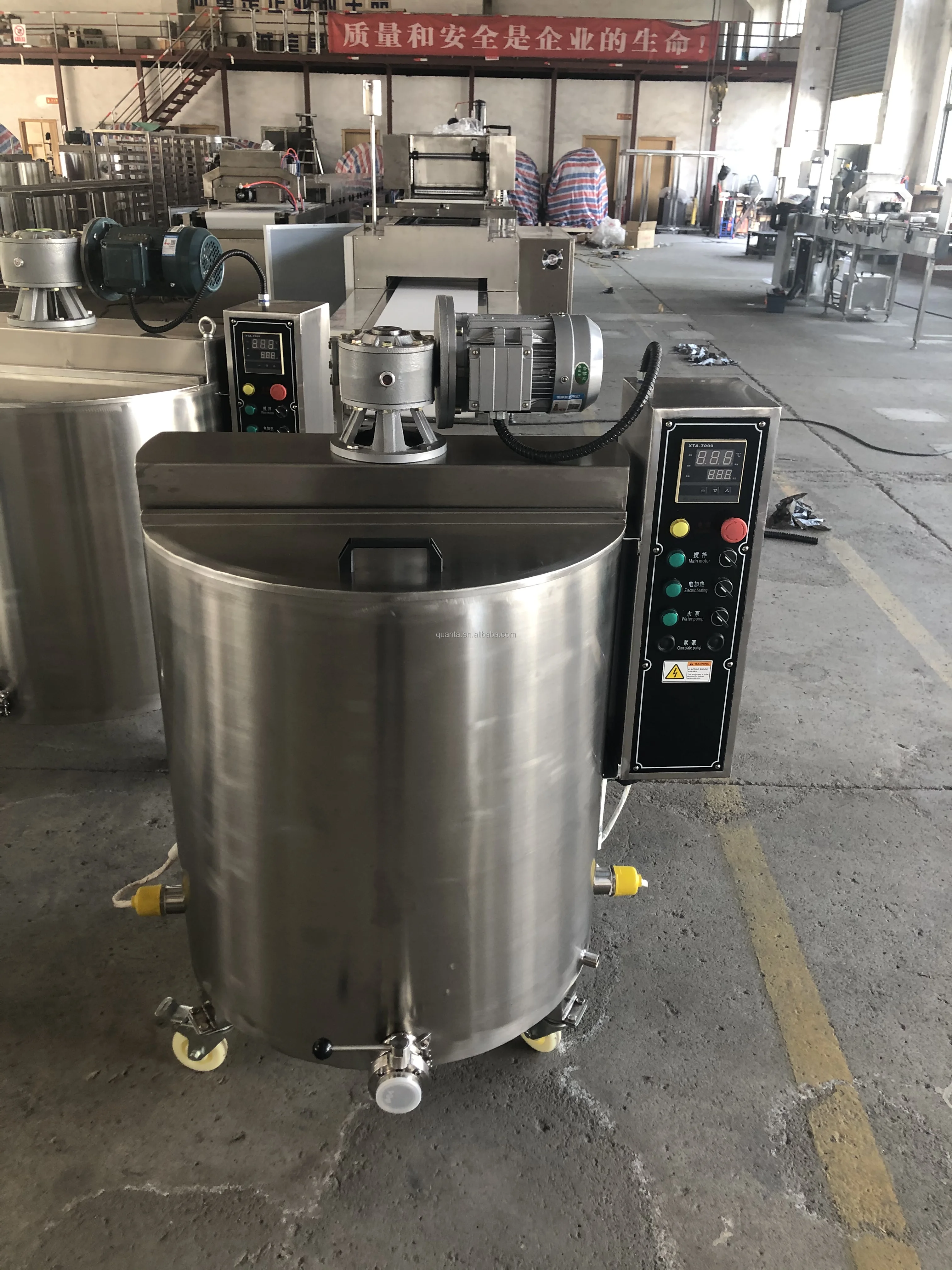

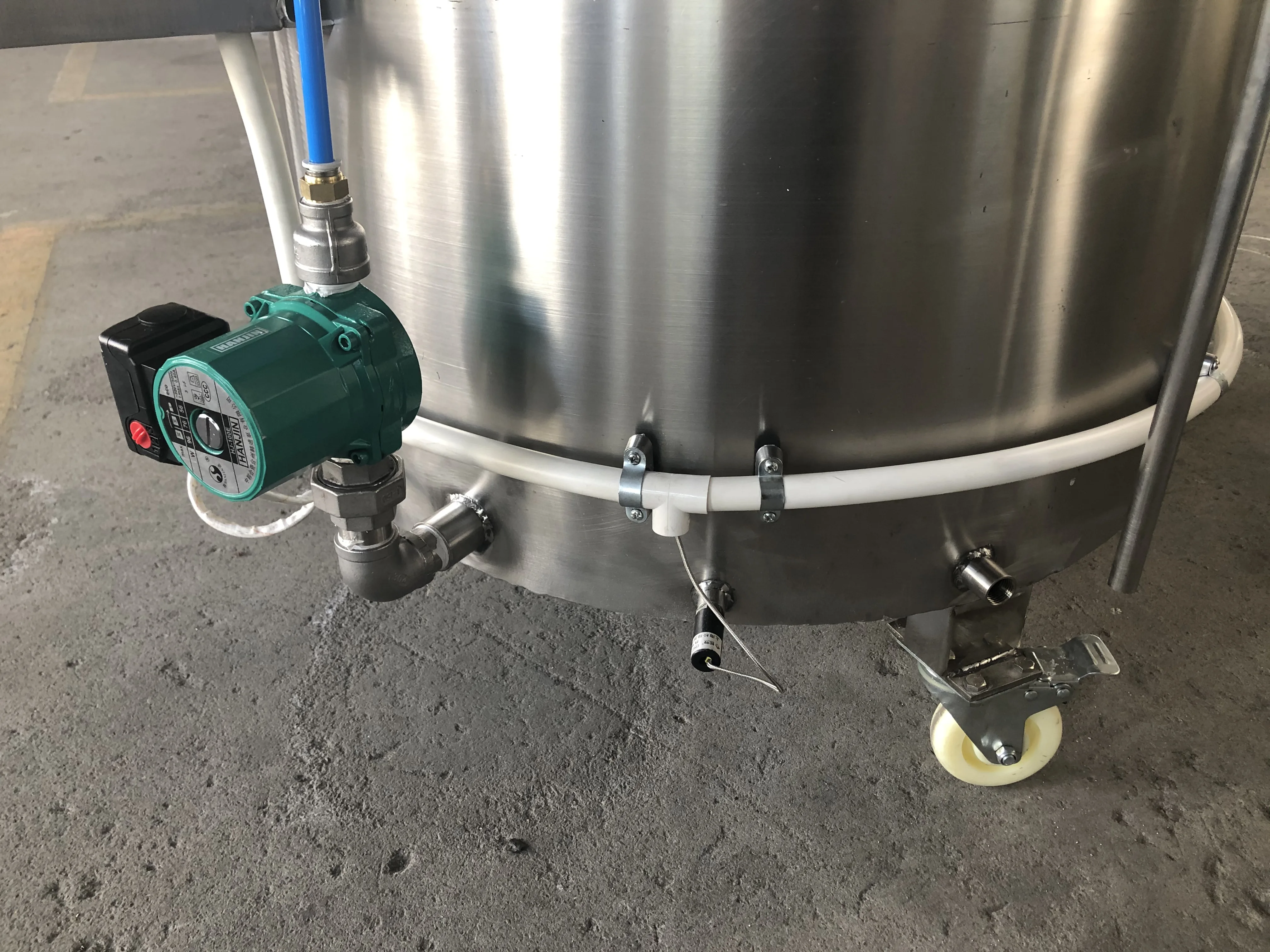

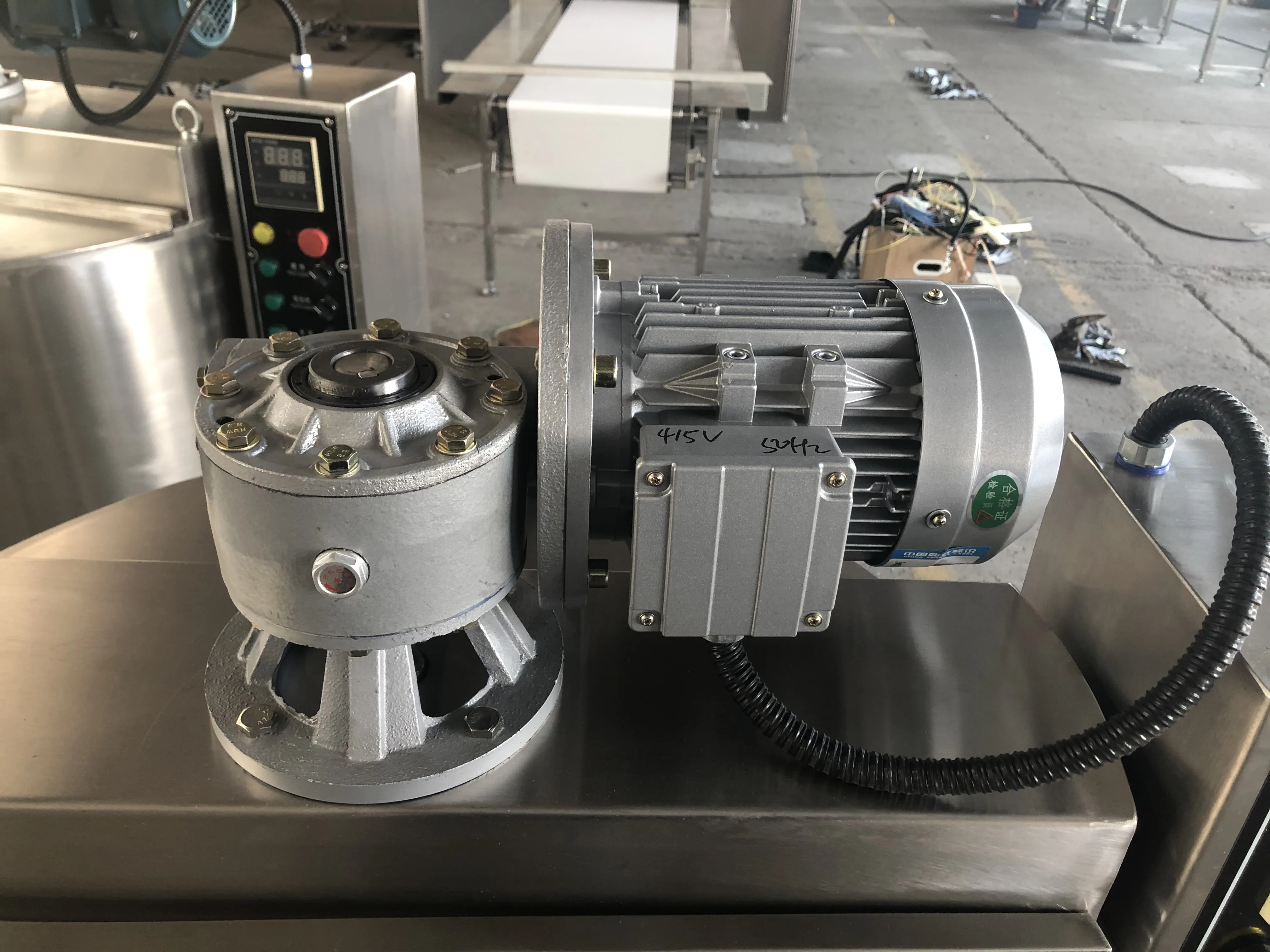

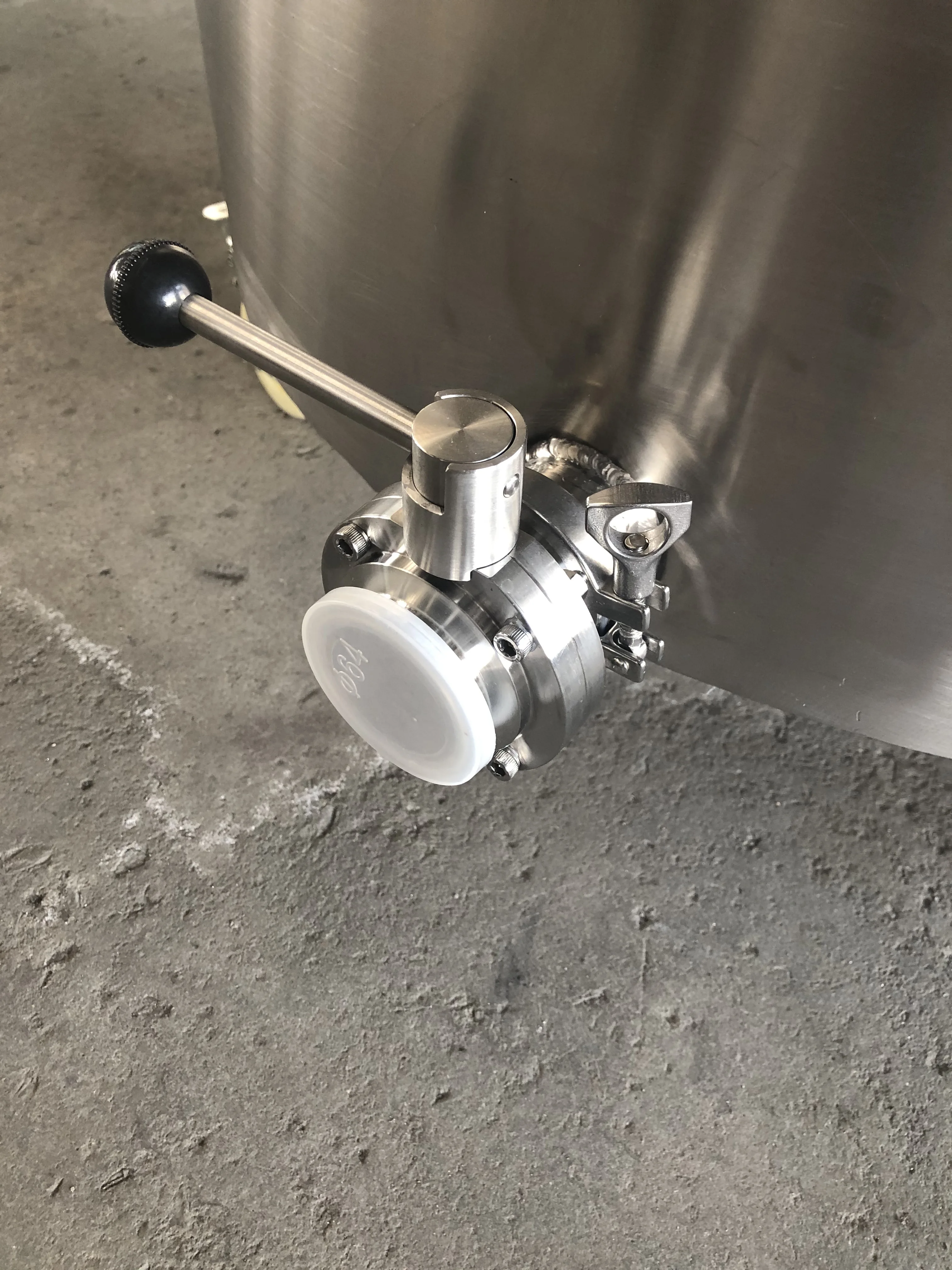

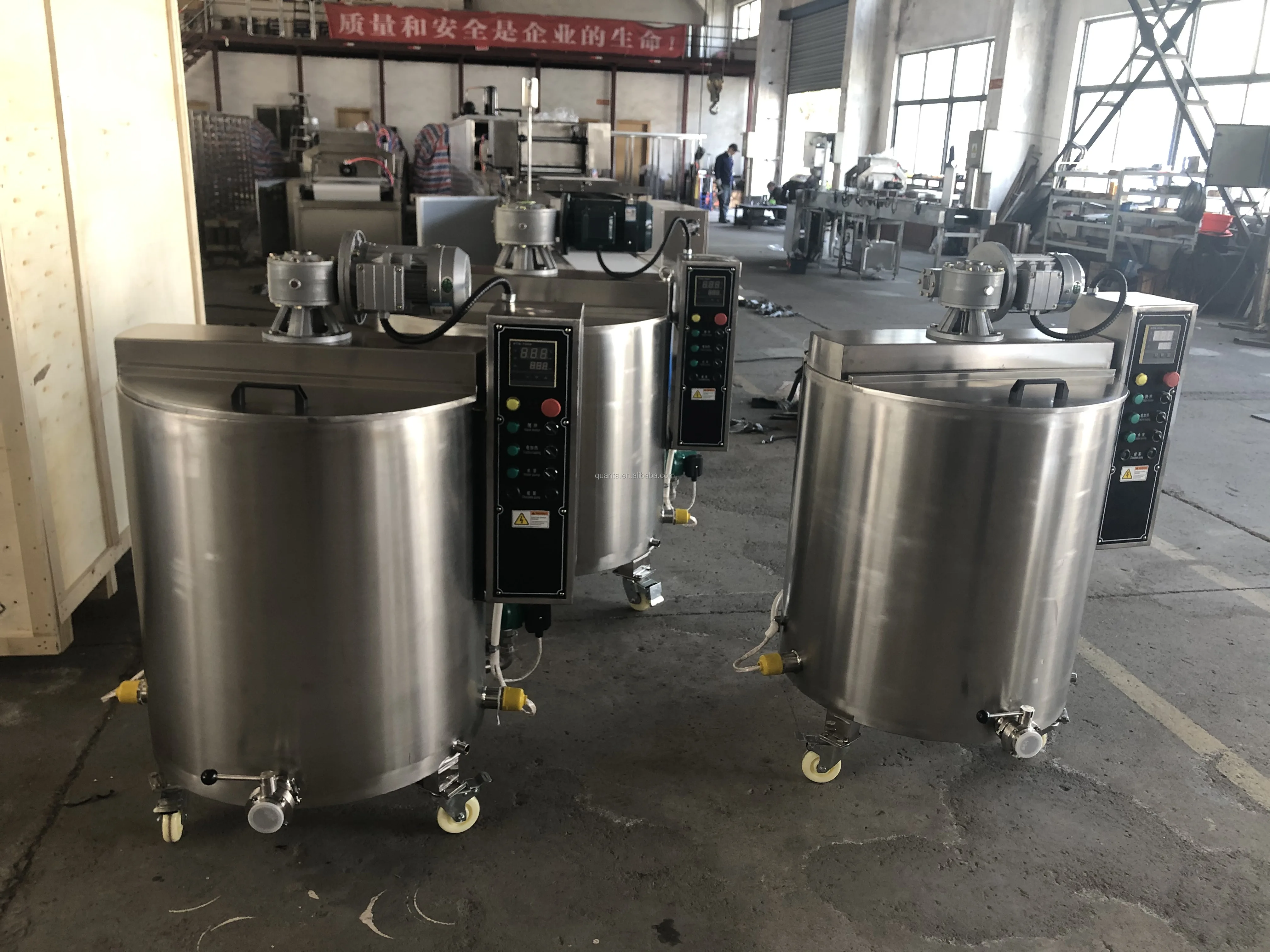

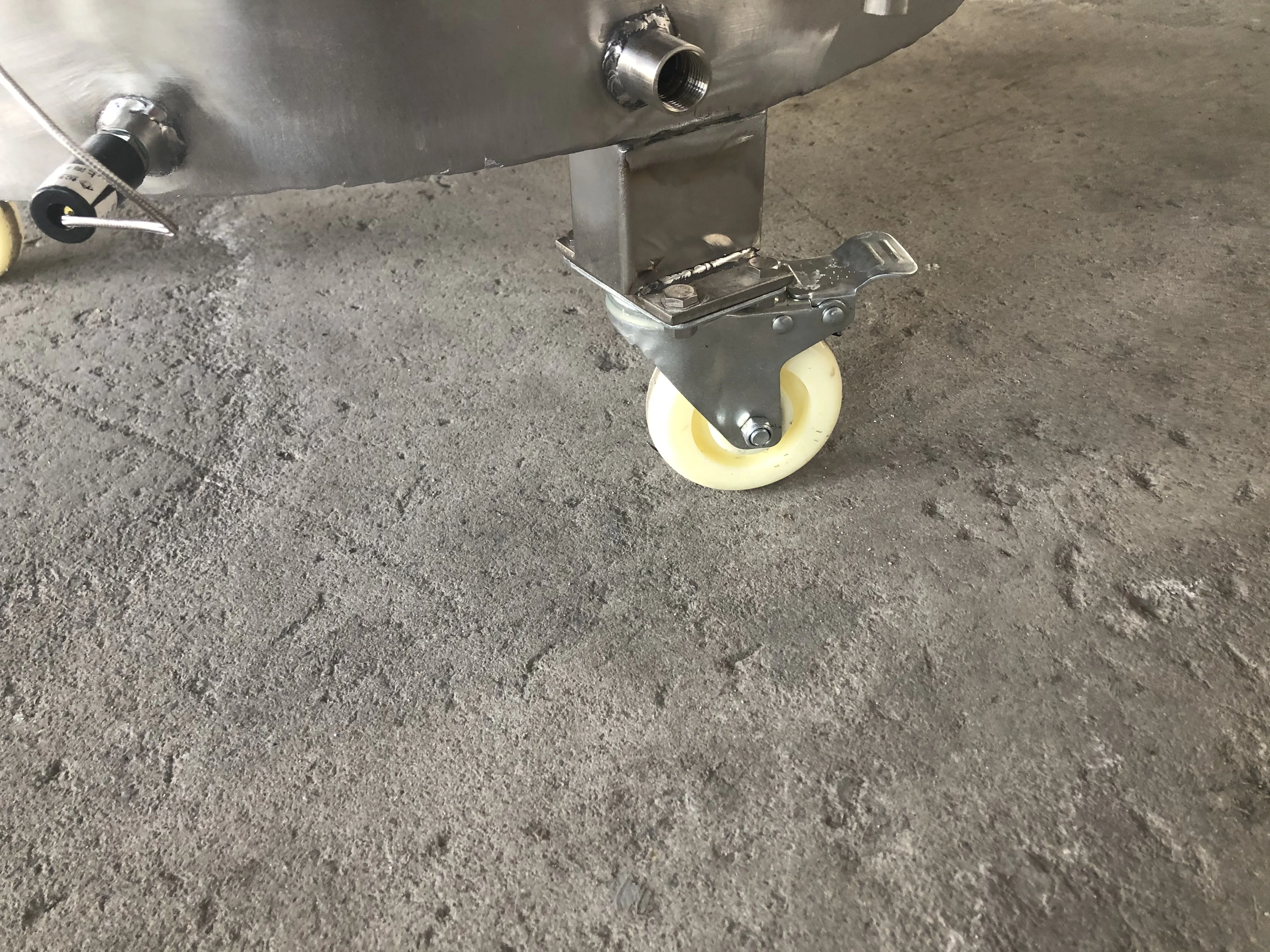

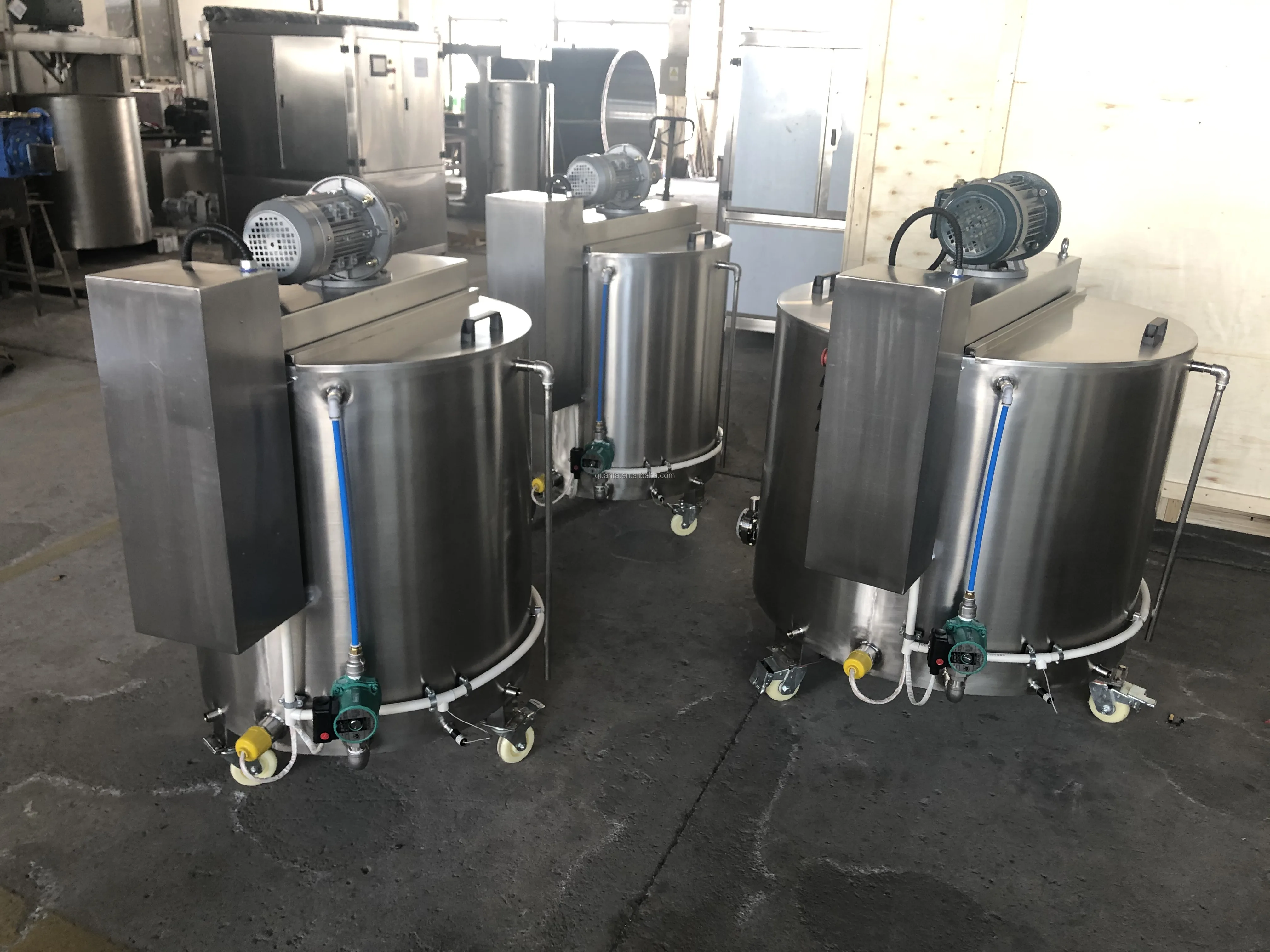

Product Pictures :
