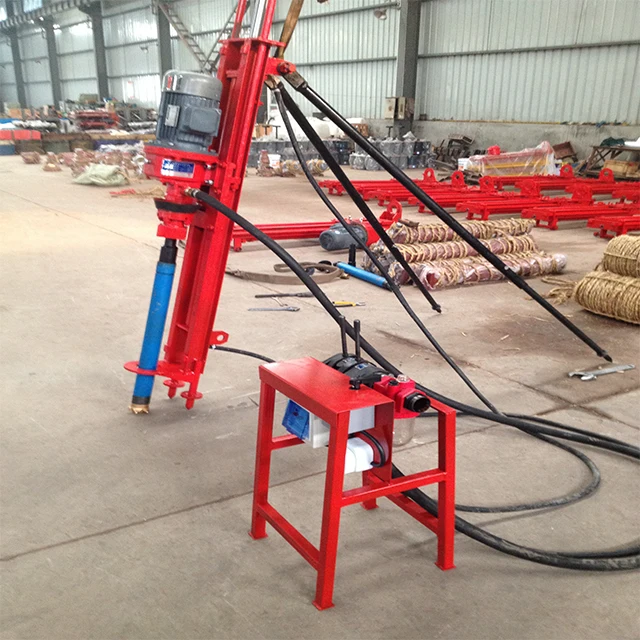

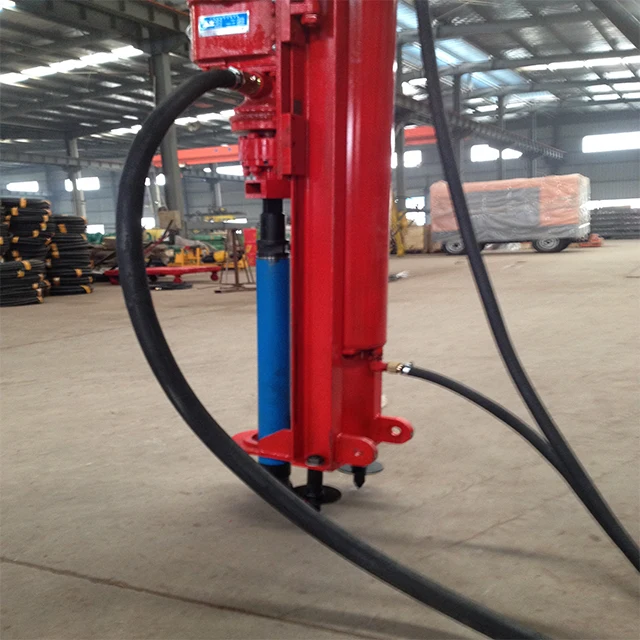

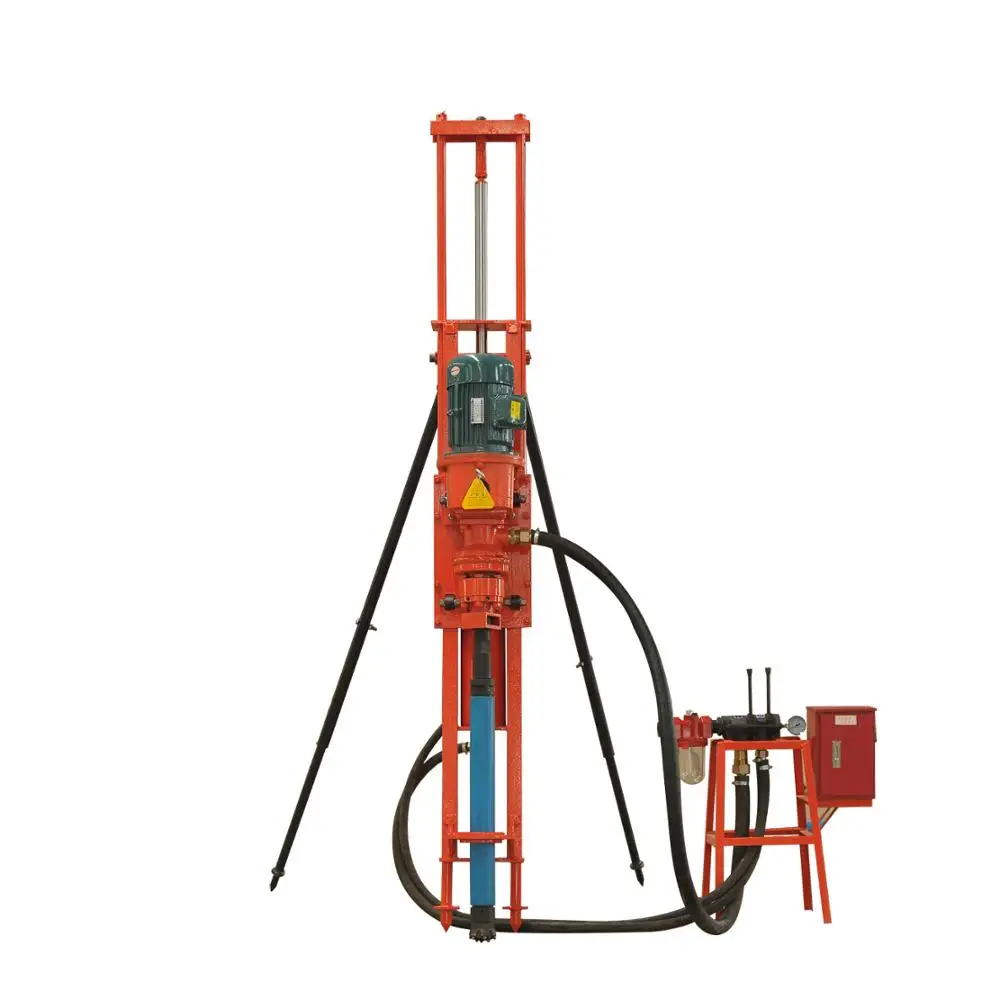

WKD100 electric down-the-hole drill rig is based on the company's WKQ air-operated down-the-hole drill rig, changing the power source design, the function is exactly the same as WKQ air-operated rig. The auxiliary equipment that provides power is lighter and easier to move and transfer. Only a 7m³ / min electric air compressor is needed in the place with power supply, even if there is a 15kW generator set in the place without power supply, it can meet the stand-alone operation. Especially when the road of the new construction site is inconvenient, it is convenient for the equipment to enter the field. And the motor is less wear and maintenance than the wind motor, so this model is a light and economic model.
1. Model
WKD100
2. Drilling diameter
.76T30iran
3. Applicable rocks (Plan hardness)
f=8-20
4. Drilling depth
25m
5. Rotation speed of drilling tool
0-84r/inin
6. Use air pressure
0. 5-0. 7Mpa
7. Air consumption
6m3 /min
8. Propulsion cylinder
Cylinder diameter
140itiid
Advance effective journey
1070-1120inm
Maximum propulsion
9600N
9. Motor
model
Y112M-4-B5
power
4kW
Voltage
380V
Rated speed
1440r/inin
Drill pipe
Drill pipe outer diameter
.50-60irari
Drill rod length
1025irari
11. Overall dimensions
Related Products
Application
About Us

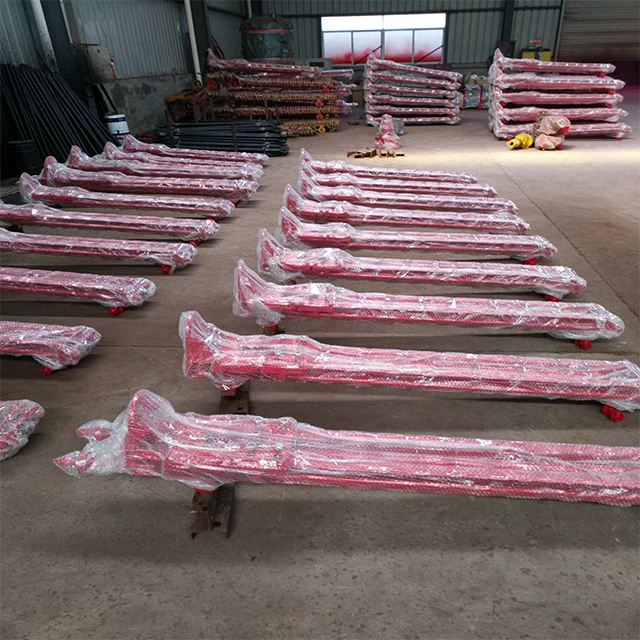

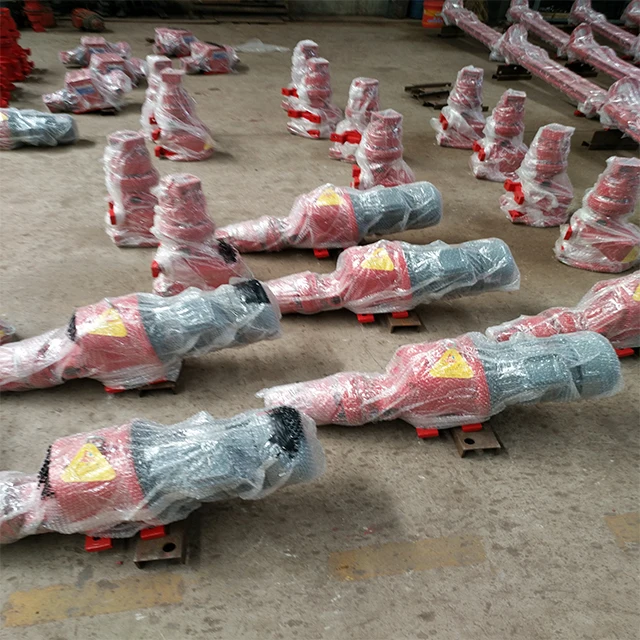

Packaging & Shipping
FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock.It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.Payment<=USD 5000, 100% in advance.Payment>=USD 5000, 30% T/T in advance, balance before shipment.
