4~20mA signal input
-35 ~ 75 °C
Unique 8 digits
User Programmable 5s ~ 4 hours
Instant on incoming data of connected sensors
Average 1~2 year
433 MHz, 4.8Kbit/s
433 MHz, 4.8Kbit/s
115 x 90 x 55 mm
70 x 65 x 35 mm

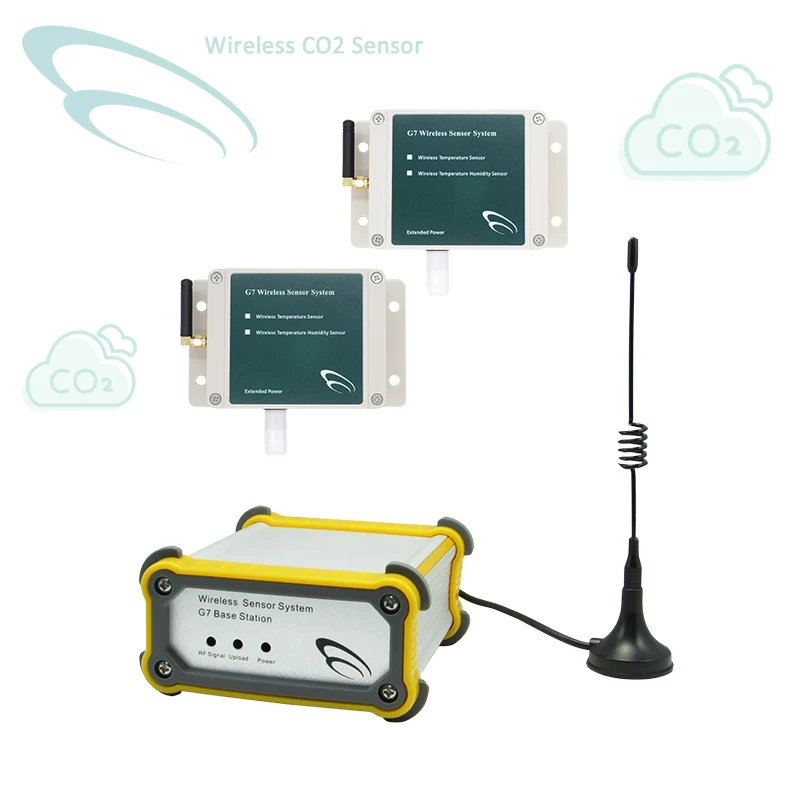

iot Wireless Detector CO2 Sensor air quality monitoring system
With G7 wireless analog sensor and Base Station, you can start monitoring sensor measurement online remotely.
Wireless sensor G7 transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.
Wireless CO2 Sensor
* 0 ~ 2000ppm
- agriculture, farming, green house
- car park, factory, laboratory
- building management
[In the Package]
1 x Base Station & RF Antenna
1 x AC/DC Adaptor
1 x Ethernet Cable
Up to 64 x Wireless Sensors in one single system
[How it Works]
The sensor transmits the analog sensor reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.
* G7-AD\t\t\tWireless Analog Sensor
* G7-D2\t\t\tWireless Digital Alarm Input
* G7-T2/TX\t\tWireless Temperature Sensor
* G7-H2/H3\t\tWireless Temperature Humidity Sensor
* G7-T2/TX-Ex\t\tWireless Temperature Sensor [Extended Power]
* G7-H2/H3-Ex\t\tWireless Temperature Humidity Sensor [Extended Power]
It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.
(3)\tG7 Wireless Client App for Windows, iPad, Android
By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.
"Easemind Technology Ltd. is established by a team of engineers and programmers specialized in industrial and telecommunication fields.
We have been in business of hardware and software development of wireless data logging devices and industrial telemetry equipment since 1989.
The business and marketing concept of the company consists of:
• Development according to the actual market needs and customer demands,
• Utilization of reliable, trust-worthy and right-to-the-edge technology,
• Turn-around product delivery and service fulfillment within time limits,
• Cost-effective solutions: the right price for the right product, and
• One Stop Solution of hardware, software and user applications
EASEMIND is now a group of companies specialized in RF wireless sensor & mobile data tracking devices for consumer and industrial sectors. Our sales offices are located in US, Hong Kong and China with manufacturing facilities in Zhejiang and Shenzhen, China.
