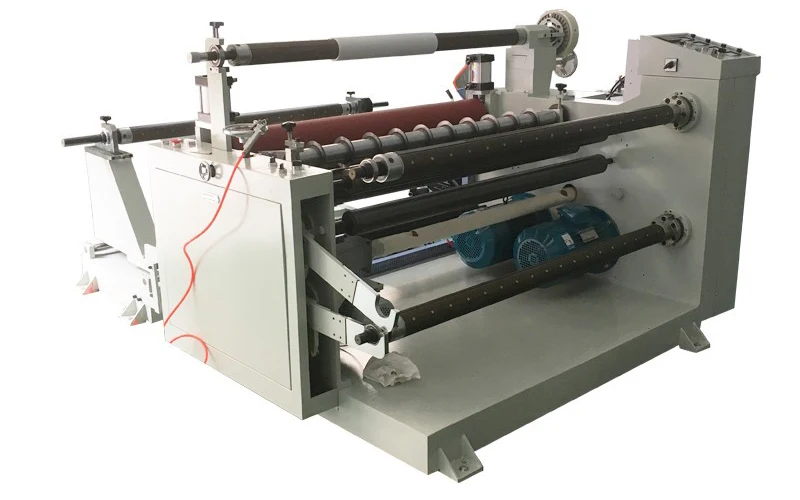

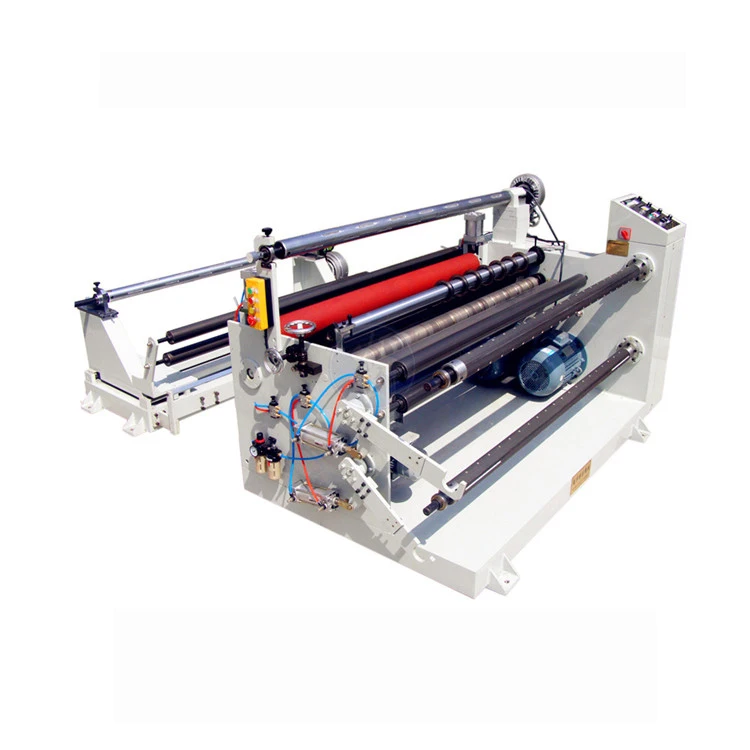

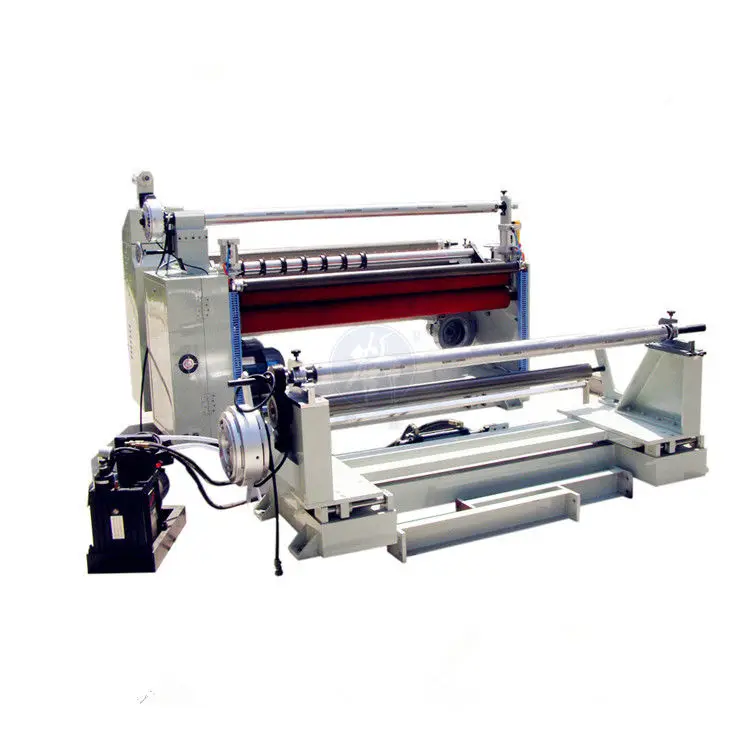

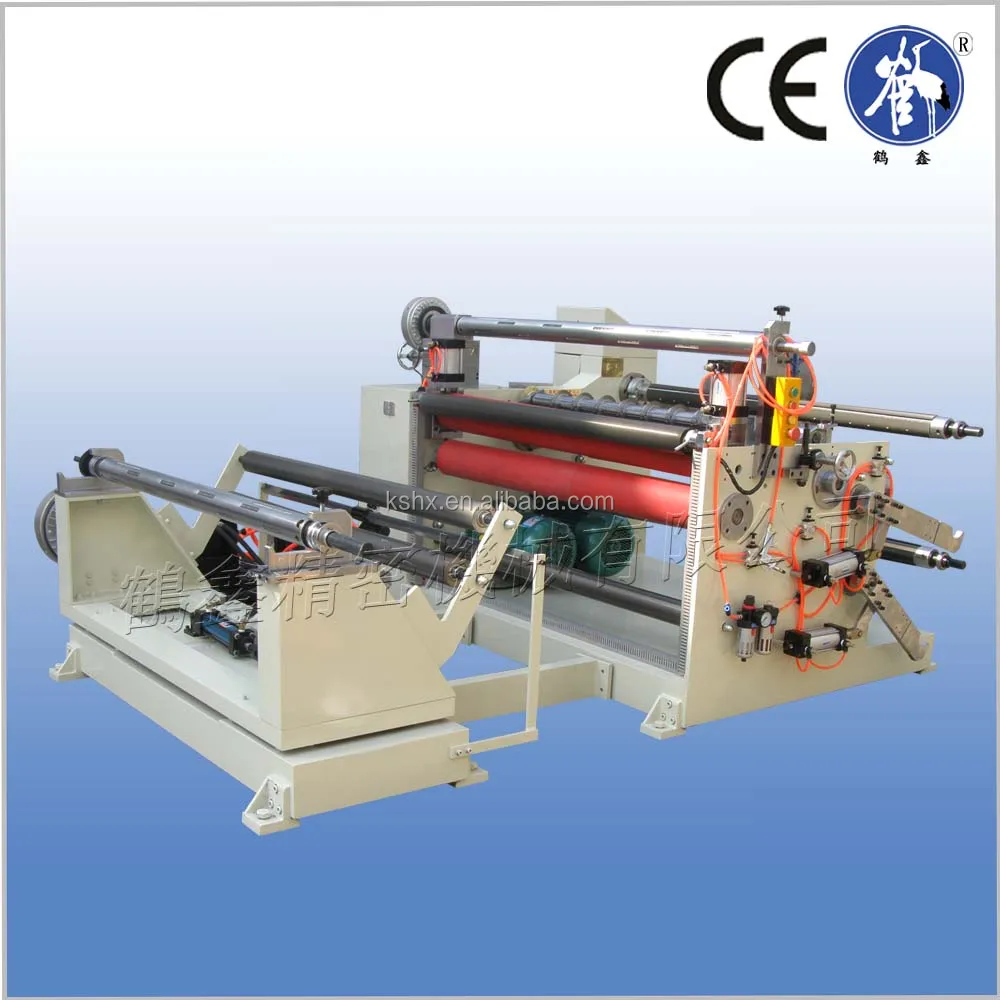

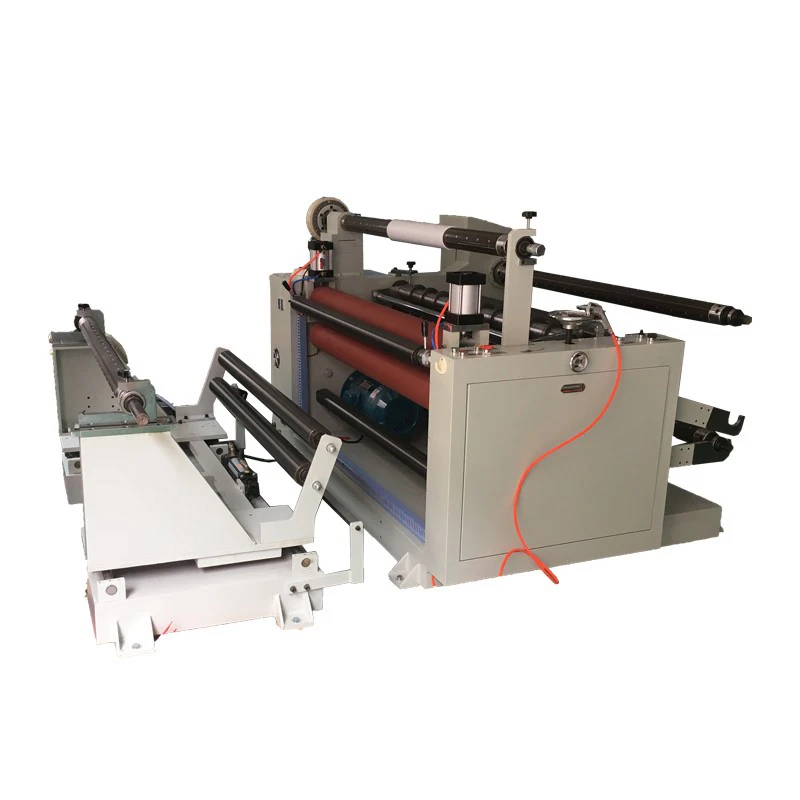

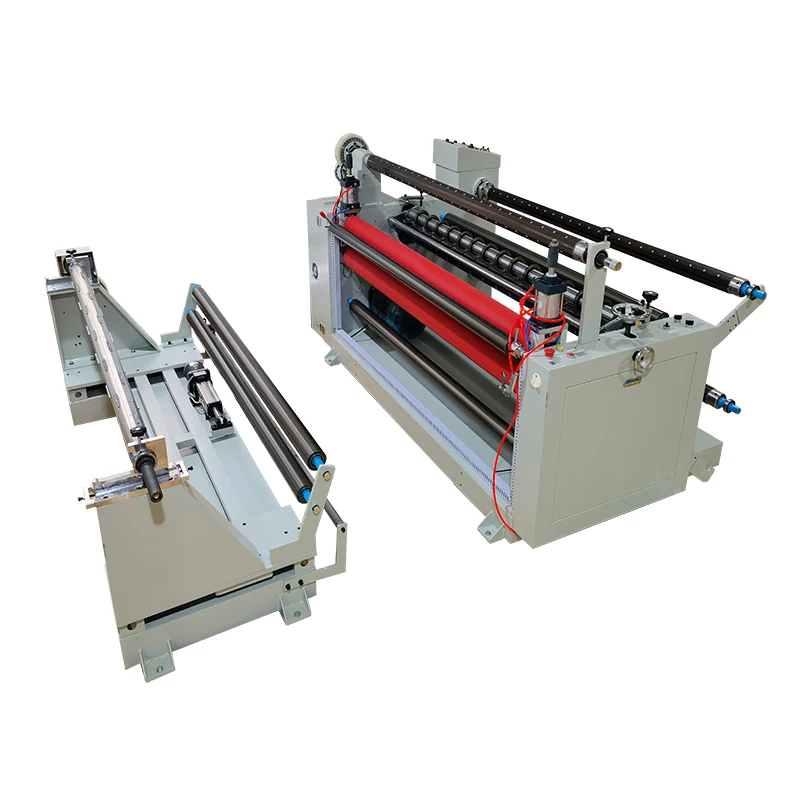

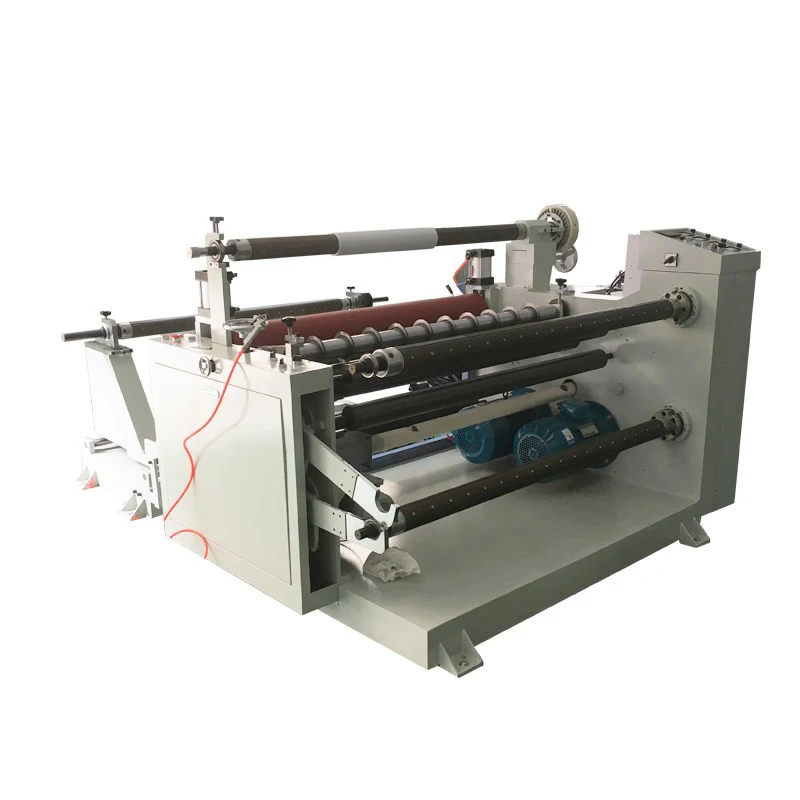

HX-1600FQ Multi Function Non Woven Fabric Slitting rewinding machine

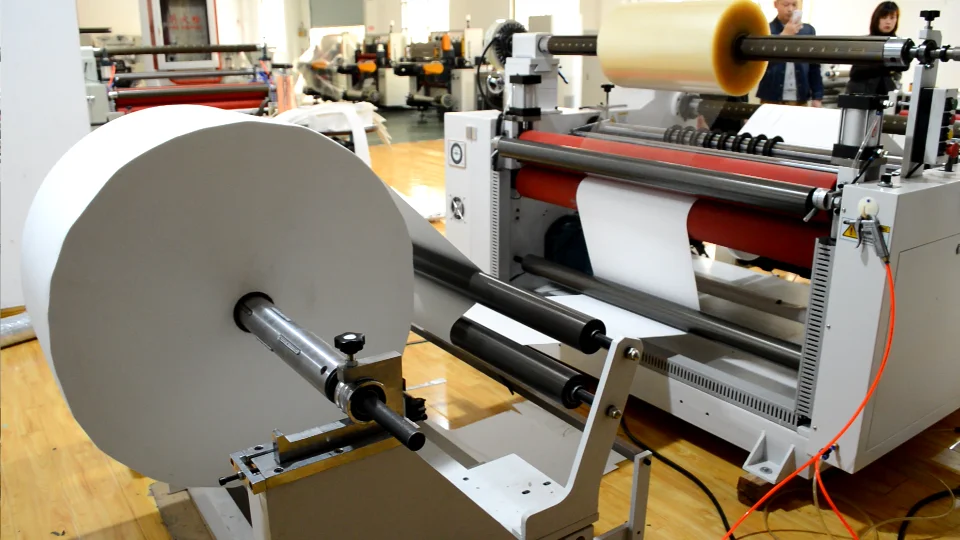

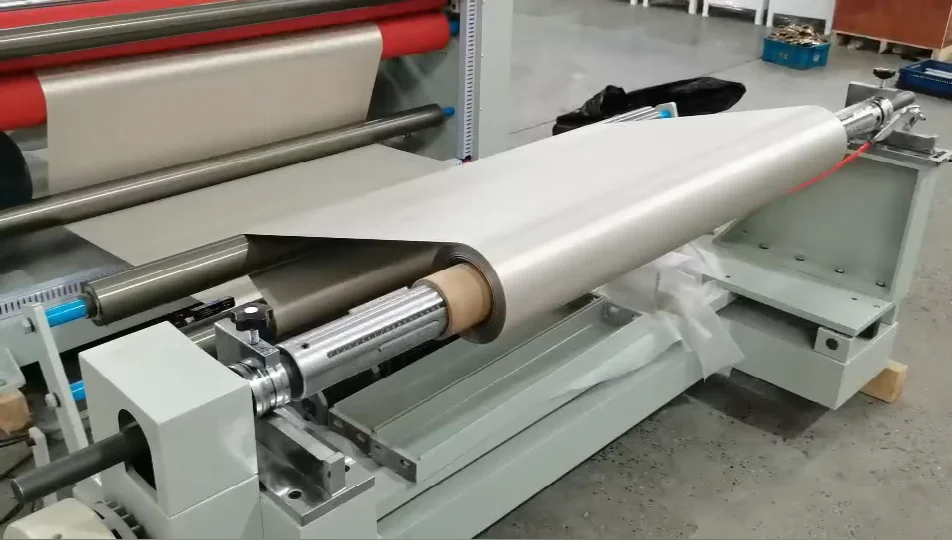

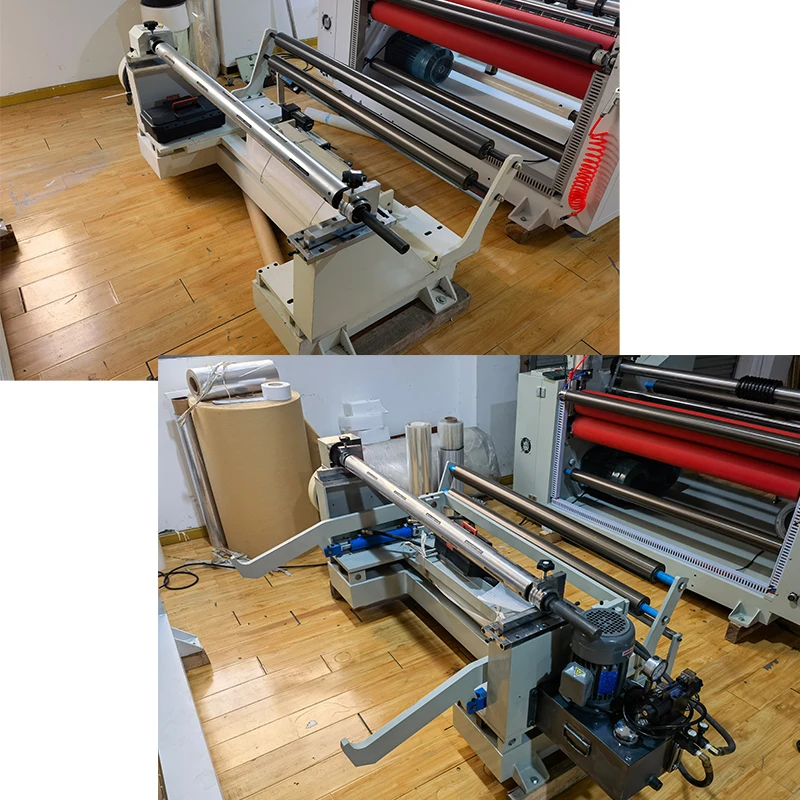

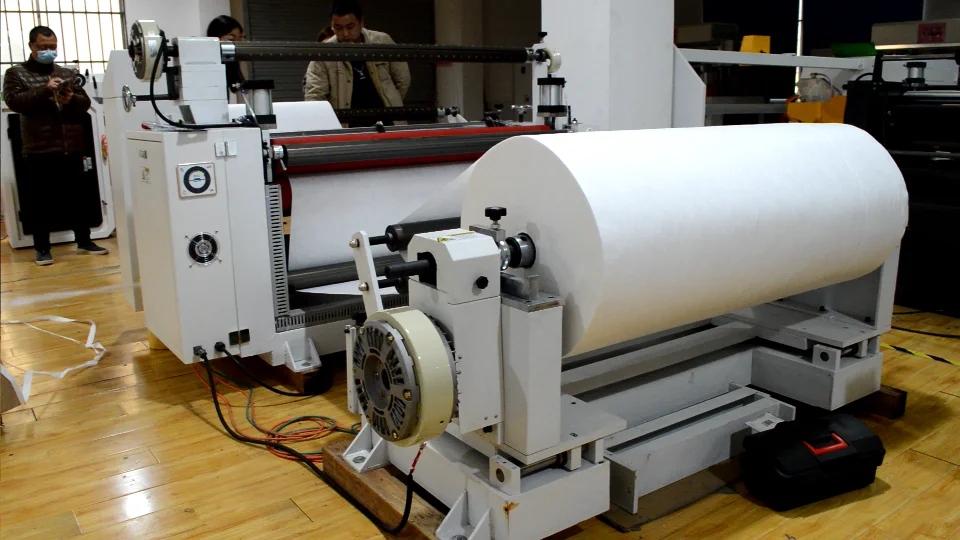

1.Unwinding unit
Name: Unwinding air shaft
Material : air shaft
Original: China
The unwind station is composed of one station for the axial unwinding of the logs.
This unit is equipped with one pneumatic shaft and the pneumatic brake is magnetic tension controlled.

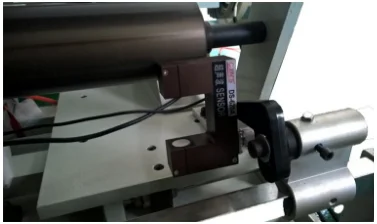

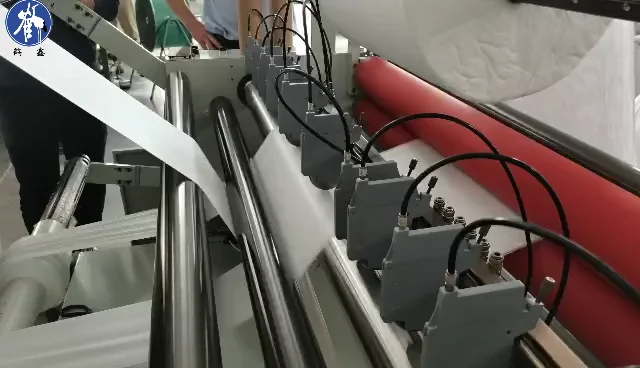

2.EPC system
Name: Electronic photo cell
Original: China
Usage :
These electrical photo cell is used to guide the non neat material .make sure the slitting effect is good .
The photo eyes focus on the edge of material ,you can choose to use single eye or double eyes .

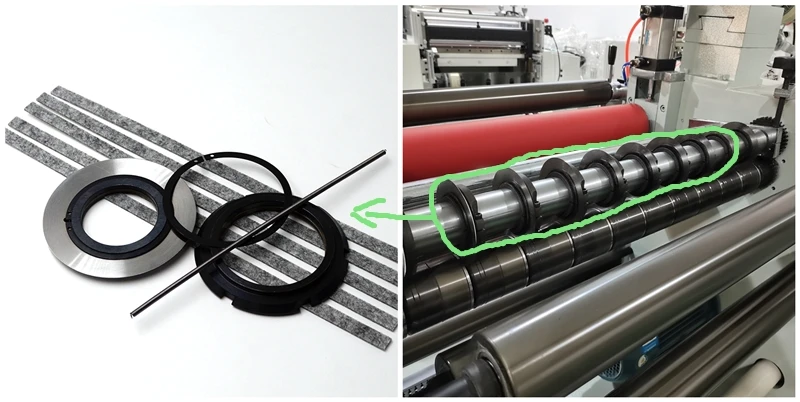

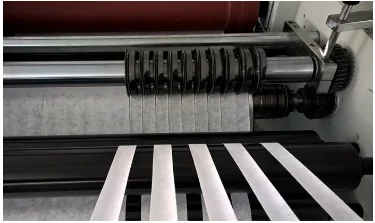

3.Slitting unit
Name: Slitting blades
Material : 9GrSi
Original: China
This machine is standard equipped with 8 sets of slitting blades ,The minimum slitting width is 20 MM ,
if you want to slit smaller width ,you can customize self-locking knives . It's easy to adjust the slitting width based on your products .

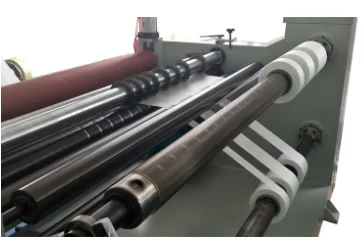

4.Rewinding unit
Name: rewinding air shafts
Original: China
It's inflatable by air compressor ,convenient to upload and discharge the material ,two rewind stations are designed
to rewind the finished log up to 450 mm in outside diameter.
This unit is equipped with two pneumatic shaft and two magnetic clutch .
specifications:
Model | HX-1600FQ |
Max feeding width | 1600mm(max) |
Main Engineer Power | 6Kw |
Speed | 90m/min |
Machine Size | 2400*2300*1600mm |
Machine Weight | 1500kg |
Max.Unwinding diameter | 800mm |
Max.rewinding diameter | 450mm |
Precision | +-0.1mm |
Power | 380V 50Hz |
Featuress :
©Laminating function
©EPC (edge positioning control) device:Ultrasonic sensor
©Waste discharge function
©Magnetic brake and clutch
©Length counting function, automatically stop after it reaches the length you set.
©2 rewinding inflatable shafts, easy for unloading materials.
Application:
It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.
