Automatic foil winding machine for power transformer copper and aluminum foil winding YIBO factory

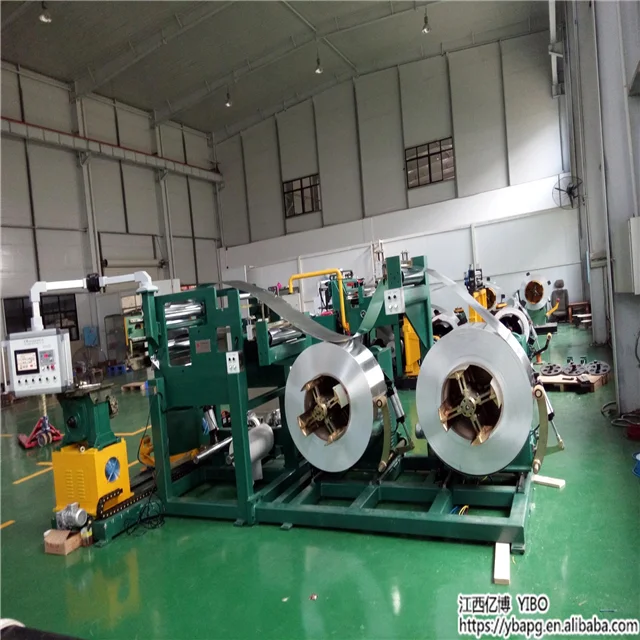

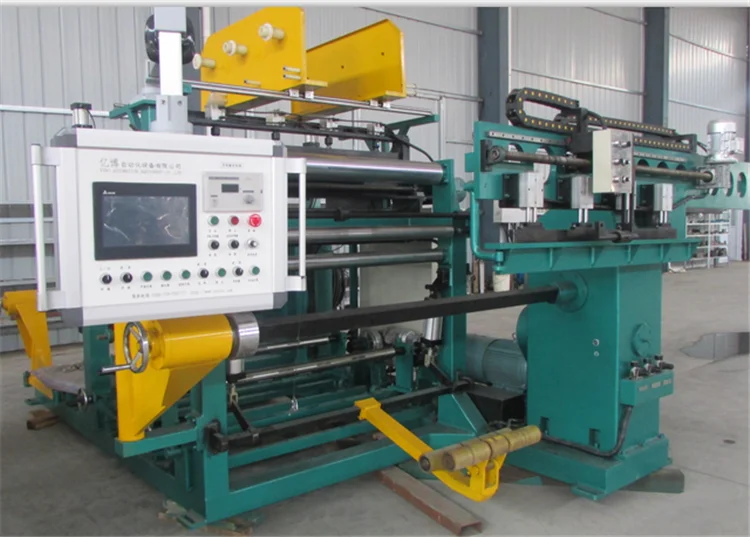

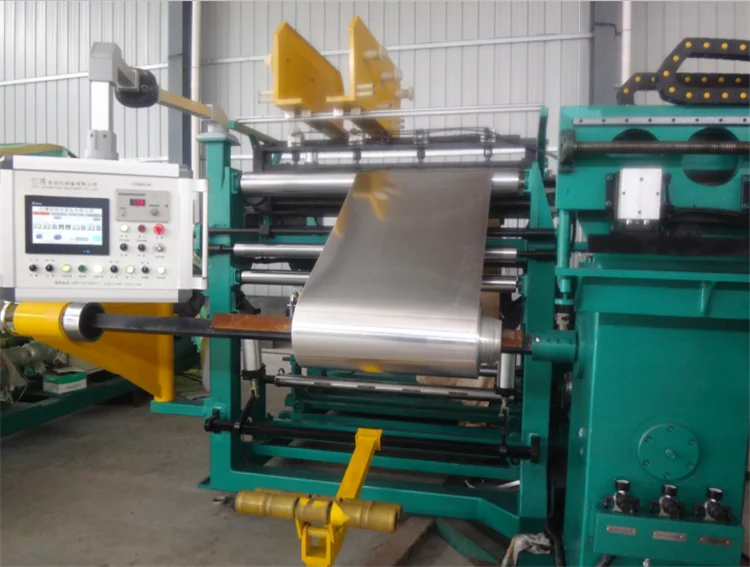

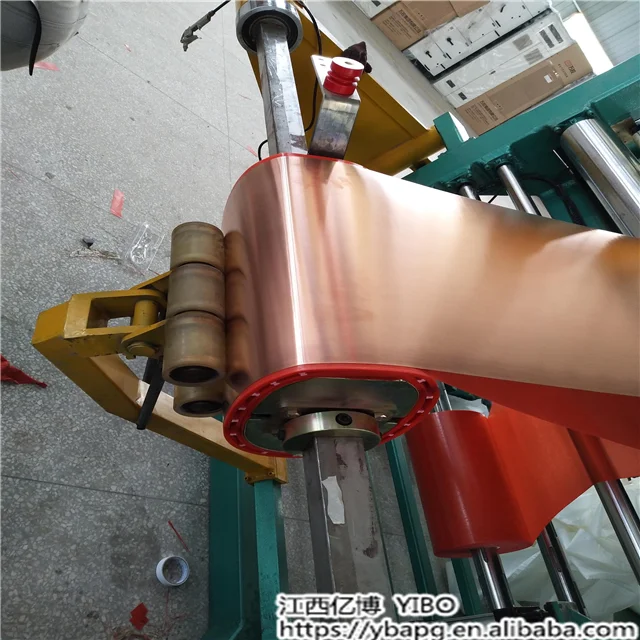

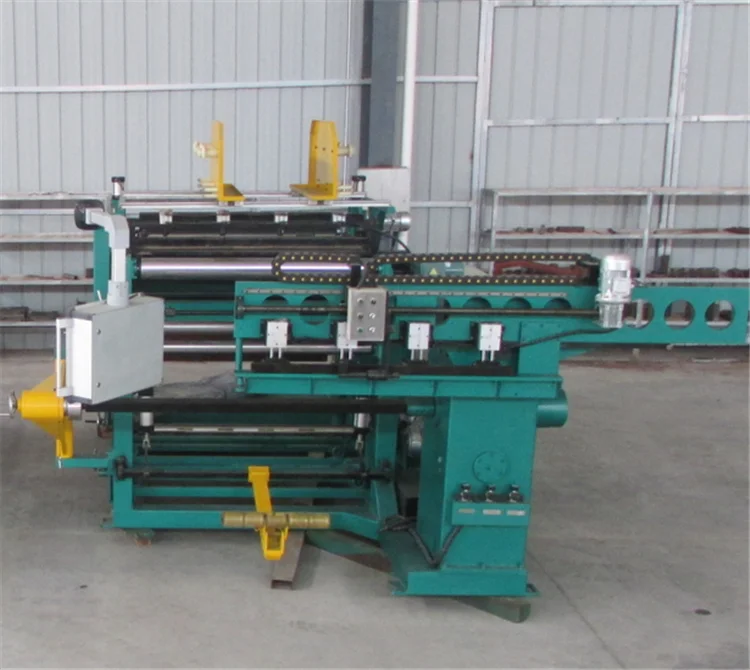

BRJ-1400 Automatic Foil Winding Machine for Power Transformer Making

BRJ Digital foil winding machine, a special equipment used for transformer foil winding. The device is newly developed by our company based on full understanding of actual application in transformer making. It is of high quality, great efficiency and very easy to operate.

Characteristic

Tension system,The machine exerts tension by unwinding brake, which provides more consistent dynamic and static tension compared with traditional passive tension system. Tension is applied to foil and layer insulation on both winding and rewinding to ensure compactness of foil coil.

The rectification system adopts photoelectric sensors which ensure dynamic auto centrering of foil.

Set foil tension, layer insulation tension, coil parameters and other parameters via PLC control system. Display and monitor winding state in real-time.

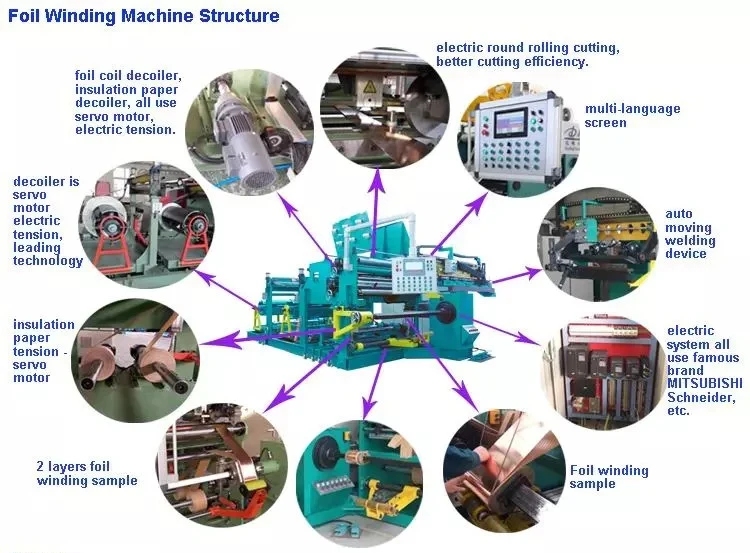

2.Main components of equipment

1. Uncoiling and rectifying device     (2 sets);

2. Feeding device                  (2 sets);

3. Cleaning device                 (2 sets);

4. Rectifying sensor device          (2 sets);

5. Shear device                    (2 sets);

6. Layer insulation cutting device      (1 set);

7. End insulation unwinding device    (left,right);

8. Layer insulation device            (2 sets);

9. Layer insulation welding device;(TIG welding machine AC and DC 500)WSE  Copper and aluminum welding technology

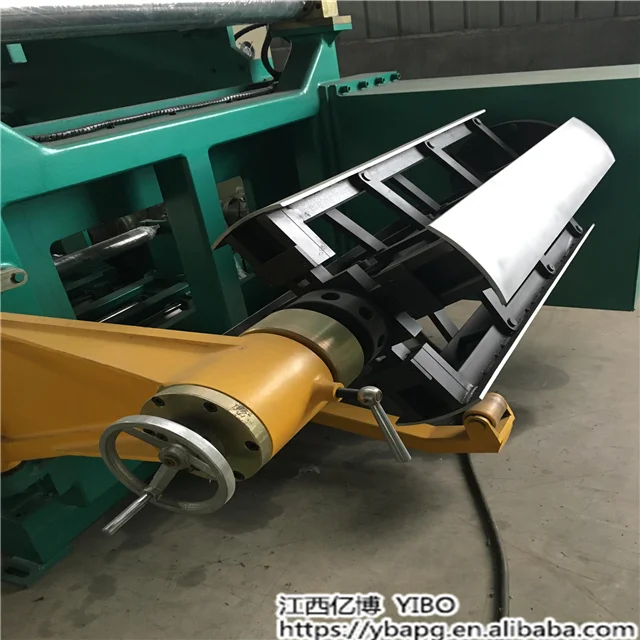

10. Winding device;

11. Winding compression device;

12. Electronic control system;

Jiangxi YIBO Automation Equipment Co.,Ltd is a professional enterprise who specializes in manufacturing automatic equipments. It is located in Luxi ecological industry area, Pingxiang City, Jiangxi Province, 1 hour driving distance from Changsha International Airport .

YIBO mainly manufactures
Vacuum drying oven
Epoxy Resin Vacuum casting plant
Hot Air drying oven
Vacuum mixing frame and tank for Epoxy Resin material
APG injection machine
APG mould & vacuum casting mould
Vacuum pressure impregnation for motor coil insulation treatment
Vacuum oil filling for oil type transformers
Foil winding machine
HV and LV coil winding machine
Automatic CT/PT winding Machine
Core Winding Machine
Silicone Steel Cutting Machine
Automatic wire-laying winding machine
Stereoscopic triangle core foil winding machine
Automatic stereoscopic core winding/cutting machine

Please don't hesitate to contact us for further information.

We have established a professional research and development team, acquired several patents and owned independent intellectual property rights. We obtained the certificate of ISO9001:2008 quality system.

We established the “technology-based, market-guided, quality - survived, reputation-developed culture within our company.We go to great length to provide excellent after-sale service to meet our customers’ demands.

Our market share in China is over 85% and Top 3 in electrical equipment field.Our factory has passed the global Top 500 enterprise clients inspection.

We warmly welcome our customers to visit us and establish mutual beneficial cooperation and friendship. Let us be your aid towards great business success.
