4 Stroke Gasoline Engine PCW5000 Portable Winch

Product Overview

Description

Introduction of 4-Stroke Gasoline Engine PCW5000 Portable Winch

The portable winch is equipped with Honda Honda GH-50, 4-stroke gasoline engine, with a maximum driving torque of 2.7N.m 4500rpm.

The fuel tank has a capacity of 770cc and can be used continuously for about 2 hours.

It is suitable for horizontal traction with larger load. The maximum horizontal traction is PCW5000 ==> 1000kg.

Fast anchoring design, can be connected with a variety of optional accessories, suitable for a variety of different working conditions.

The aluminum alloy core wheel has no rope length limitation and can be continuously towed.

Applicable for double-layer braided ropes with a diameter of 10-16mm, it is recommended to use 12mm diameter ropes.

Quality guarantee: 5 years personal warranty and 1 year commercial warranty.

Use with a variety of accessories, do more with less ...

Parameter of 4-Stroke Gasoline Engine PCW5000 Portable Winch

Model	PCW5000
Engine	GXH-35 (Honda)
Center wheel diameter	57mm
Engine	GXH-50cc (Honda)
Maximum traction	Single line 1000KG Double line 12000KG
Traction speed	10m / min
Gear ratio	110:1
Suitable for traction rope diameter	Diameter 10-16mm
Reducer & Gear	Aluminum alloy gear box 3-stage forged heat-treated gear
Brake	anti-reverse roller clutch bearing continuous
Working frequency	Anchor: 60 * 2000mm nylon sling
Certification	CE certification
Size	370 * 366 * 366mm
Weight	16KG

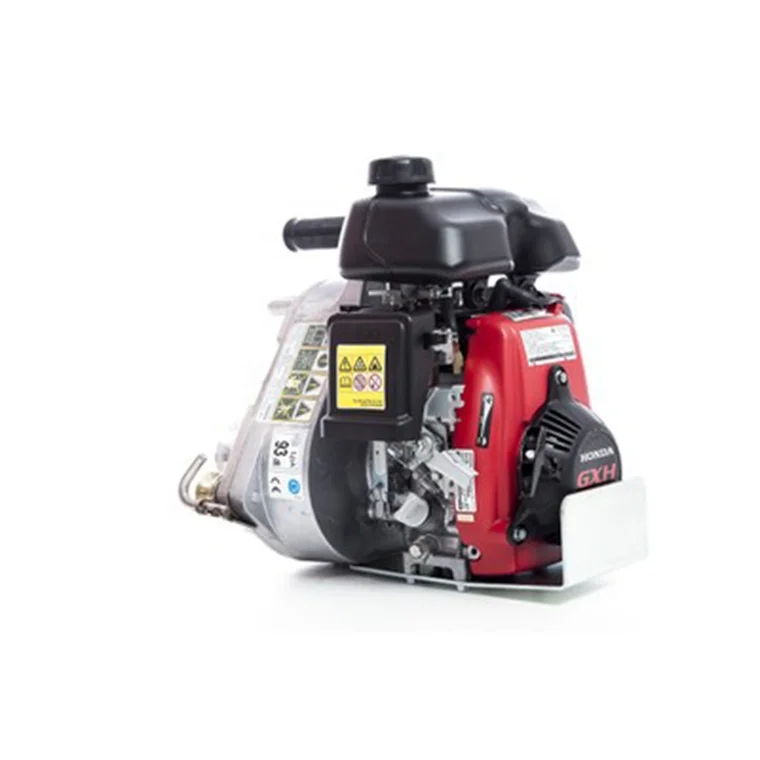

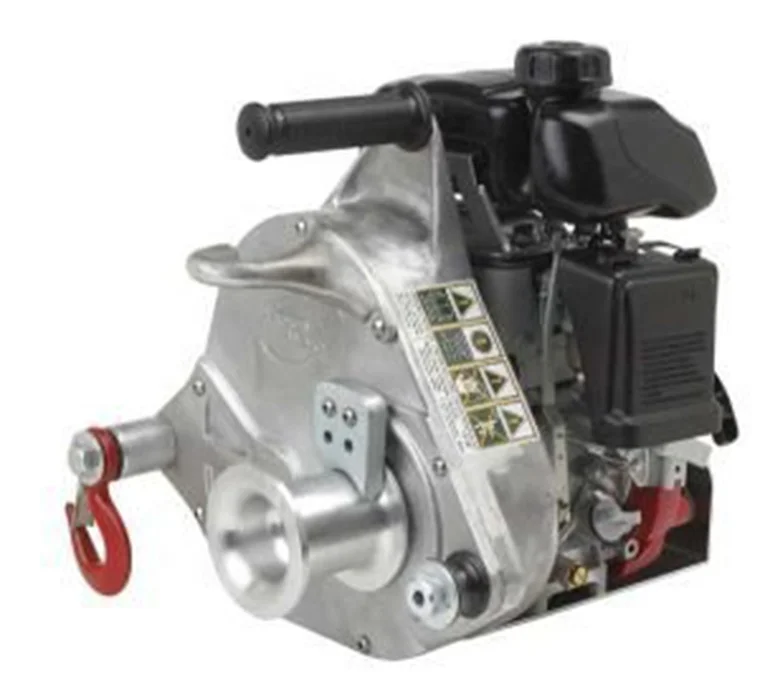

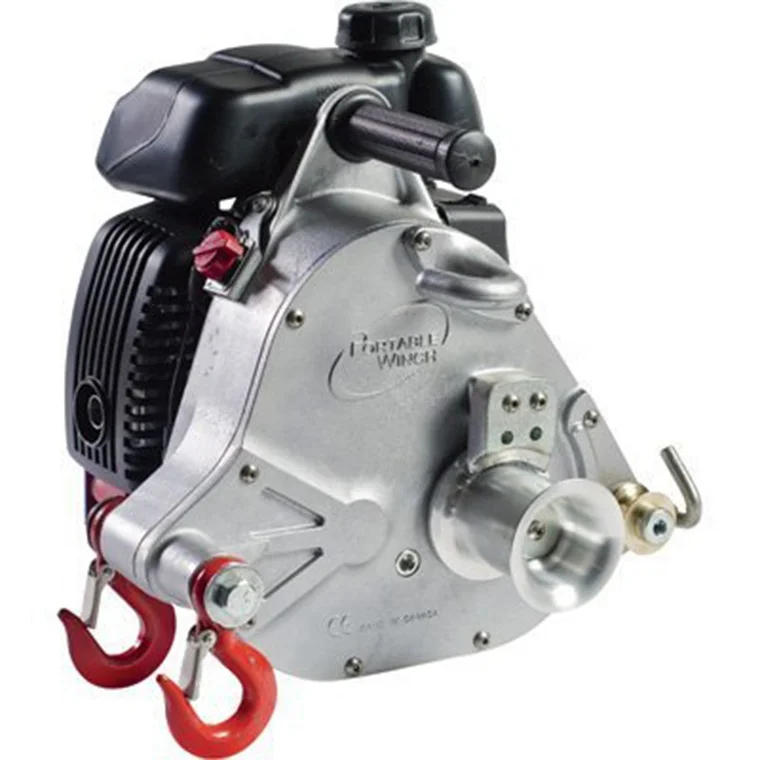

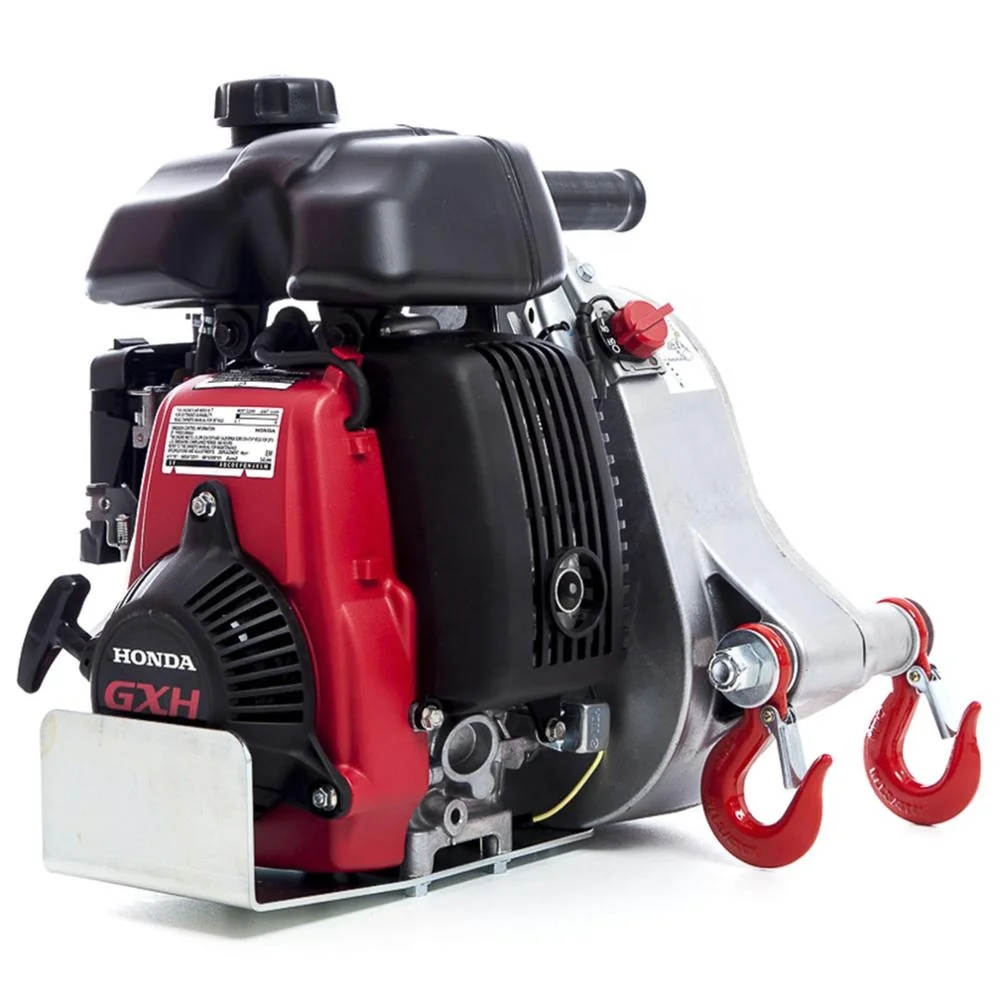

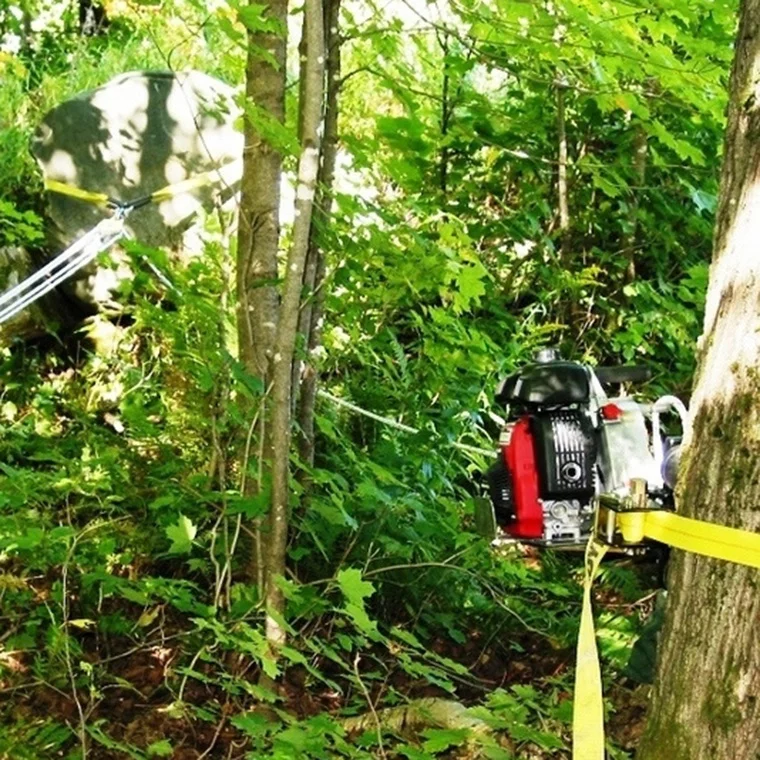

Photos of 4-Stroke Gasoline Engine PCW5000 Portable Winch
