HDG Round Section S235 Galvanized Steel Pipe Manufacturer
- Category: >>>
- Supplier: Baofu Steel (china) Co. Ltd.
Share on (62542755091):
Product Overview
Description
Products Description

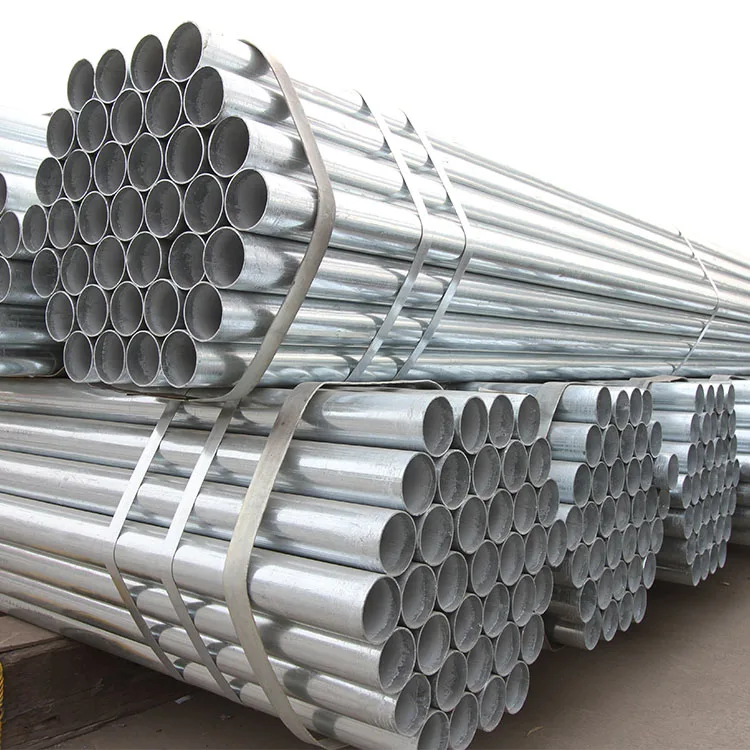

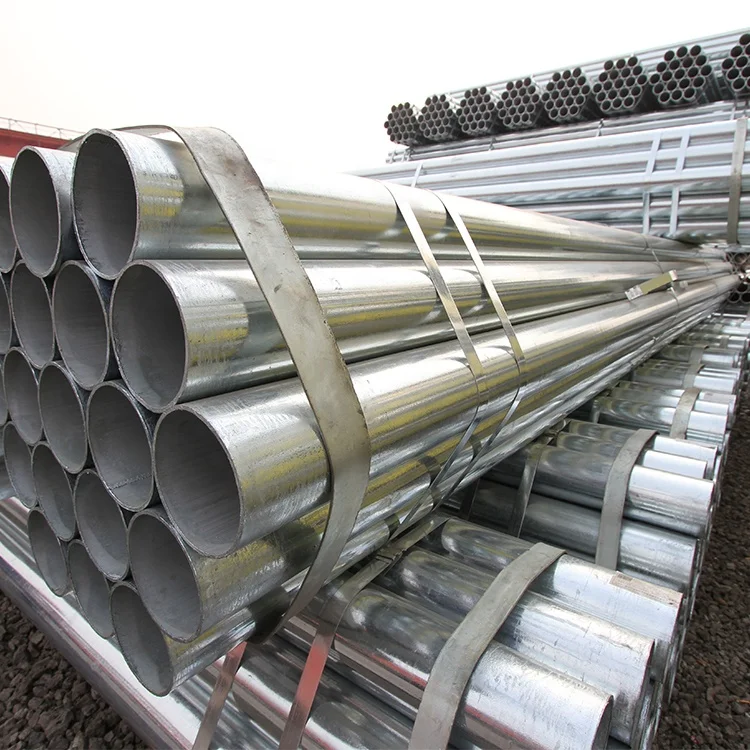

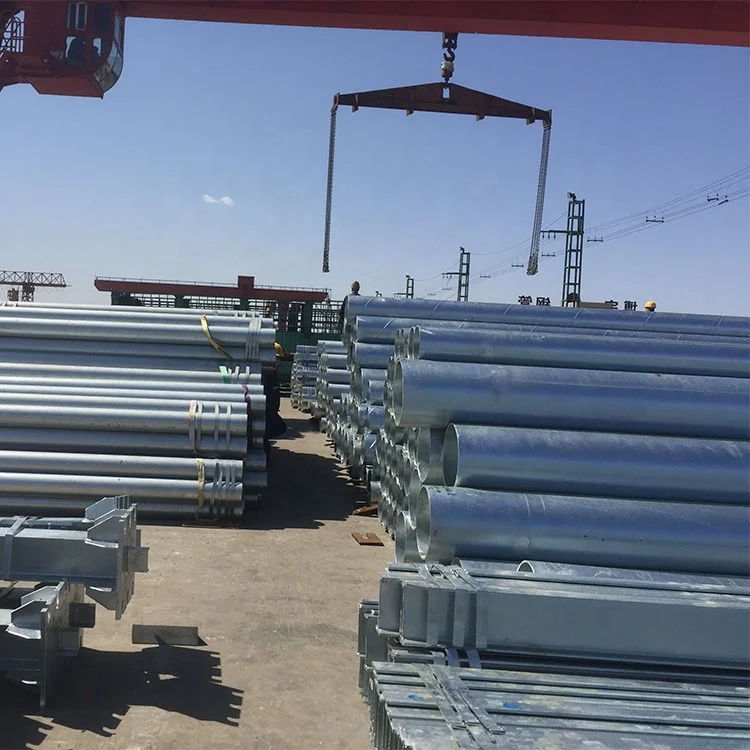

HDG Round Section S235 Galvanized Steel Pipe Manufacturer
Specification
Product Name | HDG Round Section S235 Galvanized Steel Pipe Manufacturer |
Applicable Products | Welded Steel Pipe, Hot Dipped Galvanized Steel Pipe, Pre Galvanized Steel Pipe |
Outer Diamater | 1/4 inch-20 inch (12.7mm-508mm) |
Wall Thinkness | 0.6mm-15.09mm |
Length | Single random lenght / Double random length / 0.5m-12.5m length can be customized |
Standard | API 5L, API 5CT, EN10219, EN10210, ASTM A53, ASTM A795, ASTM A500, ASTM A252, BS1387, BS EN39, BS1139 , ISO65, BS4568, BS EN10296, JIS G3444, JIS G3446, GB/T3091, GB/T9711 |
Material | Gr.B, X42, X52, X60, X65, X70, S235JR, S275J0, S275J2, S355J0, S355JR, S355K2, STK290, STK400, STK490, STK500, SS330, SS400, SS500, ST37, ST42, ST52, Q195-Q355 |
Section Shape | Round Hollow |
Technique | 1.Electronic Resistance Welded ( ERW ), 2.Hot Dip Galvanized, 3.Galvanized steel strip is welded into shape |
Ends | Plain end/Beveled/grooved, thread/coupling, protected by plastic caps |
Surface Treatment | 1. Painting/Varnish coating/Anti-rust oil 2. Logo / Sizes & Spec painting 3. 3LPE, 3PP, FBE 4. Galvanized 5. According to clients requirement |
Packing | 1. Bundle 2. Water proof plastic wrap 3. with all kinds of colors PVC |
MOQ | 5 Metric tons |
Origin | Tianjin & Hebei， China |
Certificates | ISO9001, ISO14001, ISO18001, API 5L, API 5CT, CE, JIS, UL, SGS, BV, TUV |
Delivery Time | Usually within 10-45 days after receipt of down payment (Big Qty shall be further discussed) |
Product Application | 1. Low pressure liquid, water, gas, oil, steam, fire pipe 2. Construction industry , structure , machinery manufacturing, automotive industry, highway guardrails 3. Agriculture fence post , agricultural greenhouses,furniture, decoration and steel structure |
ERW Round Steel Pipe | ||||||||||||||||||
Stabdaed:API 5L,API 5CT,ASTM A53,ASTM A500,GB9711.1 | ||||||||||||||||||
Application:To be used for conveying gas,water,and petroleum for oil and natural gas | ||||||||||||||||||
Industries and use for the structural steel pipes purpose | ||||||||||||||||||
Main Steel Tube Grade:GR.A,GR.B,GR.C,Q195,Q235B,Q345B and so on. | ||||||||||||||||||
INCH | OD (MM) | Strandard Wall Thickness | ||||||||||||||||
INCH | OD (MM) | SCH 10WT (mm) | SCH 20WT (mm) | SCH 40WT (mm） | SCH 60WT (mm) | SCH 80WT (mm) | SCH 100WT (mm) | SCH 160WT （mm) | XXS (mm) | |||||||||
1/4” | 13.7 | 2.24 | 3.02 | |||||||||||||||
3/8” | 17.1 | 2.31 | 3.2 | |||||||||||||||
1/2” | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | ||||||||||||
3/4" | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | ||||||||||||
1" | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | ||||||||||||
1-1/4" | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | 9.7 | ||||||||||||
1-1/2" | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | ||||||||||||
2" | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | ||||||||||||
2-1/2" | 73 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | ||||||||||||
3" | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | ||||||||||||
3-1/2" | 101.6 | 3.05 | 5.74 | 8.08 | ||||||||||||||
4" | 114.3 | 3.05 | 4.5 | 6.02 | 8.56 | 13.49 | 17.12 | |||||||||||
5" | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | 19.05 | ||||||||||||
6" | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | 21.95 | ||||||||||||
8" | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.7 | 15.09 | 23.01 | 22.23 | |||||||||
10" | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 | 25.4 | |||||||||
12" | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 | 25.4 | |||||||||
14" | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 | ||||||||||
16" | 406 | 6.35 | 7.92 | 12.7 | 16.66 | 21.44 | 26.19 | 40.49 | ||||||||||
18" | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 | ||||||||||
20" | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 | ||||||||||
22" | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | |||||||||||
24" | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 | ||||||||||
26" | 660 | 7.92 | 12.7 | |||||||||||||||
28" | 711 | 7.92 | 12.7 | |||||||||||||||
30" | 762 | 7.92 | 12.7 | |||||||||||||||
32" | 813 | 7.92 | 12.7 | 17.48 | ||||||||||||||
34" | 863 | 7.92 | 12.7 | 17.48 | ||||||||||||||
36" | 914 | 7.92 | 12.7 | 19.05 | ||||||||||||||
38" | 965 | |||||||||||||||||
40" | 1016 | |||||||||||||||||
42" | 1016 | |||||||||||||||||
44" | 1117 | |||||||||||||||||
46" | 1168 | |||||||||||||||||
48" | 1219 | |||||||||||||||||

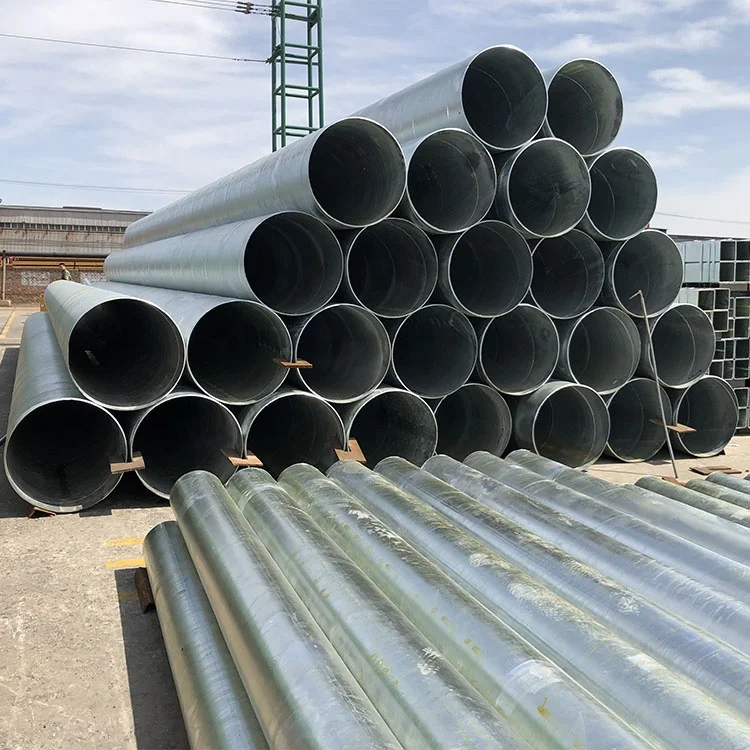

HDG Round Section S235 Galvanized Steel Pipe Manufacturer
Products Application
Company Profile

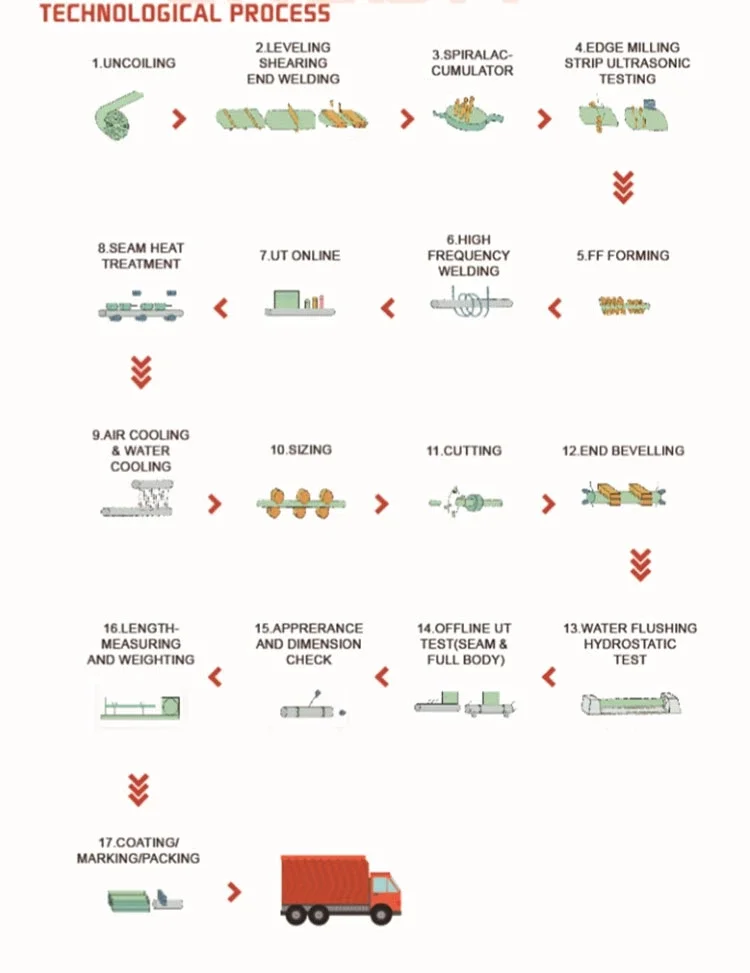

Products Processment

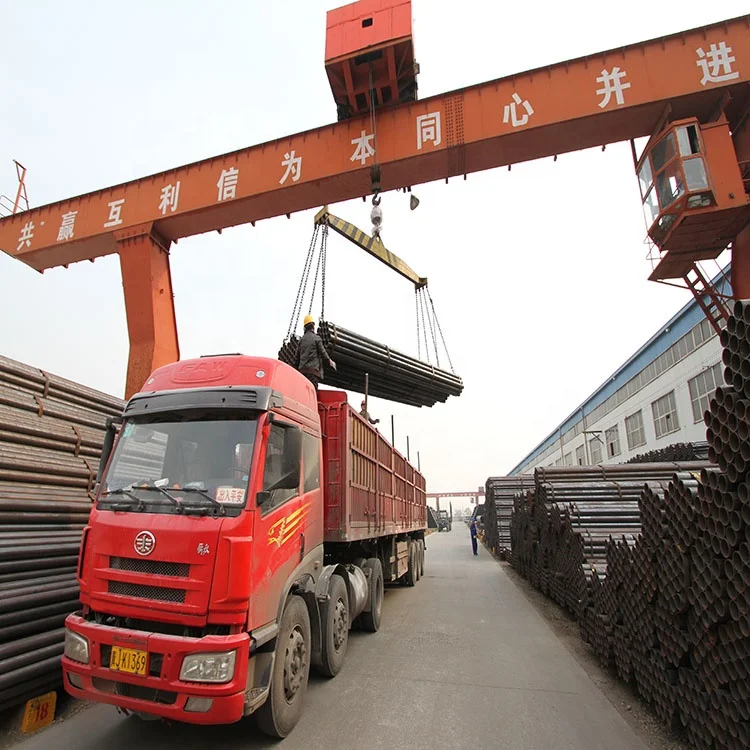

Packaging And Delivery
Enterprise Show

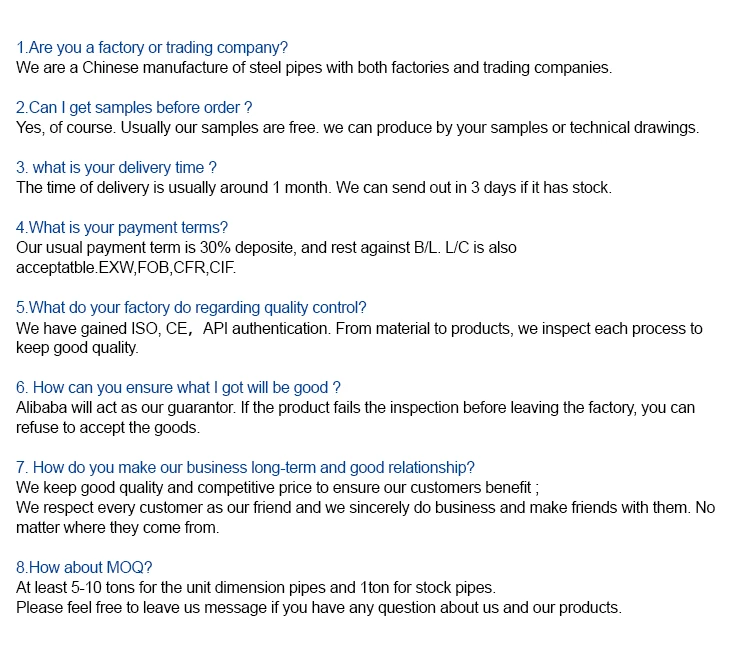

FAQ
