Product Overview

Description

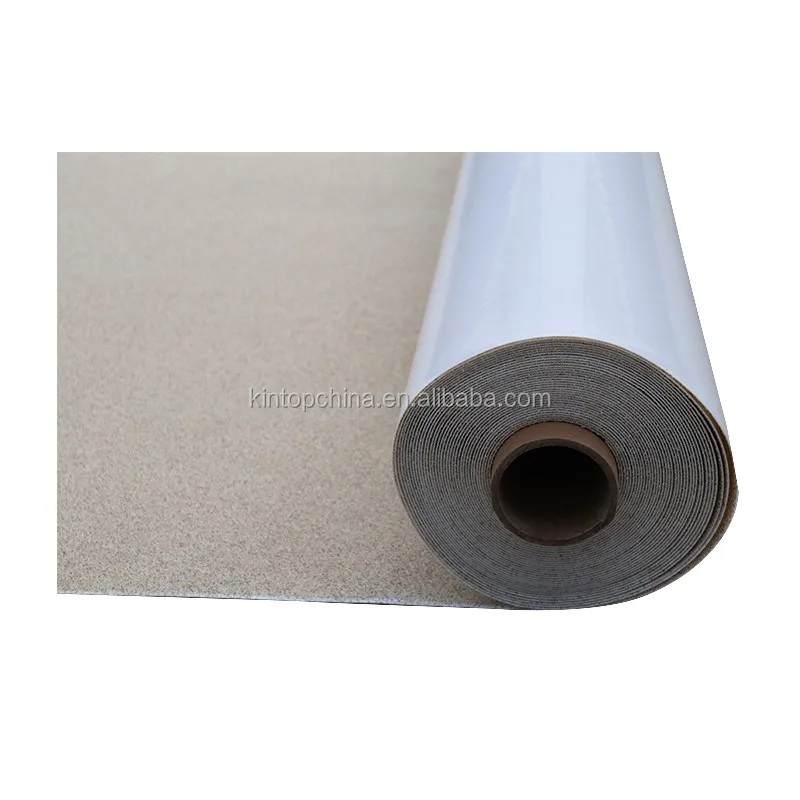

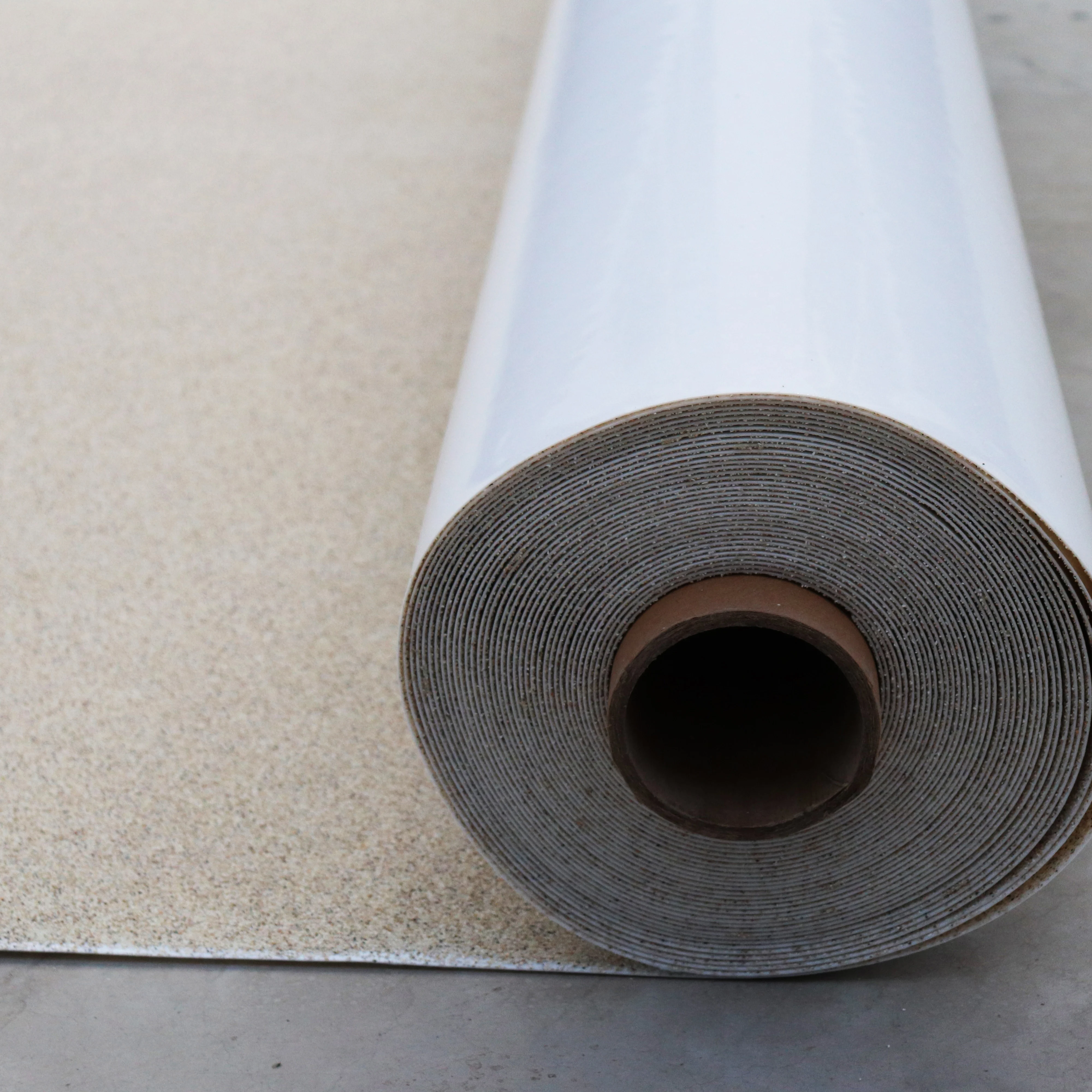

Pre-applied HDPE waterproof membrane

Description

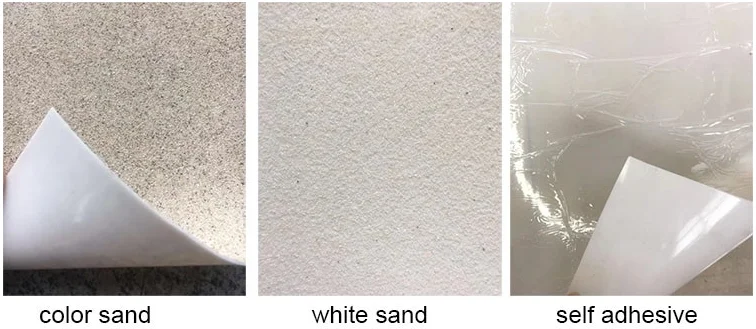

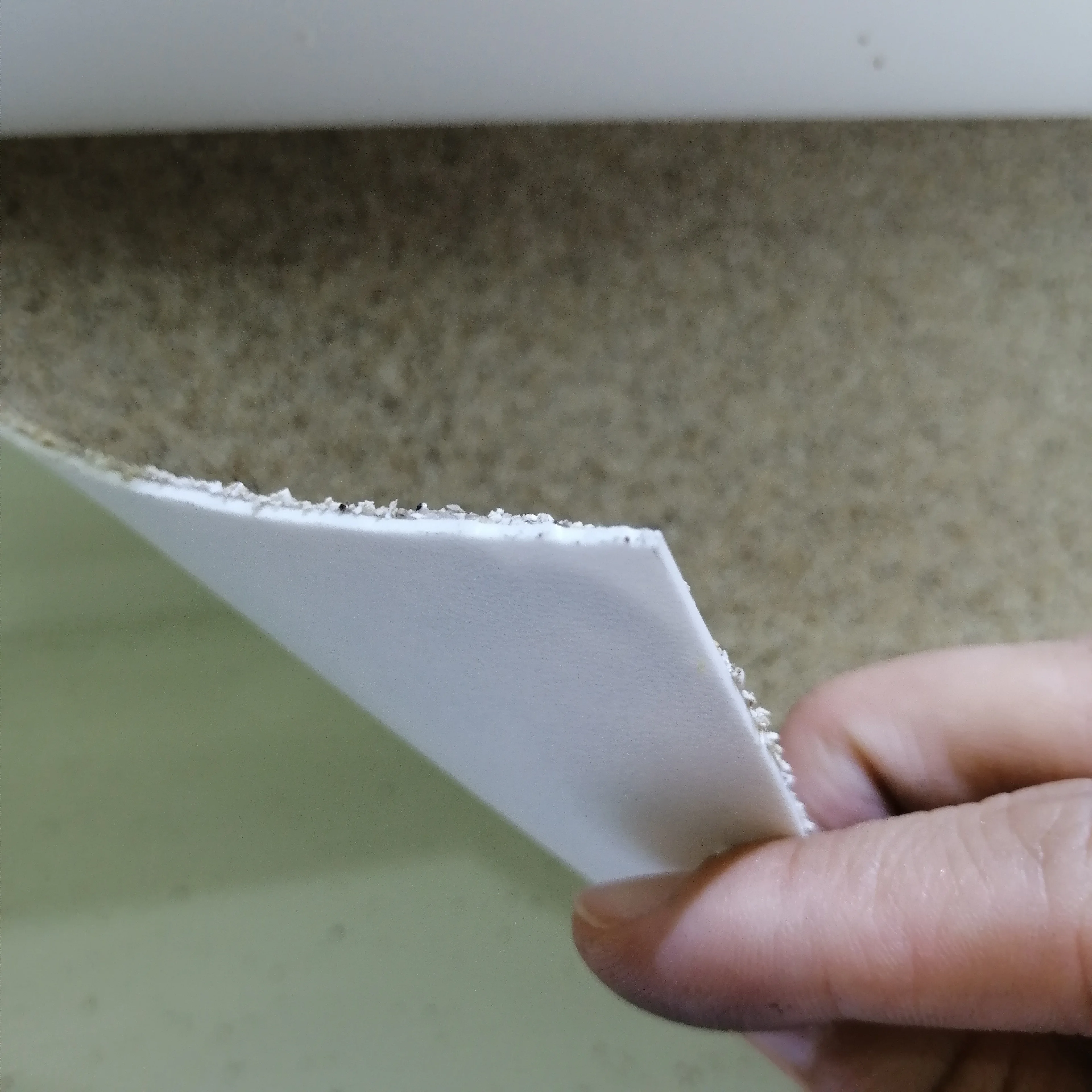

Kintop CQC pre-applied, fully bonded HDPE membrane (sand finish) consists of multi-layer composite waterproofing material for superior waterproofing performance, including a layer of high-density PE film, self-adhesive polymer layer and a unique particulate layer.



Main Application

• Waterproofing of all below grade concrete structures

• Protection of concrete foundations in contaminated and aggressive ground conditions

• Waterproofing of cut and cover tunnels for MRT, Subway, Metro

• Prevents coal gas, marsh gas, methane leakage in underground layers





Product Features

• Forms a unique integral seal to concrete poured against it. This prevents lateral water migration and waterproofing performance is unaffected by ground settlement beneath slabs.

• Fully-bonded watertight selvedge laps and detailing.

• Provides complete barrier to water, moisture and gas.

• physically isolates the structure from the surrounding ground.

• Zero permeance to moisture.

• Solar reflective, being white in colour thereby reduce temperature gain.

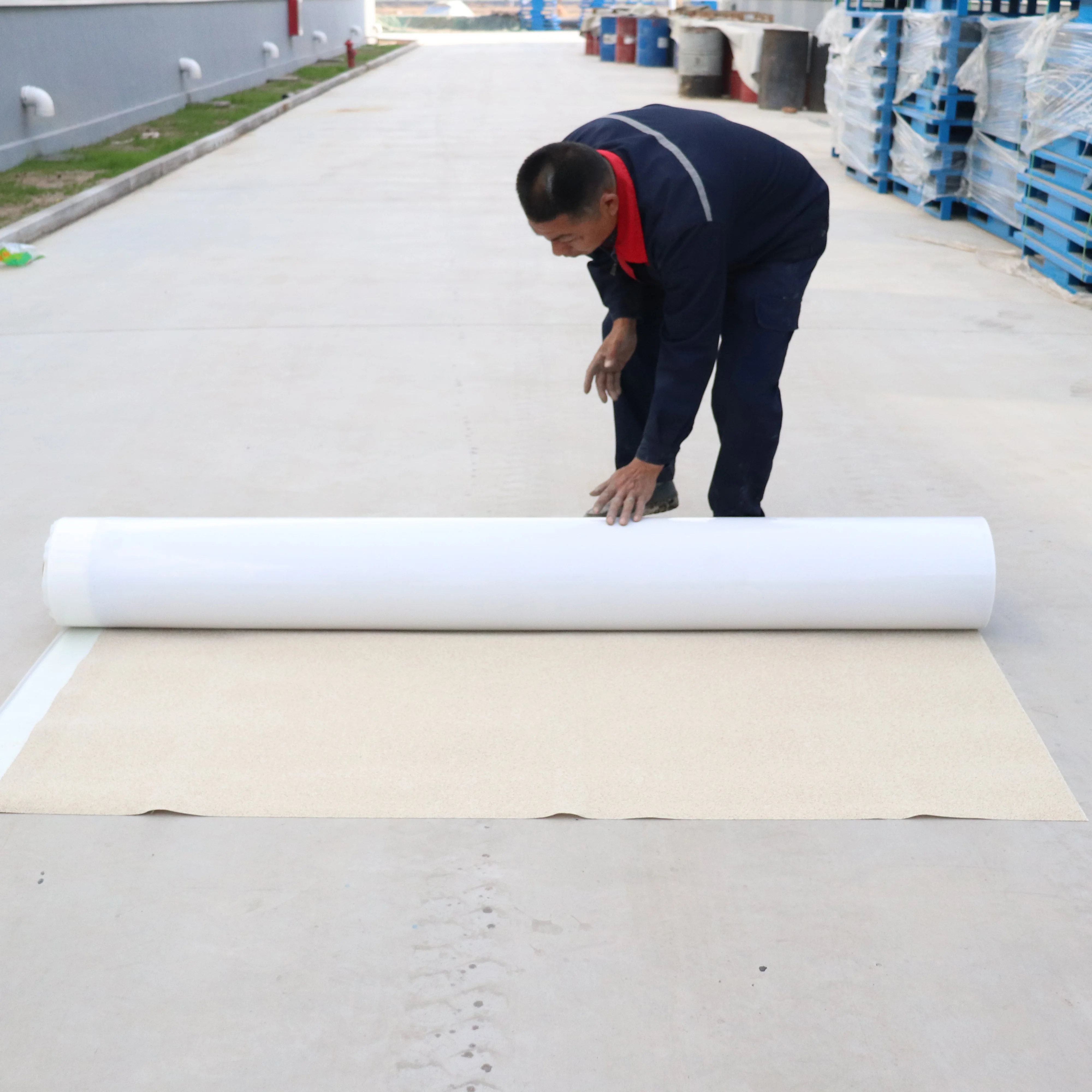

• Very easy and efficient to install, does not require primer or fillet.

• Easy to install on permanent formwork – allowing efficient use of confined sites.

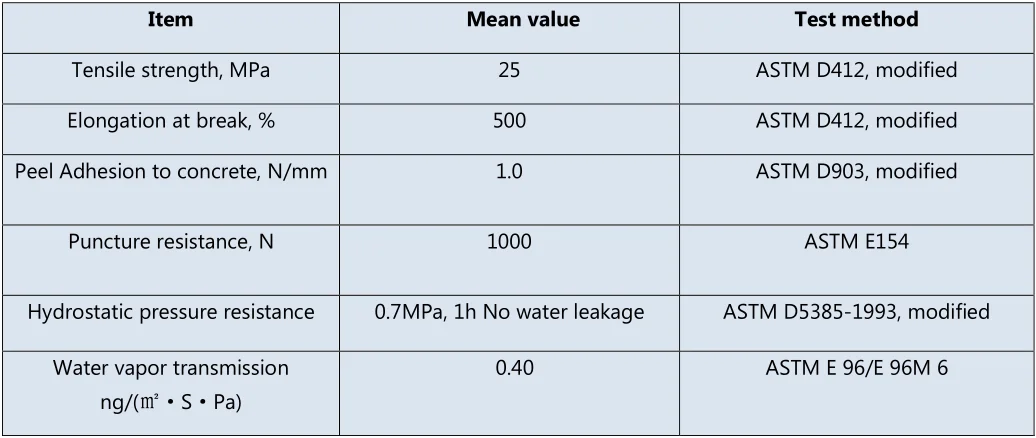

Physical Properties

ASTM



Remark: the ASTM data is only for reference



Our company

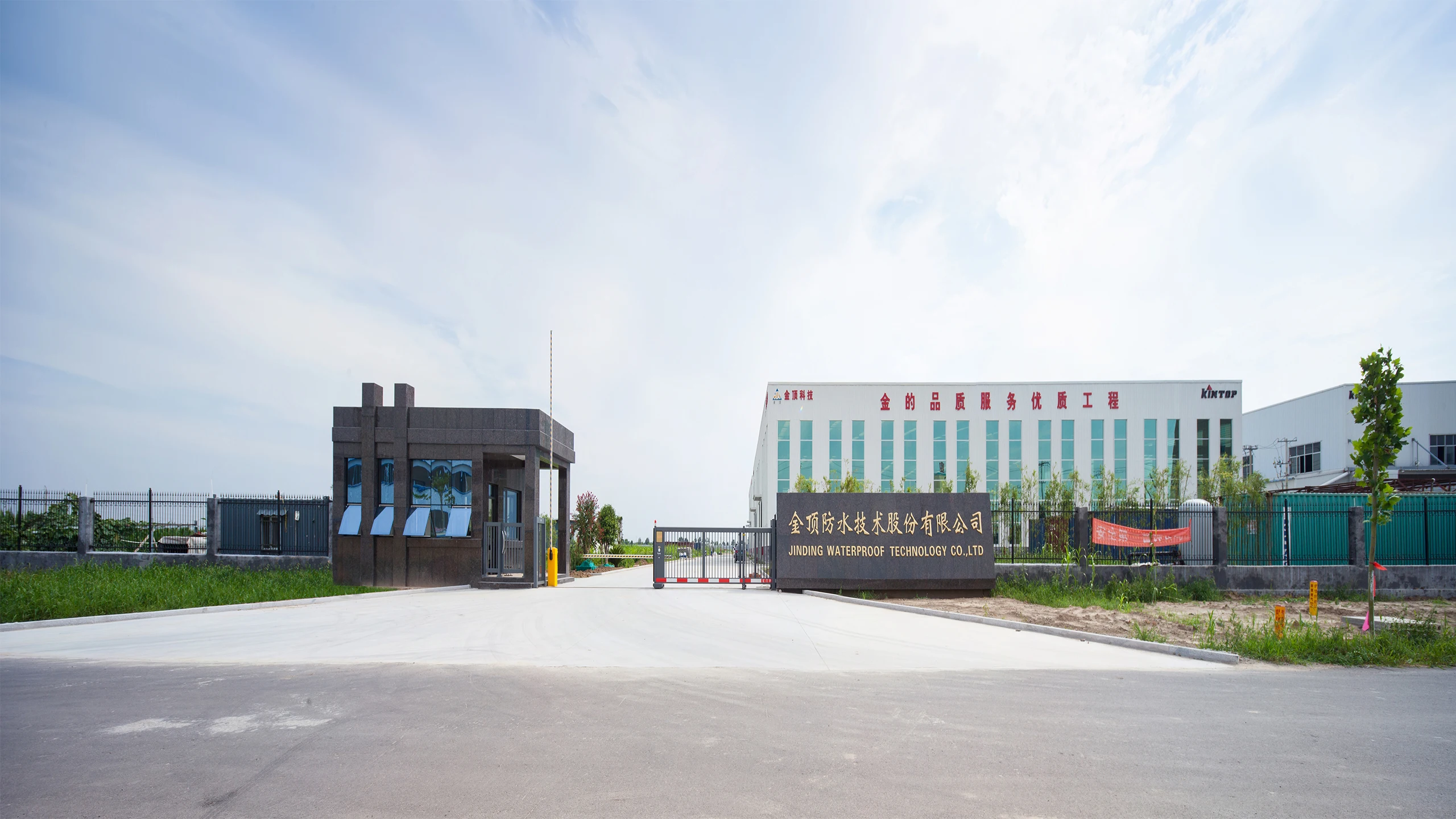

Shandong Jinding Waterproof Technology Co., Ltd. is located in Taitou Town Industrial Park, Shouguang City, the largest waterproof material base in China. Founded in 1998, it is a high-tech waterproof professional company integrating scientific research, production, sales and construction in the waterproof industry.Our products are popular at Southeast Asia,India,Africa,America,Europe.

We have won many bids for large projects of the Chinese government, such as Xi'an Metro, Chengdu Metro, Changsha Metro, Xinjiang Metro, Kunming Airport, Shanghai Songjiang International Trade Zone, etc.

Our team are on hand to support you with advice & pratical assistance in the completion of your project.For further information & support for your project,pls enquire with us.



Supply

	Kintop CQC	Sealed tape
Thickness(HDPE)	0.8mm/1.0mm
Thickness(Membrane)	1.2mm/1.5mm	0.8mm
Specification	1m,2m×20m	80mm×50m

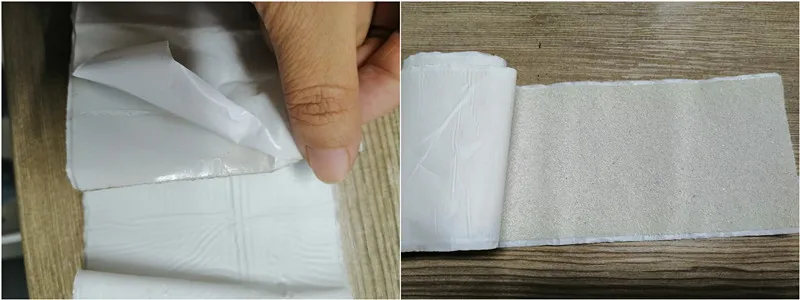

Sealed Tape: End overlapping & Repairing



Storage

Dry conditions below +40ºC. Store indoors or under cover on pallets. Do not double stack pallet.
