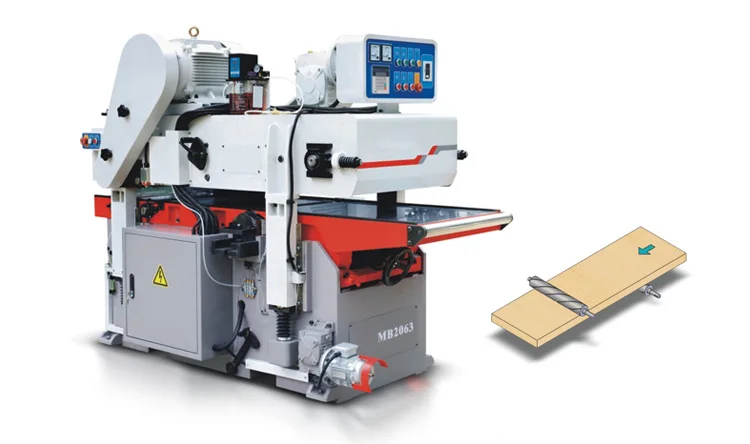

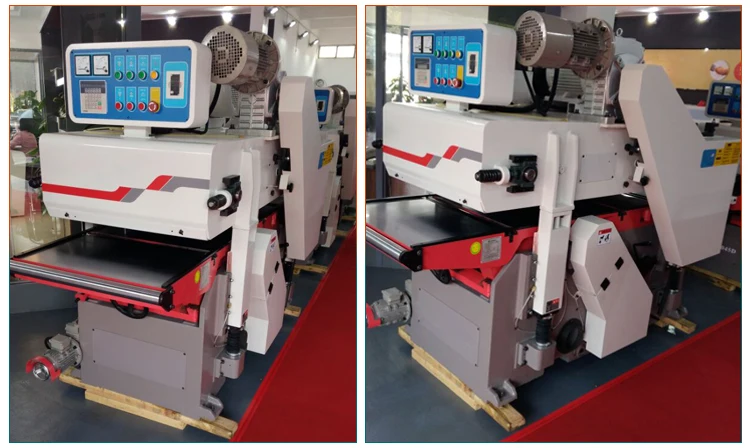

FK MB2063 Woodworking Double Side Planer Machine
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (62542869865):
Product Overview
Description
Product Description
1. working width 635mm(25’’) 2. Quick thickness setting means
3. Attached numerical controller 4. Optional spiral blade shaft
5. Lifting column with centralized lubrication system
6. Feeding frequency inverter with frequency motor
3. Attached numerical controller 4. Optional spiral blade shaft
5. Lifting column with centralized lubrication system
6. Feeding frequency inverter with frequency motor
Max Working Width | 630mm |
Max Working Thickness | 200mm |
Min Working Thickness | 15mm |
Min Working Length | 320mm |
Rotation Of Cutter Shaft | 5000r/min |
Feeding Speed | 5-20m/min |
Motor Of Top Shaft | 11kw |
Motor Of Bottom Shaft | 7.5kw |
Feeding Motor | 2.2kw |
Lifting Motor | 0.37kw |
Total Power | 21.07kw |
Size Of Machine | 2700*1300*1680mm |
Weight | 2000kg |
Product Details

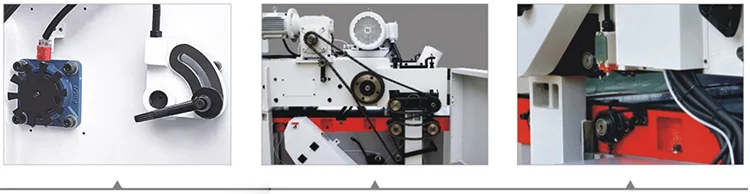

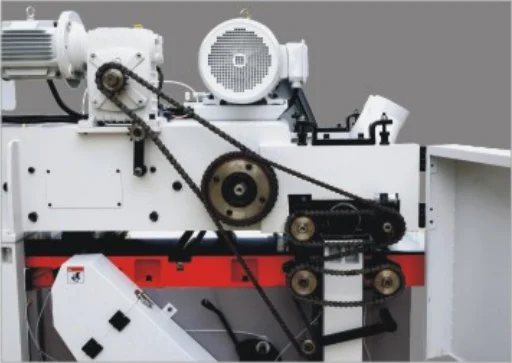

Feeding frequency control
Digital display,easy operation,
Digital display,easy operation,
energy saving,reduction of mechanical transmission wear.
Magnetic grid inductive switch---Magnetic grid inductor has been used in thickness display,thus more accurate compared with traditional adjacent instructor

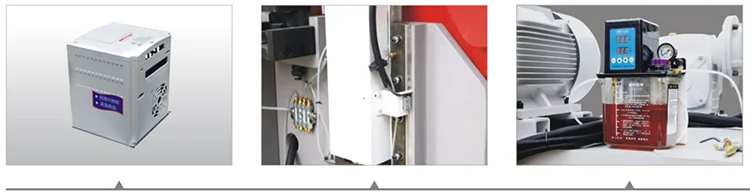

Automotive oil feeding system enables the machine tool stay in lubrication state when working
Alarm detector
When feeding chain overloads or strips,the alarm switch will send alarm signals.
When feeding chain overloads or strips,the alarm switch will send alarm signals.
Feeding mechanism with clutch could prevent overloading,thus to make sure the safety usage of machine tool.

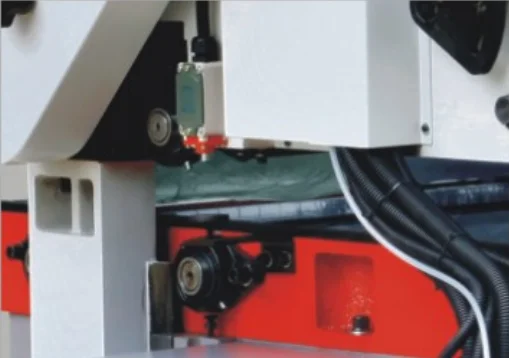

Quick thickness set
By simple putting the preset thickness timber at the micro switch,you can do quick thickness settings.
By simple putting the preset thickness timber at the micro switch,you can do quick thickness settings.

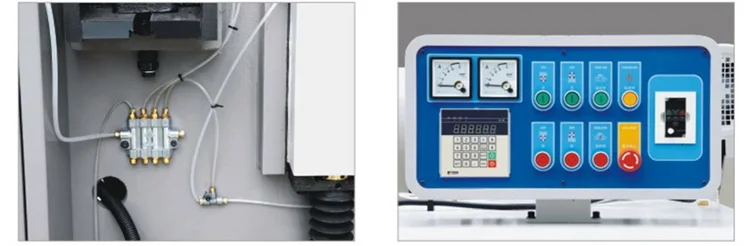

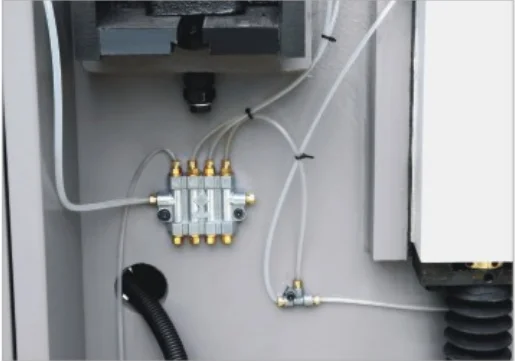

Centralized oil feeding system
Centralized oil feeding system makes the maintenance of the lifting system easier.
Centralized oil feeding system makes the maintenance of the lifting system easier.

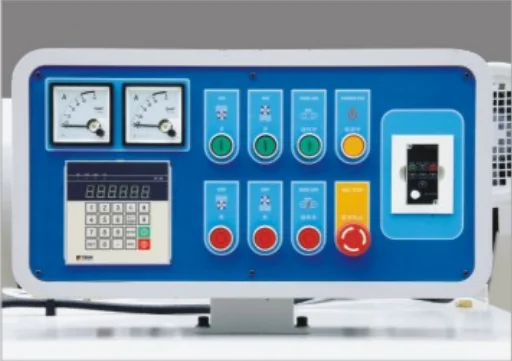

Equipped with imported digital display.this
product supports direct operation towards processing thickness in panel and the accuracy can reach up to 0.05mm;besides this,you can observe whether it is overload or not with ampere meter equipped in up and down plane motor.
product supports direct operation towards processing thickness in panel and the accuracy can reach up to 0.05mm;besides this,you can observe whether it is overload or not with ampere meter equipped in up and down plane motor.

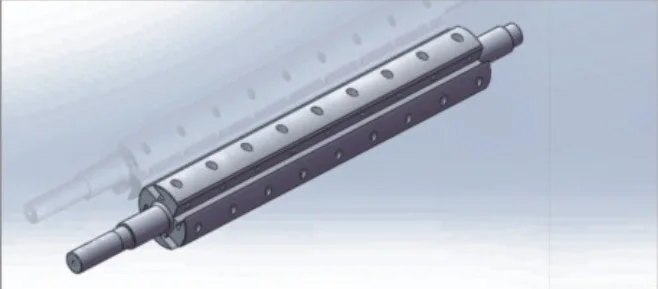

Flat knife blade

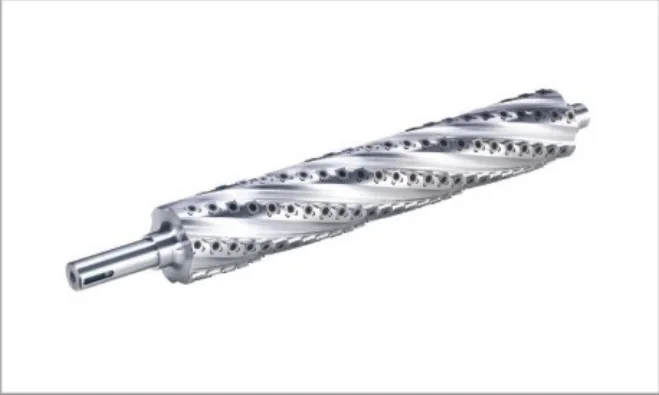

Optional ---Spiral cutter
Spiral cutter is with precision machining;
Provide fine planing surfacing,and no noise; Spiral cutter assemble removable tungsten carbide blade
Blade size:(30*12*1.5mm)*90pcs
