Square Circle Formwork Round Formwork Circular Concrete Column Building Formwork made by wood for Construction
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd. [Shandong China]Shandong
Share on (62542913202):
Product Overview
Description
Product Description
Application
For concrete forming of circular column
| SPECIFICATIONS | |||
| Circular Column Formwork | Film faced plywood | Core | Poplar |
| Glue | WBP melamine | ||
| Film | Brown film | ||
| Hot press | Twice | ||
| Sanding | Both sides | ||
| Edges | With grooves | ||
| Steel belts | Steel No. | Q235 | |
| Width | 32MM | ||
| thickness | 1.2MM | ||
| screws | Item | 8.8 grade M12 | |
| Size | 12x80mm | ||
| Range of Diameter | Standard height | Thickness | Parts |
| 250-550mm | 3000mm | 15mm | 2 |
| 600-1200mm | 3000mm | 18mm | 2 |
| 1300-1550mm | 3000mm | 22mm | 2 |
| 1600-4200mm | 3000mm | 22mm | 4-10 |
| Note:customized size available | |||
Certifications
Our company has achieved ISO9001:2008 certification, CE certification. We strive to provide effective products to our clients and focus on keeping our products quality at the highest level, test reports by National research center testing techniques for building materials, SGS and in-house QC department are available.
Detailed Images

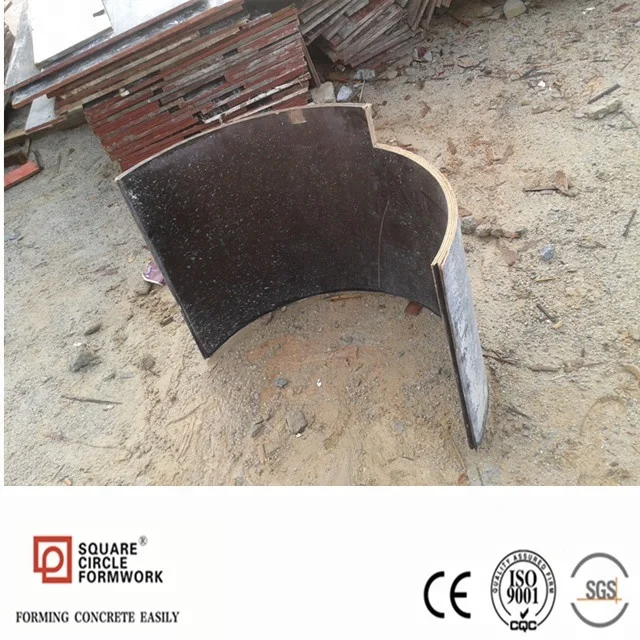

Light weight,no need crane
Light weight,no need crane

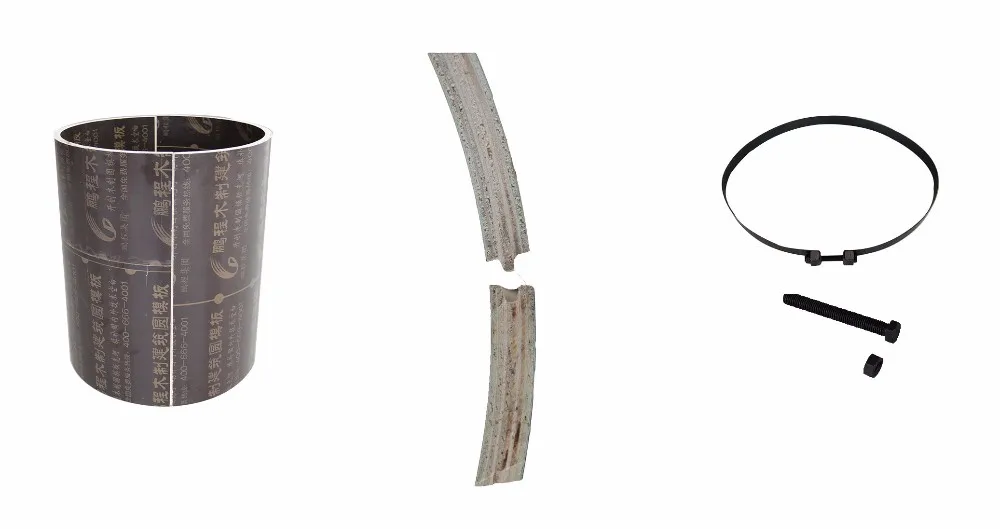

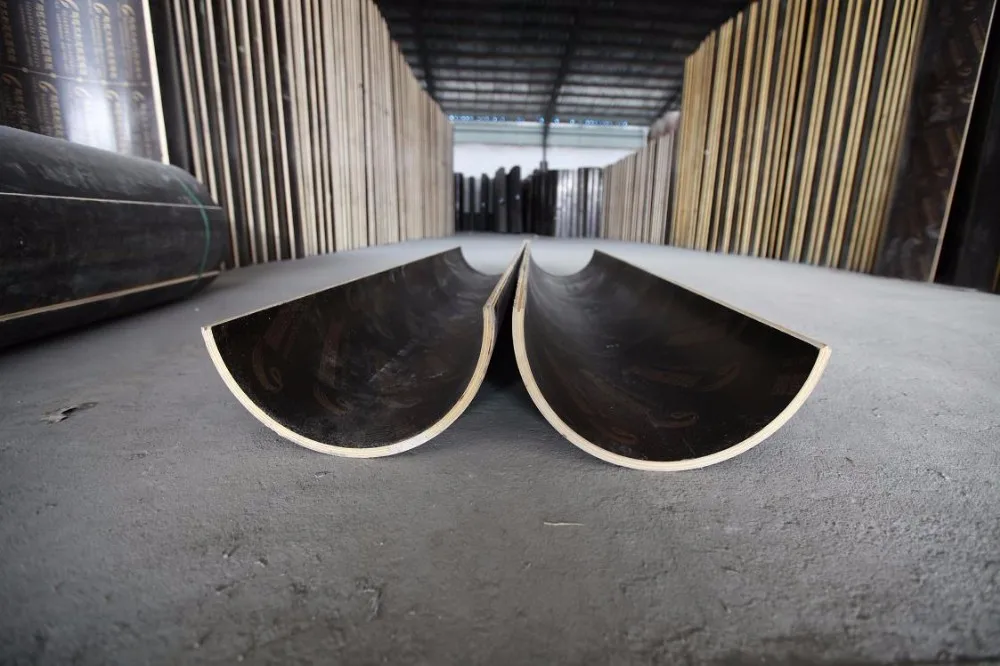

Made of film face plywood and consist of 2,4 pcs of panels, easy to handle,no need crane
1.Quick install and dismantle
From feedback on site, only 2 skilled workers can install 15 circular columns in 8 hours.

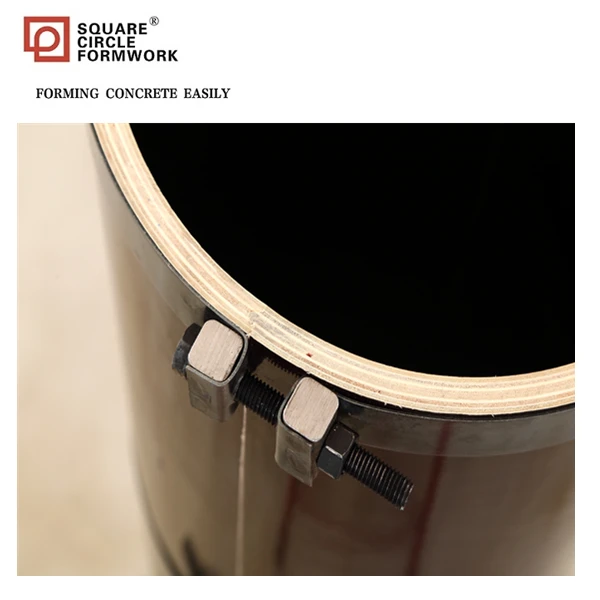

2. Grooves and tongues at edges
Seamless joint,prevent the leakage of concrete
Easy cutting

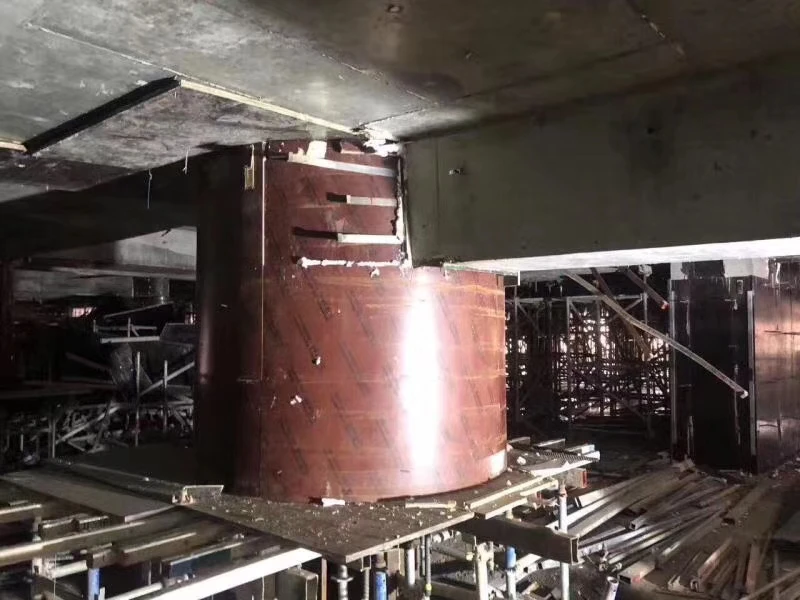

Compared with the steel formwork ,the plywood circular forms is easy to cut to joint with beam,or straight panel to form other shape.

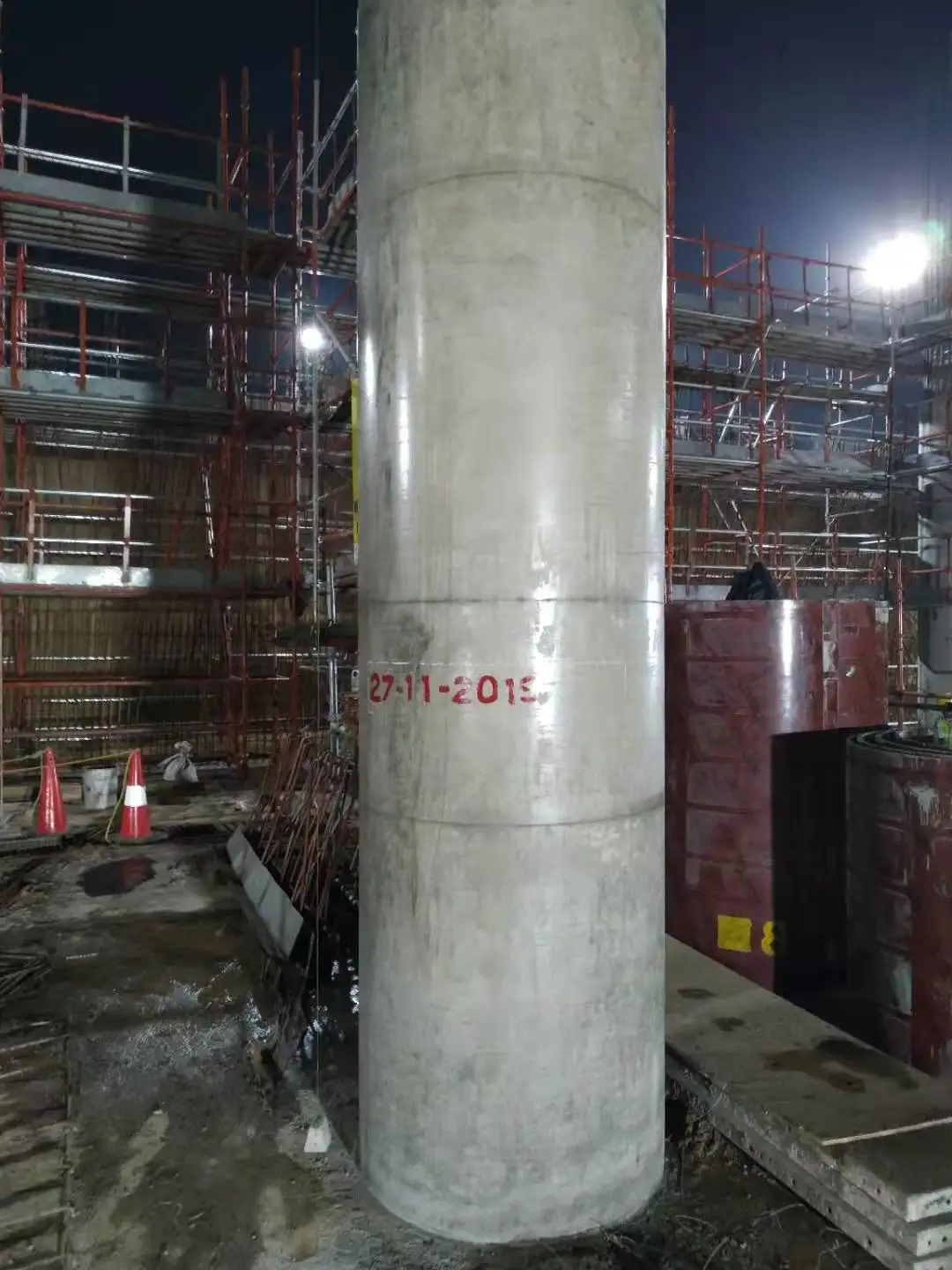

Fair face white concrete surface
Very nice concrete surface, no need re-work

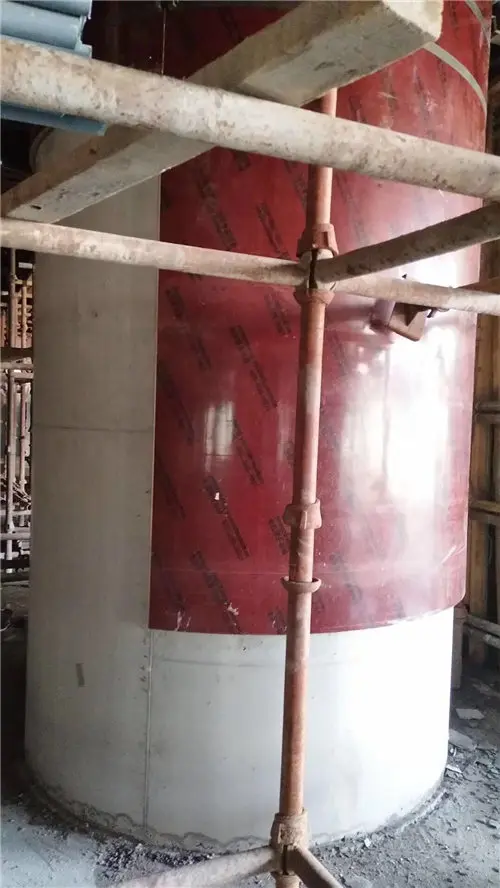

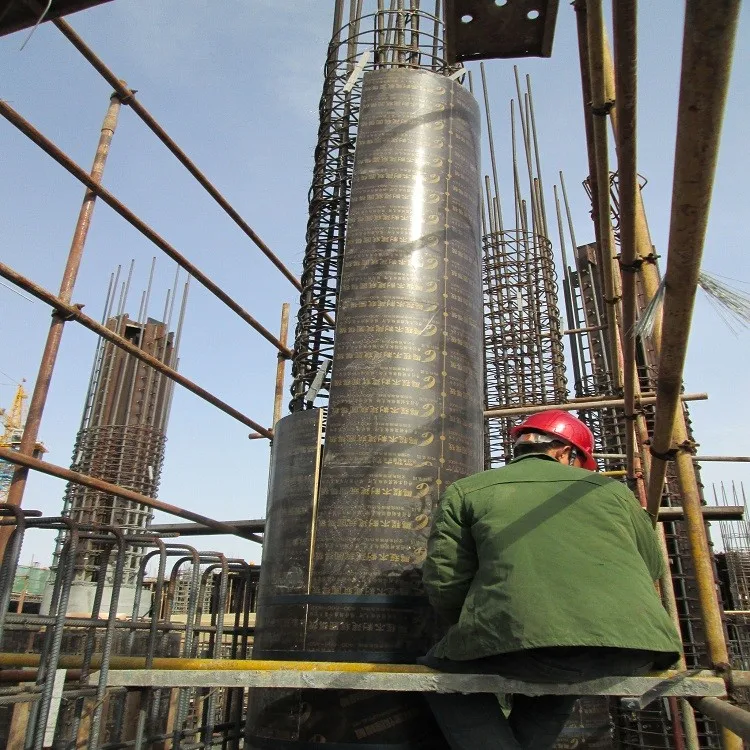

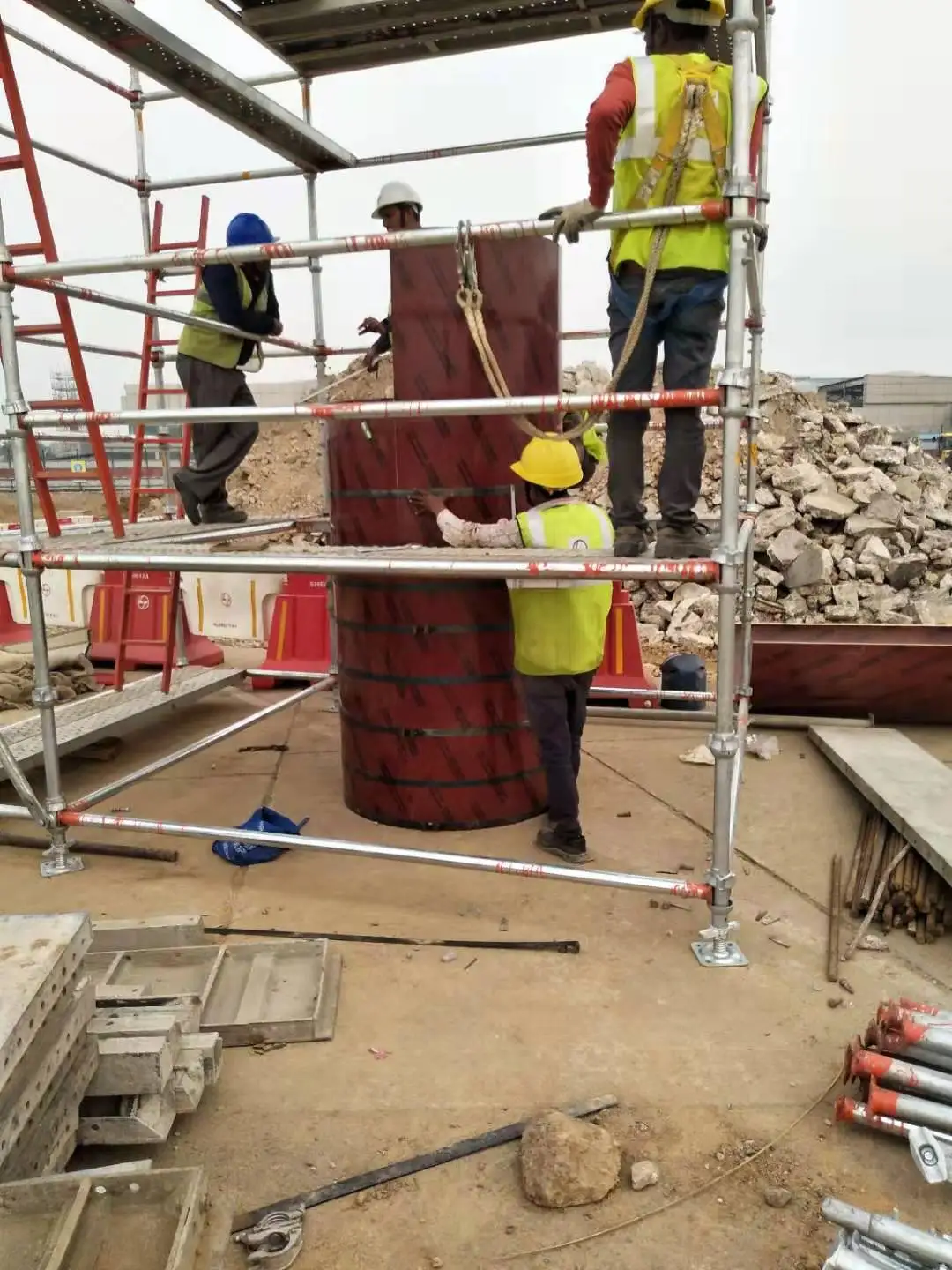

Application on site
Installation
1.Treat inner ply film with concrete release agent firstly.
2.Fix the steel belts horizontally according to the lines.

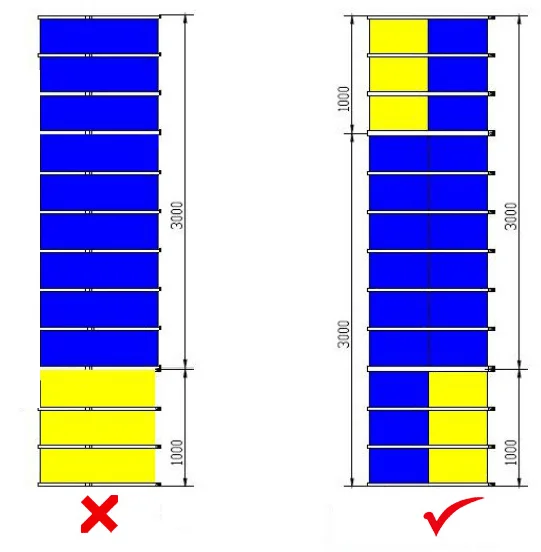

3.If the height is more than 3000mm , please install it as the indication below.

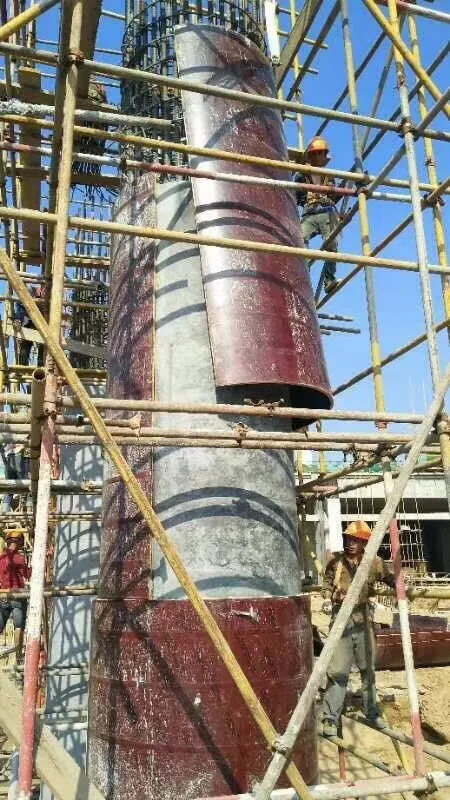

Dismantling
Simply untie the steel belts and the ply will separate easily.
Maintenance & Storage
Lightly treat the ply film with oil before next usage.
place the formwork vertical, away from direct sunlight and water.
Our Company
Square circle formwork-forming concrete easily
Production line : 3lines
Production capacity:100 000 square meter per month
Employee:500+
Square Circle Formwork is a famous brand made by Shandong Fangyuan Building Materials Co.,Ltd, a subsidiary of Shandong Pengcheng Group,which located in Linyi City, Shandong Province, the north of China. We have been specializing in developing and manufacturing innovative products for concrete forming, such as PP plastic HDO plywood, circular column formwork, column formwork, special formwork, and related accessories. ISO9001 certification, machines from Germany, strict raw materials sourcing, experienced management team, skilled workers, ensure the high quality of finished products.
Packing & Delivery

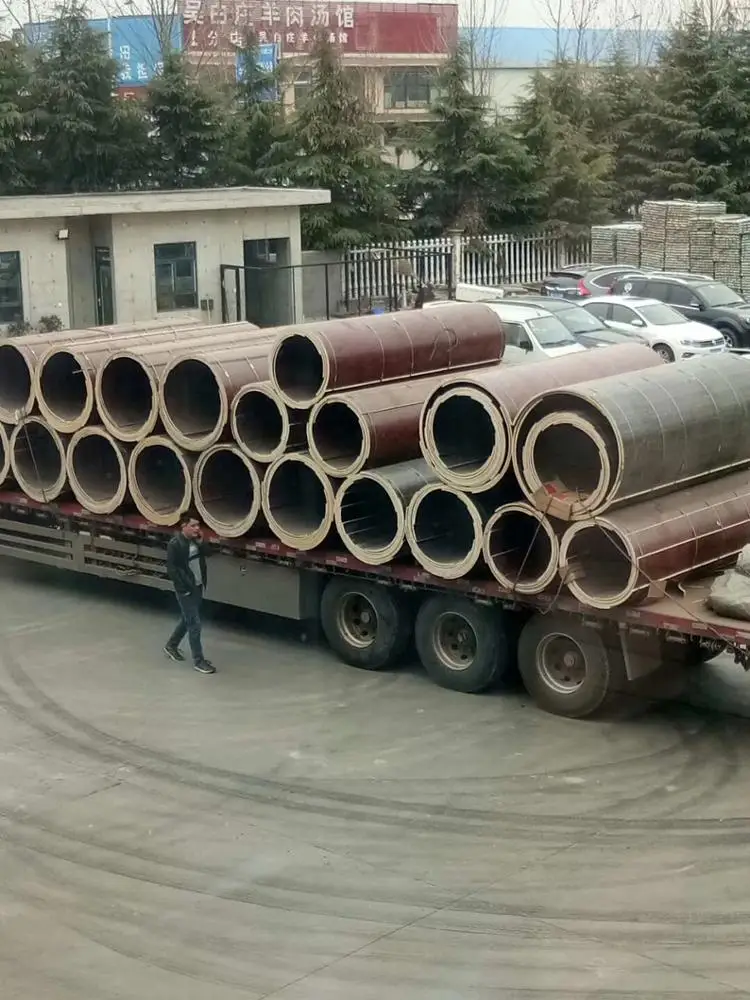

Packing and shipping

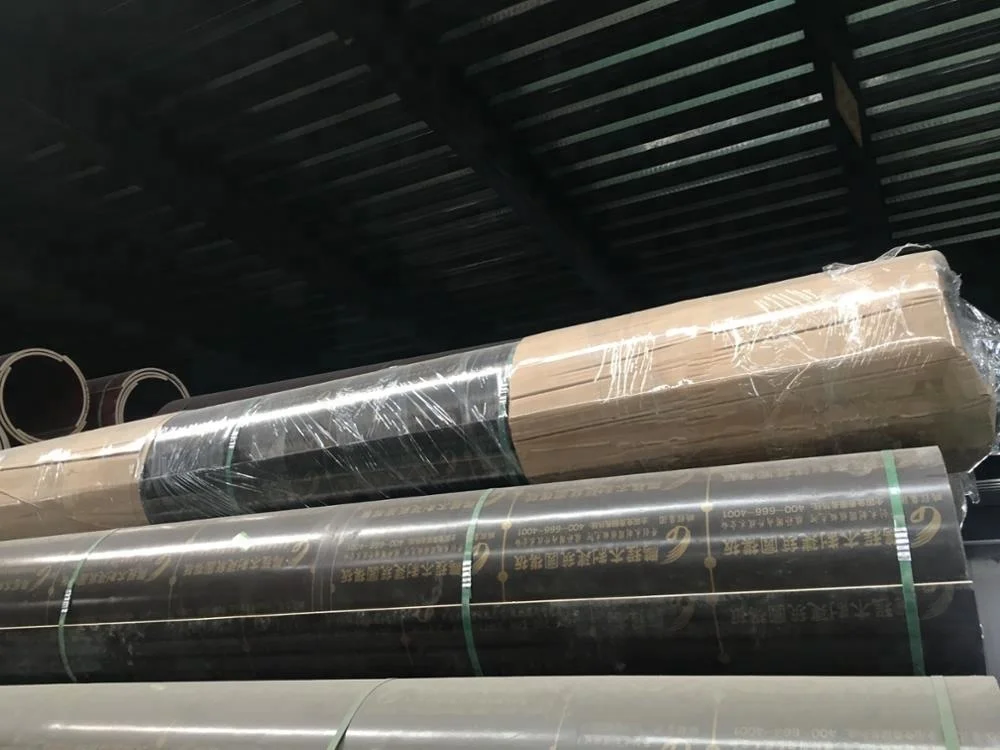

Packing details
bundle packing or based on your requirements
Shipping
1. FREE sample is sent out by International express, such as DHL, TNT, EMS....
2. Qingdao port is our loading port, the container is sent out by sea
