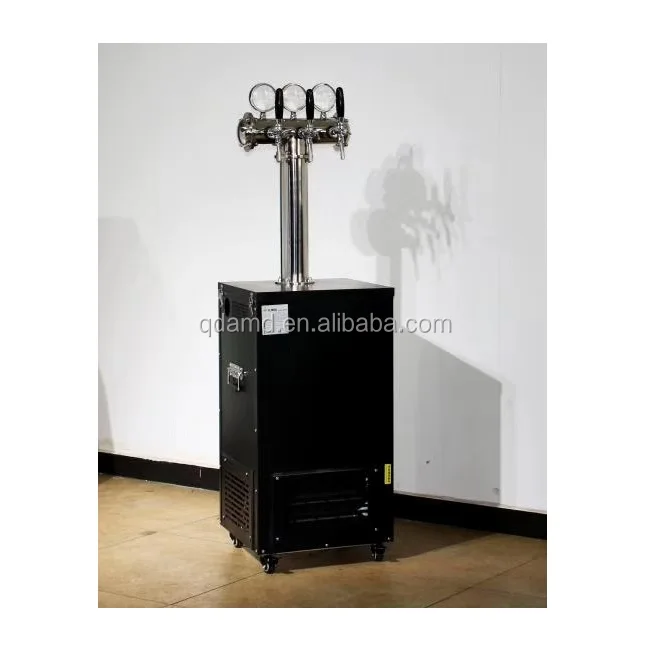

Premix vertical draft beer dispenser machine cooler for dispensing bar equipment

Share on (62542958705):


Price:$400.00 - $600.00

Quantity:


Product Overview

Description





Premix vertical beer dispenser machine cooler for dispenseing bar equipment


AMY03-90LHT






Product Description







Features & Benefits





* Reliable Performance
It tested by the market in tropical climate



* Fast cooling
International famous refrigeration components to make sure the cooling speed is much more quicker than normal beer and soft drinks dispenser

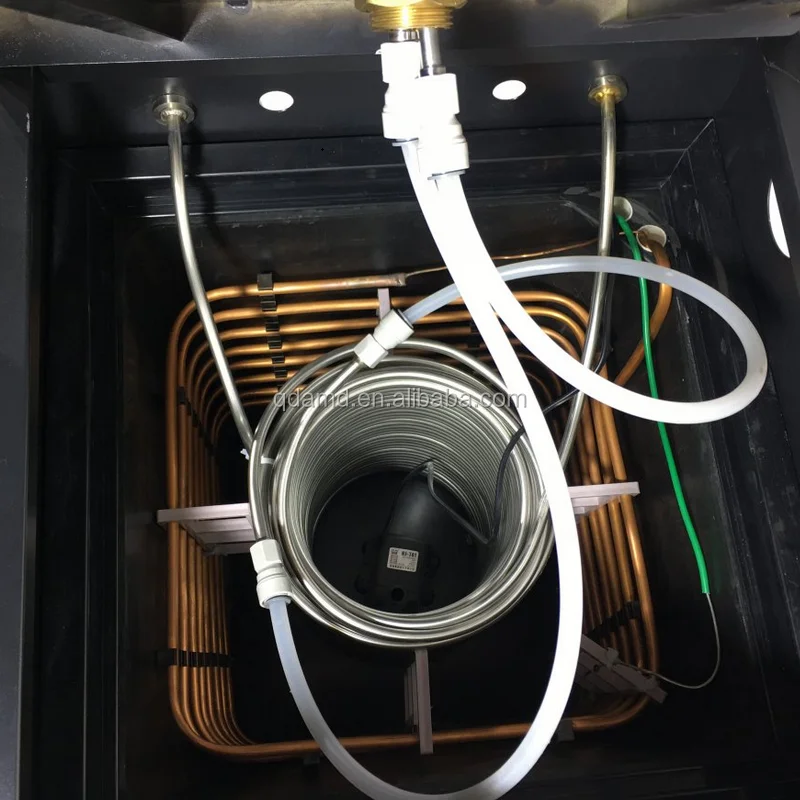

* Healthful and satefy drinks coils
Coils for beer and soft drinks made of AISI 304 stainless steel



* Low Energy consumption
High press density and thick insulation to keep the cool inside the cabinet



* Free standing
This flash beer cooler fridge is design for free standing and it can place in different place of the shops





Reliable Performance
*It test according to global soft drinks and beer company standard,and we are the supplier of them


*The draft beer machine adopts large size handle, which is more convenient to pull.
*The outer skin adopts spray molding technology, which is scratch resistant. The upper cover is installed with a block card and can be removed quickly.

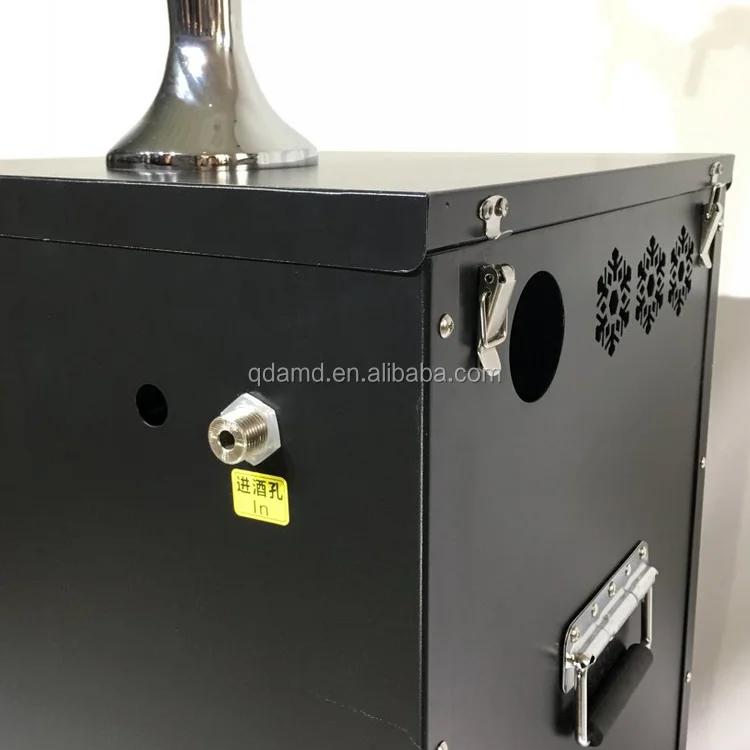

*Side reserved circulation pipe hole and circulation pump cooling hole, beautiful and stylish.
*The whole machine is installed with quick connect plug, and a draft beer machine can be installed within 5 minutes.





Optional








*Beer or soft drinks outlet

*Elegant black(Powder coated steel)/stainless steel color / rose gold color is optional







Specification of AMY03-90LHT






































































































Technical Data
Capacity for beer outL/H90
Outlet temperature of beverage2~7
Water tank capacityL40
Ice bankkg18~20
Length of beverage tubem52
Climate classN
Certificate/CCC
Electrical Data
Voltage/Frequency/220~240V/50HZ,60HZ

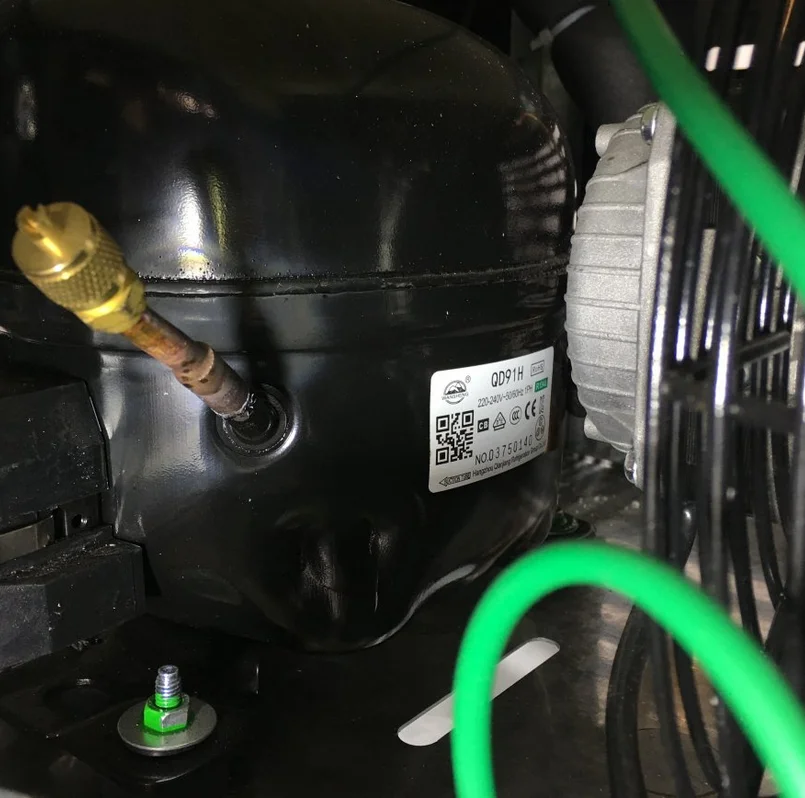

Compressor rated PowerHP1/4HP
Cooling powerW450
Refrigerant/R134a/R600a
Capillary lengthm1.2m
Weight & Dimensions
Gross weightkg55
Net weightkg50
External dimensions (W*D*H)mm430*430*800
Packaging dimensions (W*D*H)mm450*450*850
Tube quantitypcs1-3












Premix vertical beer dispenser machine cooler for dispenseing bar equipment


Including parts and necessary parts list























































No.Include Parts
1Beer tube + gas tube
2Tube clip
3Beer tower
4Beer faucet
5Drip tray
6Beer keg coupler
7Gas regulator
No.Beer dispenser other necessary Parts as optional
1Beer keg with spear
2CO2 gas cylinder

 Beer dispenser list


Detailed Images

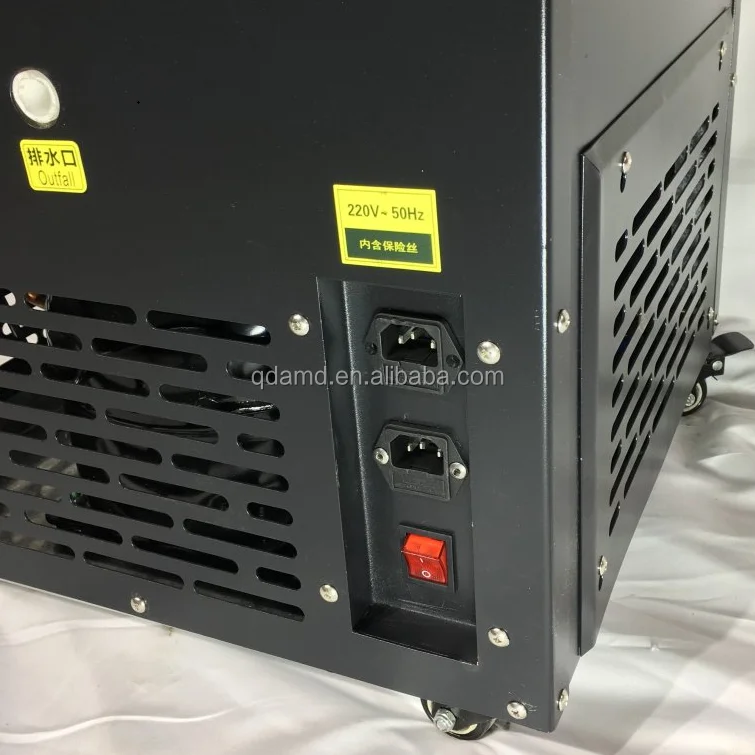

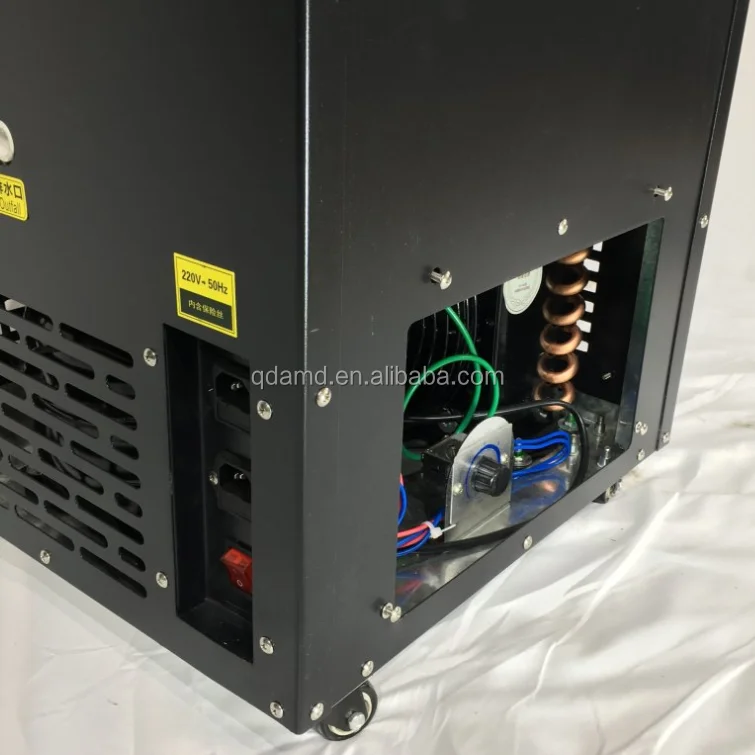

 AMY02-90LHT-3 AMY02-90LH-4 AMY02-90LH-5


























Same Catagory Models

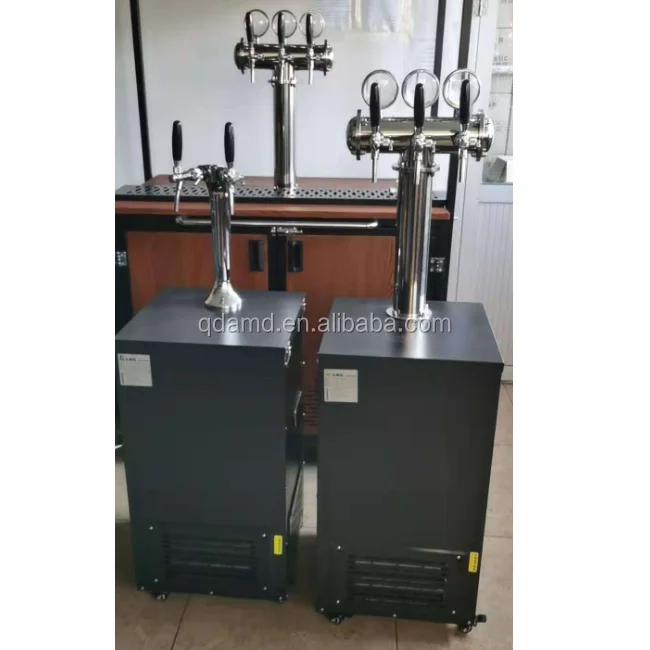

Beer dispenser family





Certifications


amed certificate








Company Information








AMED-Beer dispenser





Beer dispenser-factory








FAQ










































No.QuestionsAnswer
1What is the MOQ?1 pcs per model
2What is the Lead time?10-30 days
3What is the warranty?1 year whole cabinet in parts
4Can we order sample?Yes
5Can OEM for us?Yes
6What voltage and frequency is available

220V-240V/50HZ,


220V/60HZ, 115V/60HZ
