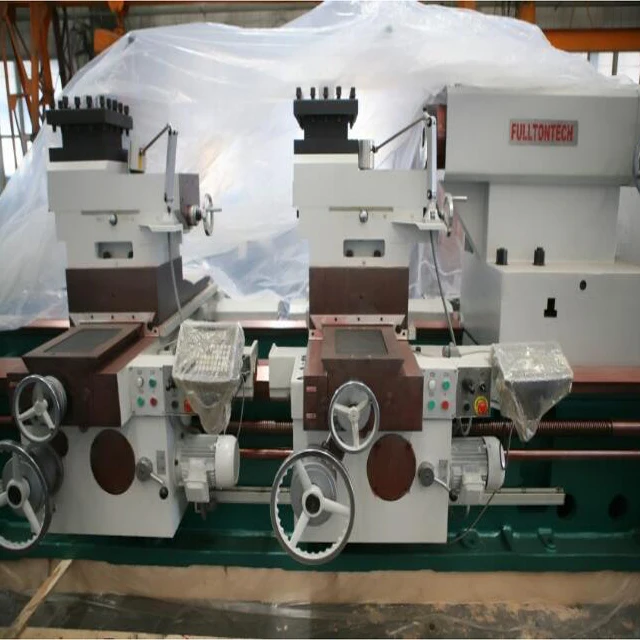

CHINESE CF611A Series Manual Horizontal Lathe to Metal with Big Center Height
- Category: >>>
- Supplier: Dalian Fullton Machinery Co. Ltd
Share on (62542961600):
Product Overview
Description
BASIC SPECIFICATION | CF61100A | CF61125A | CF61140A | CF61160A | |||
Max. Swing diameter over bed | 1000mm | 1250mm | 1400mm | 1600mm | |||
Max. Swing diameter over bed | 630mm | 880mm | 1050mm | 1250mm | |||
Max. Weight of workpices between two centers | 6-8 ton | 16 | 32/50 | 50/100 | |||
Width of guideways on bed | 755mm | 2000 | 2500 | 3150 | |||
Distance between centers | 1000 to 16000mm | 2-63 | 0.5-50 | 0.5-40 | |||
Spindle bore diameter | 100mm | 1000 | 1250 | 1600 | |||
Taper of spindle nose | 1:20 | ||||||
Spindle speed steps | Forward 12 | ||||||
Spindle speed steps | Reverse 12 | ||||||
Range of spindle speeds | 6-272rpm | 4.25-192 rpm | |||||
Range of metric threads | 46 kinds 1-224mm | ||||||
Range of whit worth threads | 46 kinds 28-1 t.p.i | ||||||
Range of module threads | 37 kinds 0.25-56mm | ||||||
Steady rest | Φ50~Φ470mm | ||||||
Section of tool shank | 45*45mm | ||||||
Max. Traverse of top slide | 350mm | ||||||
Rapid moving speed of tool post | Longitudinal 3.8m/min | ||||||
Rapid moving speed of tool post | Cross 1.9m/min | ||||||
Diameter of center sleeve | 140mm | ||||||
Traverse of center sleeve | 300mm | ||||||
Tailstock taper(Morse) | Morse No.6 | ||||||
Main motor power | 22Kw | ||||||
