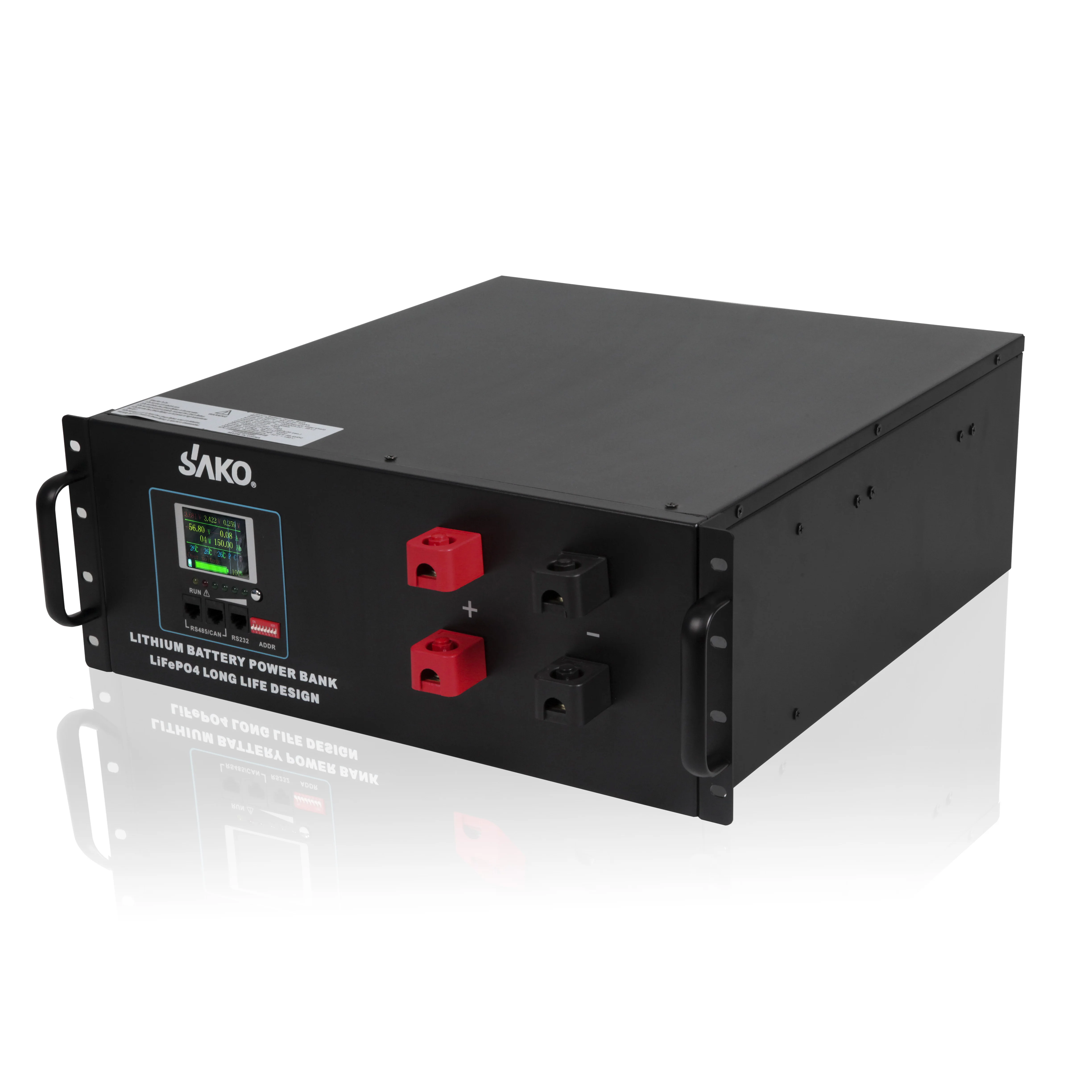

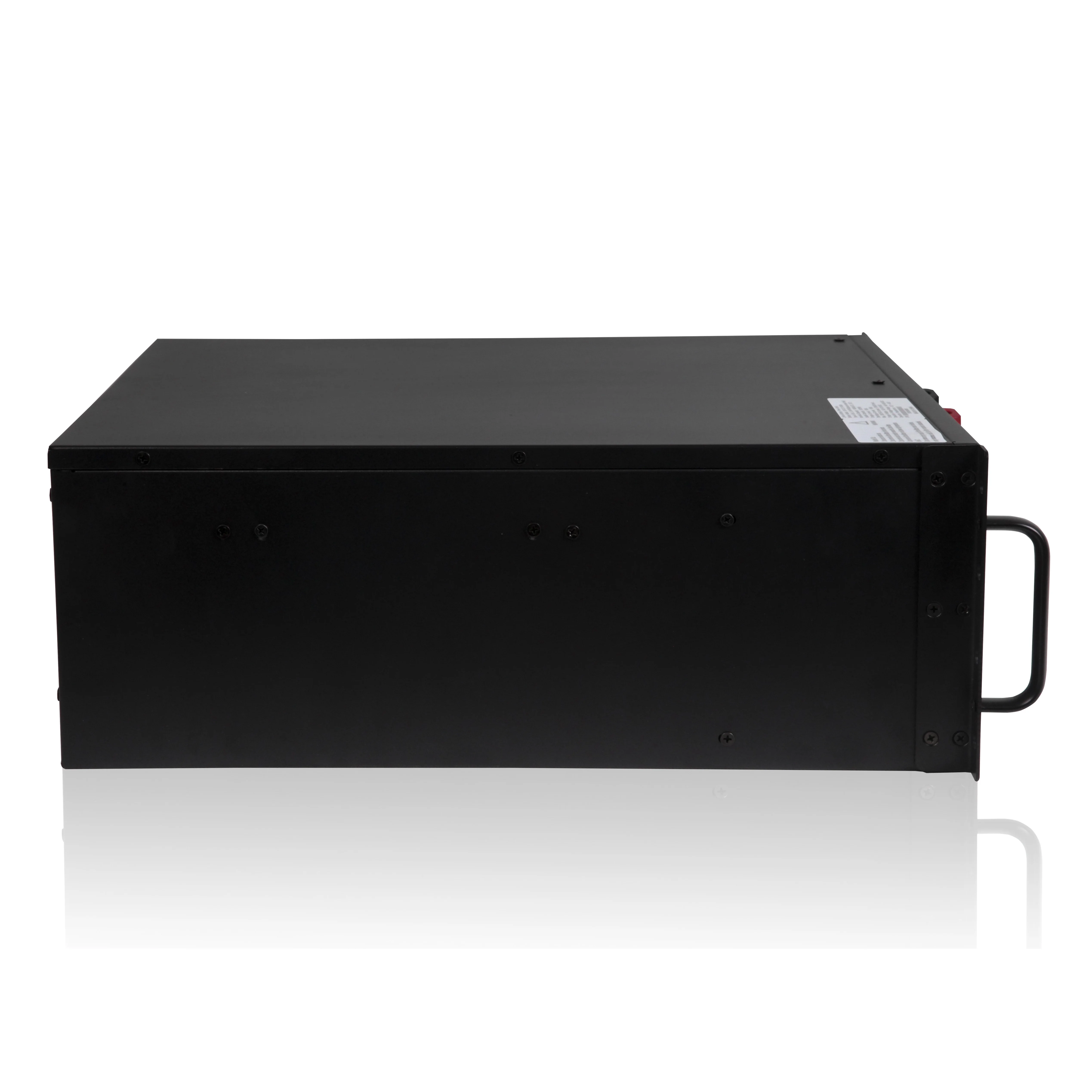

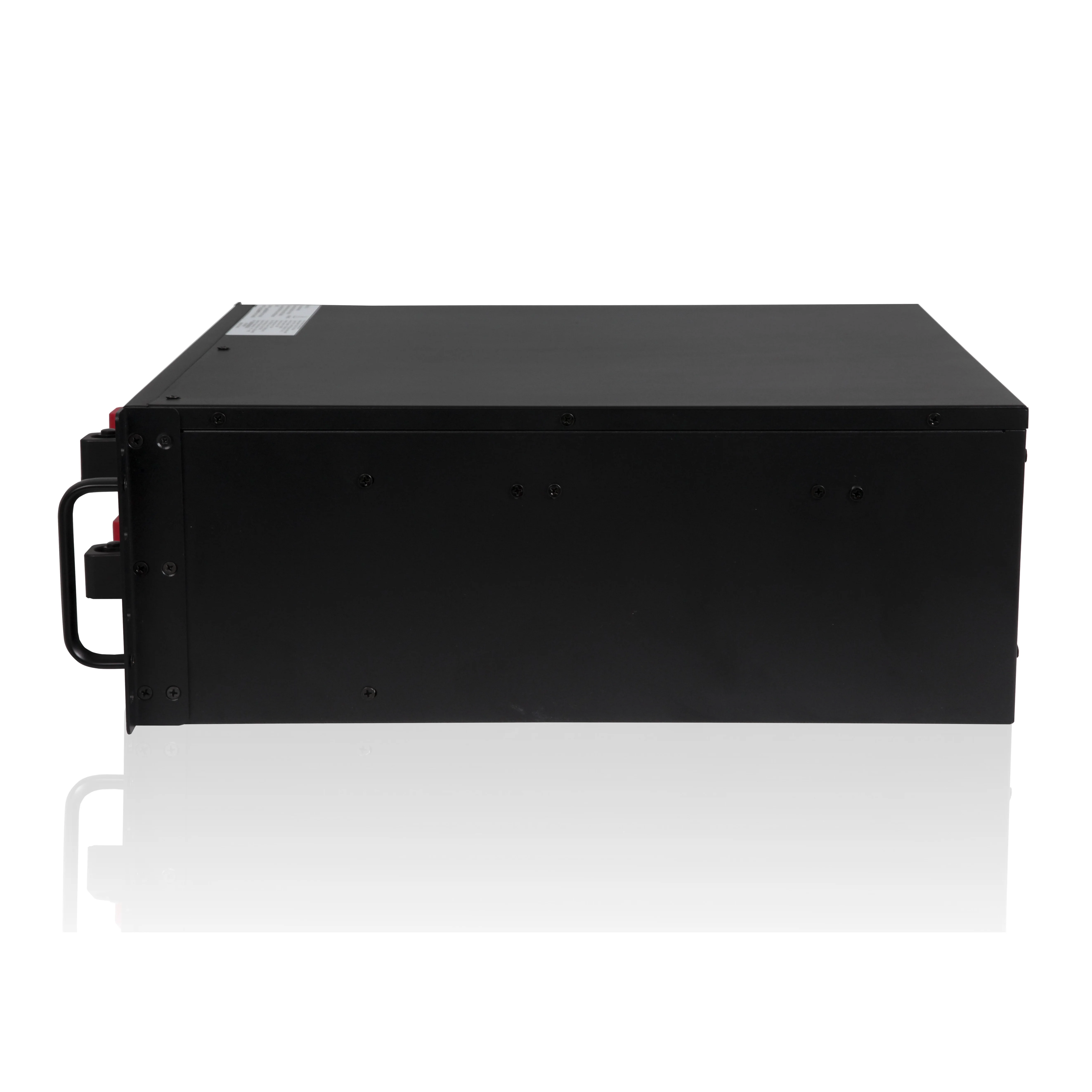

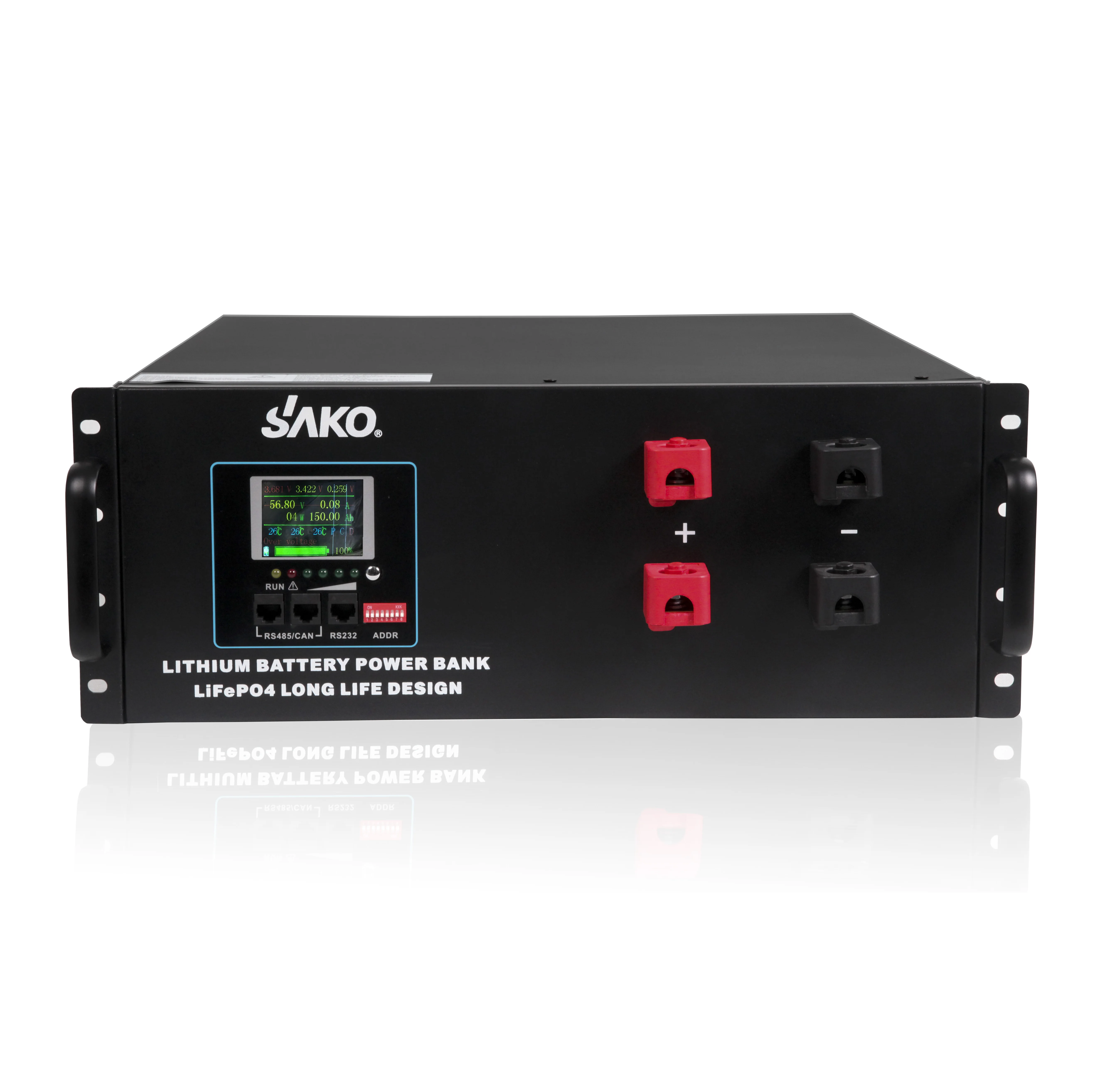

SAKO 48V 100AH LiFePO4 battery 51.2V 100AH 4U lithium battery 150A BMS built in 3000 times cycle for storage energy system
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (62543035485):
Product Overview
Description
Details Images
SAKO 48V 100AH LiFePO4 battery 51.2V 100AH 4U lithium battery 150A BMS built in 3000 times cycle for storage energy system
Main Features
1.4U rack mounted design
2.With smart BMS system
3.Built in cells equalizer
4.Max 200A discharge current
5.Flexible expansion, easy installation
6.Top brand cells like CATL and BYD
7.Long lifespan(5+ years )
8.Real time monitor
9.High density, small size and weight
10.Superior safety and reliability
11.All around protection
12.CAN/RS485/RS232 communication optional
13.Compatible with solar inverter and energy system
1.4U rack mounted design
2.With smart BMS system
3.Built in cells equalizer
4.Max 200A discharge current
5.Flexible expansion, easy installation
6.Top brand cells like CATL and BYD
7.Long lifespan(5+ years )
8.Real time monitor
9.High density, small size and weight
10.Superior safety and reliability
11.All around protection
12.CAN/RS485/RS232 communication optional
13.Compatible with solar inverter and energy system
MODEL | 48V100AH | 48V150AH | 48V180AH | 48V200AH | ||||
Battery Type | LiFePO4 | |||||||
Normal Battery Voltage(Vdc) | 51.2V | 51.2V | 51.2V | 51.2V | ||||
Normal Capacity (25℃ 0.2C) (WH) | 5120WH | 7680WH | 9216WH | 10240WH | ||||
Folat Charge Voltage(Vdc) | 52.2V | 52.5V | 52.5V | 52.5V | ||||
Operation Voltge range (Vdc) | 44.8～57.6V | 44.8～57.6V | 44.8～57.6V | 44.8～57.6V | ||||
Max Continuous Discharge Current(A) | 100A | 150A | 150A | 150A | ||||
Max Pulse Discharge Current(A) | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. | ||||
Max Continuous Charge Current(A) | 100A | |||||||
Case design | 4U | |||||||
Cycle life (25℃, 0.2C） | ≧3000 Cycles (for 3 years warranty, 5 years life design) ≧5000 Cycles (for 5 years warranty, 10 years life design) | |||||||
Cell Equalizer Current(A) | 1~5A Max. | |||||||
Terminal | M6 | |||||||
Storage temperature | 0℃～30℃ | |||||||
IP degree | IP 20 | |||||||
Storage duration | 6 months at 25℃ | |||||||
Safety standard | UN38.3,IEC62619,CE | |||||||
Display | LCD display (Optional) | |||||||
Communication | CAN/RS485/RS232 (Optional) | |||||||
Communication in Connection | 1PC BMS Control System support max. 32 modules in parallel or series connection. If connect more, can add more BMS system | |||||||
PROTECTION | ||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection | |||||||
AMBIENT | ||||||||
working Temperature | -10℃～+50℃ | |||||||
Humidity | 0~95% ( no condensation) | |||||||
Sea Level(m) | ≤1500 | |||||||
DIMENSION | ||||||||
L×W×H (products size) | 440*475*176 mm | 440*537*176 mm | 440*537*176 mm | 440*537*176 mm | ||||
L×W×H (package size) | 490*525*246mm | 490*587*246mm | 490*587*246mm | 490*587*246mm | ||||
Weight(NW Kg) | 40 kgs | 55kgs | 56kgs | 60kgs | ||||
Weight(GW Kg) | 42kgs | 57kgs | 58kgs | 62kgs | ||||
20FT QTY( UNIT) | 400pcs | 380pcs | 380pcs | 380pcs | ||||
