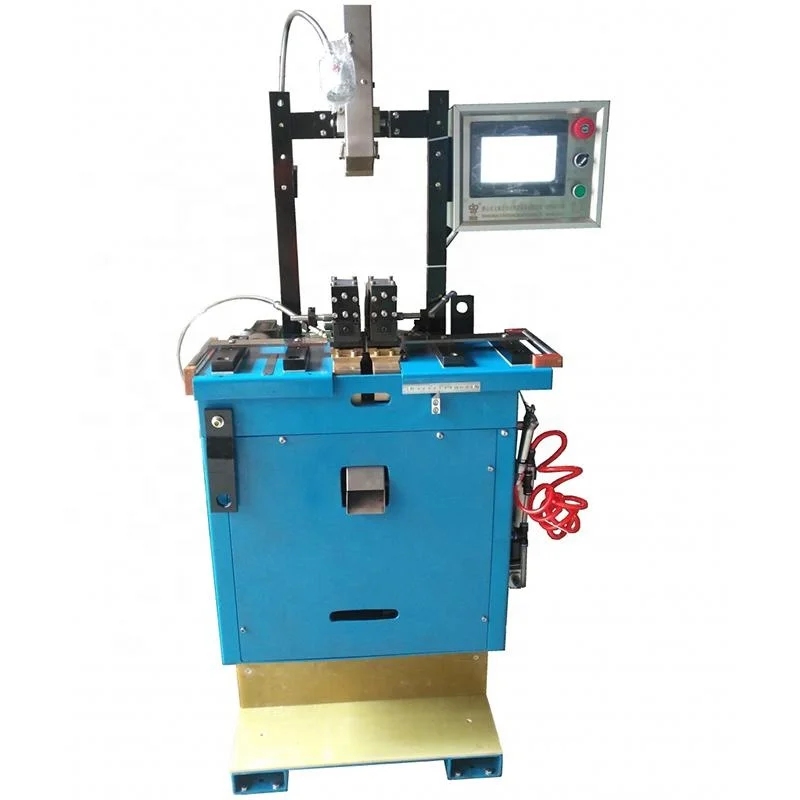

Our automatic pneumatically operated band saw blade welder is designed for the high precision production of small sized band saw blades typically applied for cutting industrial foam or food processing operations. This welding machine can efficiently join the two ends of blades made of different materials through soldering.
Equipped with a pneumatic cylinder, this welding machine provides flexibility for welding a wide range of tiny band saw blades. The vertical pneumatic clamp of this resistance welder can guarantee the accuracy of the butt joint to provide high quality welding results. Using highly accurate wear-free guides, it can align welds to ensure performance and safety.
Parameter
Model
3-15
10-27
Item
Unit
MM
MM
Rated voltage
V
220
Rated frequency
HZ
50/60
Rated capacity
KVA
5
8
Rated duty cycle
%
20
Insulation class
B
Maximum secondary short circuit current
A
4000
6000
Maximum welding power
KVA
8
13
Maximum pressure
KN
10
10
Maximum forge force
KN
1
1
Input air pressure
Mpa
0.5
Cooling water flow
L/min
3
3
Frequency
HZ
0-50
Weight
KG
270
300
Maximum welding ability
mm²
15
40
