Product Overview

Description

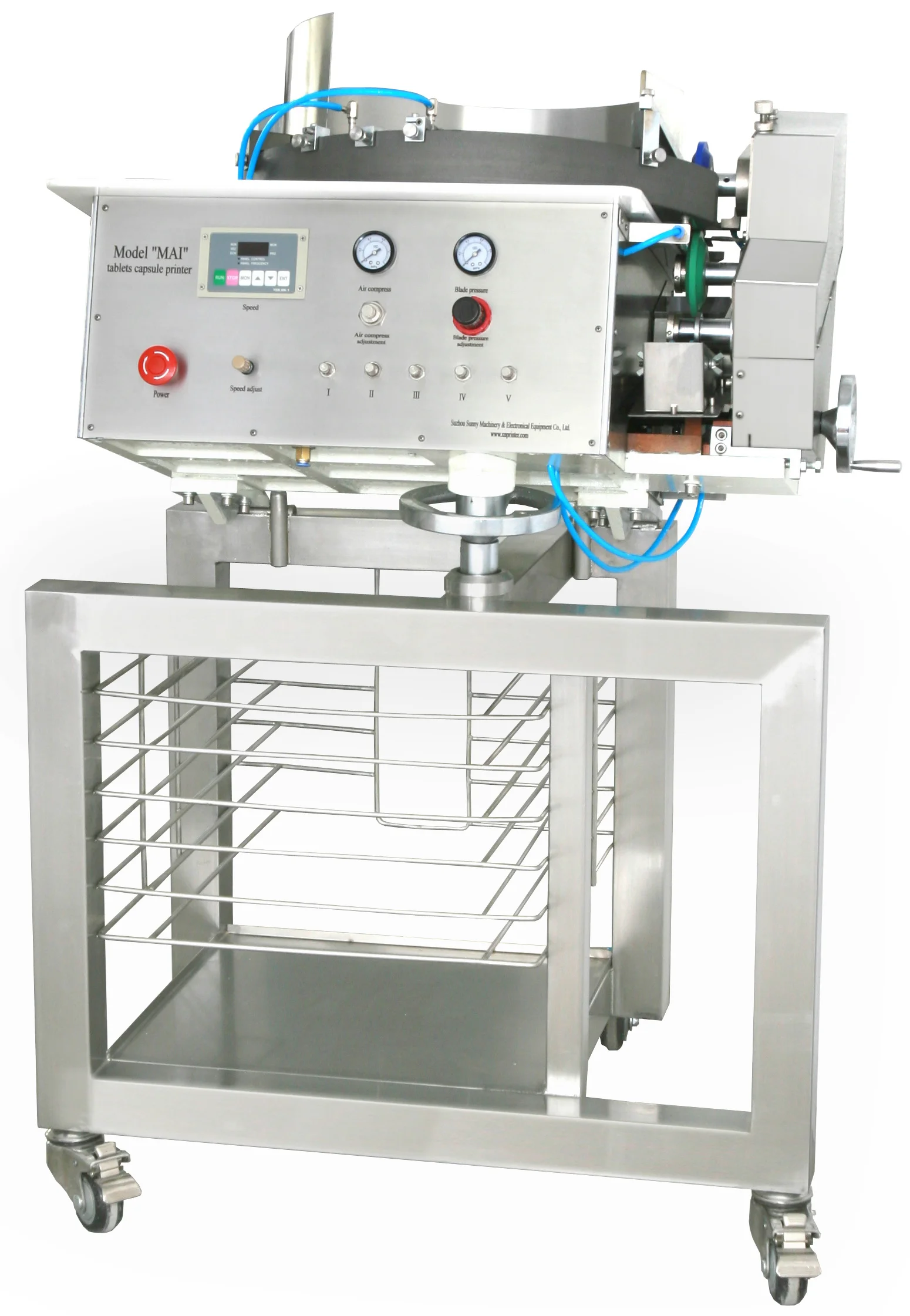

Tablet Capsule soft capsule Printing Machine label machine



1 MACHINE APPLICATION & SPECIFICATION)



1.Application



Tablets (single side or double side printing)	φ3mm>50000 pcs/hour φ6mm>40000 pcs/hour φ12mm>30000 pcs/hour irregular shape tablets>30000 pcs/hour
Hard capsule	00#~5#>35000 pcs/hour
Soft capsule	All kind shape >30000 pcs/hour
(round and irregular shape)	φ≤5mm,φ≥3mm thinkness≤3mm,≥1.5mm(30000~50000 pcs/hour)



2.Other technical parameters



Weight	120kg
Overall dimensions	H610×L910×W640 mm
Power supply	AC220V 50Hz
Power consumption	0.25kw
Compressed air	40psi at 4SCFM continuous clean dry air (270Kpa at 0.0005m3/S)



3. Standard configuration & supply with machine



Main machine:	1unit	Blade holder:	2pc
Feeding disc:	1pc	Power cable:	1 line
Gravure roll:	1pc	Tool:	1pc
Offset roll (rubber roll):	2pcs	Operation manual:	1book

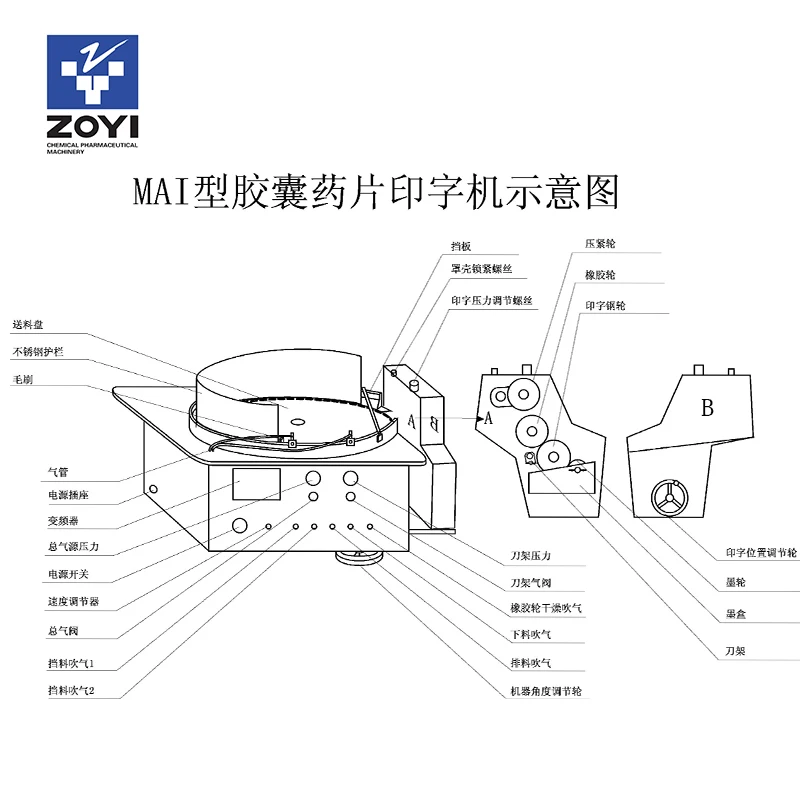

Products are fed into feeding disc, there are holes align on the edge of feeding disc, the hole shape and size are made to fit for product shape and size. The feeding disc are rotating and the rotating speed is adjustable by frequency inverter. The rotation of feeding disc produce centrifugal force and distribute products on the edge of feeding disc. Products are filled in holes on feeding disc and conveyed to printing station. Gravure roll are rotated in ink pot, printing logo/pattern are engraved on gravure roll surface, so that the ink will be entering in the groove of printing logo/pattern, residue ink will be scraped out from the gravure roll surface. The offset roll is touching on gravure roll during printing process, and the ink in shape of printing logo/pattern will be transferred from gravure roll to offset roll, and finally the ink in shape of printing logo/pattern will be printed on products.



There are holes align on the edge of feeding disc, the hole shape and size are made to fit for product shape and size. If product changed, it need to change feeding disc.





4 Ink





Caution: It is strongly recommended to use TEK & Colorcon printing ink, they are all edible grade ink and approved by FDA, and these two brand printing ink don’t need special dilution solvent, its usage & regulation is easy and printing result is assured.



Ink Brand	Package	Country of Origin
Colorcon	1kg/plastic bottle	U.K
TEK	1kg/plastic bottle	U.S.A



l The user shall use food grade edible ink which is in compliance with FDA requirement. l Above two brand printing ink are food grade edible ink in compliance with FDA requirement. l the user can consult us ink color and price for above two brand printing ink
