camper trailer caravan trailer

Model

 STD-MT

Materials

Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)

Frame Material: double hot dip galvanized RHS (2.5mm)

Body Panel: galvanized sheet (1-1.5mm)

Roof: Special molded FRP

Brake

Perfect security structure design, double axle electric brakes

Drawbar

Drawbar Checker Plate 1.2mm aluminium

Drawbar Safety Chain two & Bracing Wheel one

Suspension

Roll rocker tandem spring 7 plate

Axles

Two special trailer axles 50*50

Wheels & Tyre

Five 185R14 tyres and 14' aluminum alloy rims

Rubber Matting

18mm special plywood for floor& ramp door

Rubber Matting For Floor

Windows& Doors

Front Window  ONE

Rear Upper Door  ONE

Side Door   ONE

Supporting Wheel

Swing-able knight supporting wheels to make parking safe and reliable

Lights& Retro Reflectors

Trailer Plug        Seven-prongs Plug

Rear Lights brackets aluminium

LED interior lights, two small LED sidelights, two LED combination taillights

Retro Reflectors   8

Auxiliary Fittings

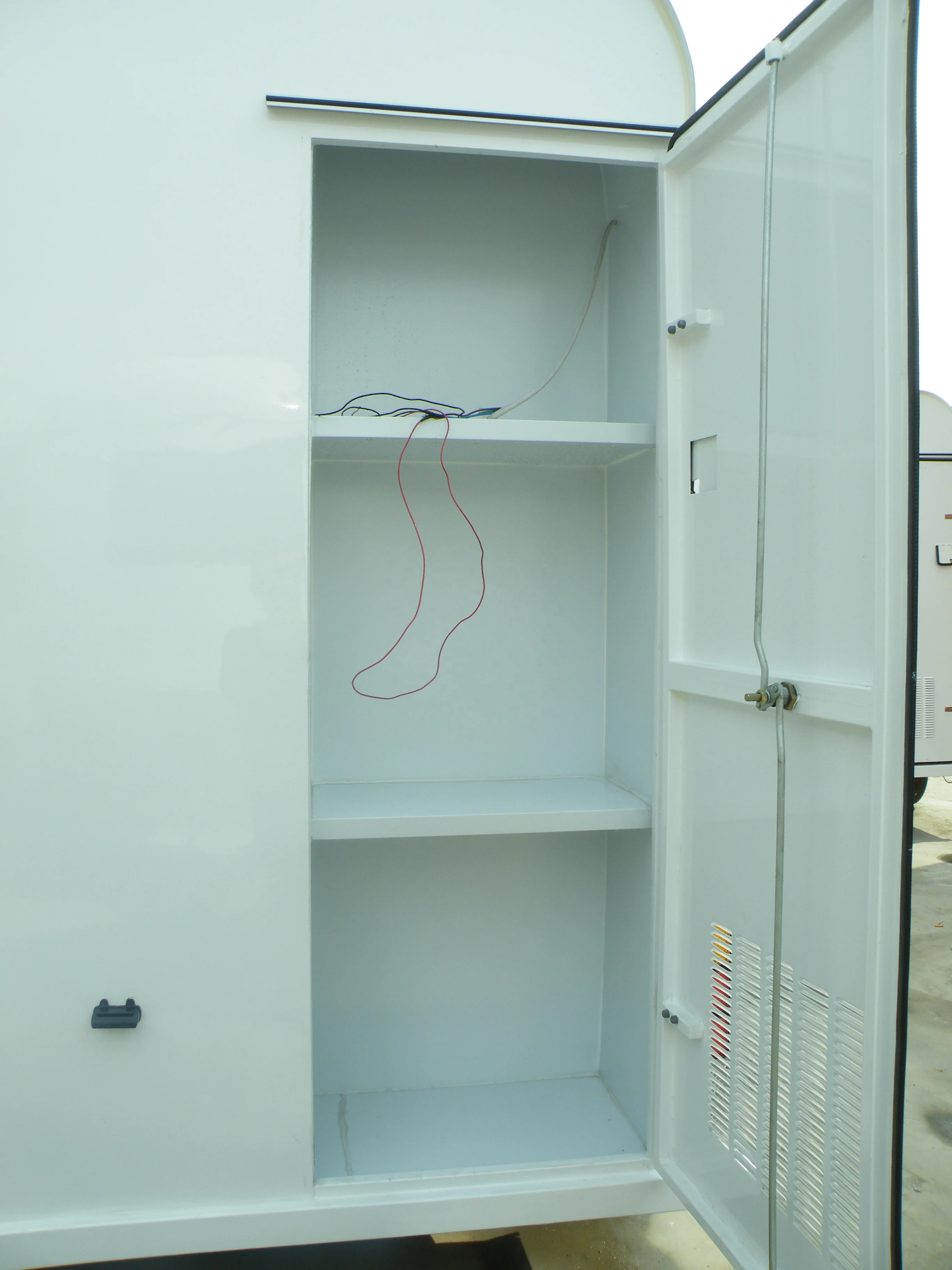

Cupboard          Front

Dimensions

Body Dimension (L x W x H: mm) : 4120 x 1980 x 2230

Inner Dimension (L x W x H: mm) : 4070 x 1930 x 2155

Overall Dimension(L x W x H: mm): 4970 x 2290 x 2600

Length of Tone (mm):      850

Empty Weight

1200 KGs
