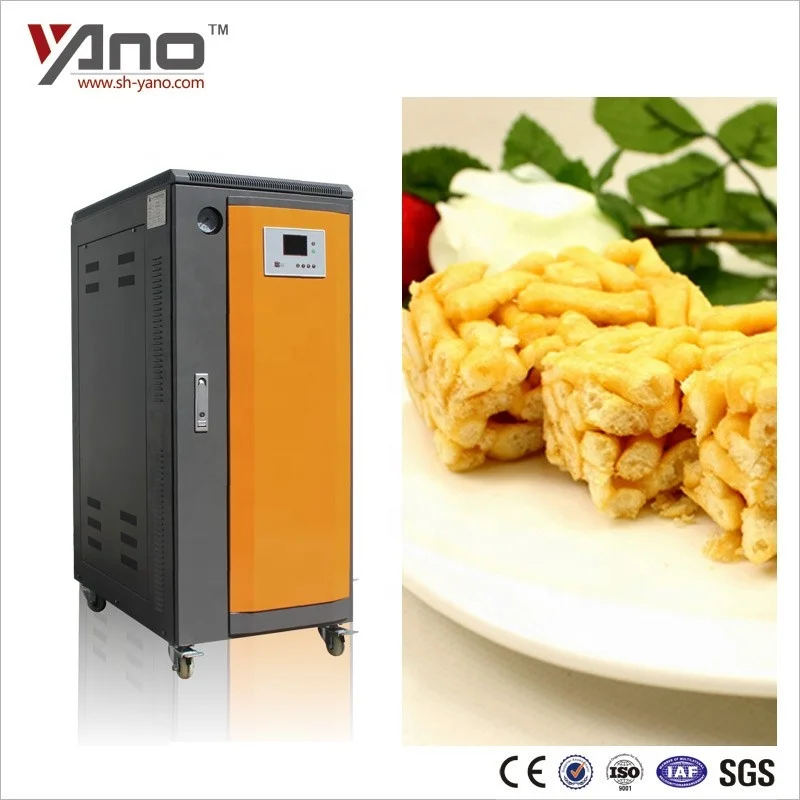

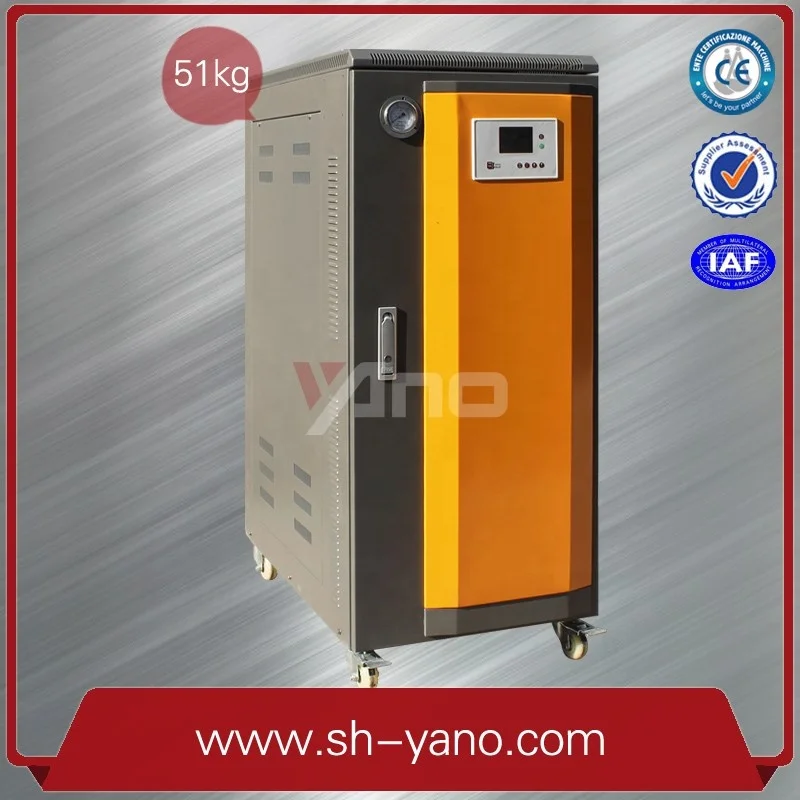

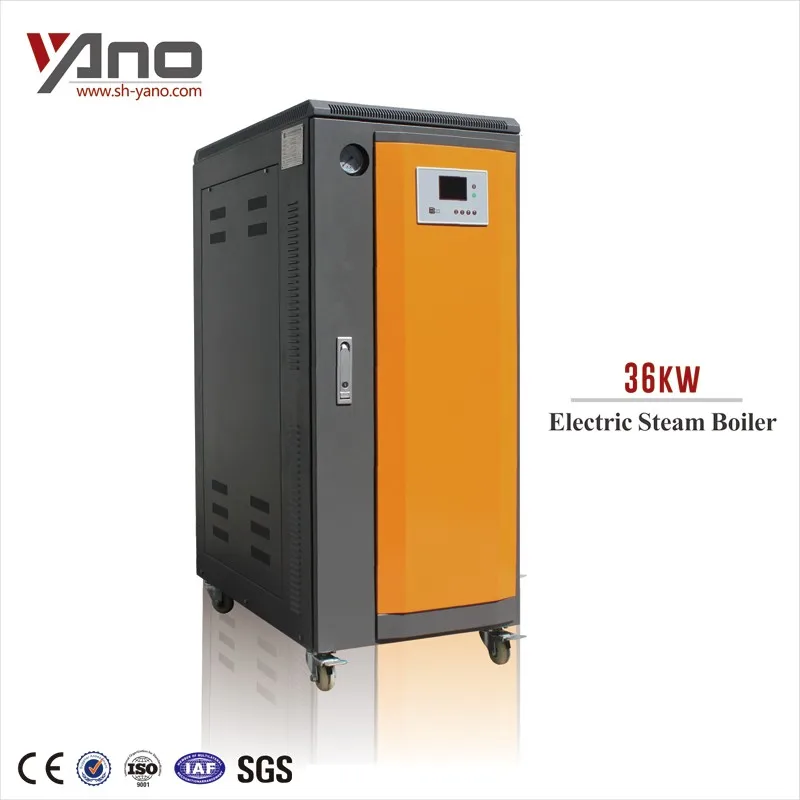

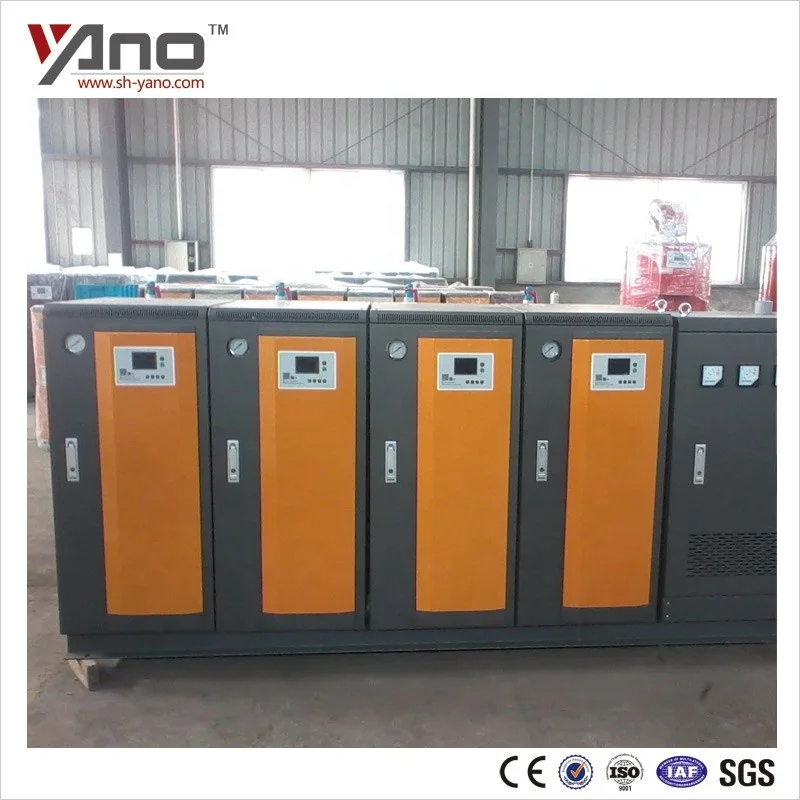

Shanghai YANO brand Normal Pressure Safe Operate boiler 36KW 51Kg/h Electric steam Generator small electric boiler
- Category: >>>
- Supplier: Shanghai Yano Boiler Manufacturing Co. Ltd.
Share on (62543121874):
Product Overview
Description
Product Description
industrial steam generator/electric boiler
How to use ? (After finished piping)
A: press “ON” button on control panel
B: check pressure gauge, when up to 0.6Mpa, open steam valve, and use steam
Safety assurance:
A: pressure: through pressure control, when steam pressure up to set pressure, electric steam
generator shut off automatically.
B: with high water level, low level, super high level protection
Advantage:
Safer Operation
Electric steam generators are flameless and safer. This eliminates the risk of flareback, firebox explosions,
and smoke damage.
Economic
Electrical wiring is less expensive to run than steam piping. Not having a separate electric steam generator
room or vented exhaust saves money.
use LCD automatic intelligent electronic control system
the use of high-quality core components—316Lstainless steel electric heating pipe
extremely easy to install and use
multiple safety interlock protection
A: press “ON” button on control panel
B: check pressure gauge, when up to 0.6Mpa, open steam valve, and use steam
Safety assurance:
A: pressure: through pressure control, when steam pressure up to set pressure, electric steam
generator shut off automatically.
B: with high water level, low level, super high level protection
Advantage:
Safer Operation
Electric steam generators are flameless and safer. This eliminates the risk of flareback, firebox explosions,
and smoke damage.
Economic
Electrical wiring is less expensive to run than steam piping. Not having a separate electric steam generator
room or vented exhaust saves money.
use LCD automatic intelligent electronic control system
the use of high-quality core components—316Lstainless steel electric heating pipe
extremely easy to install and use
multiple safety interlock protection
Related Products
Facade
Backside
Products Description
Specification | LDR 0.051-0.8 |
Electric power(KW) | 36 |
rated evaporation(Kg/h) | 51 |
source voltage(V) | 380 |
rated pressure(MPa) | 0.8 |
steam temperature(℃) | 175 |
power wire(mm2) | 16 |
dimension(mm)L*W*H | 815*520*1310 |
steam caliber(mm) | DN20 |
drain outlet caliber(mm) | DN20 |
water inlet caliber(mm) | DN15 |
weight(kg) | 180 |
Our Advantages
Automatic Steam Generator Product Application
Control System
2. The Use of High-quality Core Components-Electric Heating Pipe
3. Use High-quality Components
4. Multiple Safety Interlock Protection
5.Putting Reasonable Electric Load into Use Could Save Energy and Extend Life Cycle
6. Extremely Easy to Install and Use
7. Scientific Design and Attractive Appearance
8. Use Electricity Is More Environmentally Friendly and More Economical.
Certifications
Professional qualification certification, YANO is trustworthy
We have always positioned product quality as the core of the company to participate in the market competition. It is this
successful positioning and the strong product quality consciousness of all employees that make YANO quickly become a well-known
enterprise in the boiler industry of China!
successful positioning and the strong product quality consciousness of all employees that make YANO quickly become a well-known
enterprise in the boiler industry of China!
We are specialized in the design, production, sales and service of small and medium-sized boiler setters. We conduct national quality supervision and inspection with a class C boiler manufacturing license. Our company is located in the economic boom area,northwest of China-Shanghai. Our factory covers an area of 12,000 square meters, including plant and office building covering an area of 8,600 square meters.
With years of continuous development and progress, we have got more than ten inventive patents and many kinds of national energy saving product honors.
We have passed ISO9001 international quality management system certification, and obtained the glorious title of "the 2010 WorldExpo in Shanghai Out standing Private Enterprises", showing the world the excellent image of Chinese enterprises.
With years of continuous development and progress, we have got more than ten inventive patents and many kinds of national energy saving product honors.
We have passed ISO9001 international quality management system certification, and obtained the glorious title of "the 2010 WorldExpo in Shanghai Out standing Private Enterprises", showing the world the excellent image of Chinese enterprises.
Since our establishment,we have been supported by the University Of Shanghai for technical research and development.
Our company has the independent research and development ability of fully automatic electric heating steam boiler, electric circulation hot water unit,automatic fuel gas steam boiler, automatic fuel gas hot water boiler,business stainless steel cube type electric water heater,high temperature high-pressure steam cleaning equipment and 20 series of over one hundred kinds of products.
Our company has the independent research and development ability of fully automatic electric heating steam boiler, electric circulation hot water unit,automatic fuel gas steam boiler, automatic fuel gas hot water boiler,business stainless steel cube type electric water heater,high temperature high-pressure steam cleaning equipment and 20 series of over one hundred kinds of products.
