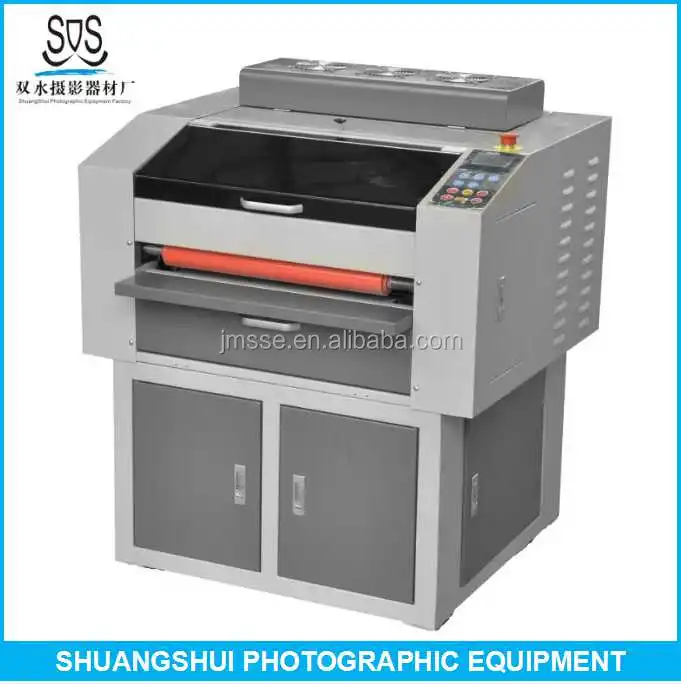

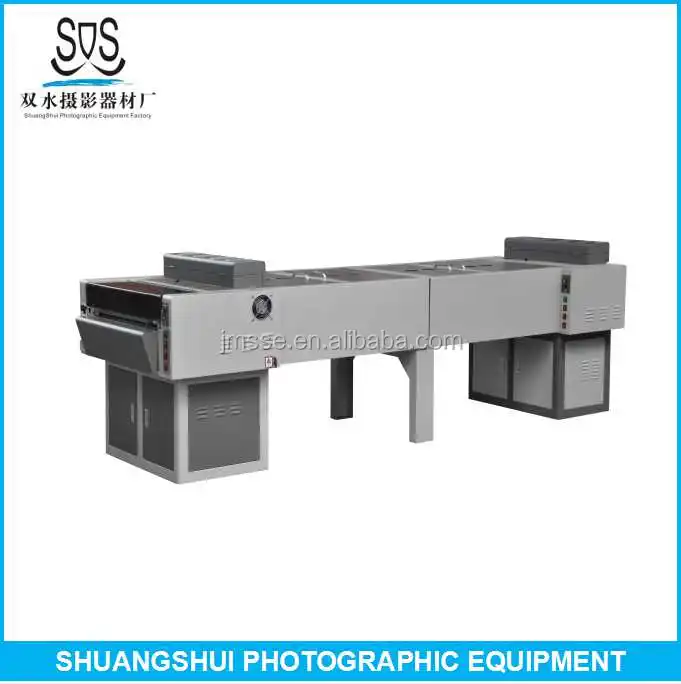

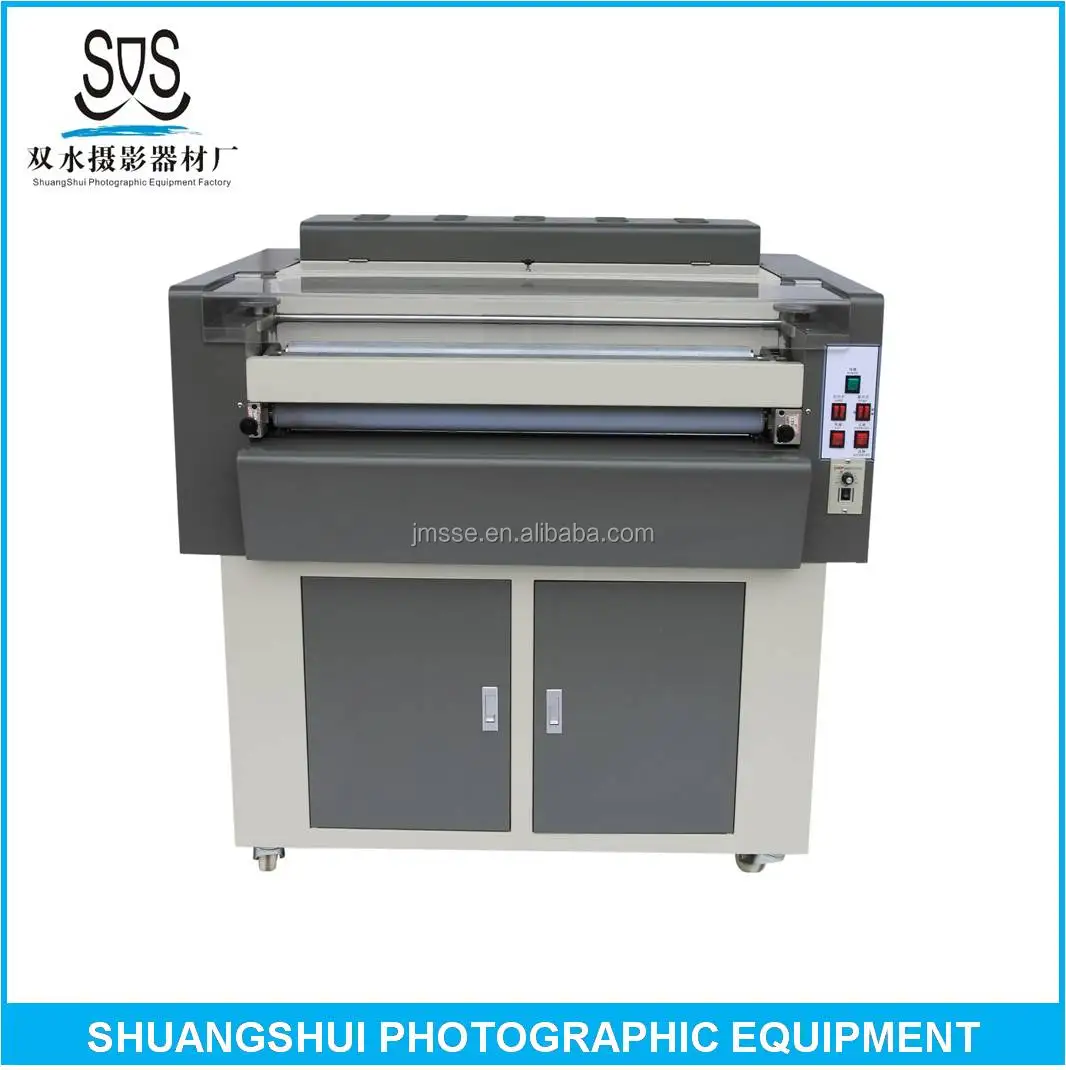

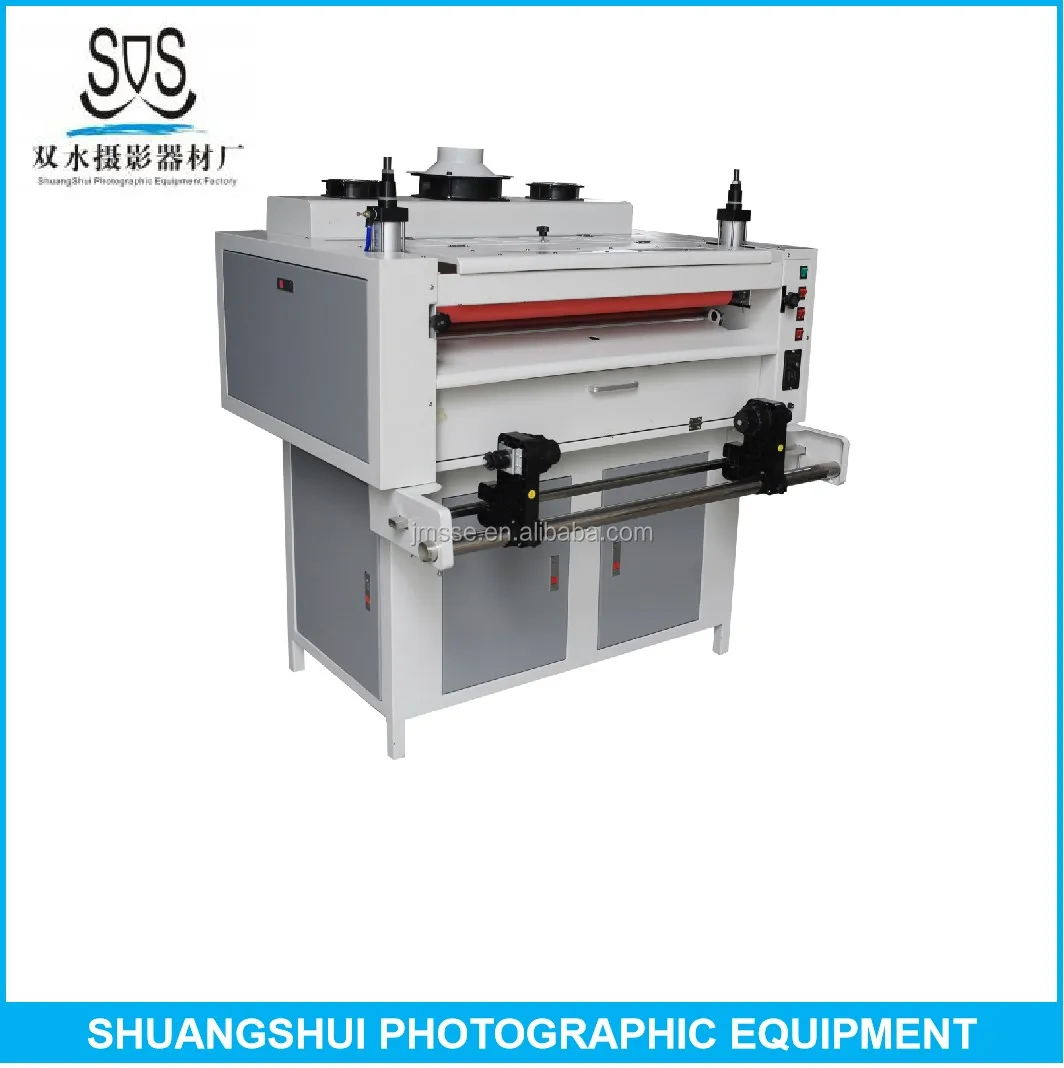

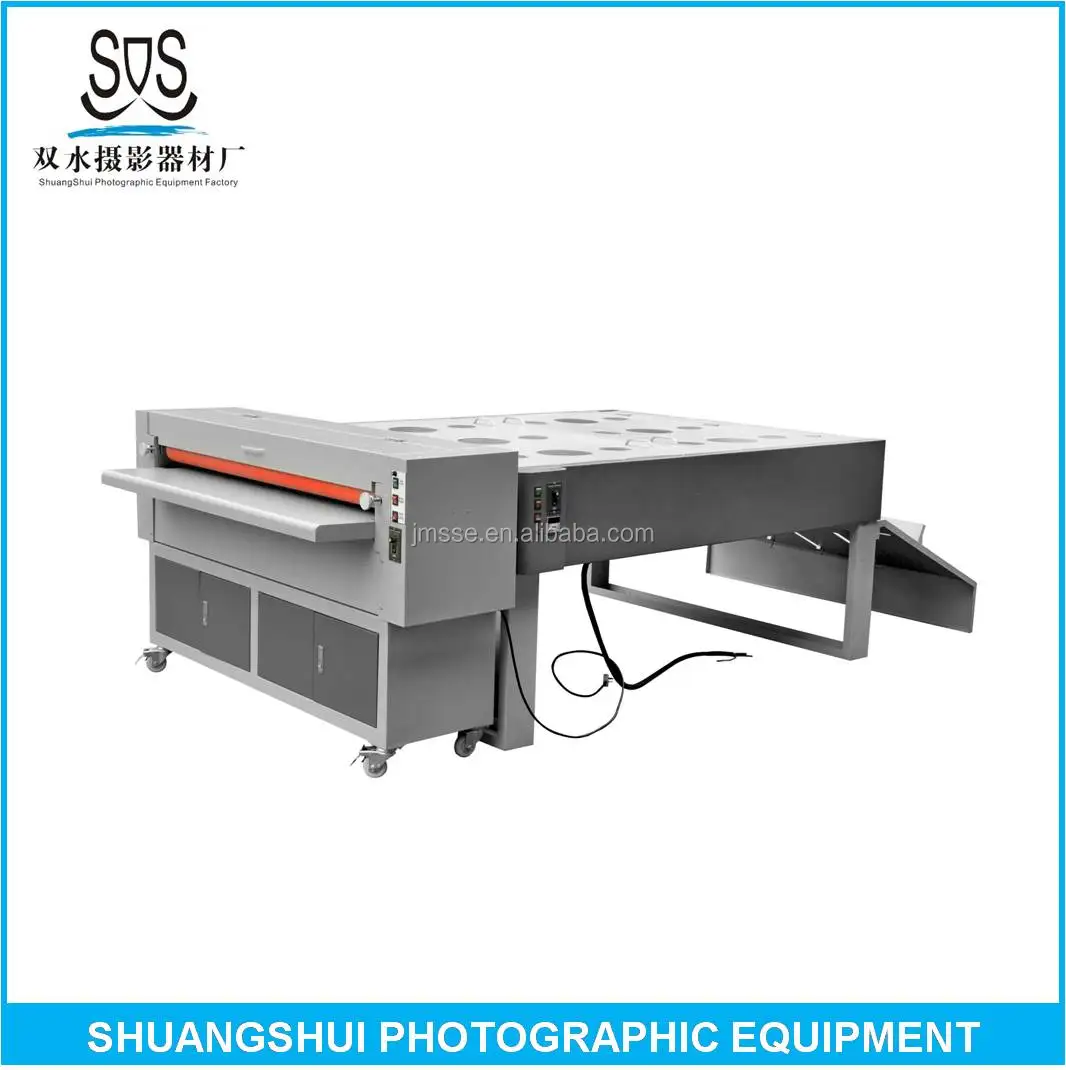

multi rollers uv texture coating machine
- Category: >>>
- Supplier: Jianghai District Shuangshui Photographic Equipment Factory
Share on (62543167309):
Product Overview
Description
Products Description
Applicable
widely use to coat with various kinds of paper, like laser printing, Ink-jet printing photos, copper plate paper, Now it has been widely used in coating magazines, photo printing, portrait printing, book cover, pictures, calendars, cards, product samples, packages and cartons etc.
Model | Coating width | Power | Machine size | |||
S-K18 | 480mm | 4.3KW | 880*810*1220mm | |||
S-K24 | 650mm | 4.5KW | 1010*850*1130mm | |||
S-K36 | 930mm | 6.2KW | 1345*870*1180mm | |||
For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra money. | ||||||
coating width：930mm
coating thickness：0.2~2mm
coating speed：0-7m/min
drying way:UV lamp
voltage：AC220V/50HZ
Power：6.4KW
N.W./G.W.：330kg/380kg
machine size： 870*1345*1180mm
packing size:2130*1550*610mm
package: wooden case
Features
1. Wonderful design with small size which could lower the shipping fee.
Easy and convenient to operate

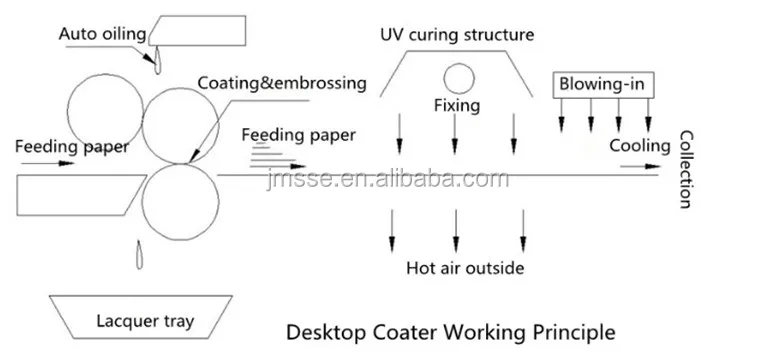

2. The surface of the machines is made of superior quality aluminum alloy (rust-proof and crash-resistance) with the automatically recycle system. That helps to recycle the UV liquid so that don't need to refill the UV liquid manually. That helps to increase the working efficiency, save the material and lower the cost.

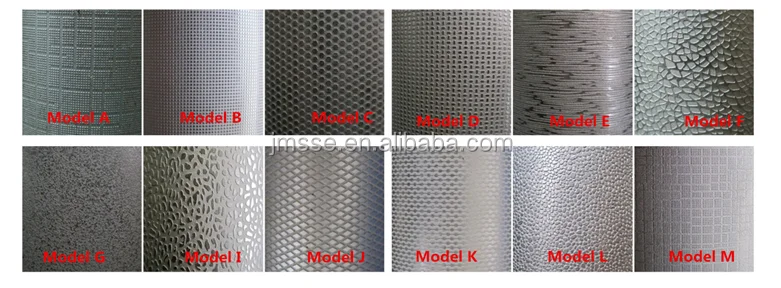

3. This kind of machine has 4 pattern rollers. These could easily make the products in several of patterns and change the pattern easily to meet their needs, so that it helps to design various photos.
4. Using white imported rollers of silicone rubber could make clear and beautiful pattern. Silicone rubber has the function corrosion resistance and scratch resistance.
5. The machine adopts the worm wheel design, to ensure all the rollers could move at the same time and have evenly coating thickness on the products.
6. The machine is smartly installed automatic washing system to clean out all the coating liquid. That could avoid the trouble of leaving liquid in the machine and affecting the quality of final product. It also helps to extend the age of the machine. After cleaning the liquid, the liquid could be used again, so that helps to save the liquid.
7. The machine has the function of heat emission because it smartly installed multi-angle fans. That could avoid the possibility of destroying the product and shorting the age of the machine.
The transport tape uses dozens of wear-resisting rubber rollers. They are easy to change.
8. This machine uses UV lights to dry the product evenly and completely curing the UV coating liquid. The UV lights are sealed inside the machine so that it won’t hurt the people.

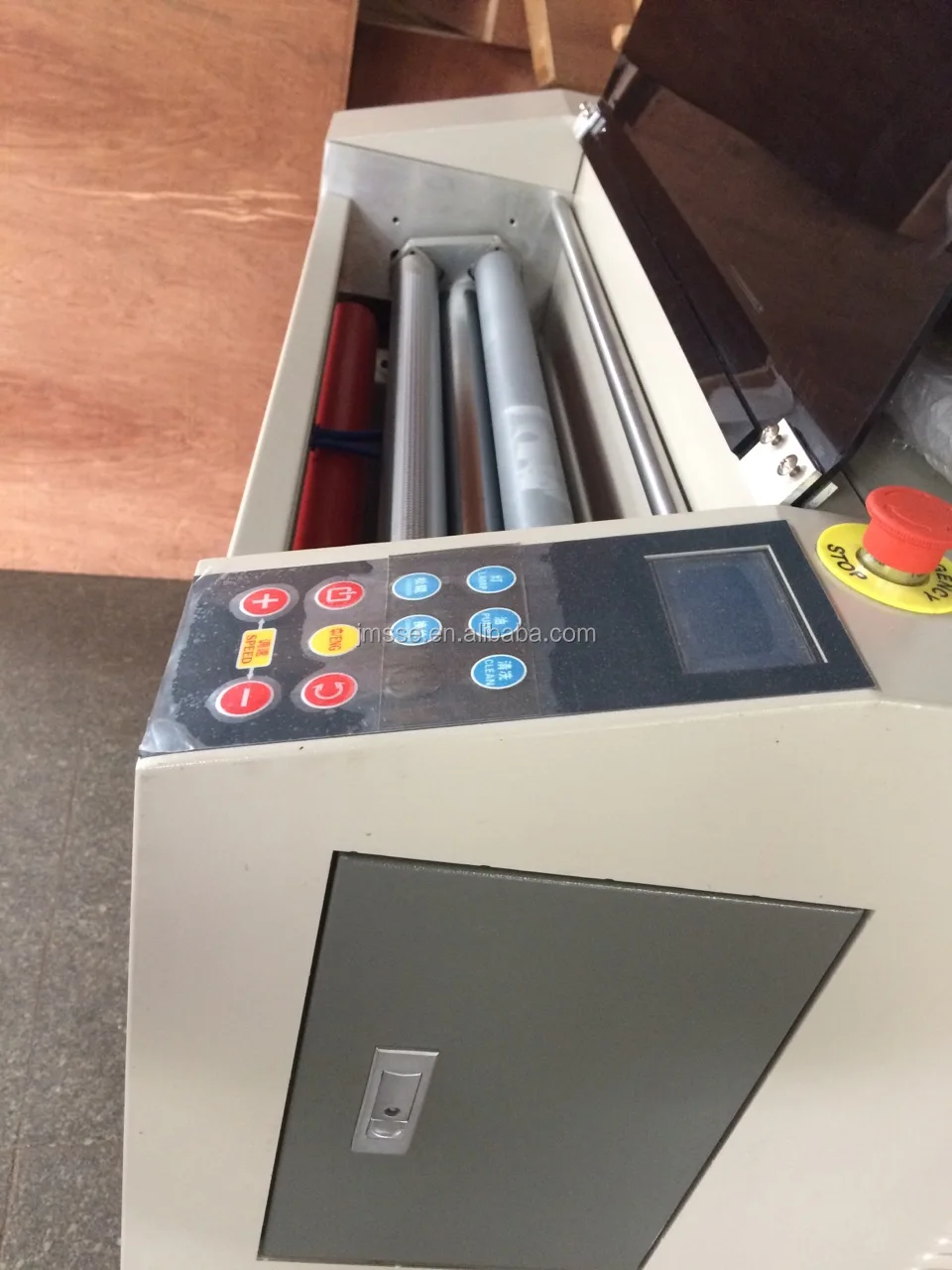

9. The speed controller could adjust the curing speed to fulfill the client’s demand. When the UV light use for a long time, the light will become weaker and weaker. With the speed controller, the operator could slow the speed so that it could help to fully use the light for curing. The humanized design could help to low cost greatly and fully use the material.
Easy and convenient to operate
2. The surface of the machines is made of superior quality aluminum alloy (rust-proof and crash-resistance) with the automatically recycle system. That helps to recycle the UV liquid so that don't need to refill the UV liquid manually. That helps to increase the working efficiency, save the material and lower the cost.
3. This kind of machine has 4 pattern rollers. These could easily make the products in several of patterns and change the pattern easily to meet their needs, so that it helps to design various photos.
4. Using white imported rollers of silicone rubber could make clear and beautiful pattern. Silicone rubber has the function corrosion resistance and scratch resistance.
5. The machine adopts the worm wheel design, to ensure all the rollers could move at the same time and have evenly coating thickness on the products.
6. The machine is smartly installed automatic washing system to clean out all the coating liquid. That could avoid the trouble of leaving liquid in the machine and affecting the quality of final product. It also helps to extend the age of the machine. After cleaning the liquid, the liquid could be used again, so that helps to save the liquid.
7. The machine has the function of heat emission because it smartly installed multi-angle fans. That could avoid the possibility of destroying the product and shorting the age of the machine.
The transport tape uses dozens of wear-resisting rubber rollers. They are easy to change.
8. This machine uses UV lights to dry the product evenly and completely curing the UV coating liquid. The UV lights are sealed inside the machine so that it won’t hurt the people.
9. The speed controller could adjust the curing speed to fulfill the client’s demand. When the UV light use for a long time, the light will become weaker and weaker. With the speed controller, the operator could slow the speed so that it could help to fully use the light for curing. The humanized design could help to low cost greatly and fully use the material.
