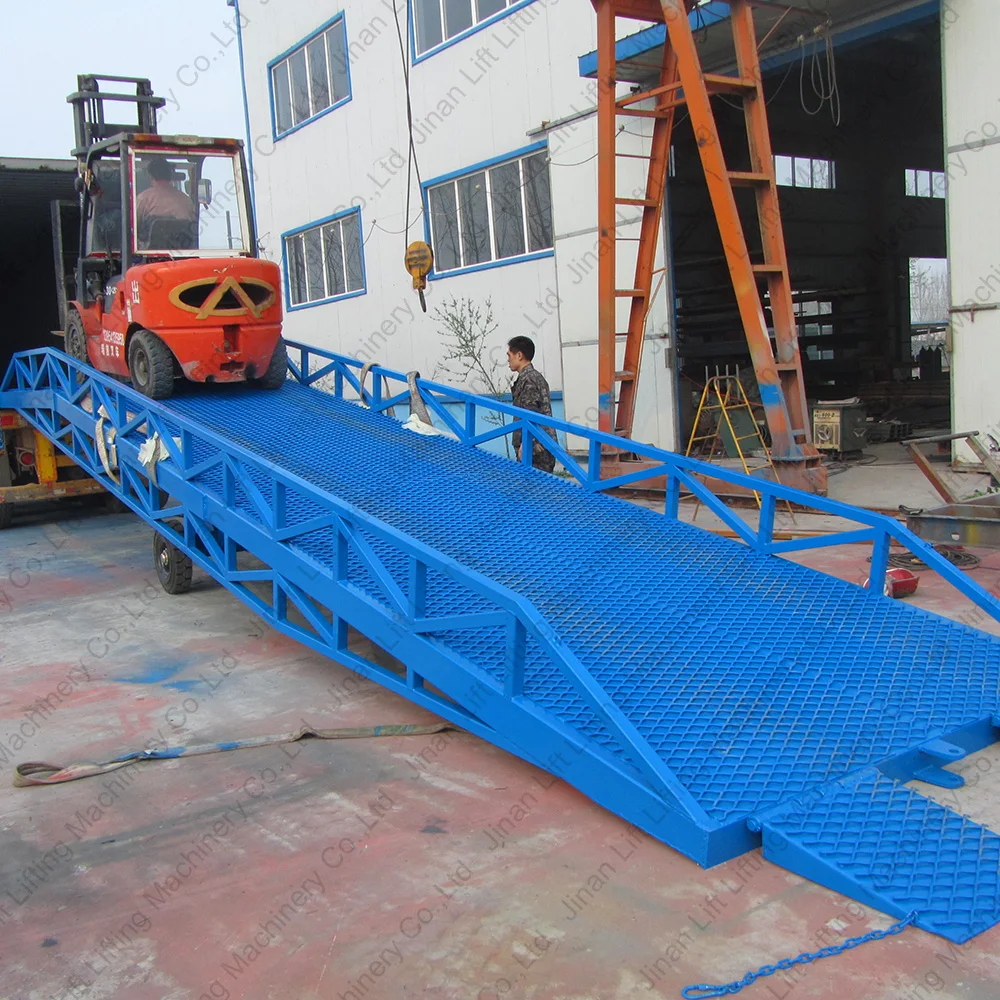

Factory 6ton 20ons hydraulic mobile container access ramp adjustable truck movable ramp for forklift loading ramps
- Category: >>>
- Supplier: Jinan Lift Lifting Machinery Co. Ltd.
Share on (62543220087):
Product Overview
Description
Our Warehouse
Product Description
Factory Selling hydraulic mobile container access ramp adjustable truck movable ramp for forklift loading ramps with CE
1.Container access ramp is used with forklift and container together for loading and unloading cargos.The ramp using the hydraulic pump,and no need the electric power source,can adjust the height of the ramp easily.
2.Specifications : overall width-2.0m, overall length-11m, adjusting height range- 1.0 to 1.8m. It can also be designed and customized according to customer's demand.
3.Rated capacity range: from 6ton (min.) to 30tons (max.)
4.Power optional: a. manual power by hydraulic pump, no need the electric power source.
b. electric power.
Specifications | ||||||||
Model | Rated capacity | Adjustable height | Overall size | Power | ||||
SJDQ-6 | 6ton | 1000-1800mm | 11x2.0x1.5m | Manual or Electric | ||||
SJDQ-8 | 8ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-10 | 10ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-12 | 12ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-14 | 14ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-15 | 15tpm | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-16 | 16ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-18 | 18ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-20 | 20ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-26 | 26ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-28 | 28ton | 1000-1800mm | 11x2.0x1.5m | |||||
SJDQ-30 | 30ton | 1000-1800mm | 11x2.0x1.5m | |||||
Operation Proess
1.Fasten the oil drain valve.
2.Lift up the ramp’s lip plate higher 10cm over the truck carriage ‘s bottom plate
3.Back the truck off under the ramp's lip plate
4.Operators connect the ramp with the truck together by the iron chain.
5.Put the brake pad next to the solid tire
6.Release the oil drain valve, and the ramp's lip plate will fall down onto truck carriage ‘s bottom plate
7.The ramp can be used for work.
Certifications

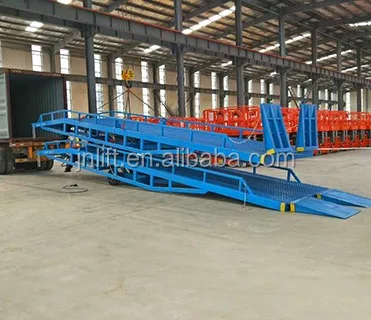

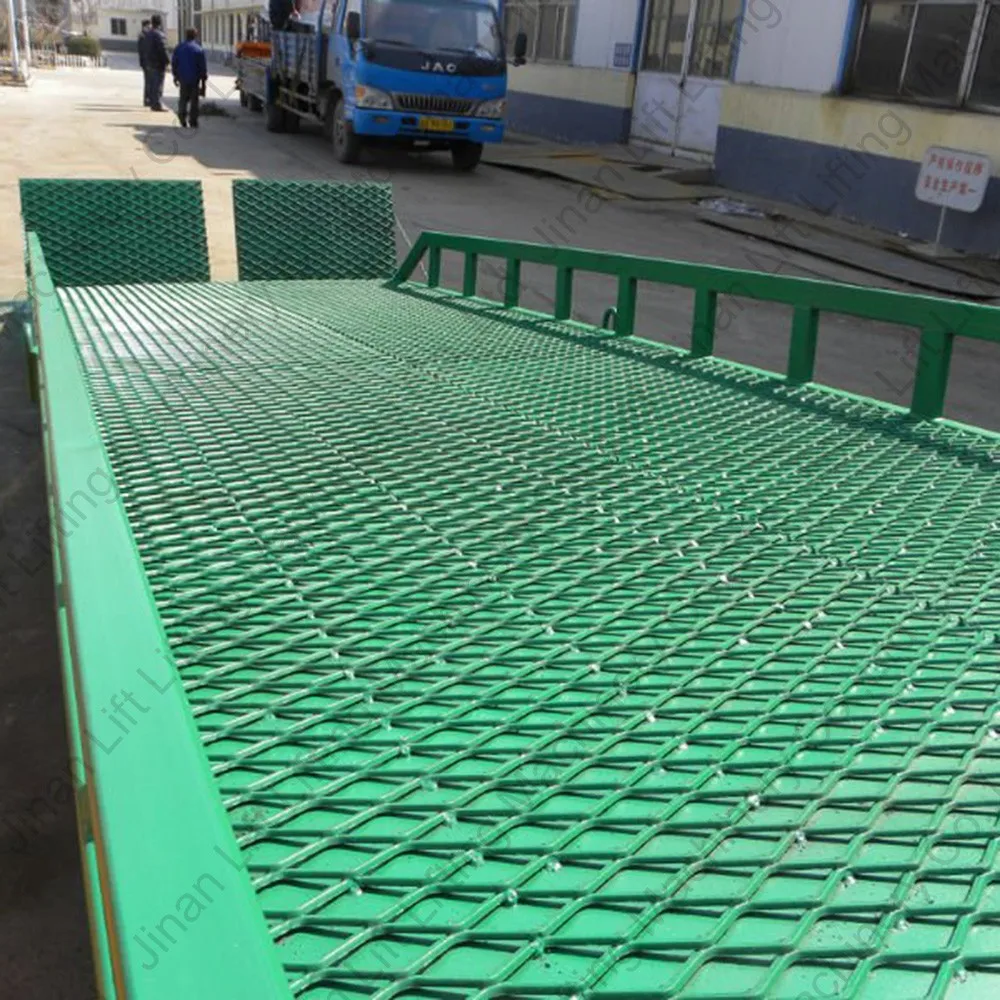

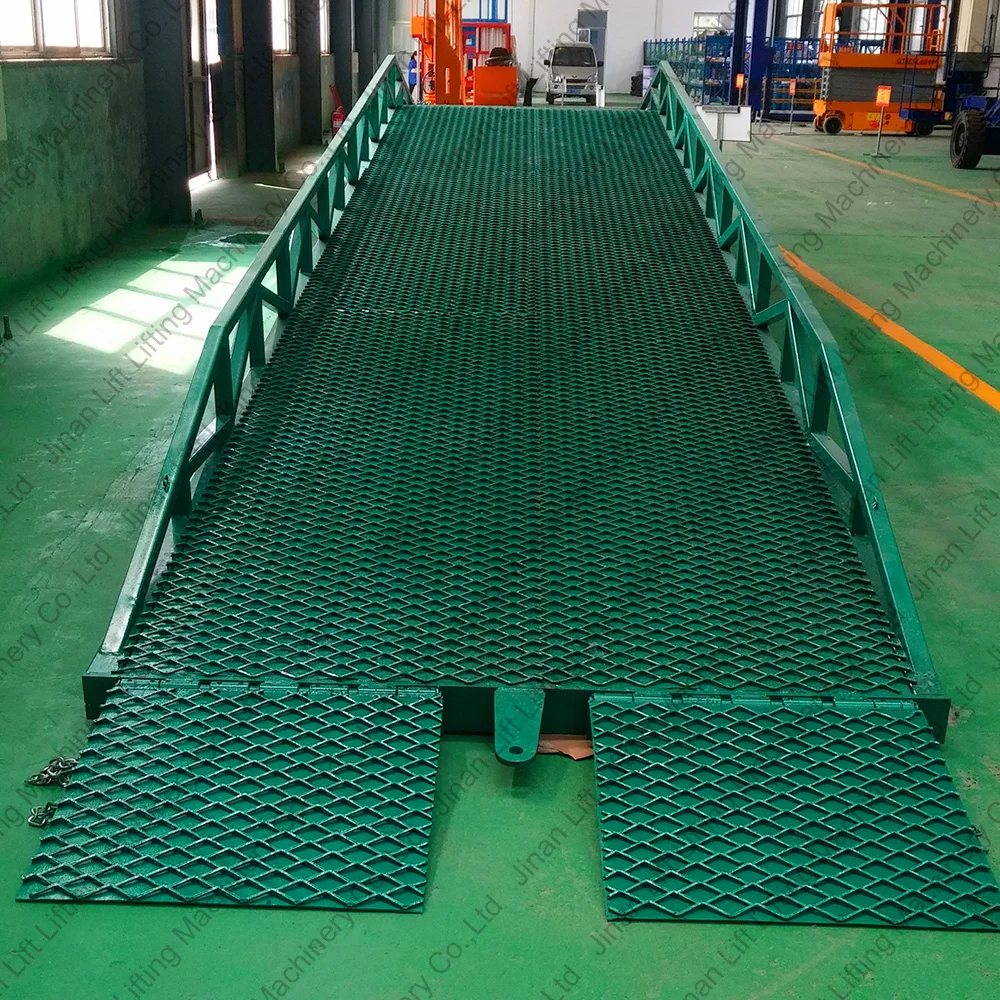

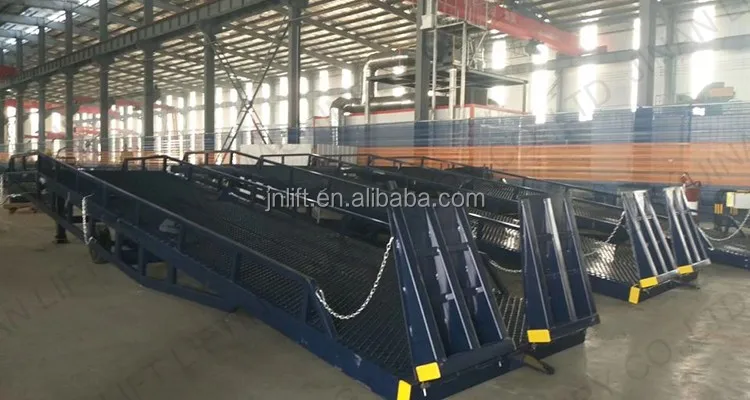

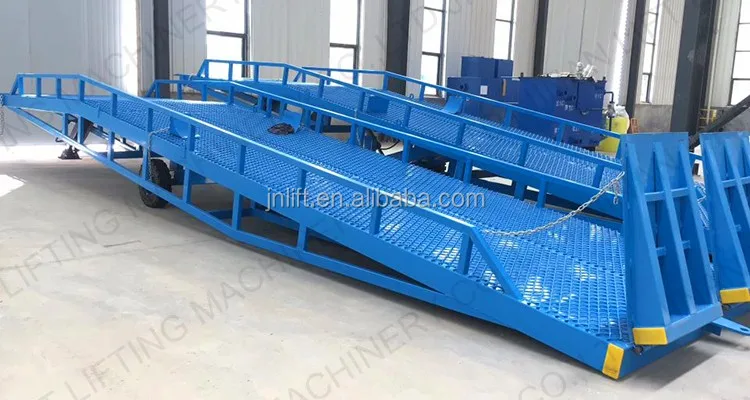

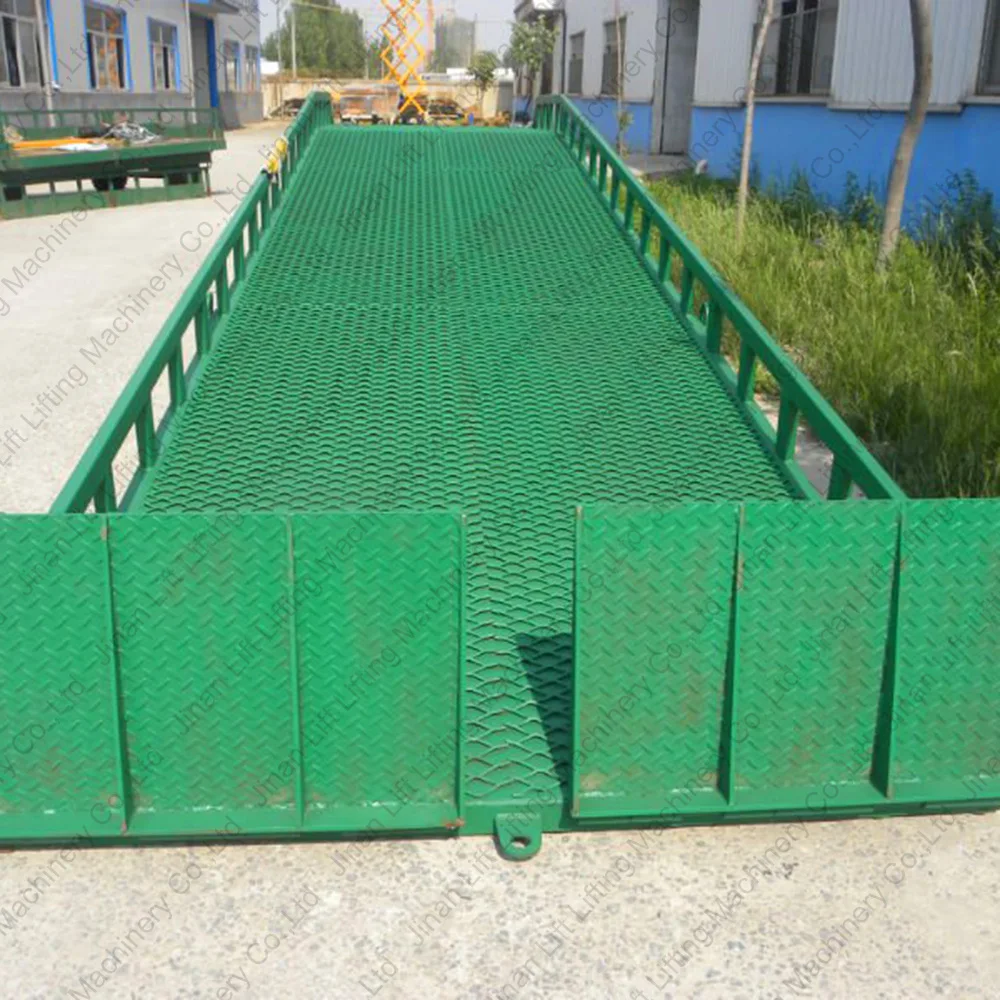

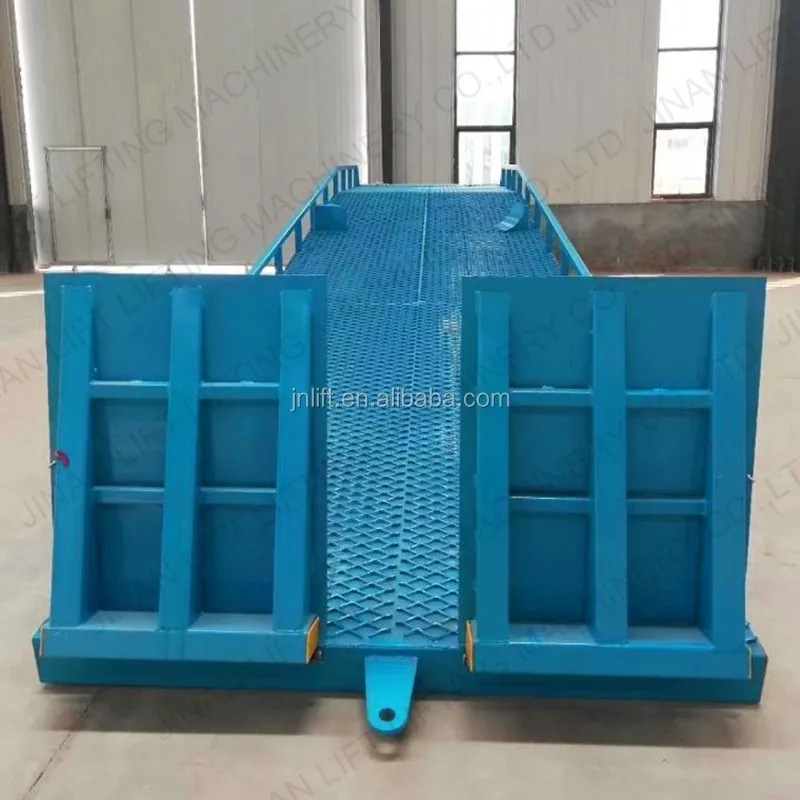

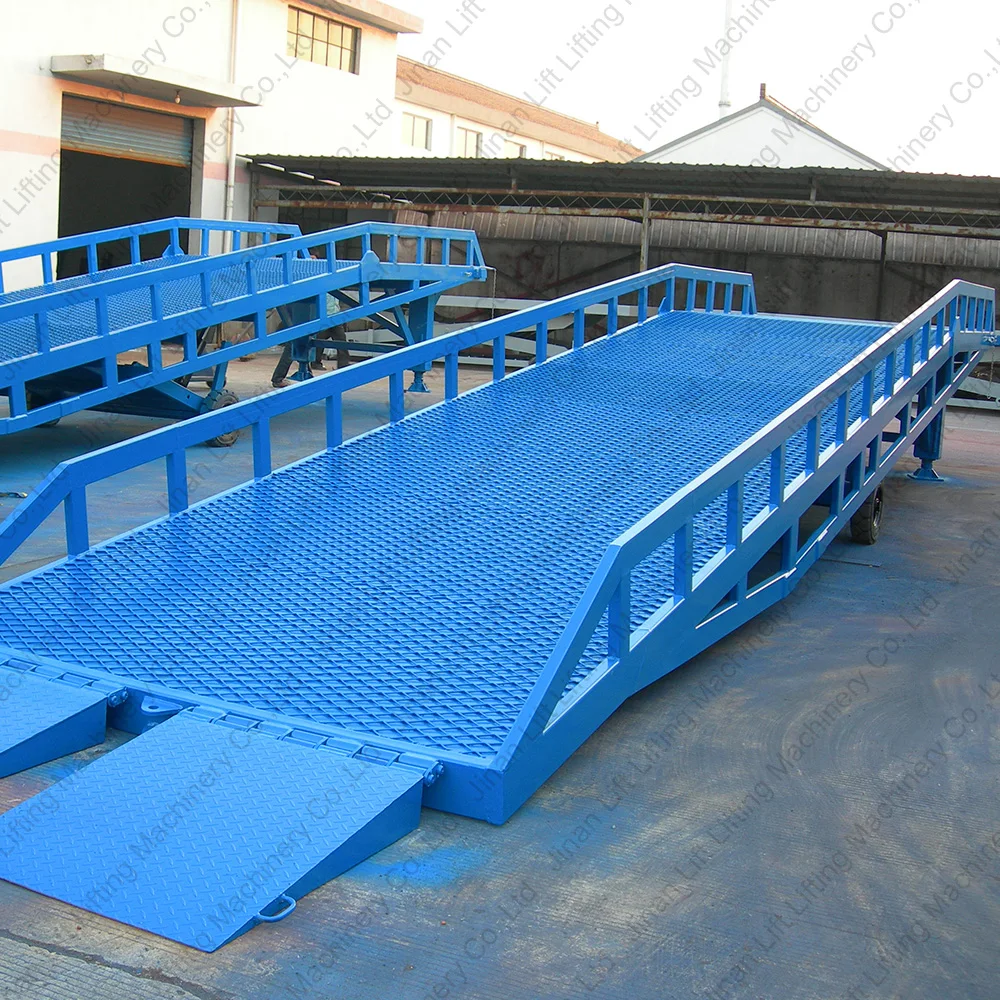

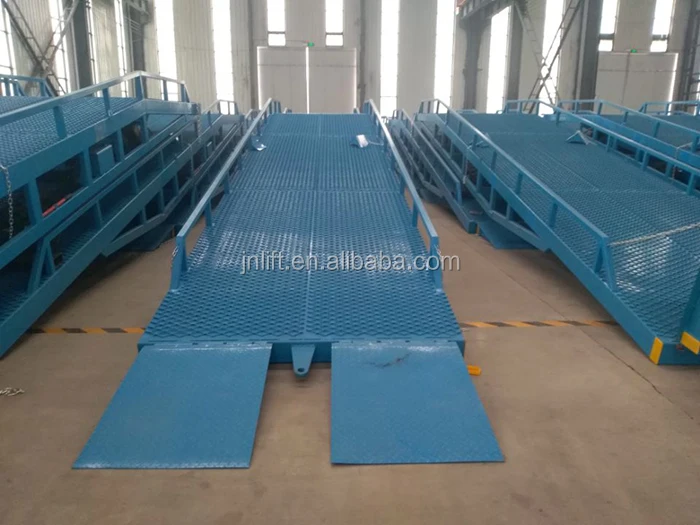

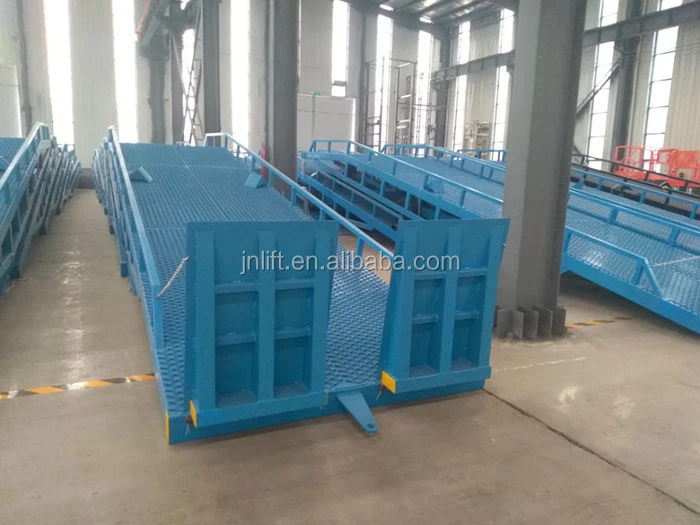

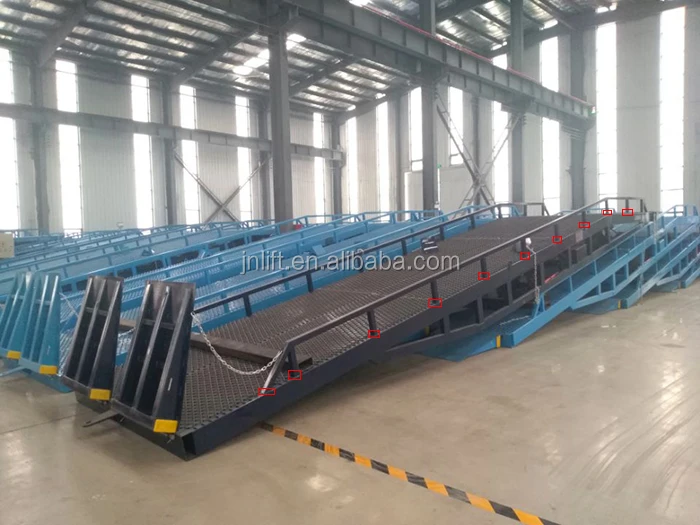

Detailed Images
Our Service
JINAN LIFT LIFTING MACHINERY CO.,LTD
is the professional manufacturer of hydraulic lifts for 10 years. Our factory covers 78500 square meters and has a series of modern production equipments, like auto cuttingequipment, automatic equipment, automatic abrasive blasting production rust removal line. spray paint line, automatic welding robot and so on. We have been exporting to different many countries for 5 years. Welcome to visit our factory and test our machines' quality, Sincerely.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 11m (L) * 2.0 (W) * 1.5(D) 1x40GP container | |
Weight | as per special model | |
Packaging Details | The normal package is pe film for packing or pack it according to customers special request. | |
