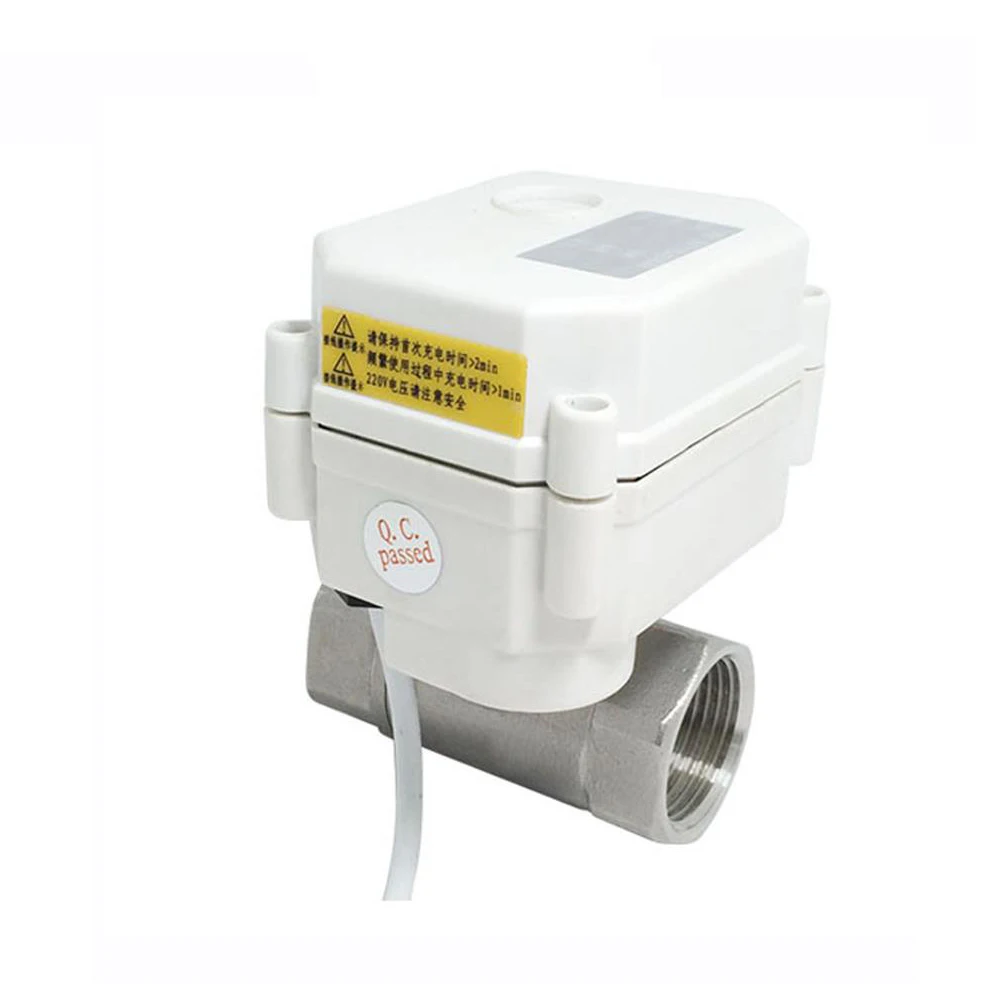

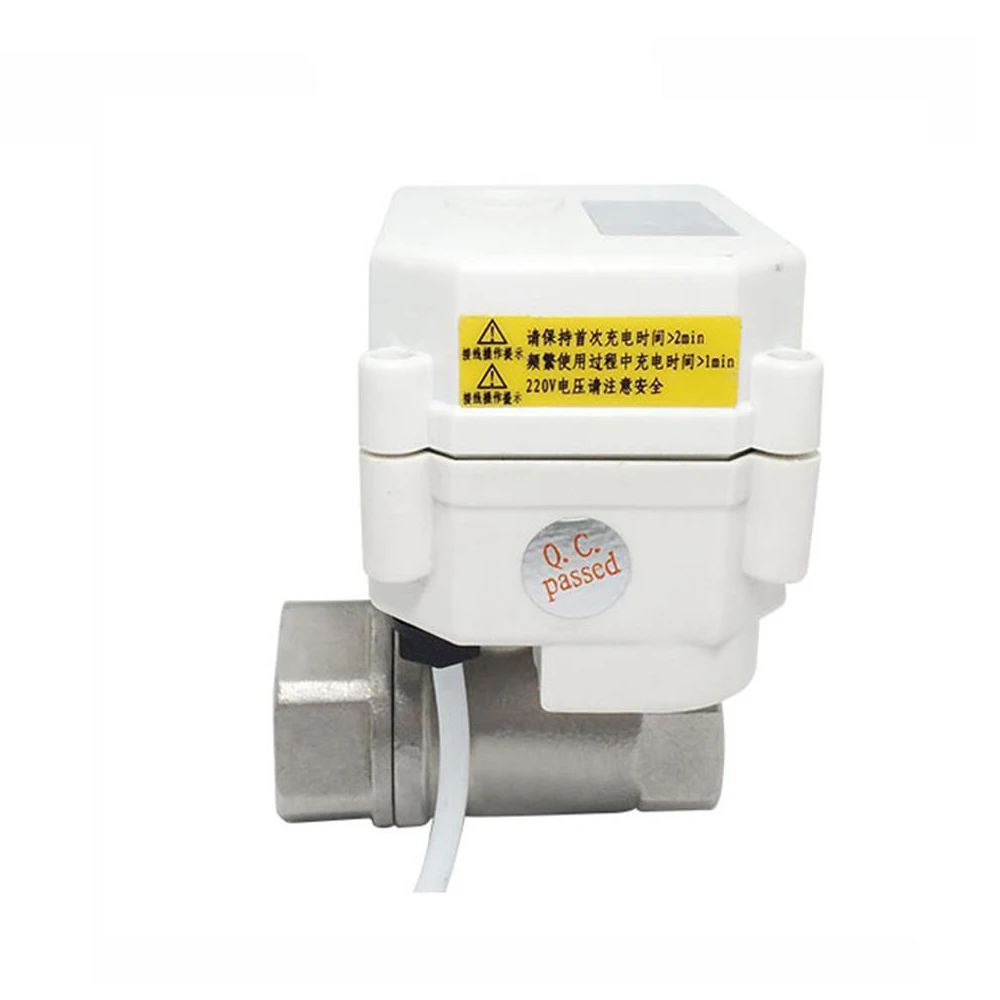

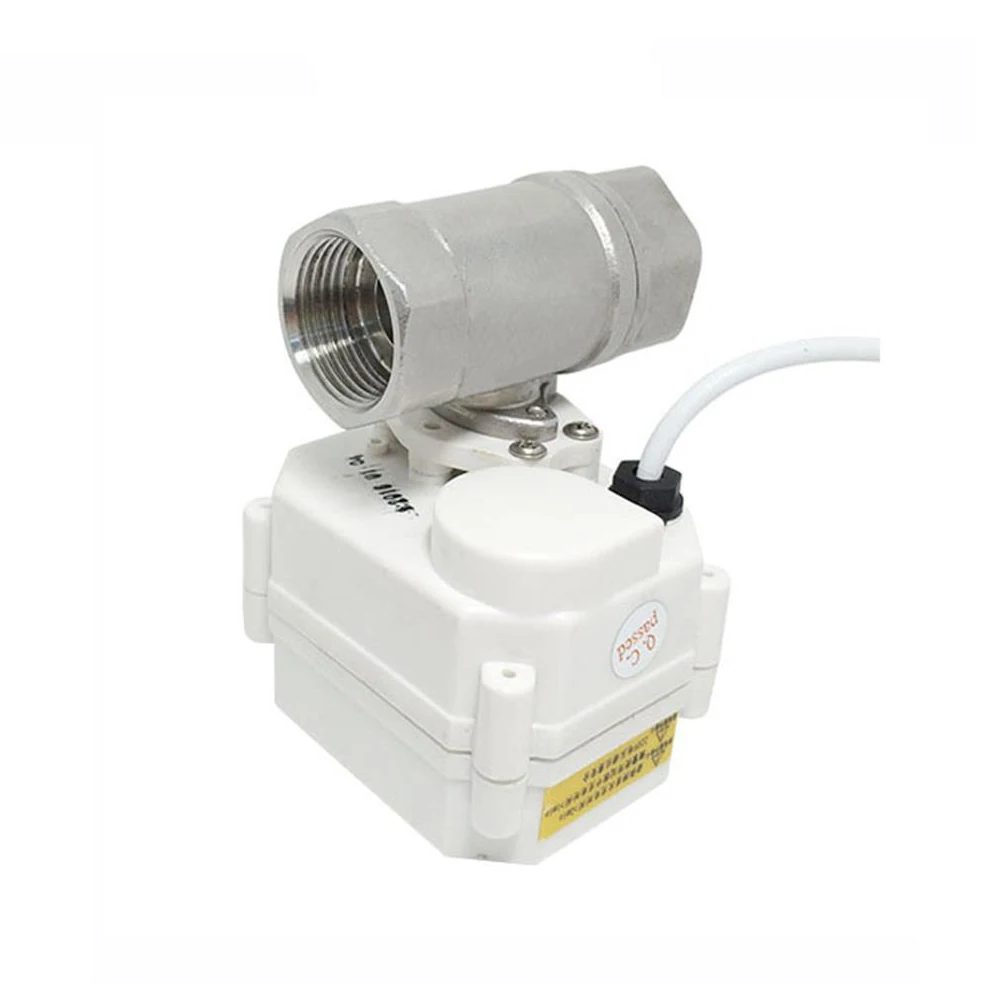

12V 2 Way DN20 3/4 inch Threaded Mini Electric Water Stainless Steel Ball Valve
- Category: >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (62543227828):
Product Overview
Description
Products Description

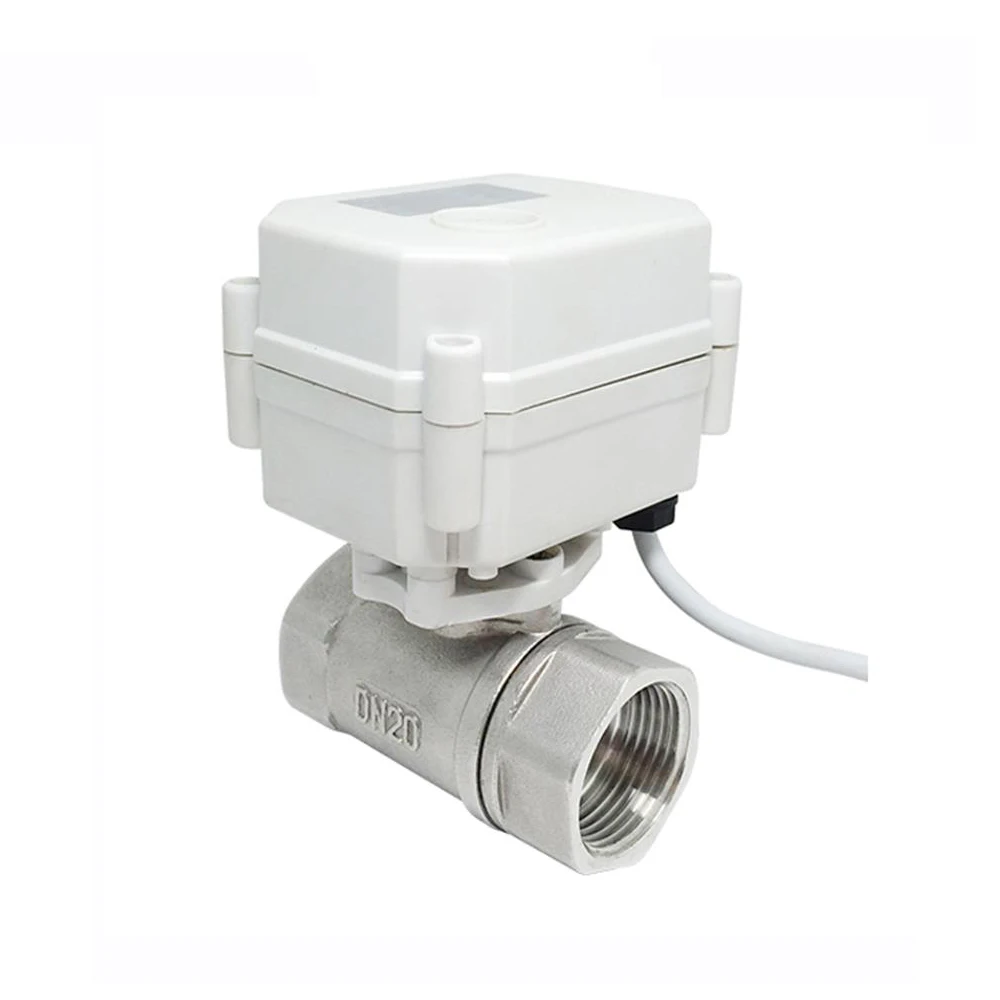

12V 2 Way DN20 3/4 inch Threaded Mini Electric Water Stainless Steel Ball Valve
● MOQ: 1 set
● COVNA 20 years of valve manufacturing experience
● Strong inventory, part of commission returned for bulk delay
● Product quality will be guaranteed for 1 YEAR (12 MONTHS)
● OEM service to help customers to promote their brands
● Offer various international standard, ANSI, JIS, DIN, etc
● Custom complaints handed by one stop professional service.
● Inquiry will be replied within 8 hours
Size Range | DN15~DN50 | ||||||
Max. Working Pressure | 1.0MPa | ||||||
Circulation Medium | Water, Air | ||||||
Rated Voltage | AC/DC 110-230V, DC9-24V(Optional) | ||||||
Working Current | ≤500mA | ||||||
Open/Close Time | ≤5S | ||||||
Life Time | 70,000 Times | ||||||
Valve Material | Brass, SS304, SS316 | ||||||
Actuator Material | Engineering Plastics | ||||||
Actuator Rotation | 90° | ||||||
Torque Output | 2Nm | ||||||
Ambient Temperature | -15°C-50°C | ||||||
Liquid Temperature | 2°C-90°C | ||||||
Connection Type | Threaded | ||||||

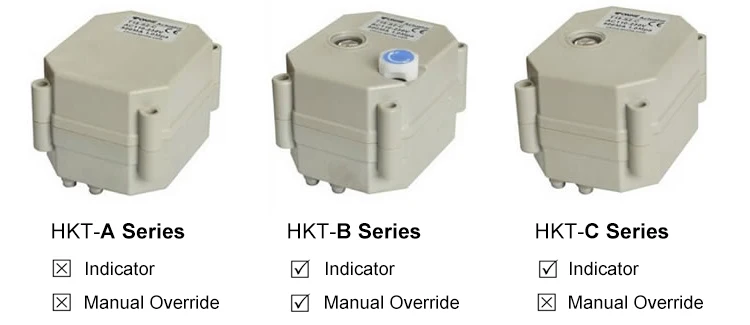

Manual Override | Optional | ||||||
Indicator | YES | ||||||
Line Control | CR2-01, CR2-02, CR3-01, CR3-02, CR3-03, CR4-01, CR5-01, CR5-02, CR7-01, CR7-02, CR7-03, CR7-04 (Optional) | ||||||
Sealing Material | FKM/PTFE | ||||||

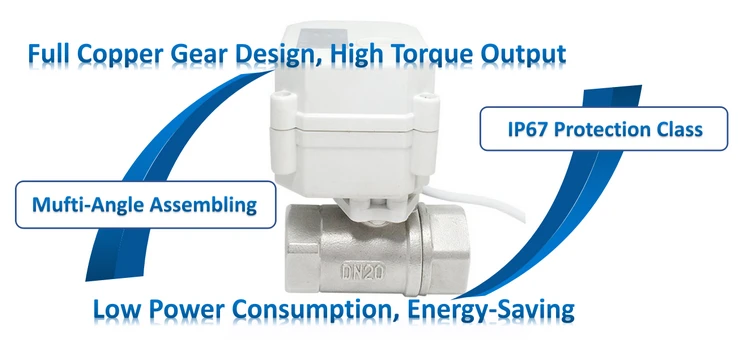

Protection Class | IP67 | ||||||

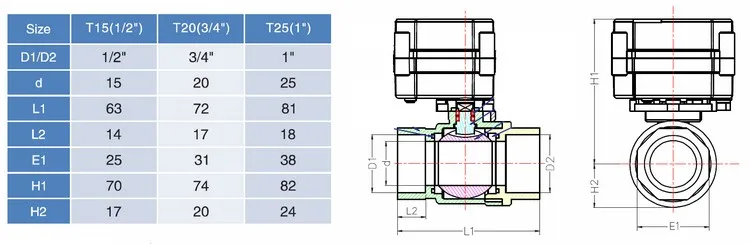

Dimension:
More models are offered!
Click here to ask more info about the quote and the catalog.

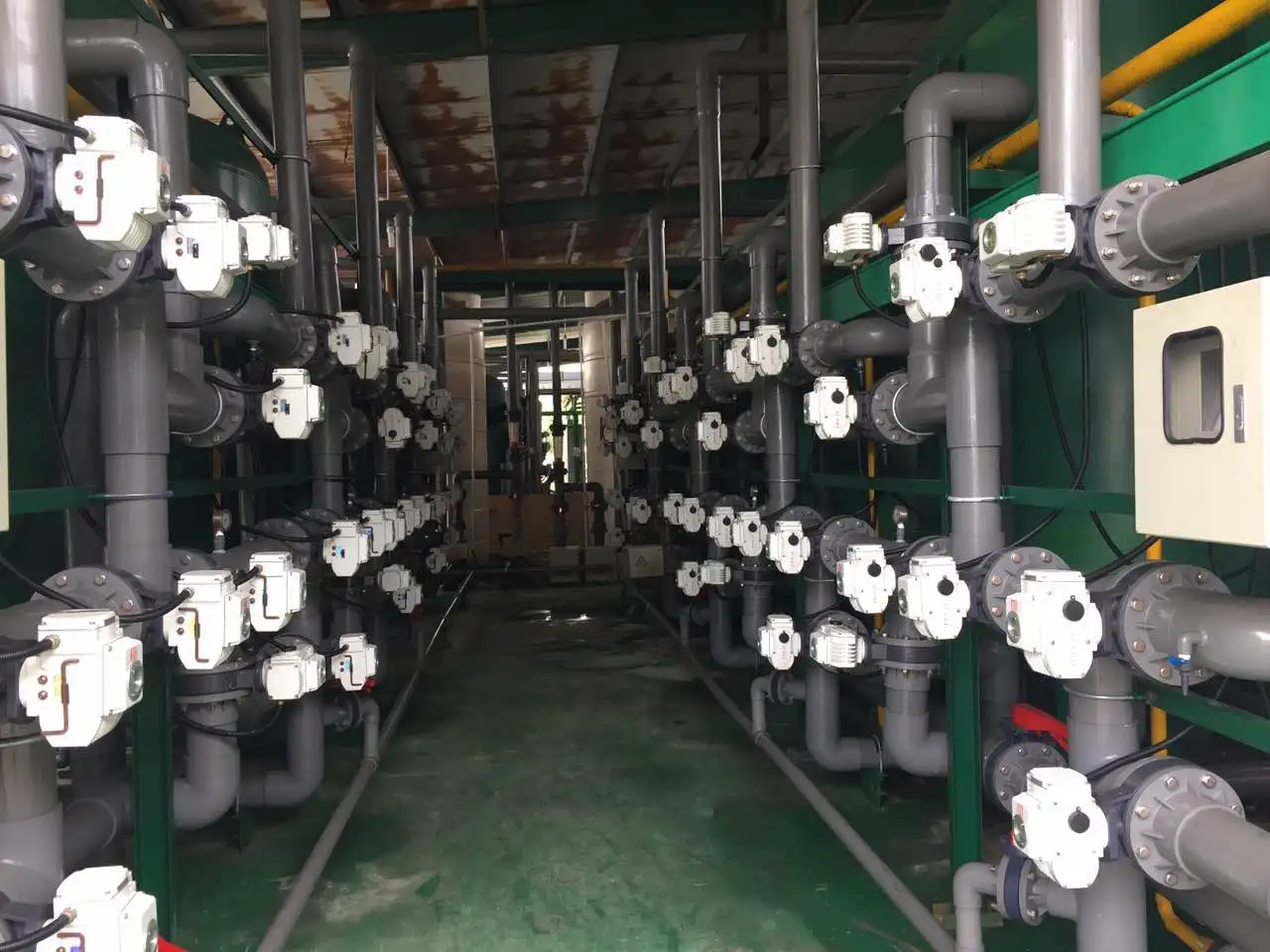

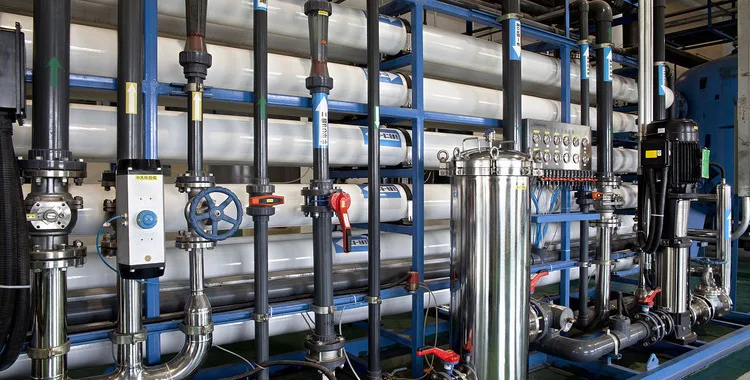

Finished Project

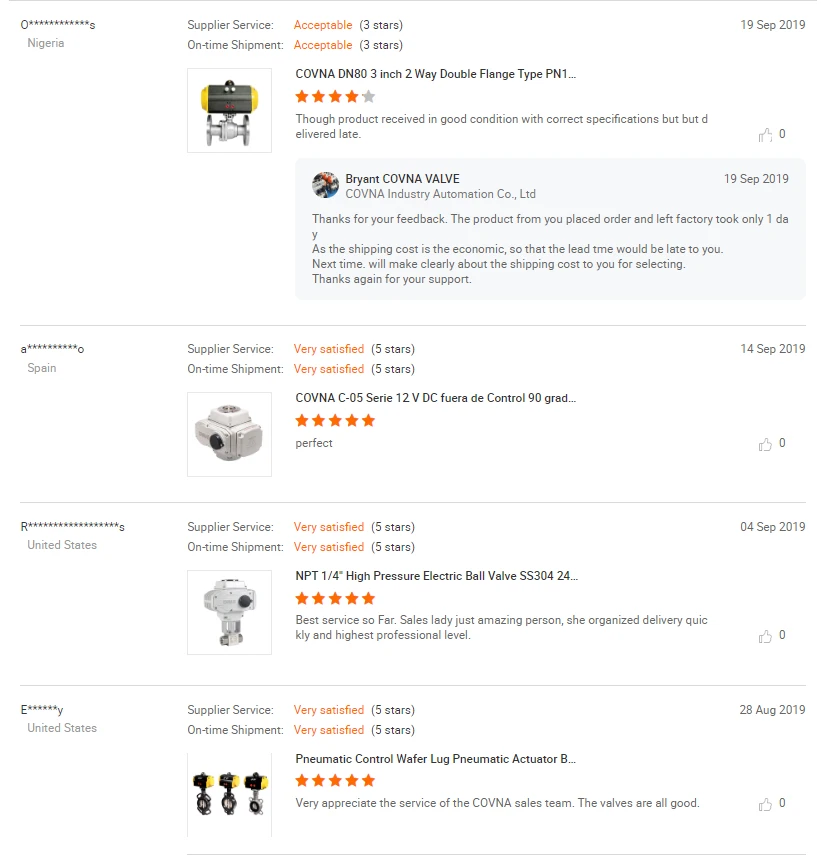

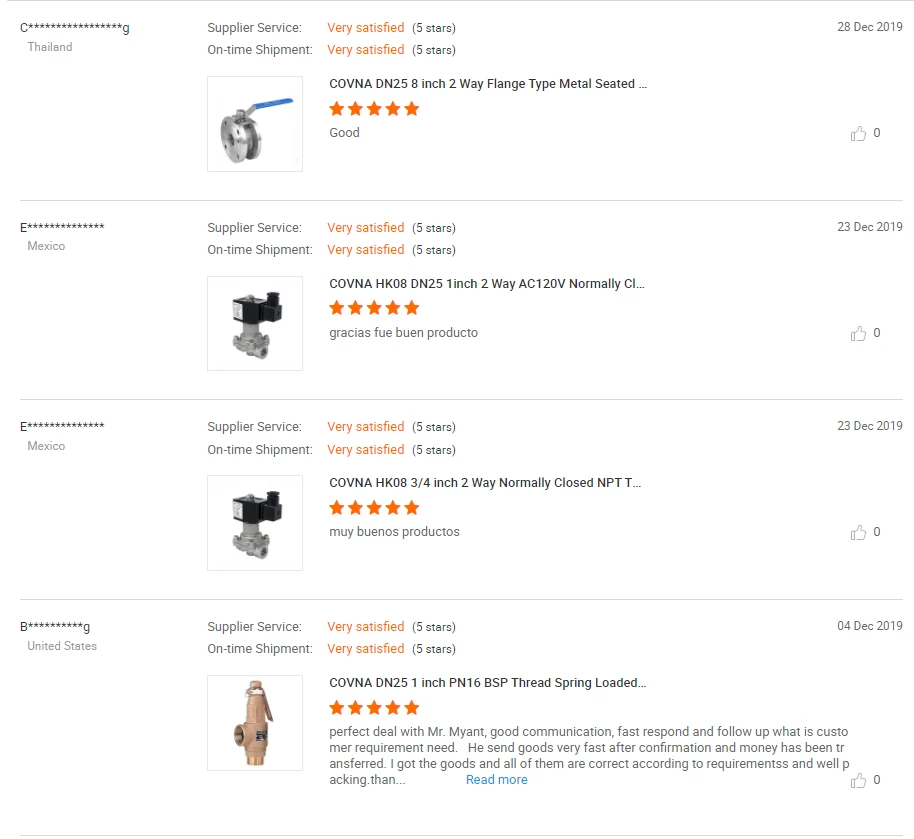

★★★★★ FEEDBACK AROUND WORLD
<<GET QUOTE AND CONTACT SUPPLIER>>
About COVNA
COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
COVNA OFFICE
COVNA TEAM

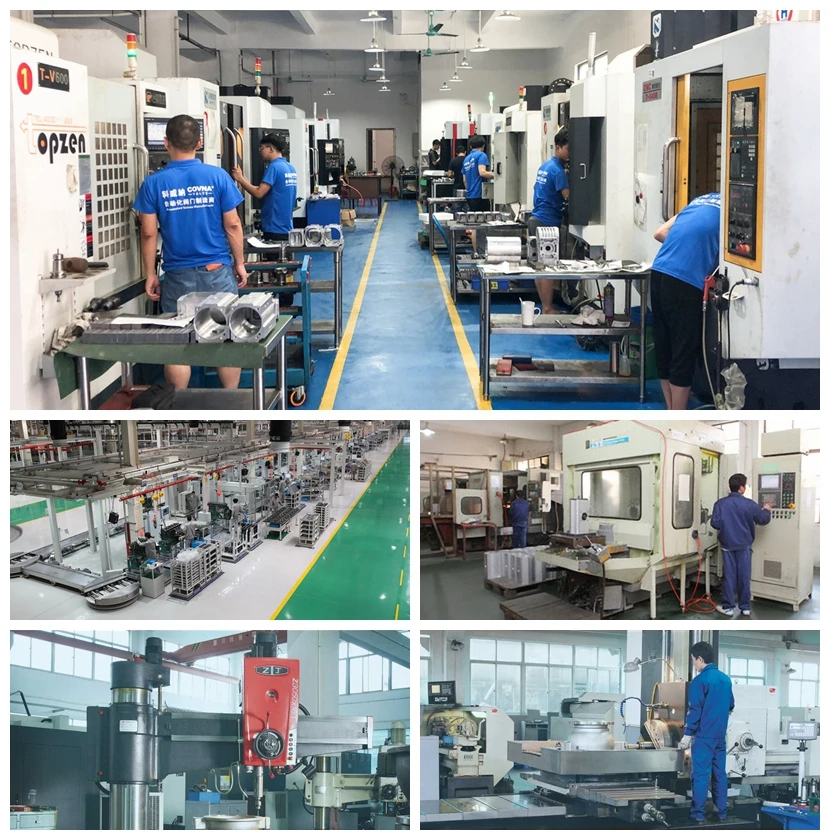

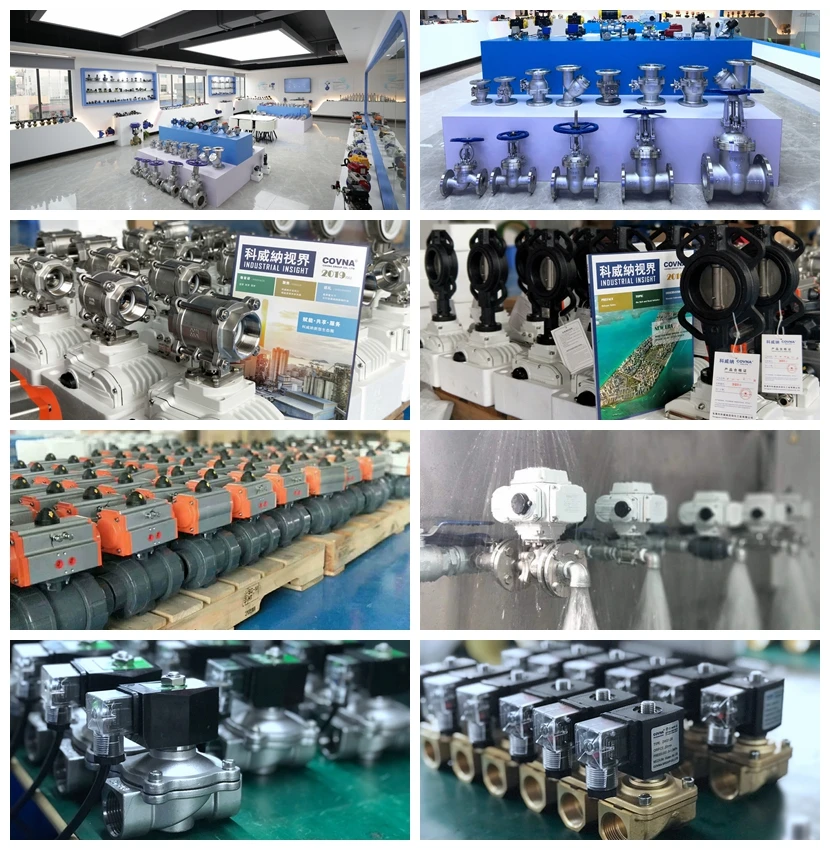

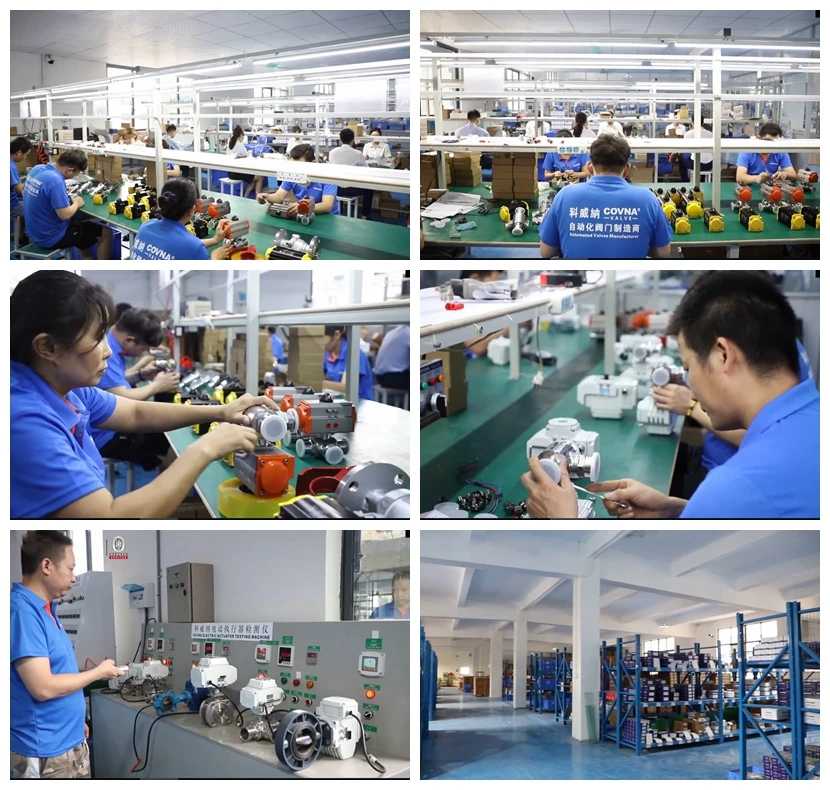

Factory Show

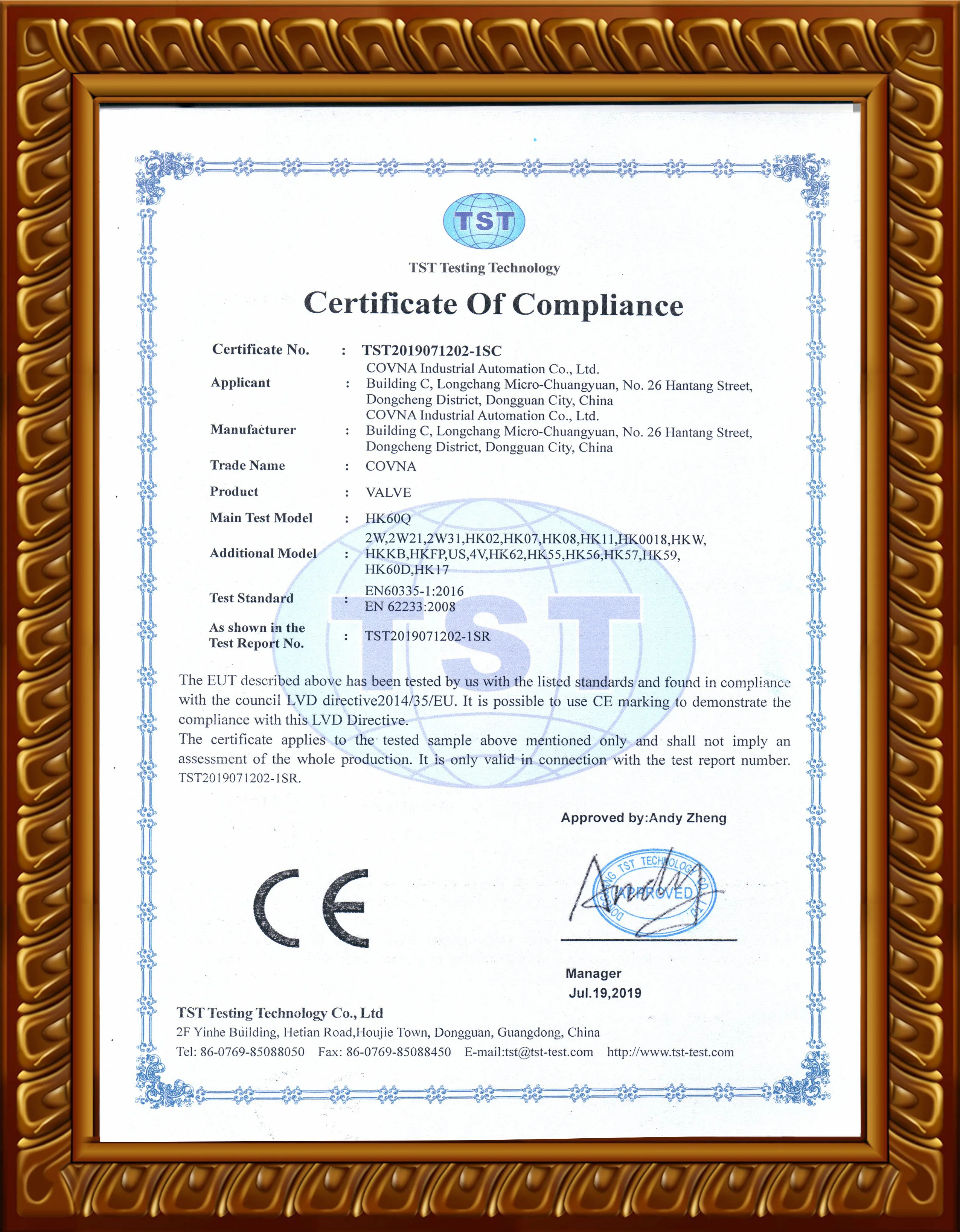

Professional Certification
Global Presence

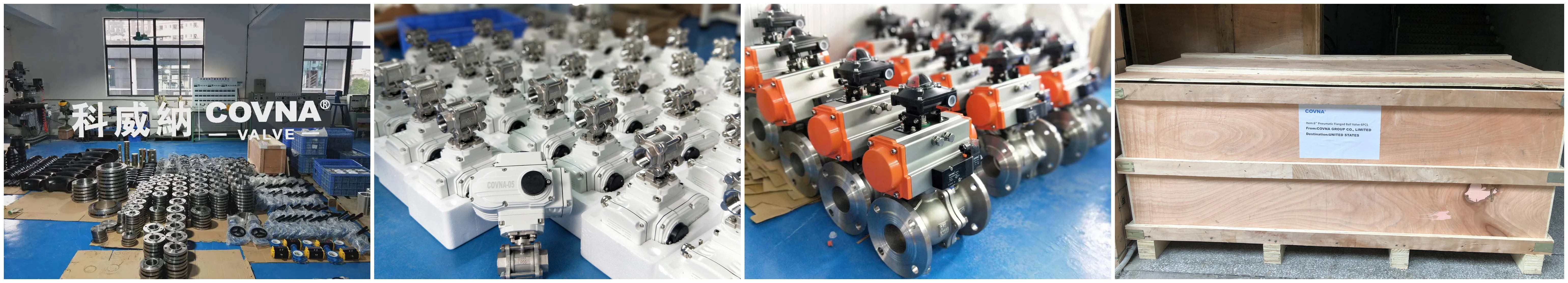

Packing
