Explosive proof nickel plated brass cable gland M32 Atex and IECEx certificated
Explosive-proof nickel-plated brass cable gland M32 Atex and IECEx certificated
Explosive-proof nickel-plated brass cable gland M32 Atex and IECEx certificated
Explosive-proof nickel-plated brass cable gland M32 Atex and IECEx certificated
Explosive-proof nickel-plated brass cable gland M32 Atex and IECEx certificated

Explosive proof nickel plated brass cable gland M32 Atex and IECEx certificated

Share on (62543337953):


Price:$3.33 - $4.28

Quantity:


Product Overview

Description



Product Description


Order number: HSM-EX-M32  without locknut





Thread : M32









Material: Body: nickel-plated brass
Seal: Polyamide, Sealing:modified rubber
Temperature range: Min -40℃,max 100℃,short-term 120℃


Protection degree: Within the clamping range,


protection degree can reach IP68


EX degree: Ex eb IIC Gb Ex tb IIIC Db Certificate
No.:TUV 17ATEX 8015X IECEx TUR 17.0009X


Properties: Succeed in the experiment of IEC-60077-1999
resistance to vibration and impact,passed RoHS

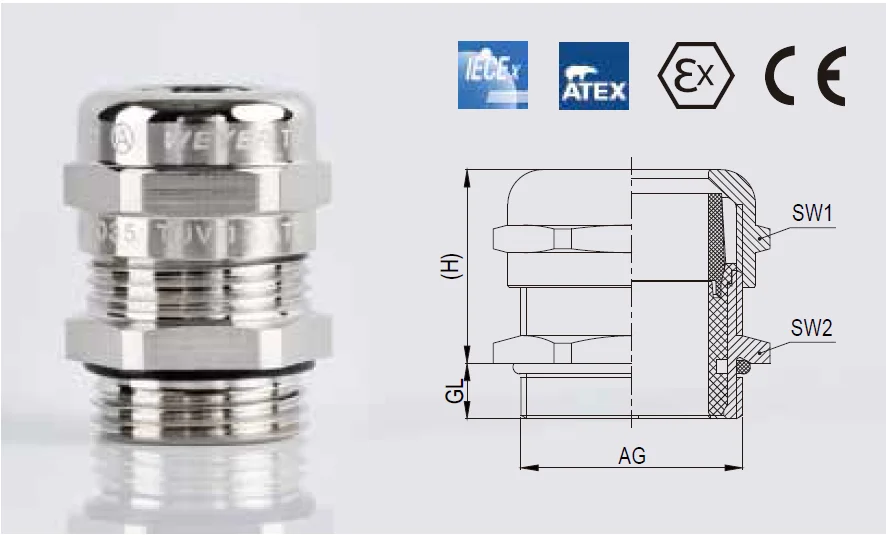

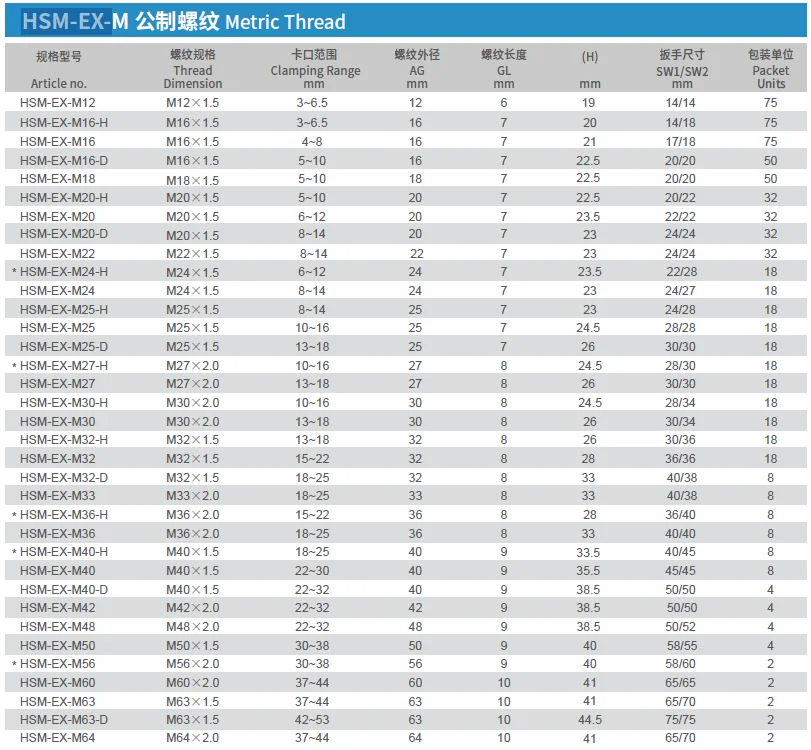

hsm-ex tu.pnghsm-ex.png
