Farm Equipment Electric Animal Feed Rice Straw Hay Shredder Mini Chaff Cutter Machine Price of Manual Chaff Cutter Machine
- Category: >>>
- Supplier: Zhengzhou Yize Machinery Co. Ltd.
Share on (62543421912):
Product Overview
Description
Product Description
Description of Farm Equipment Electric Animal Feed Rice Straw Hay Shredder Mini Chaff Cutter Machine Price of Manual Chaff Cutter Machine:
The straw crusher machine applies to all kinds of forage grass grinder, crop straw, straw, fresh wet grass and hay grass cutting and grinding work, also can be used for sweet potato, potato tuber, corn soybean, wheat and other grain and sweet potato stalk crude fiber cutting and crushing feed processing machinery, apply to farmers, farms, small and medium-sized and large plant breeding, feeding the cattle, sheep, horses, deer, pig, chickens, ducks, rabbits and other animals.
There are mainly three types chaff cutter machine that we sale:
1. 4 blades design;
1. 4 blades design;
Diesel engine type

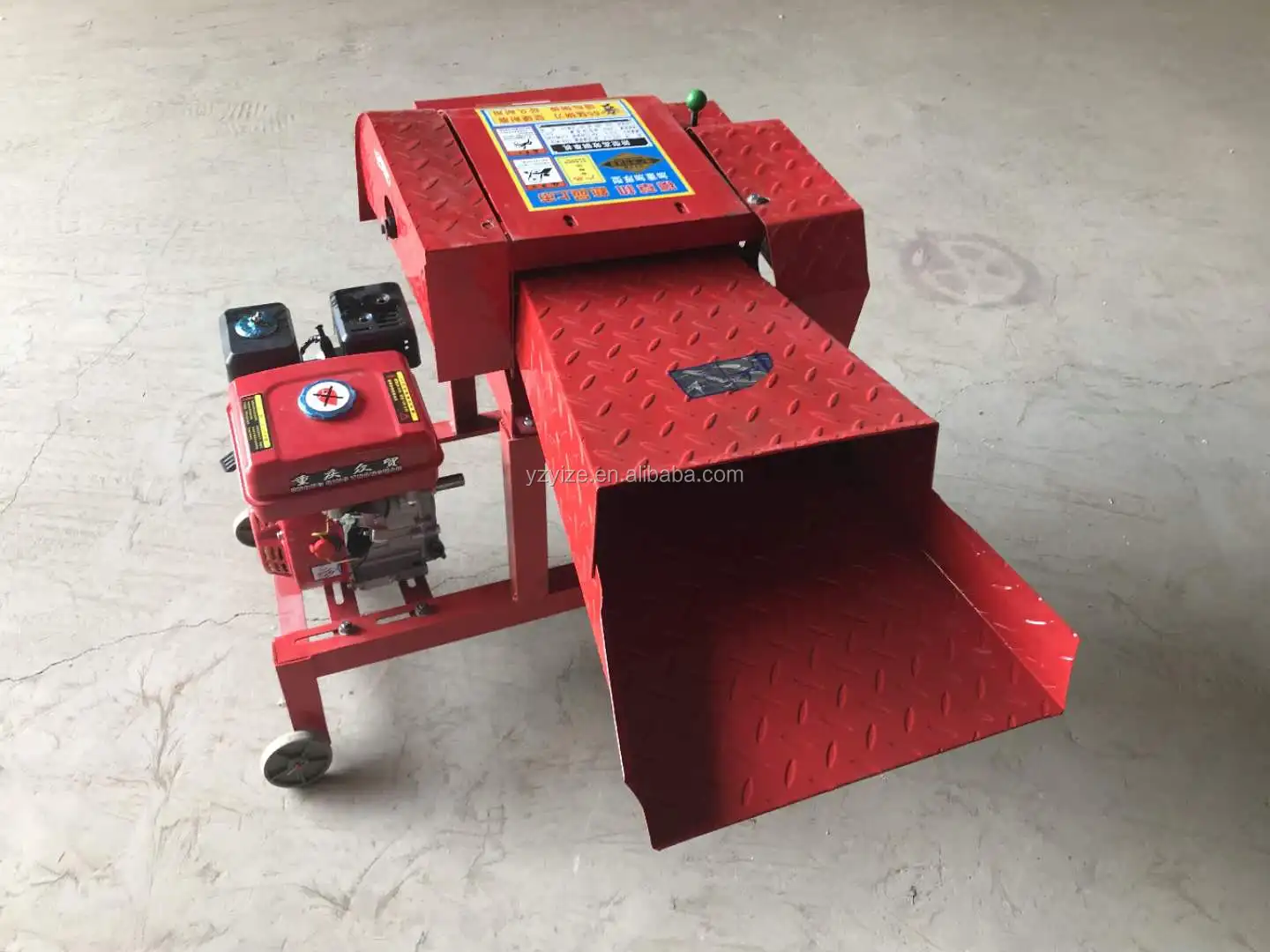

Gasoline type
Electric motor type
Economic Design 4 Blades Chaff Cutting Machine | ||
4 blades cutter inlet width | 23cm | |
Outlet size | 28*12cm(width*height) | |
Inlet size | 66*45cm(length*Width) | |
Length of grass cutting | 1-3cm adjustable | |
matching power | 6.5 horsepower gasoline / 4 horsepower diesel | |
Speed | 1080 r/min | |
triangular belt | A1250mm | |
Working efficience | 0.4-1 t/h | |
Dimension | 85*75*75cm (4 blades) | |
Weight | 55kg (add diesel 82kg) | |
Cutting efficiency | wet corn straw 1.4t/h,dry corn straw 0.5t/h,green grass 1t/h,dry rice straw 0.4t/h,dry maize straw 0.3t/h | |
2.New design with knead technology:
This type of hay cutter integrates grass and silk,making the chaff very soft in this way animal with best taste:
Farm Equipment Electric Animal Feed Rice Straw Hay Shredder Mini Chaff Cutter Machine Price of Manual Chaff Cutter Machine | ||||||||
Model | 2.5t hay cutter | 3.8t hay cutter | 4.5t hay cutter | 6.5t hay cutter | ||||
weight | 110kg | 140kg | 200kg | 270kg | ||||
blades number | 4blades ( Mn-steel) | 4blades ( Mn-steel) | 4blades ( Carbide cutter) | 4blades ( Carbide cutter) | ||||
matching power | 3kw/4kw | 4kw/4.5kw | 4kw-4.5kw | 7.5kw | ||||
size | 1400*480*780mm | 2000*600*920mm | 2200*600*920mm | 2300*700*1000mm | ||||
Voltage | 220v/380v | 220v/380v | 220v/380v | 380v | ||||
Capacity | 2.5t/h | 3.8t/h | 4.5t/h | 6.5t/h | ||||

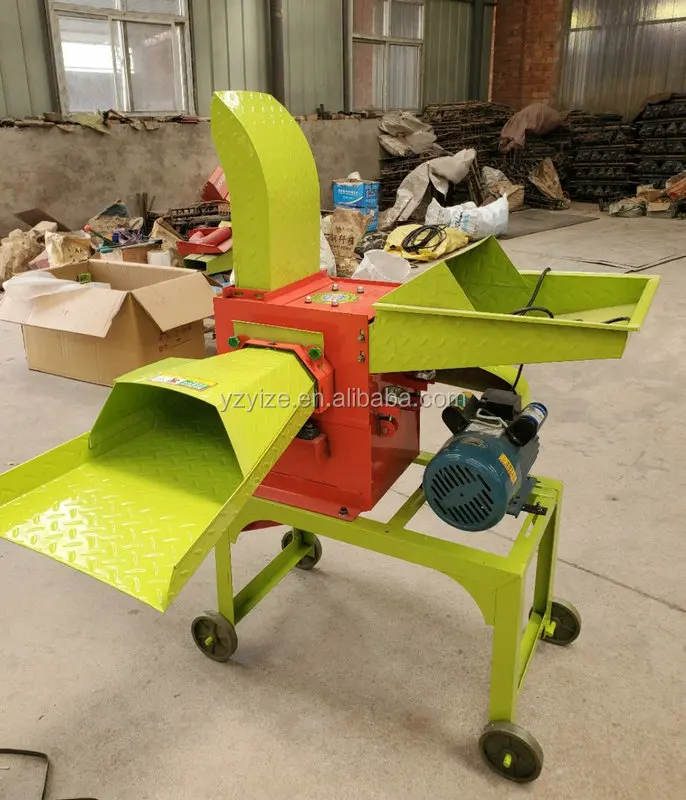

3.Hay cutting grass crusher:
Hotly selling design can cutting and milling at same time, suitable for more animal feed making and with easy operation.
Electric motor type
Diesel engine type
Hotly Selling Design Chaff Cutter Grass Crusher Machine | ||||
Model | 590Type(3 knife 3 Plates) | 690 Type(3 knife 5 plates) | ||
Voltage | 220V/380V | 220V/380V | ||
Power | 3kw-4.8kw | 3KW-4.8KW | ||
Motor speed | 2800 rpm/min | 2800 rpm/min | ||
Size | 1150*920*1500mm | 1350*1100*1500mm | ||
Weight | 68kg | 70kg | ||
Capacity | Grass Cutting:450-750kg/h crusher:300-500kg/h | Grass Cutting:600-900kg/h crusher:400-600kg/h | ||
Suitable Animals | Chicken Duck Cattle sheep Pig Horse Rabbits ect | |||
Application | Livestock Farm,agriculture industry | |||
Features of Electric Diesel Engine Hammer Small Animal Feed progress Corn Straw Hay Chaff cutter Cutting Machines Grass Crusher Machinery:
1. Chaff Cutter can be driven by high quality Electric Motor (With Copper Wire), Diesel Engine, Petrol/Gasoline Engine, and tractor PTO for your more choice according to your local situations;2 Feeding Rollers in our Chaff Cutter are made by Casting Iron with longer service life;
3 Discharging size can be adjusted easily;
4 We use the high quality blades for our Chaff Cutter, not the ordinary blades, which is specially for exporting with longer service life, and is 3 times of the ordinary blades' service;
5 High-strength bolts are used for connection to provide safe and reliable operation in our Chaff Cutter;
6. Stell frame structure, small volume, light weight, convenient to move;
7. Unique adjustable speed gear box structure, easy and precise adjustment of grass length, reliable sealing, good lubrication;
8. Advanced feeding and conveying mechanism is controlled by a switch, easy to switch
Detailed Images
1. details of the 4 blades chaff cutter machine:
Crushing room
65# manganese steel quenched forging, sharp and wear-resistant, double-sided blade, can be replaced.2.details of the new design with knead technology:
Blades
Both side of the blades are use avaiable,when one side uses damade,the user can adjust direction to continue using.
Crushing blades:
First cut and then knead the silk, out of the material more broken
3.details of the hay cutting grass crusher:
Feeding port:
Full automatic feeding port, high production efficiency
Blades:
Manganese steel blade, hard and durable.

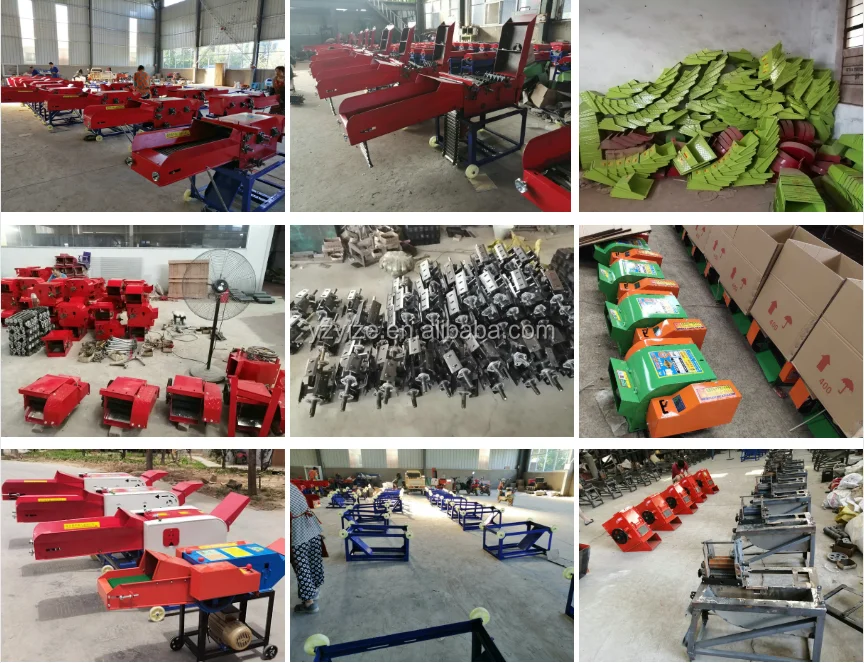

Our machine & warehouse:
Thickening and widening of feed inlet:
Firm and firm, easy to feed
Application and final products effects display:
Hay cutter mainly will be a variety of grass processing for feed, dry and wet corn straw, wheat straw, straw and other crops forthe Hay cutter, cutting and grinding, production is suitable for livestock breeding cattle, sheep, horses, deer, pigs, chickens, ducks and geese feed.Raw materials
Final cutting effects
Application
Related Products
Our Service
Workshop & Company & Customer

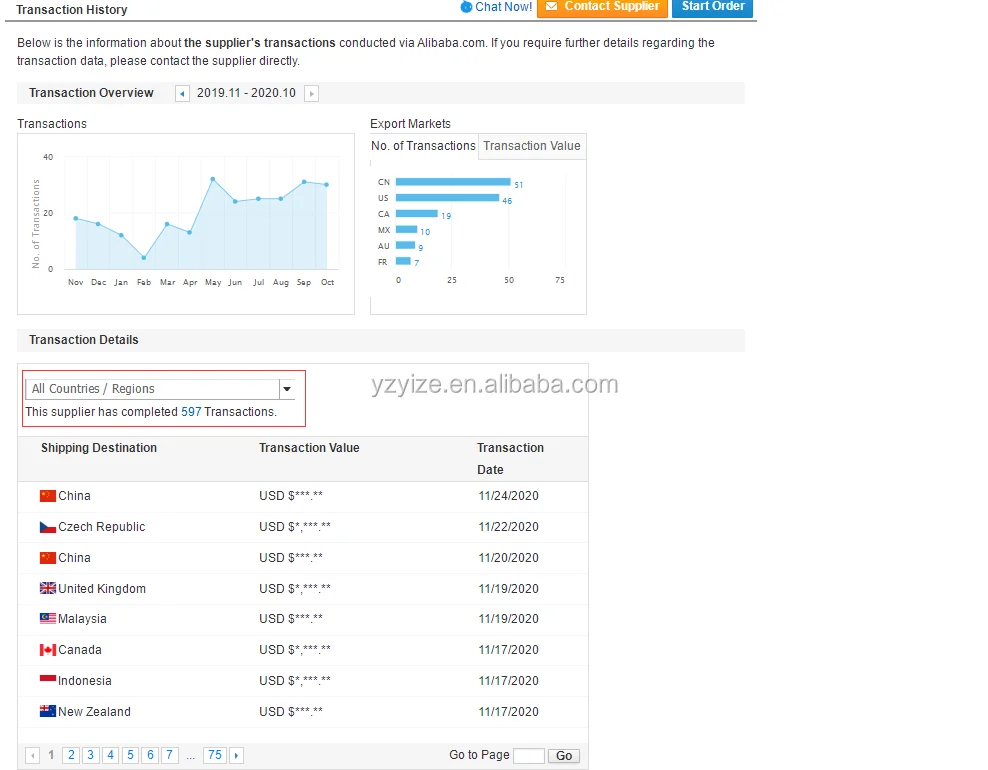

Transanction & Feedback
