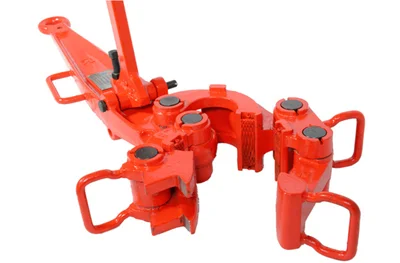

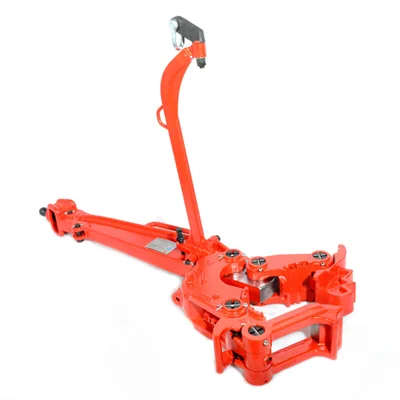

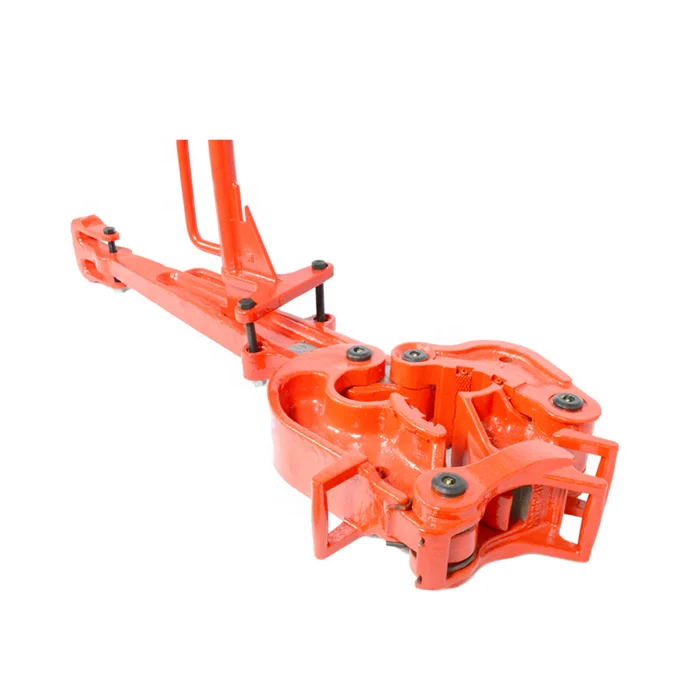

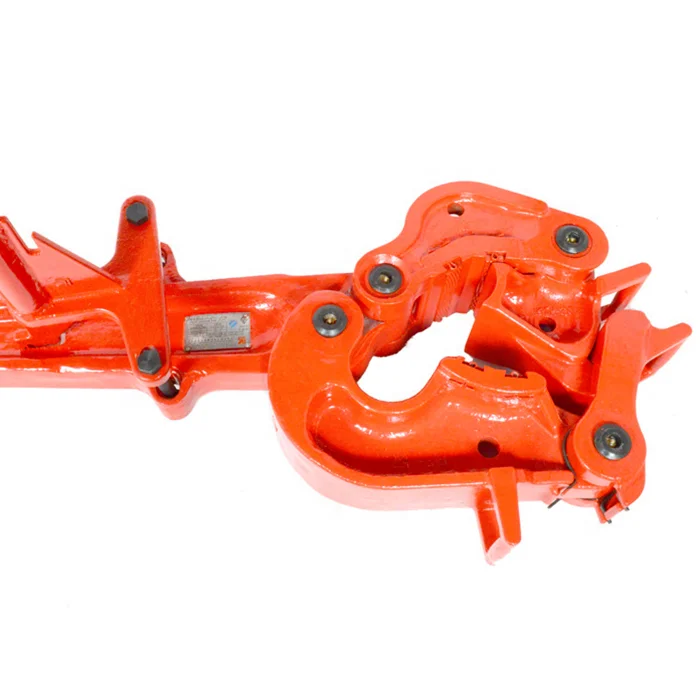

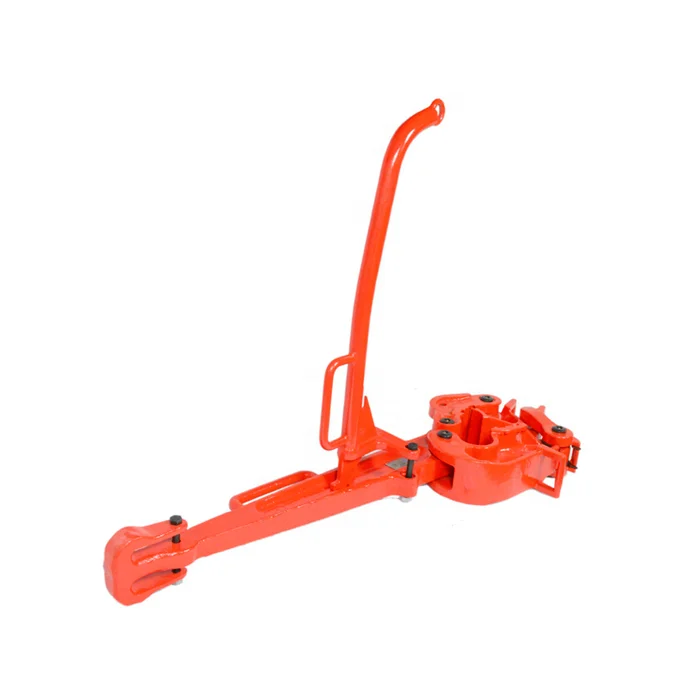

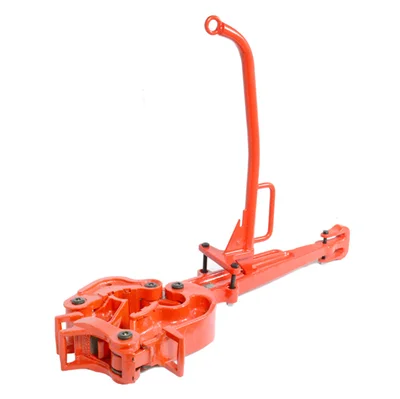

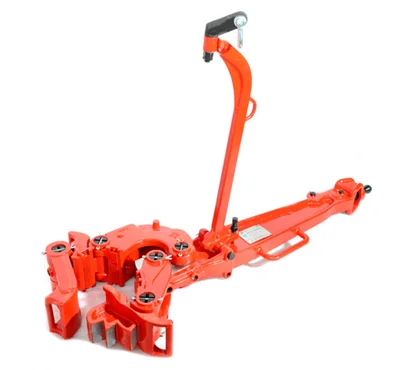

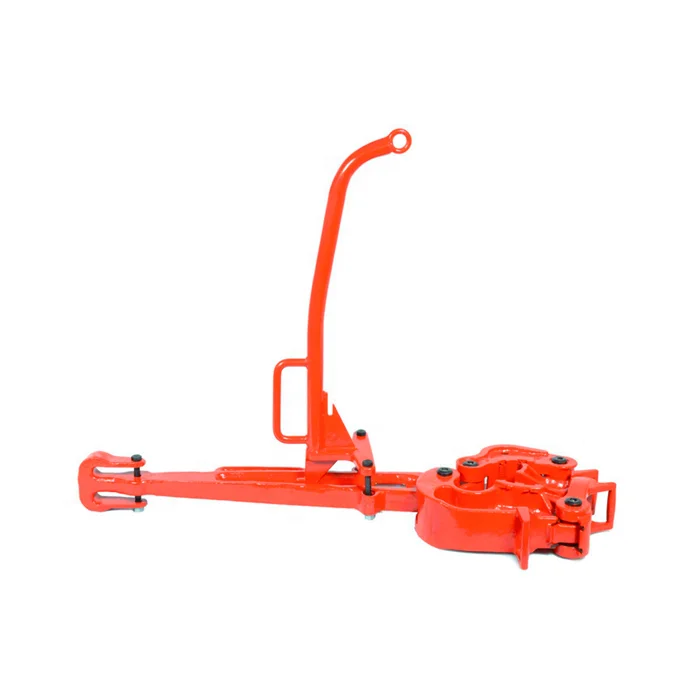

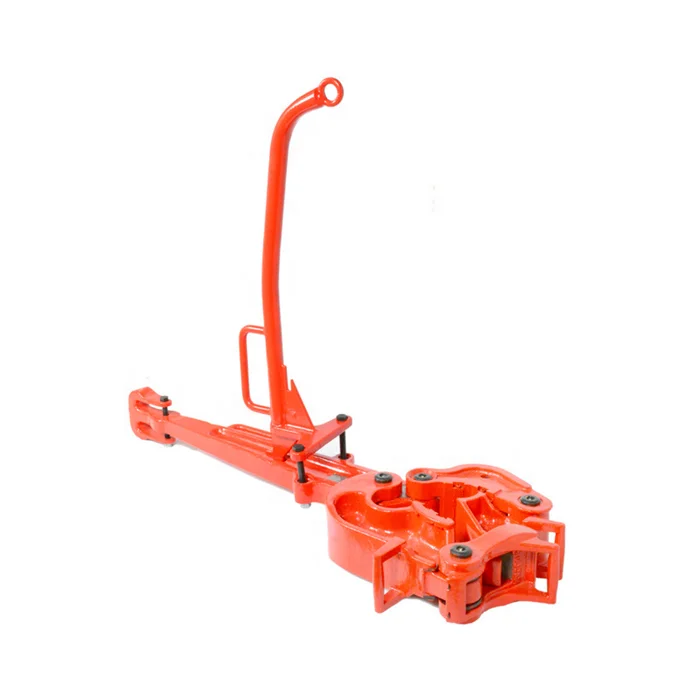

Manual Tongs are necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
No.of Latch Lug jaw
No.of Hinge Pin Hole
Latch step
Size Range(mm(in))
Rated Torque kN.m
mm
in
1#
Ⅰ
1
101.6-139.7
2.7/8-3.3/4
135
2
139.7-146
5 1/2-5 3/4
Ⅱ
1
139.7-168.3
5 1/2-6 5/8
2
165.1-184.2
6 1/2-7 1/4
Ⅲ
1
168.3-193.7
6 5/8-7 5/8
2
196.9-215.9
7 3/4-8 1/2
2#
Ⅰ
1
215.9-228.6
8 1/2-9
Ⅱ
1
241.3-273
9 1/2-10 3/4
2
273-304.8
10 3/4-12
3#
Ⅰ
1
304.8-323.8
12-12 3/4
100
Ⅱ
1
339.7-355.6
13 3/8-14
2
381
15
4#
Ⅱ
1
400
15 3/4
135
5#
Ⅱ
1
406.4
16
80
2
431.8
17
Related Products
Packing&Shipping

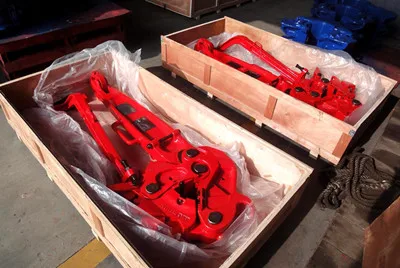

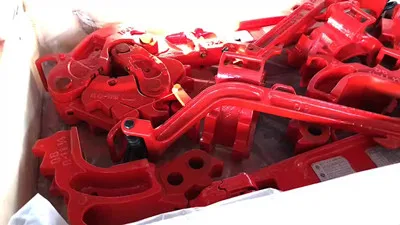

The tongs will be packed in plywood wooden box.
Goods will be delivered by sea, train, air, truck, etc.

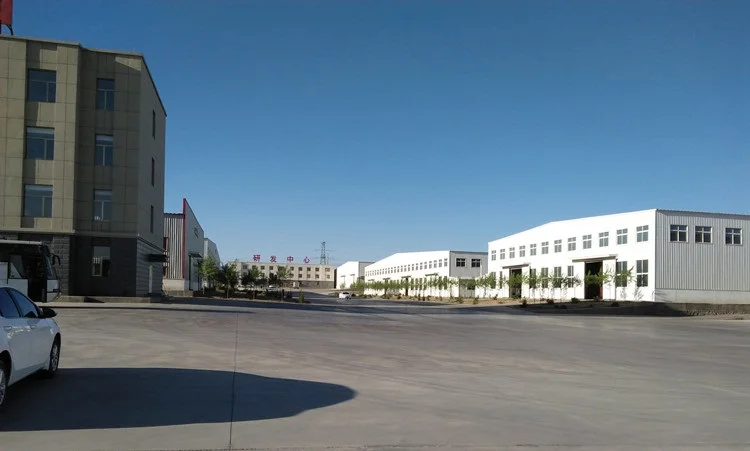

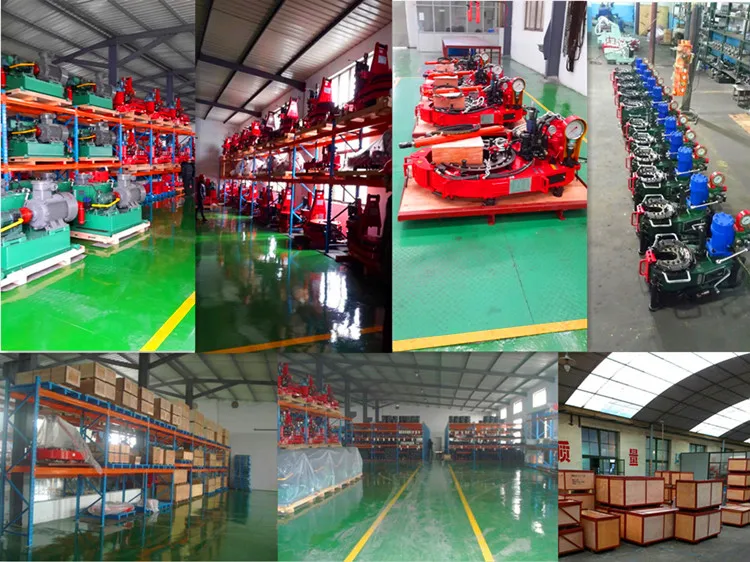

Company Introduction

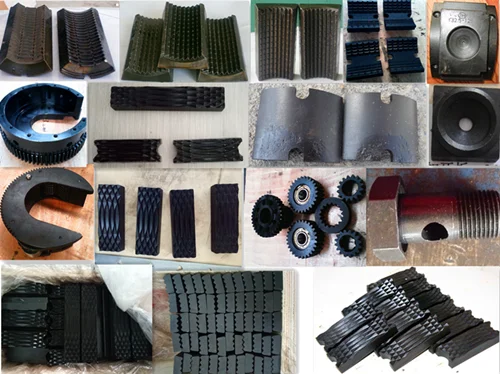

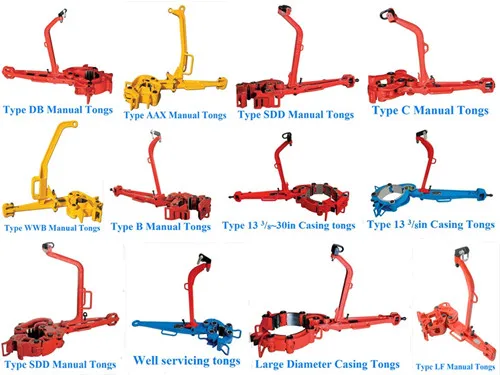

Our main products include: series of manual tong, series of slip, series of different bushings, series of casing spider, series of pneumatic spider, series of ZQ Drill Pipe Power Tong, series of TQ Casing Power Tong, etc. The products are manufactured as per the international standard and the latest national standard, we'll do our persistent efforts to supply the drilling and well servicing equipment for customers in domestic and aboard, with high quality、excellent service and reasonable price.
Our Services & Strength
XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
FAQ
1. Are the tongs in stock?
A: Some are in stock, but some need to be produced by orders.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.
3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the tongs according to my requirements?
A: Yes, we can produce tongs as per your requirements, but all need to be discussed before signing the contract.
5. Can we visit your company before placing order?
