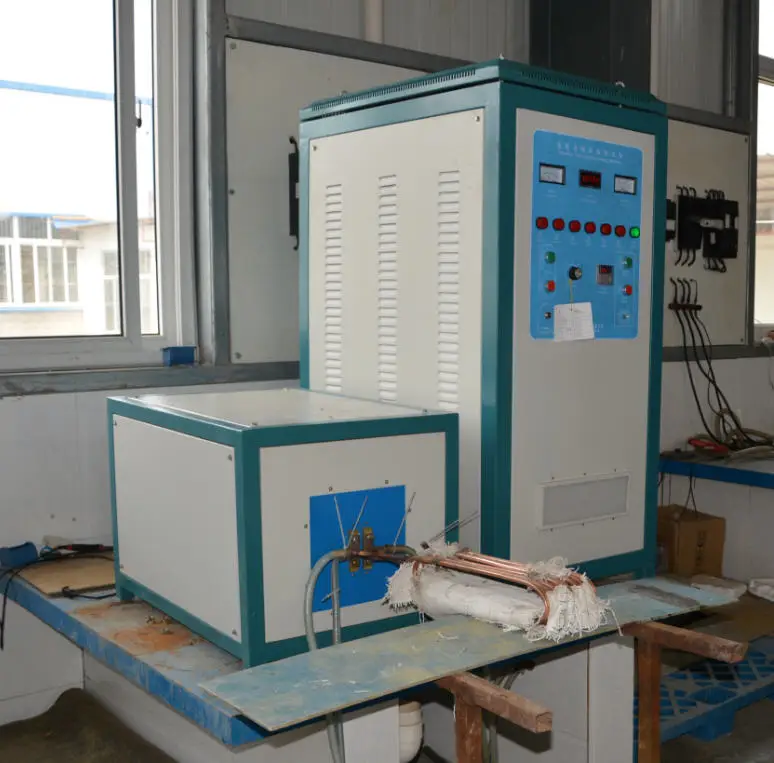

Top Quality Factory directly sale 50 260kw Induction Heating Hot Forging Machine for Nuts and Bolts Making
- Category: >>>
- Supplier: Shenzhen Geelly Induction Technology Co. Ltd.
Share on (62543503227):
Product Overview
Description
Top Quality Factory directly sale 50-260kw Induction Heating Hot Forging Machine for Nuts and Bolts Making
Main applications:
These models can be used to heat the rod of steel, stainless steel, copper, brass or aluminium with diameter from dia 10 to 80mm in the shaping of screws, nuts, valves, locks and other metal parts.
Advantages and characteristics:

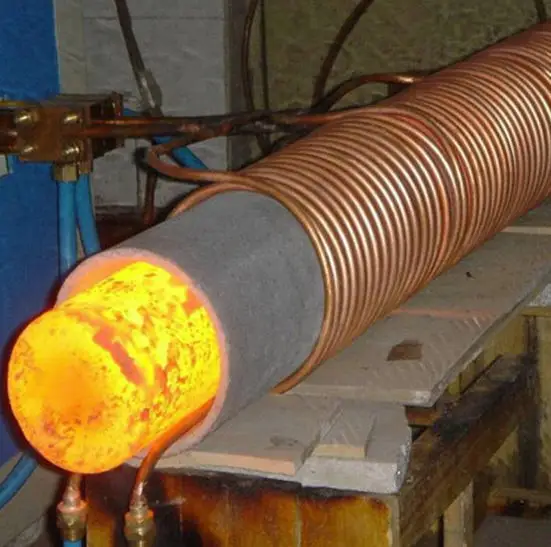

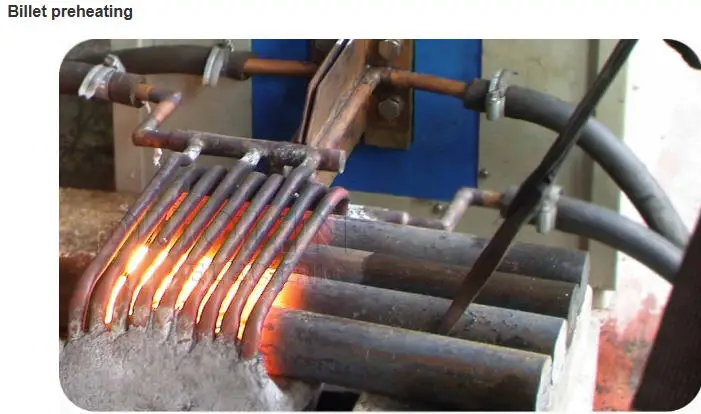

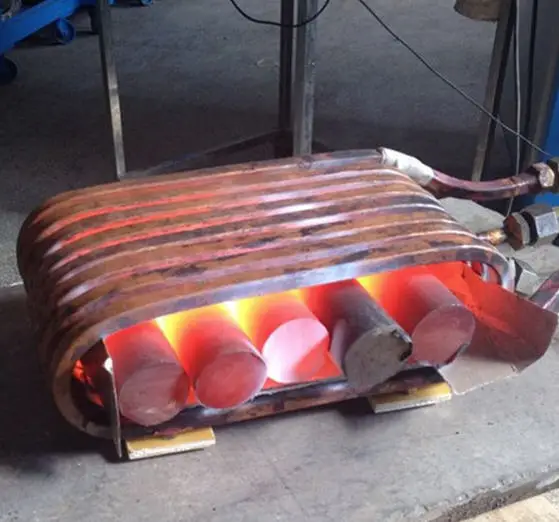

1. The coil is usually 500mm or 1000mm long, and there are five to ten pieces of metal bars inside the coil to be heated. Coil size is depended on the rod diameter, and coils can be easily changed.
2. The output oscillating frequency is about 5-15kHz when heating rods from diameter dia 10 to 80mm, penetrating heating is maintained, at the same time, high heating efficiency can be achieved.
3. Pneumatic rod feeding system is applied, and to certain rod, only the heating power and the feeding speed are adjusted to send the red rod out continuously by step. It is very convenient to operate.
4. With the small size and tight structure, the Rod heating furnace can be put besides the press machine to ease the operation.
More application Show
| Main specifications and heating ability | |||
| models | Max. Input Power | Heating ability of normal material | |
| Steel or S.S to 1100 degree C | |||
| GSF-50 forging furnace | 50kw | 1.55KG/min | |
| GSF-70 forging furnace | 70kw | 2.0 KG/min | |
| GSF-90 forging furnace | 90kw | 3.8 KG/min | |
| GSF-160 forging furnace | 120kw | 5.6 KG/min | |
| GSF-160 forging furnace | 160kw | 7.5 KG/min | |
| GSF-220 forging furnace | 220KW | 9.0 KG/min | |
| GSF-260 forging furnace | 260KW | 11.6 KG/min | |
| Installation desire | ||||
| Models | Input voltage | Power supply wire | Circuit breaker | Cooling Water |
| GSF-50 forging furnace | Three phase 380V,415V,480V, 50 or 60HZ | 10 mm soft copper wire | 3P 60A | 10-20L/Min, 0.2Mpa |
| GSF-70 forging furnace | 16 mm soft copper wire | 3P 100A | ||
| GSF-90 forging furnace | 16 mm soft copper wire | 3P 150A | ||
| GSF-120 forging furnace | 35 mm soft copper wire | 3P 250A | 20-30L/Min, 0.2Mpa | |
| GSF-160 forging furnace | 50 mm soft copper wire | 3P 300A | ||
| GSF-220forging furnace | 75 mm soft copper wire | 3P 350A | ||
| GSF-260 forging furnace | 90 mm soft copper wire | 3P 450A | 25-30L/Min, 0.2Mpa | |
Packing detail:
1.Standard wooden case, plywood case, and custormized case;
2. Inner packing: packing plastic film and foam to avoid any damage during shipping
3.Accessories: induction coilX 2, foot pedal X1, installing and operating instruction X1 and custormized;
Our service
1. Pre-sale service:
1. recommend the most suitable machine for customers, according to their application details. 2. Inquiry and consulting support. 3. Sample testing support. 4. View our Factory.
2. In-sale service:
1. Strictly control all the prduction process 2. Take run test, according to relevant equipment test run regulations.3. Strictly inspection the machine, before delivery4. Delivery on time.
3. After-sale service:
1. 12 months warranty period2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.3. If any big quality problems occurs during the guarantee period, we will send maintenance4. technician to provide visiting service after checking with the customer and charge for a favorable price. 5. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism
Company Information
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We are professional in the manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency
range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and
melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We are professional in the manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency
range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial chiller. Quartz ceramic crucible and pure graphite crucible. We also offer spare parts of induction heater and some auxiliary parts.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and
melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
Our Services
1. Pre-sale service:
- 1. recommend the most suitable machine for customers, according to their application details.
- 2. Inquiry and consulting support.
- 3. Sample testing support.
- 4. View our Factory.
2. In-sale service:
- 1. Strictly control all the prduction process
- 2. Take run test, according to relevant equipment test run regulations.
- 3. Strictly inspection the machine, before delivery
- 4. Delivery on time.
3. After-sale service:
- 1. 12 months warranty period
- 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.
- 3. If any big quality problems occurs during the guarantee period, we will send maintenance
- 4. technician to provide visiting service after checking with the customer and charge for a favorable price.
- 5. We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
- 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
Packaging & Shipping
FAQ
1. Which countries your products are exported to?
Our products are sold many countries and Areas
2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other technology assistance.
3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port is ok, usually, we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.
5.What is your nature of your company:dealer or factory ?
We are manufacturer and have our own factory ,warmly welcome to visit our factory and contact us.
