20-29inch fat tire 72v 3000w hub motor ebike conversion kits
US $221.00-$255.00

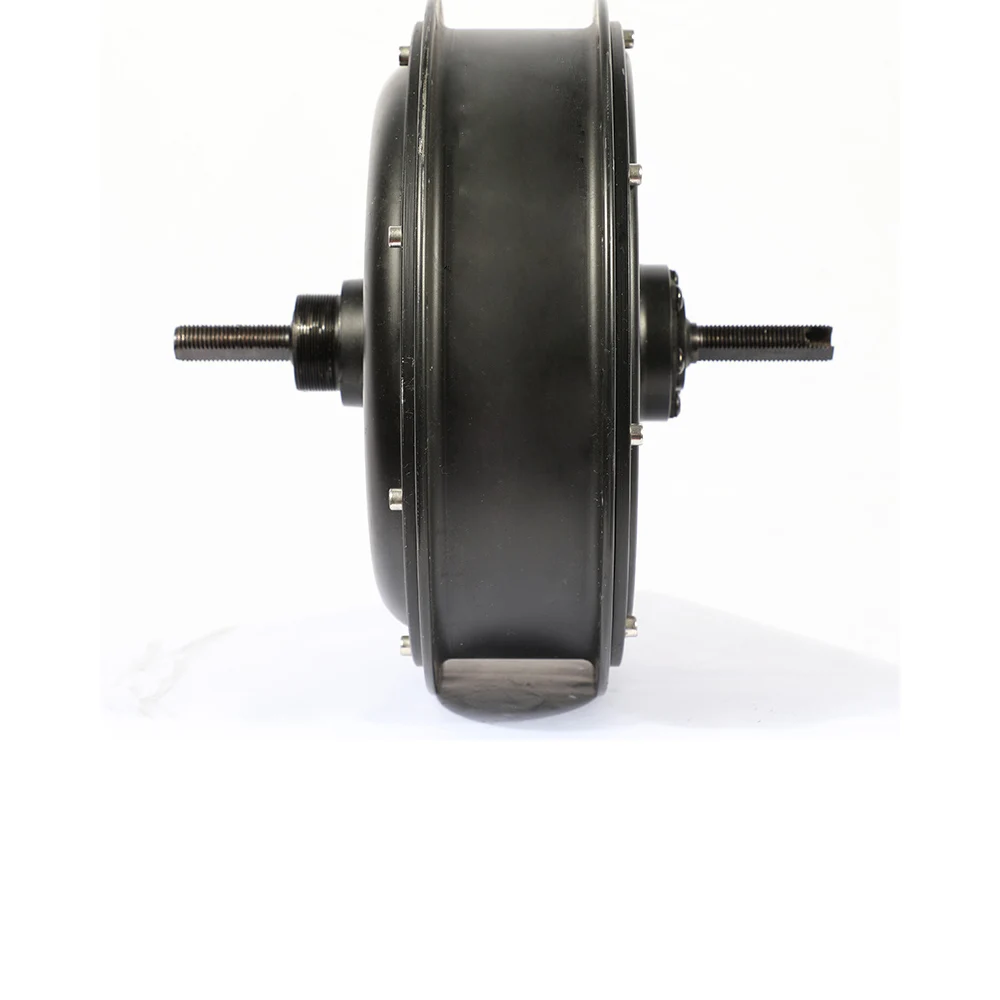

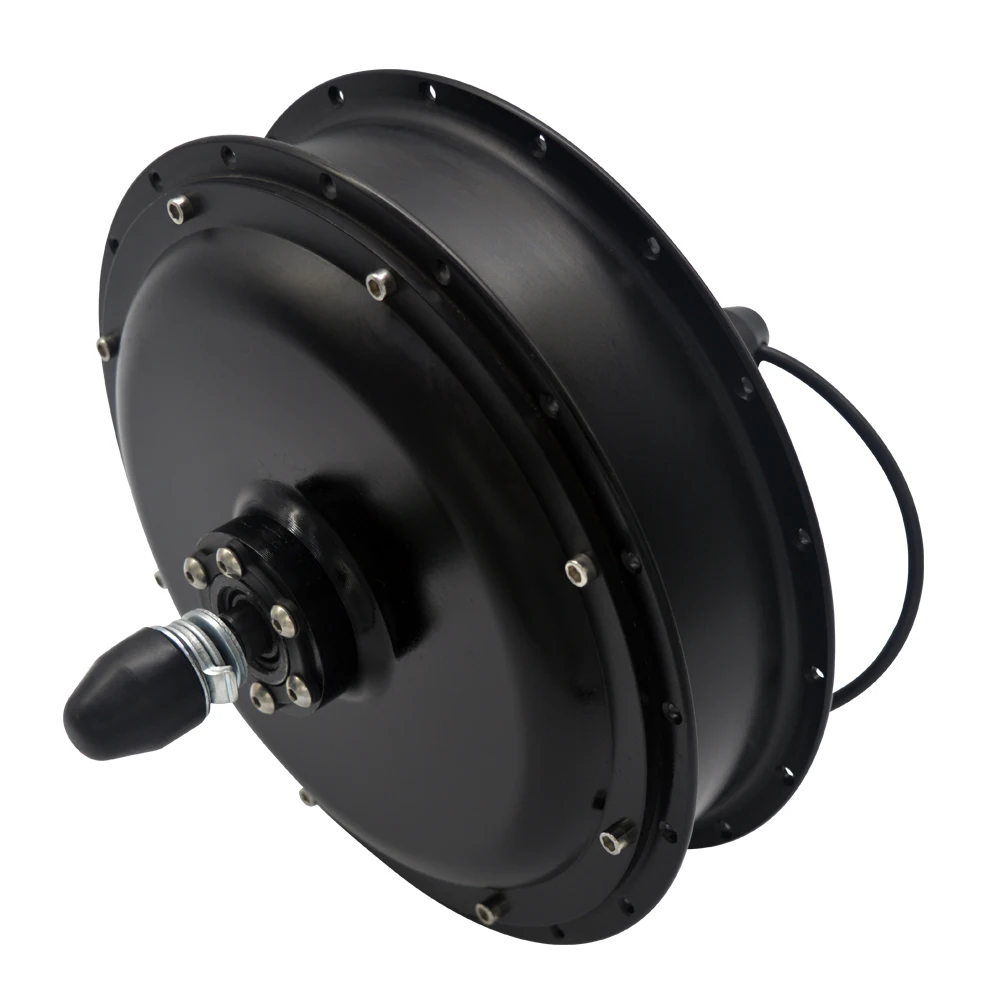

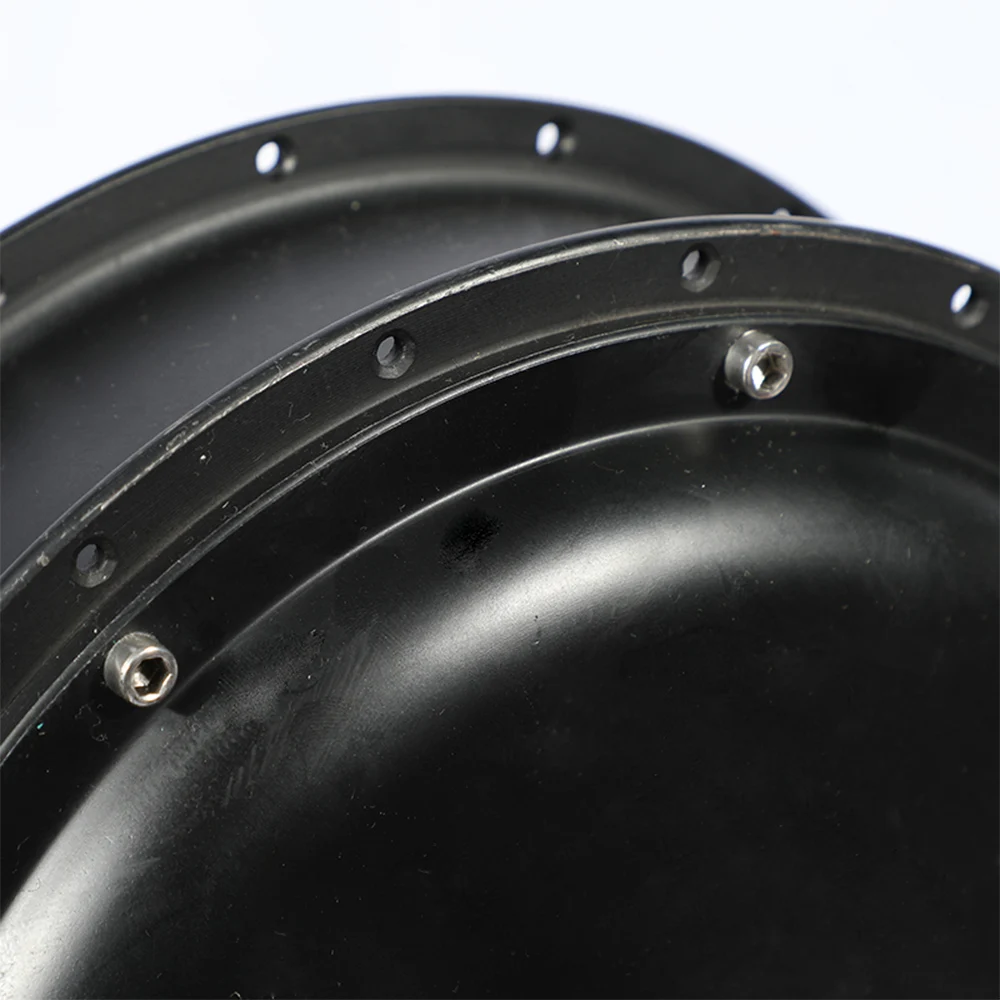

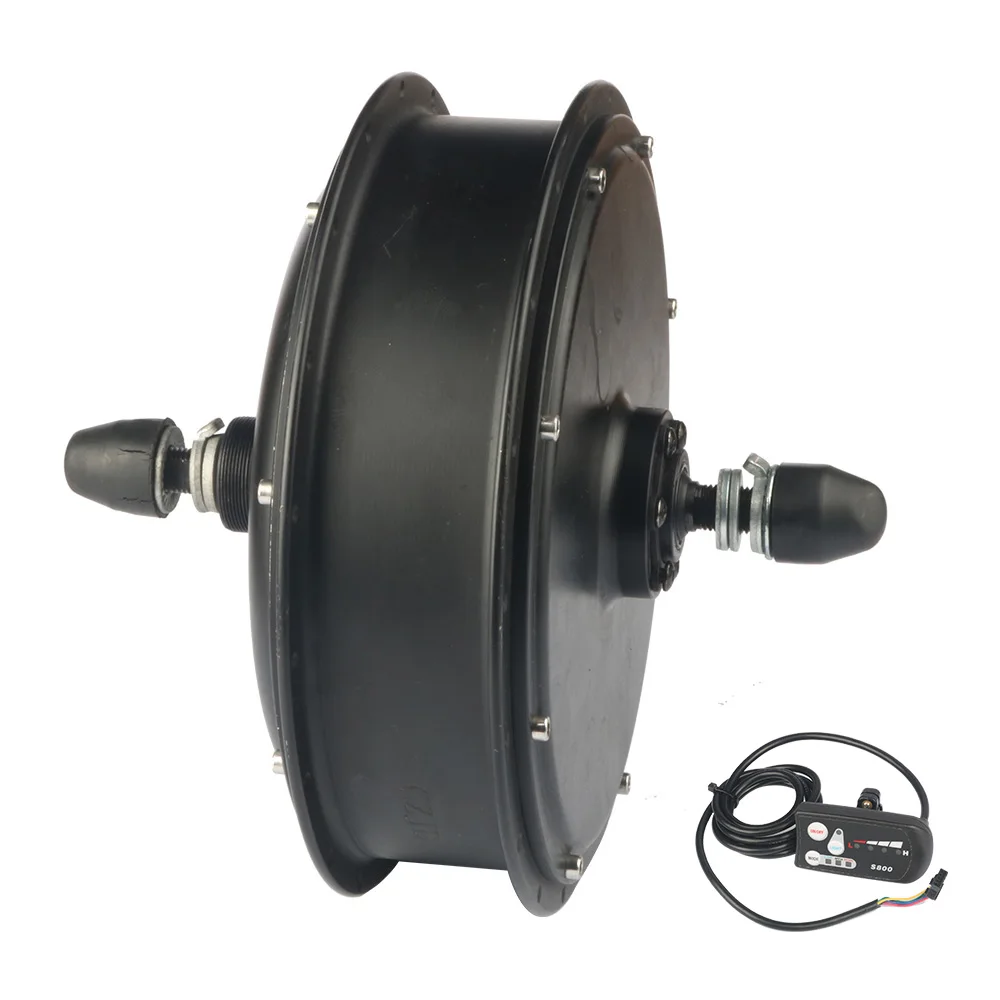

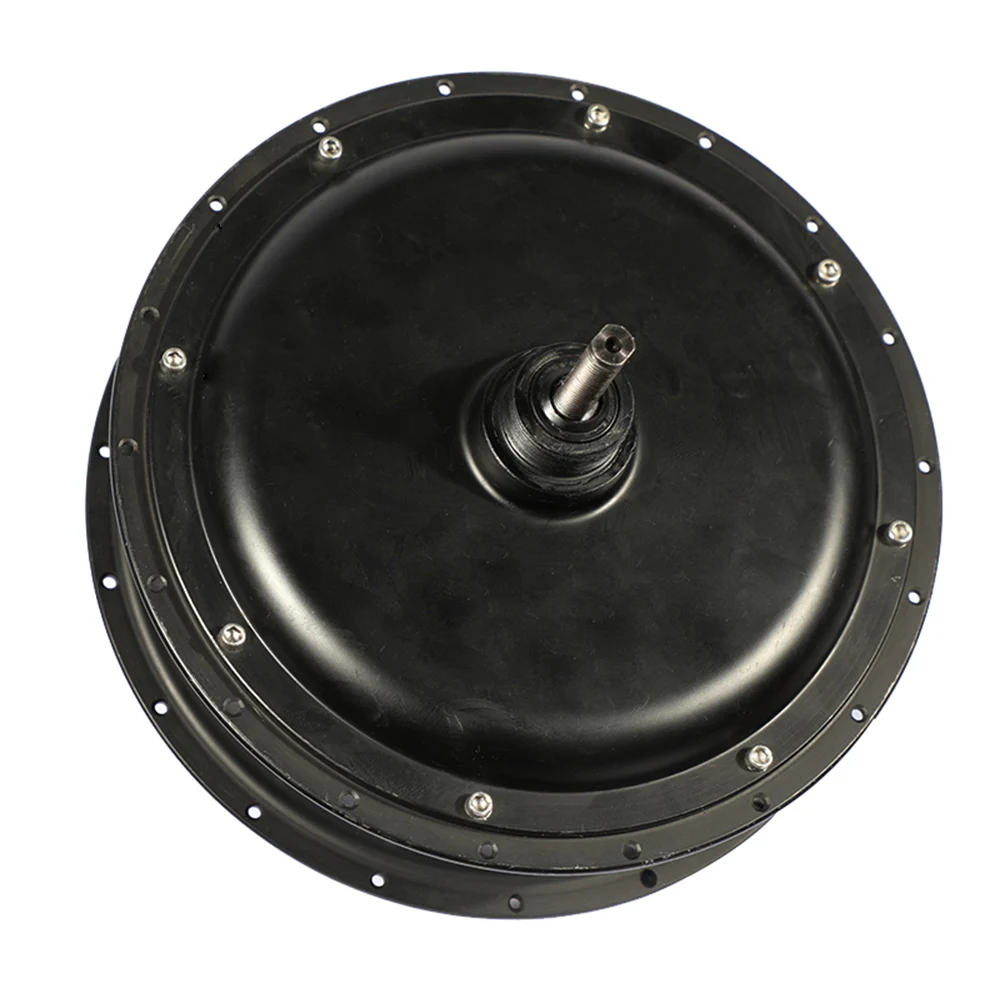

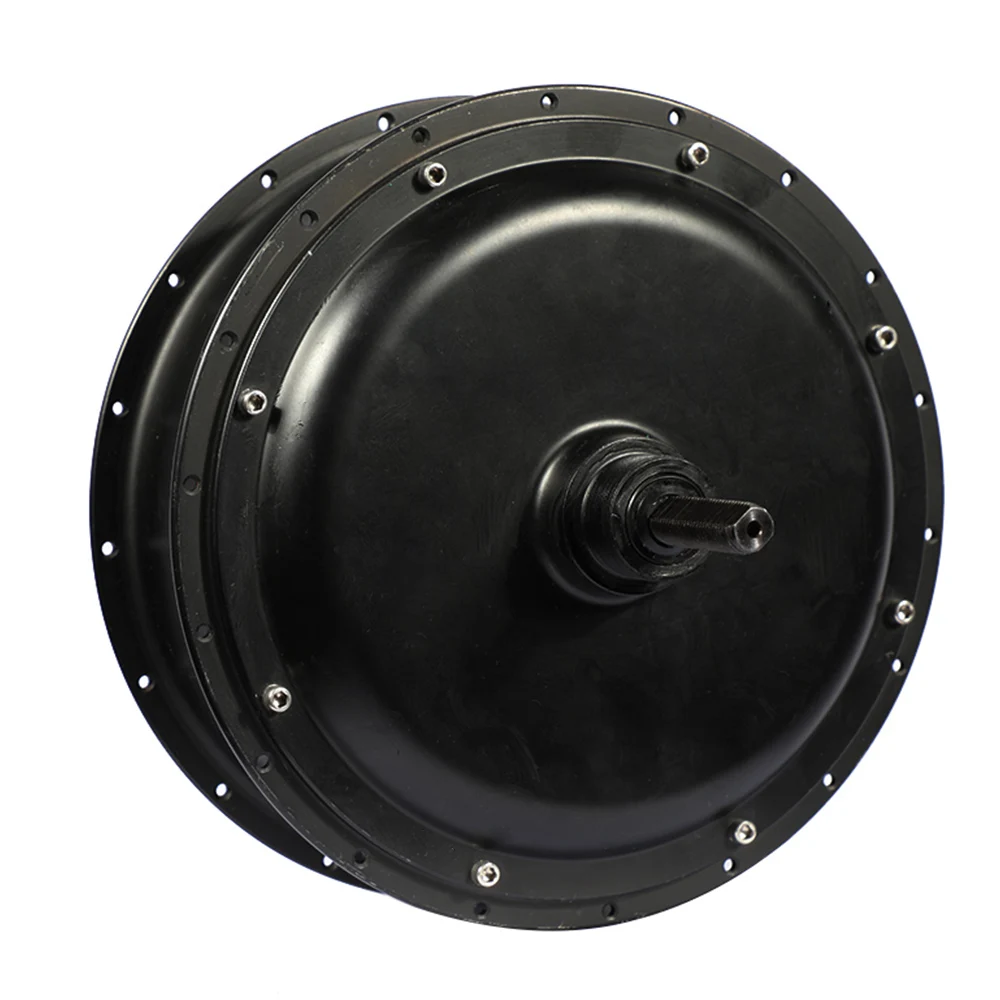

205 55 48V 1500W Brushless Gearless dc electric e bike rear hub Motor
- Category: Electric Bicycle Motor >>>
- Supplier: Changzhou Langyan Trading Co. Ltd.
Share on (62543767288):
Product Overview
Description
Products Description
48V 1500w 20"-28"
Gearless MotorLIGHT WEIGHT:6.5KG
Rated Voltage(V) | 36v/48v/60v/72v |
Rated Power(W) | 350w-1000w |
Wheel Size | 20"-28'' |
Rated Speed(km/h) | 25-35km/h |
Rated Efficiency (%) | >82% |
Weight (Kg) | 6kg |
Open Size(mm) | 135mm |
Drive and Freewheel | 6-9s |
Cable Location | Shaft Center Right/Left |
Hall Sensor/speed sensor | has |
Surface | Black/Silver |
Brake Type | V/Disc Brake |
Salt Fog Test(h) | 24/96 |
Noise(db) | <55db |
Waterproof Grade | IP65 |
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
If you need longer cables,customize is possible.We also can provide motor extension cables.
Details Images
New design Hall Sensor Long Lifetime
Shaft Center Right V Brake /Disc
Our Advantages
Torque Sensor , design and technical support is by Engineer from HonnyWell
2020 Mid Motor will push to market.
Product Application
Company Profile
Certifications
Product packaging
FAQ
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
9.A:production and delivery time?
B:if sample,motor is 10-15days,ebike kit is 25-30days;if orders,motor is 15-20days,ebike convension kit 30days according
quantities and requiremnts.
