75mm PMMA plastic COB Single SMD LED lens Commercial/ Retail Led Optical Lens LES 6mm TIR LED Lens


OS-75@30
D:ø75 mm H:30 mm
Code | FWHM | Materia | note |
0606 | 15° | PMMA | Through two, high center light intensity, main light prominent |
0741 | 15° | PMMA | Through four, light with two, no positioning column |
1734 | 15° | PC | Through five, high center light intensity, primary and secondary light uniform transition |
3054 | 15° | PC | Through seven, light through two, high-performance PC |
0525 | 15° | PMMA | Through six, the main light full, the main secondary light uniform transition |
3271 | 15° | PMMA | Through six, light with six, no positioning column |
1004 | 24° | PMMA | Through one, high center light intensity, main light prominent |
0742 | 24° | PMMA | Through two, light with one, no positioning column |
1348 | 24° | PMMA | Through three, light through one, high-performance PC |
1393 | 38° | PMMA | Through one, high center light intensity |
1577 | 38° | PMMA | Through two, light with one, no positioning column |
1463 | 60° | PMMA | Through one, high center light intensity |
2143 | 60° | PMMA | Through two, high center light intensity, no positioning column |
LES:6mm(6-17mm available)
Cree: CXA13xx/15xx/18xx
Citizen: CLU701/711/721 CLU028/038
Luminus: CXM- 6/7/9/11/14
Osram: S9 S13
Toyonia: Y3E Y5E Y6J
Birdgelux: V6 V8 V9 V10 V13
Honourtek: HRB12xx

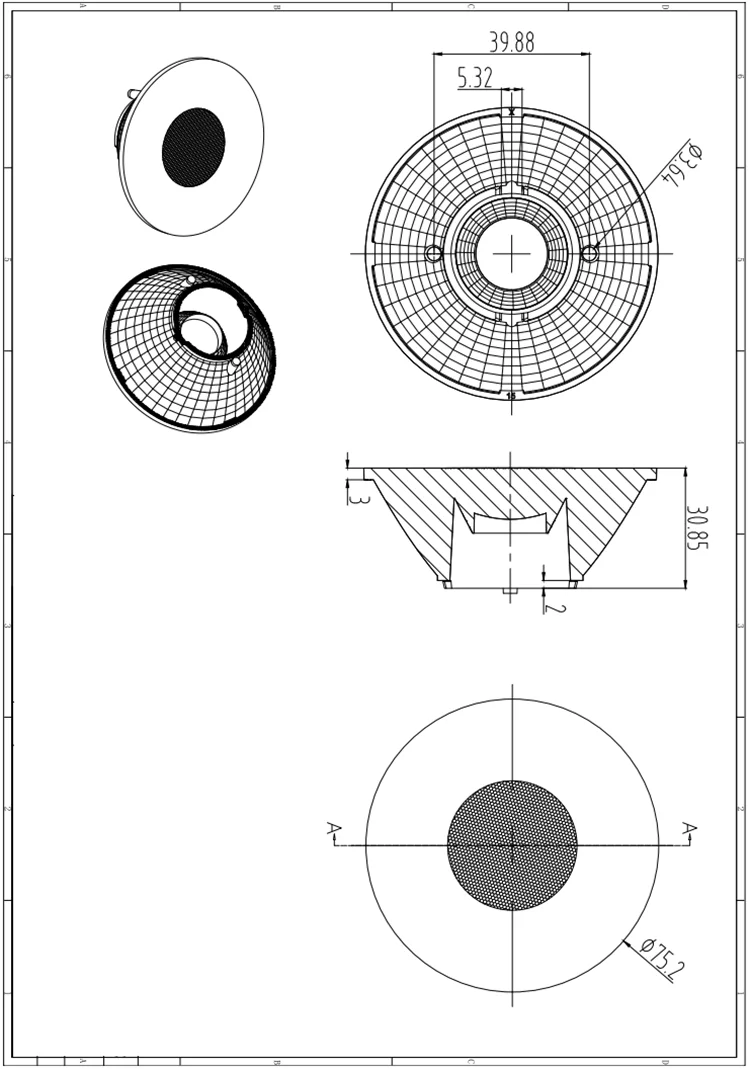

Dimensions 2D (15o degree)

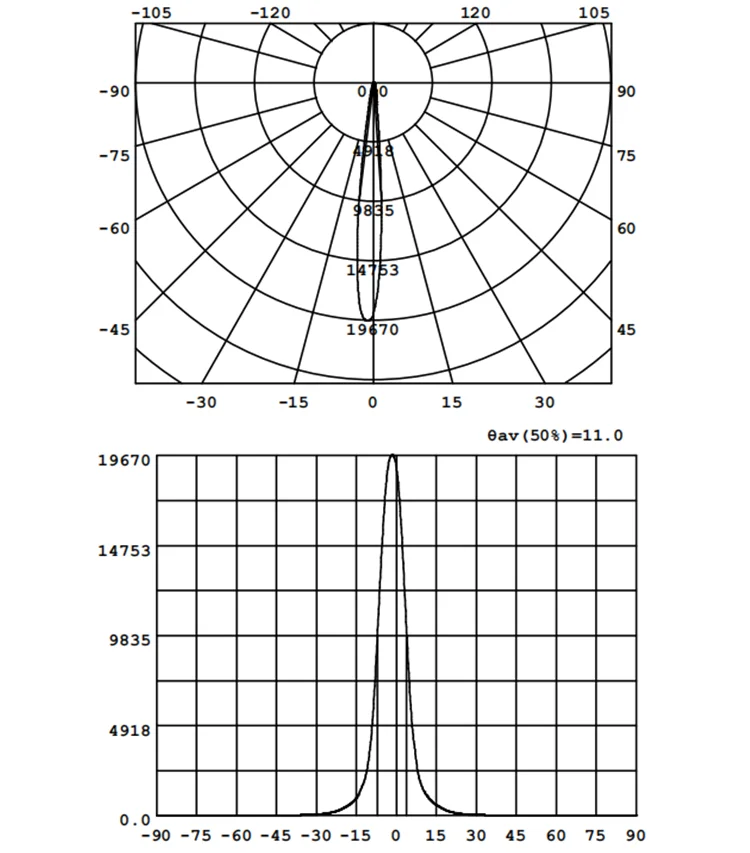

Light distribution (15o degree)
