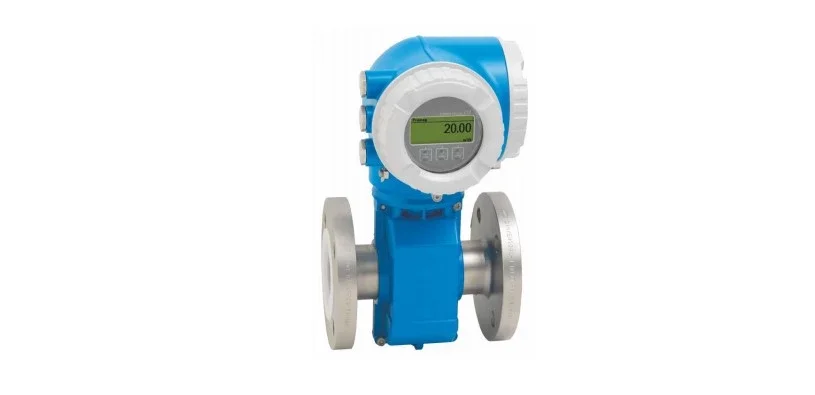

E+H Proline Promag P 300 Electromagnetic flowmeter
High-temperature flowmeter for process applications with a compact, easily accessible transmitter
Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side,remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.
Product Paramenters
Product name
E+H Proline Promag P 300 Electromagnetic flowmeter
Measuring medium
Liquids
Measuring principle
Electromagnetic
Product headline
High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
Sensor features
Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross-section constriction. Maintenance-free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals.
Transmitter features
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing
with up to 3 I/Os. Backlit display with touch control and WLAN access.
Nominal diameter range
DN 15 to 600 (½ to 24")
Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium; Duplex 1.4462 (UNS S31803)
Measured variables
Volume flow, conductivity, mass flow
Max. measurement error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range
4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressure
PN 40, Class 300, 20K
Medium temperature range
Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Ambient temperature range
Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material
DN 15 to 300 (½ to 12""): AlSi10Mg, coated
DN 350 to 600 (14 to 24""): Carbon steel with protective varnish
Transmitter housing material
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Degree of protection
Standard: IP66/67, Type 4X enclosure
Option: IP69
Display/Operation
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs
3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
Inputs
Status input
4-20 mA input
Digital communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
Power supply
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Ordering Guide

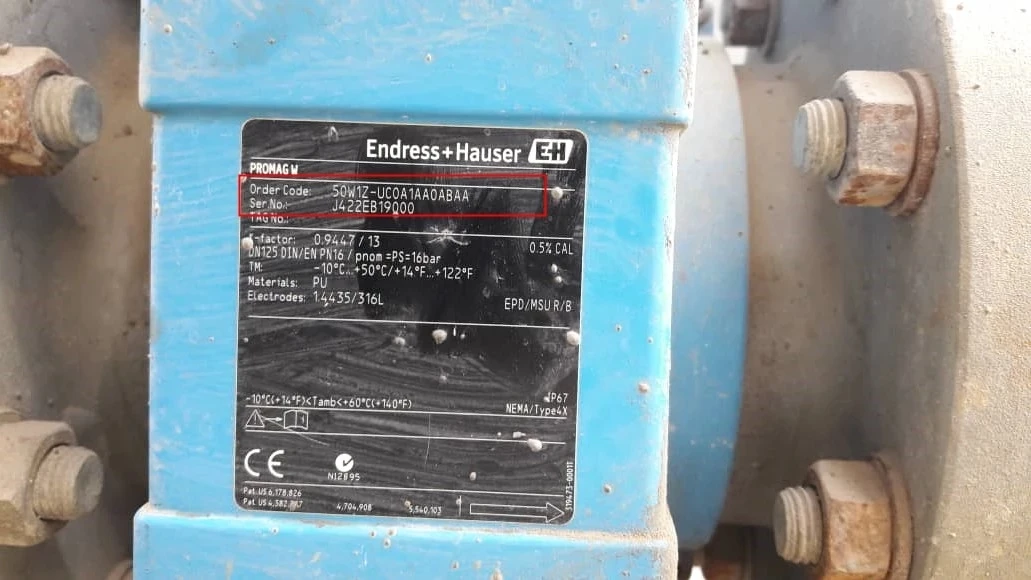

Can you send the order codes or nameplate to me? Like below example:

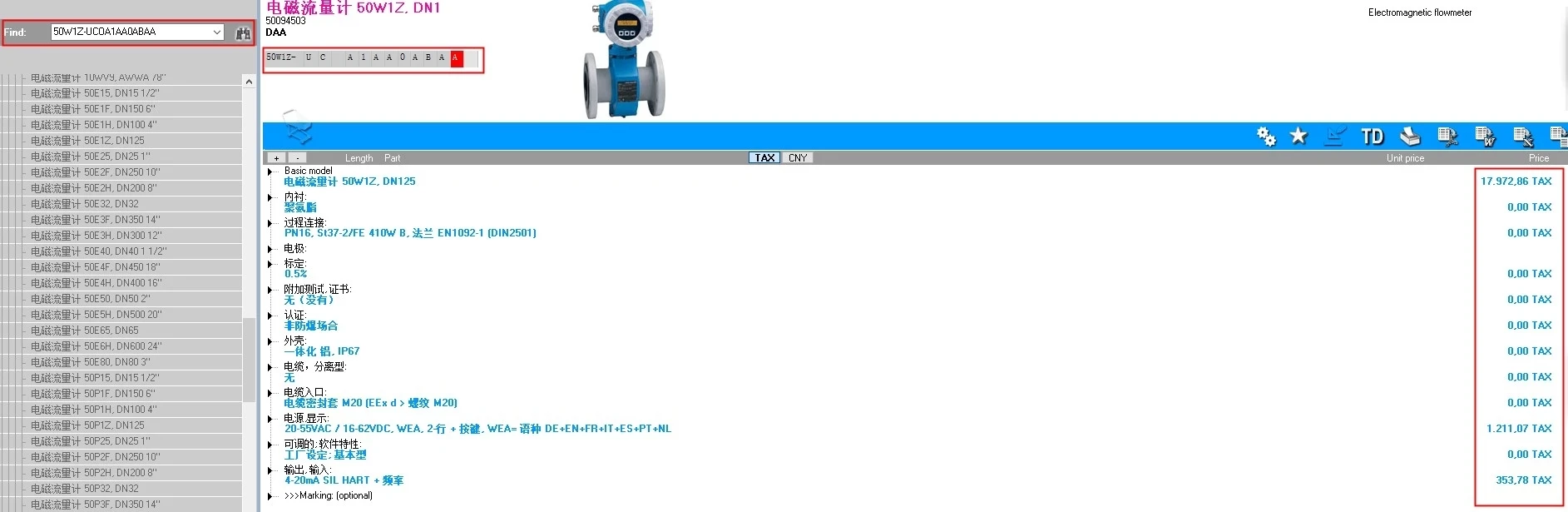

When you give me order codes (50W1Z-UCOA1AA0ABAA) or nameplates, so we can input order codes to our E+H price system to get price for you.
If you do not have order codes, please advises me technical parameter:
1. Measuring medium (PH and Electrical conductivity)?
2. Nominal diameter range or flowrate?
3. Pressure range and medium temperature range?
4. Output signal and supply voltage?
5. Connection type? If flange, please tell me flange class.
6. Integrated or remote (separate) type? If remote, cable length?
So our engineer can help you choose appropriate order codes to give you accurate price.
Packing and shipping
Packing: electromagnetic flowmeter carton box or standard export wooden case
Shipping: Air express (DHL, TNT, UPS, SF, EMS) or air freight
FAQ
Q: How fast can you delivery goods?
A: Usually 4-6 weeks after receive your payment.

Q: What's your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.

Q: How long is your product warranty?
A: 1 year

Q: How long your quotation valid?
A: Our quotation valid for 30days

Q: What trade terms, payment mode and payment terms can you accept?
A: Trade terms: Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment

Q: What express ways you can offer, can we use our own courier?
A: We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepaid , also can use your own courier account to do the freight collect , just for your convenience.
