Price:$120,000.00

Quantity:


Product Overview

Description



Products Description




Product Details




Application

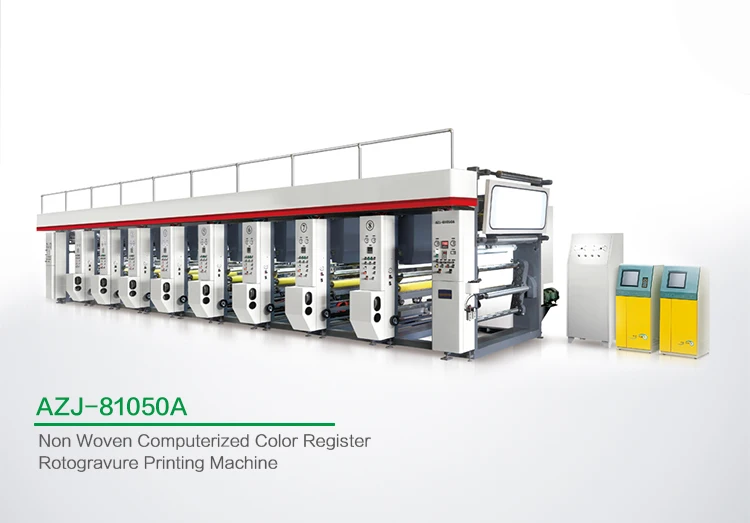

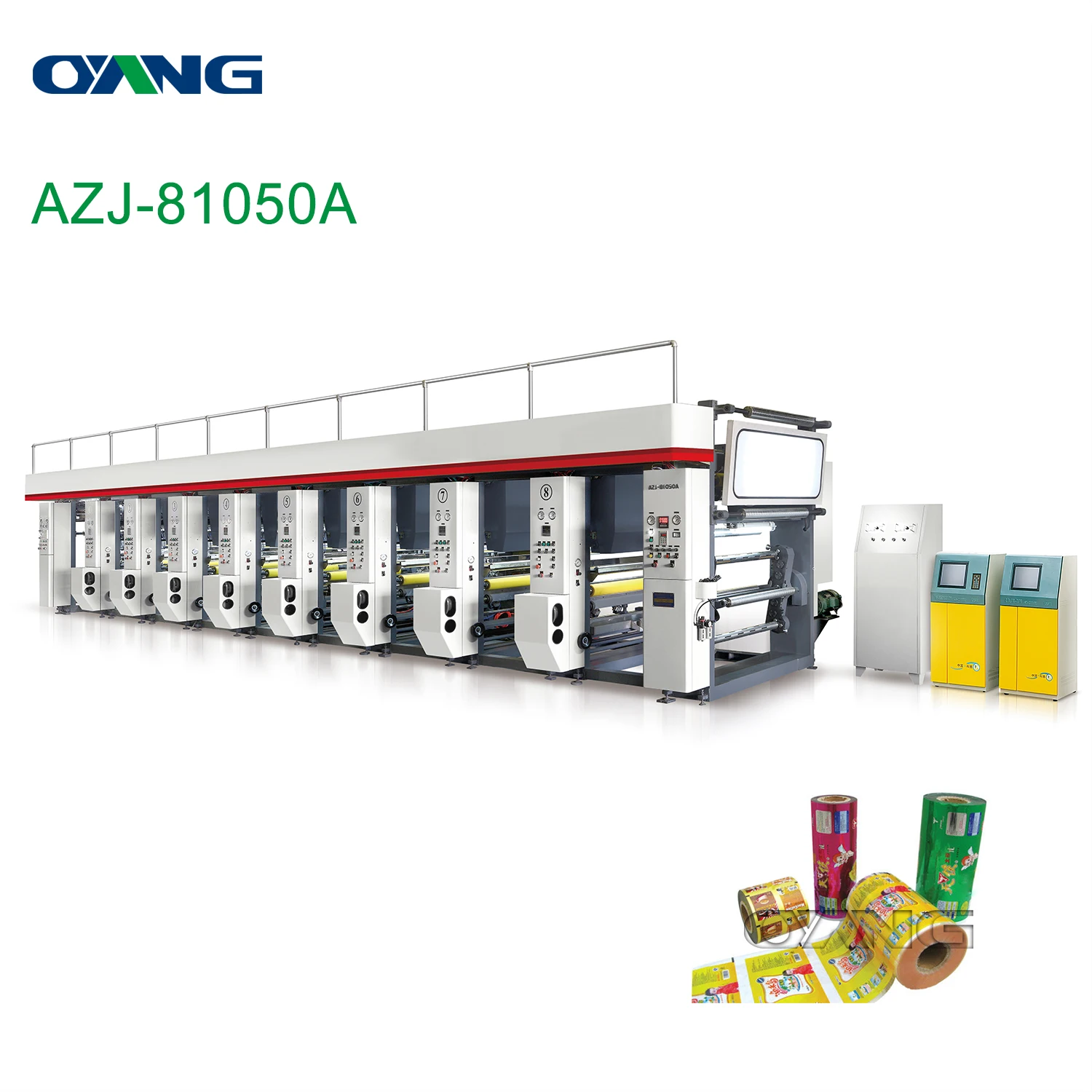

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET,PVC,PE,aluminum foil and paper,etc.


Type
AZJ-8650A
AZJ-8850A
AZJ-81050A
Max Width of Web
650mm
850mm
1050mm
Max Printing Speed
140m/min
140m/min
140m/min
Max Diameter of Unwind/Rewind
600mm
600mm
600mm
Internal Diameter of Roll Core
76mm
76mm
76mm
Diameter of Printing Cylinder
105-380mm
105-380mm
105-380mm
Accuracy of Registration
±0.1mm
±0.1mm
±0.1mm
Tension Control Range
3~25kg/Full Width
3~25kg/Full Width
3~25kg/Full Width
Heating Power of Oven
72kw
96kw
120kw
Total Power
109kw
136kw
160.5kw
Weight of Machine
17000kg
19000kg
21000kg
Overall Dimension
L13500*W3200*H2500mm
L13500*W3400*H2500mm
L13500*W3600*H2500mm
