Deep UVC SMD3535 led strip bar 265nm 275nm 280nm uv water sterilizer with aluminum profile

Product Overview

Description

HUAYU 12V/24V DC 270-280nm Sterlization UVC (Ultraviolet) LED Strip Bar Light for Water germcidal, Water purification, Air purification, Disinfect water, Medical treatment, Kill virus and bacteria, Destroy harmful micro-organism etc.







• The LED Strip Bar Light is made by aluminum profile and high quality 4-5mW SMD3535 UVC LED diodes.


• With 270-280nm sterlization UVC (Ultraviolet) wavelength for special application..


• Attached inside with size of 10mm width PCB flexible LED Strip.


• Accept both DC12V and DC24V saftey operate voltage.


• 9-15W per meter available.


• High quality product with 2 years quality guarantee.



Product Description

HUAYU UVC 270-280nm LED Strip Bar Light produced by Aluminum profile and SMD3535 30leds/m and 60leds/m flexible LED Strip; DC12V/DC24V characteristics with high durability and long lifetime, even under difficult conditions. This kind of LED Bar can be achieved IP44 IP Rating.



Warnings and Handling Instrutions



UVC-LEDs is a invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for short periods. DO NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UVC ” Safety protection for eyes and skin. If you incorporate a UVC-LED into a product, be sure to provide WARNING labels.





270-280nm UVC LED Lighting Lights are often used in below applications:



1. Antibacterial Project

2. Medical Treatment

3. Wateproof Purification

4. Air Purification

5. Disinfect Water

6. Kill virus and bacterias

7. Destroy harmful micro-organism

8. Surface Sterlization











Technical Specification



Item	UVC 270-280nm Ultraviolet Ray LED Strip Bar Light
LEDs/meter	30LEDs/meter or 60LEDs/meter
Length	0.5m/piece or 1m/piece
LED Type	SMD3535
Input Voltage	DC12V / DC24V
Radiant Power	4-5mW / LED
Power	30LEDs/m: 9W per meter  60LEDs/m: 11-15W per meter
Aluminum Profile Dimension	W30*H6.5mm
LED Strip PCB	10mm / 3oz
IP Rating	IP20
Color	UVC270-280nm
Accessories	2pcs clips for installation
Power Cord	DC Female Cable in one end
More UV Series	UVC270-280nm / UVA365nm / UVA395nm
Warranty	2  years





Product Dimension









Product Wavelength







 -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

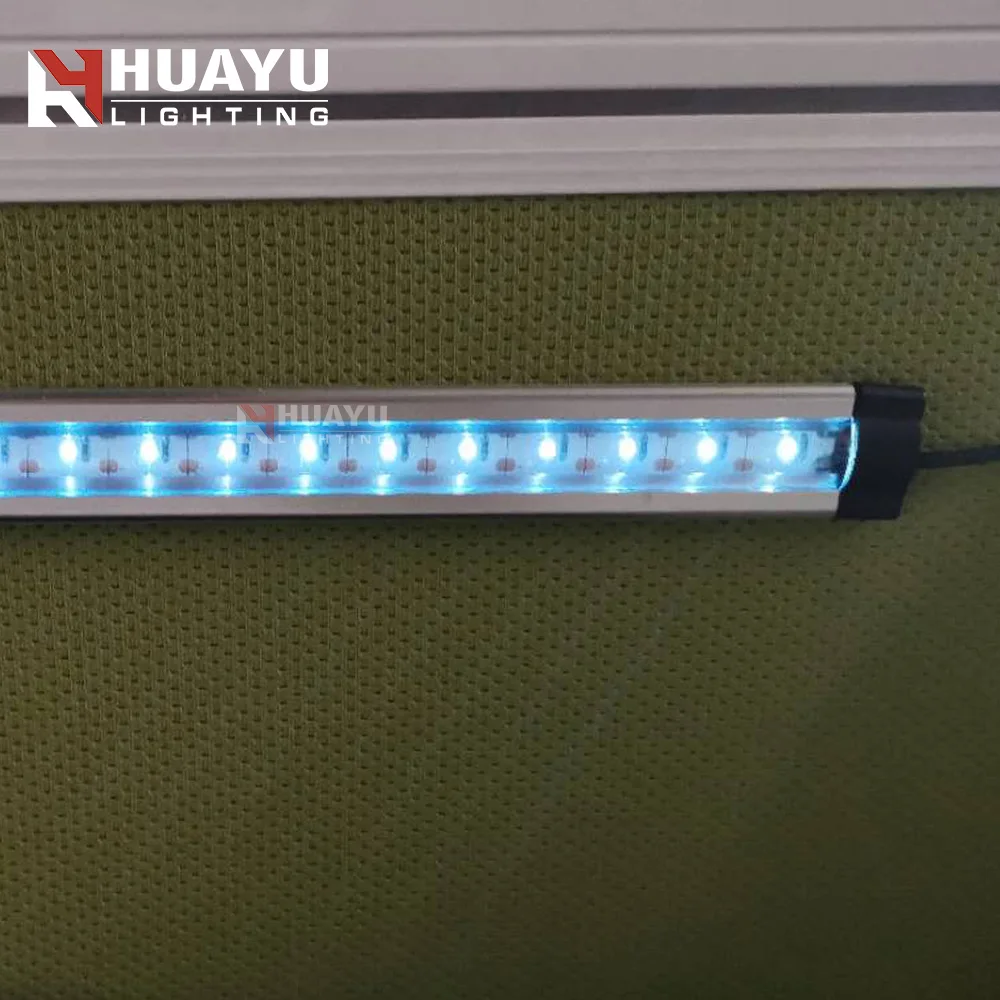

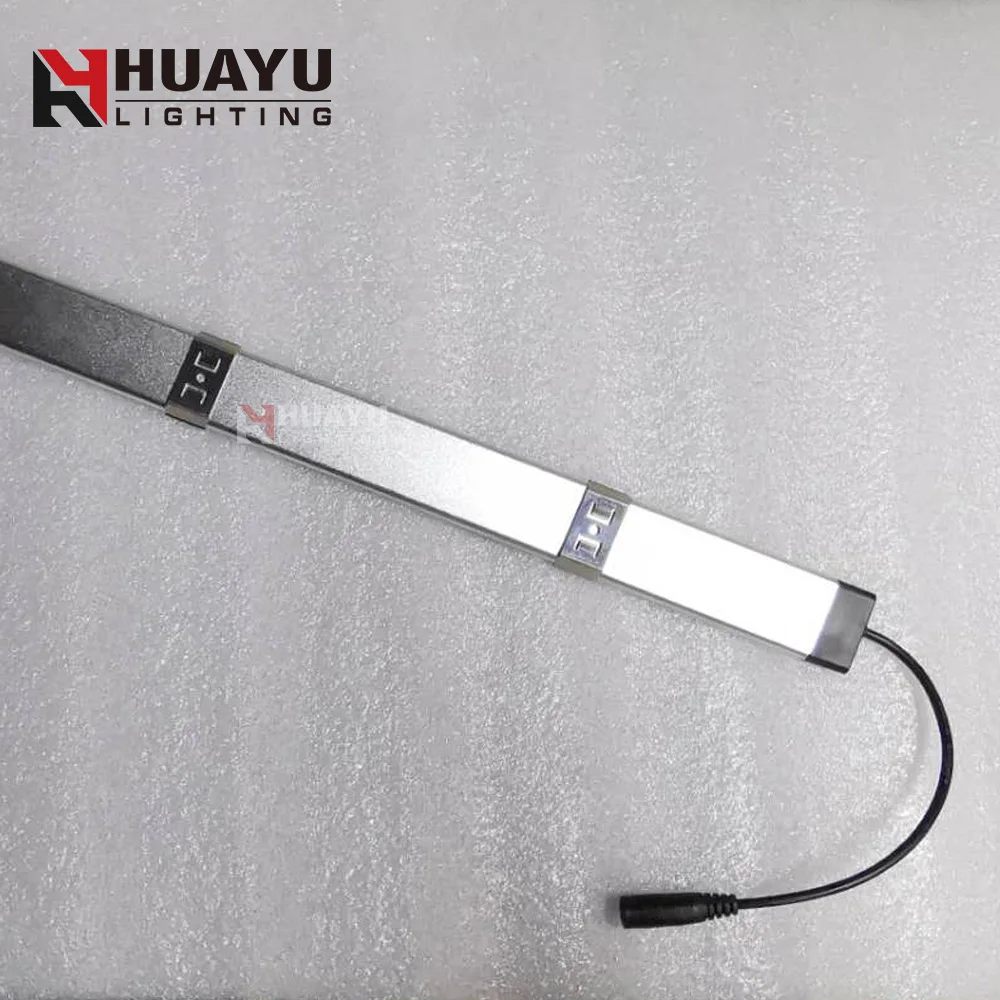

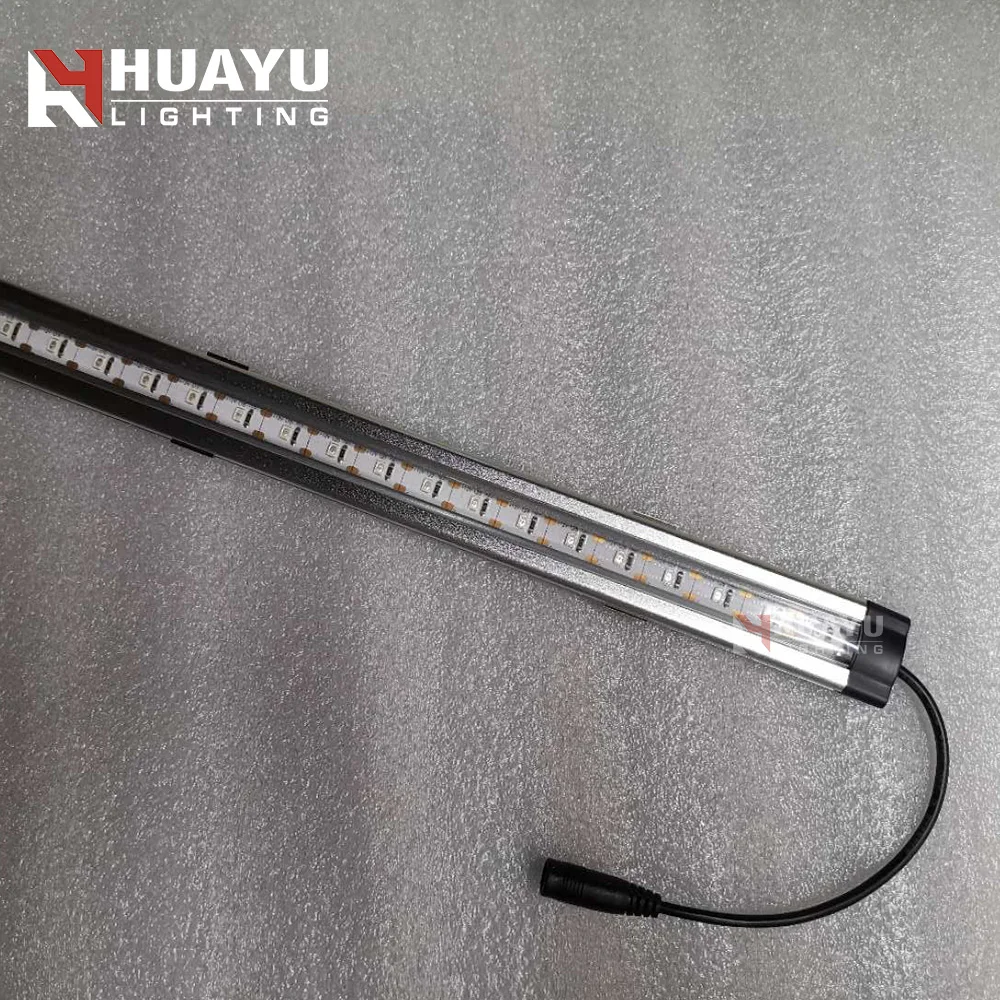

Product Pictures



 Installation Methods



Customized-product Welcomed!

Welcome customized products, for example:

     1LED 270-280nm + 1LED 365nm + 1LED 270-280nm + 1LED 365nm + 1LED 270-280nm + 1LED 365nm .....

Or 1LED 270-280nm + 1LED 395nm + 1LED 270-280nm + 1LED 395nm + 1LED 270-280nm + 1LED 395nm.....

Or 2LEDs 270-280nm + 1LED 365nm + 2LEDs 270-280nm + 1LED 365nm + 2LEDs 270-280nm + 1LED 365nm .....

Or 2LEDs 270-280nm + 1LED 395nm + 2LEDs 270-280nm + 1LED 395nm + 2LEDs 270-280nm + 1LED 395nm.....



As the strong demand recently, this product is in super hot. If you are interested in this product, please don't hesitate to contact with us for more details about the UVC270-280nm Solutions, pictures, datasheet and prices via Skype: hl-sherry / We chat or Whatsup: +8615989430161, as well as Email: sales05 at iledhl.com. Thanks very much!
