chocolate ball mill machine manufacturer top quality
- Category: >>>
- Supplier: Suzhou Makui Food Machinery Co. Ltd.
Share on (62544134899):
Product Overview
Description
Product Overview
High quality ball miller with conche line
chocolate spread making machine for compound chocolate or pure chocolate
Chocolate conche ball miller grinding
1.This chocolate ball miller is the basic equipment to mill chocolate material, it also can be used to melt oil-bearing material, fluidness and some chemical raw material.
2.Chocolate raw material is melted via steel ball, milling fineness can be 20-25um.
Principle:

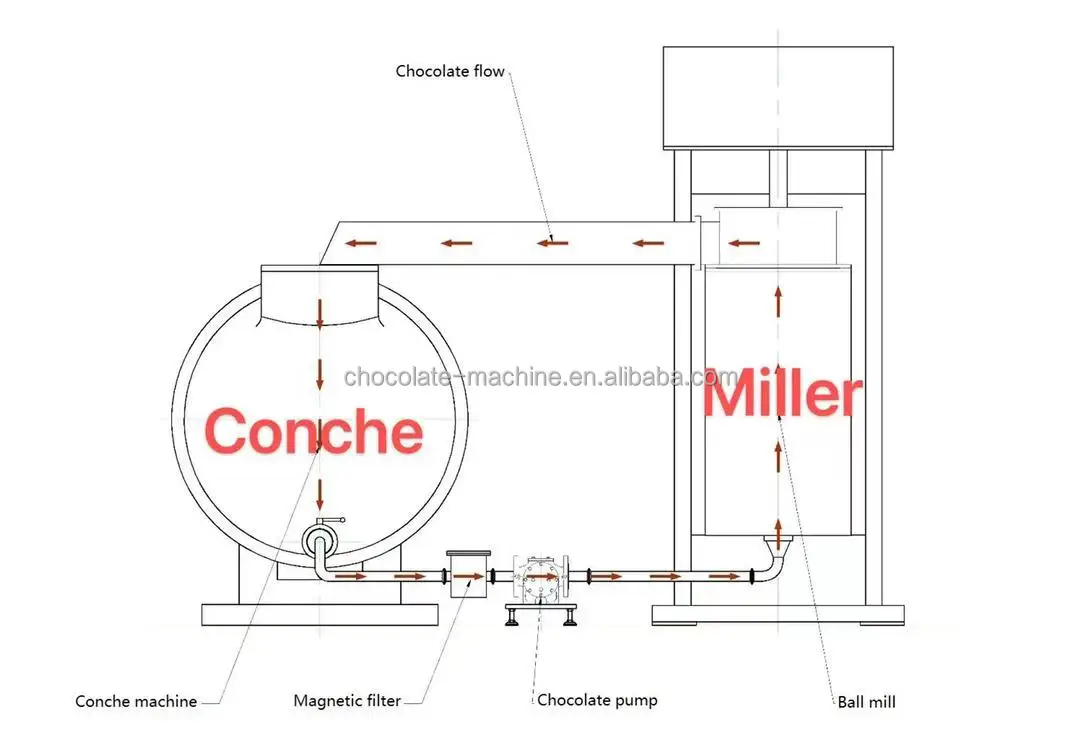

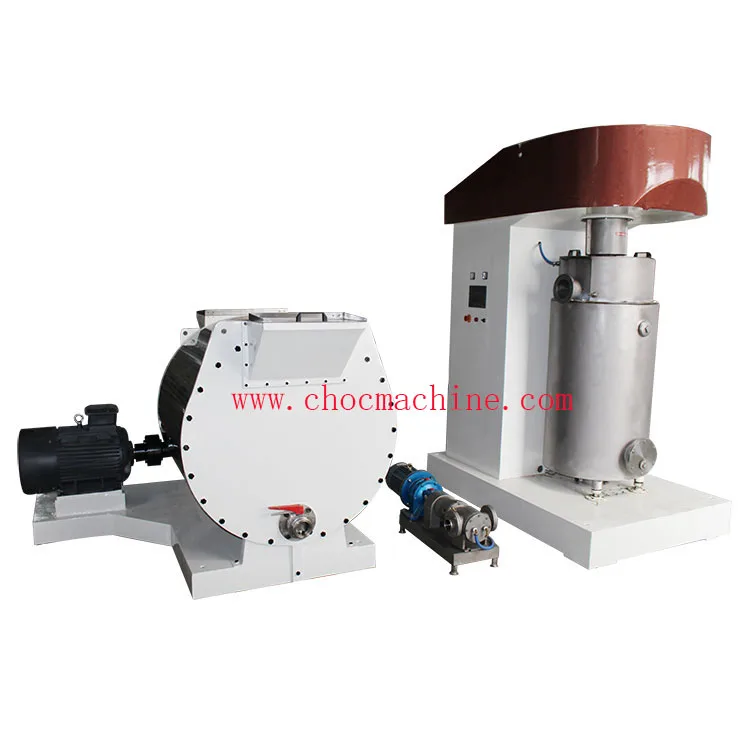

1.Ball mill&Conche machine combination system, is made up of ball mill,conche machine,slurry circulation pump, mangnetic filter and insulation slurry pipeline.
2. Chcoclate raw materials( coca powder, cocoa butter, cocoa butter replacer,milk powder, sugar powder,etc.)are first into the grinding machine and start to premix. Afer premixing is completed, start ball mill and slurry circulation pump to transfer the mixed materials from conche machine to the ball mill,and then return to the conche machine for fine grinding and refining after refining by the ball mill,after several circles, the final chocolate grdinging is completed.
3. ball size and material : SS304 or bearings. 8-10mm
4.motor brand: ABB or Siemens.
5. control box brand: Schneider
7. temperature control brand: Siemens
2.Chocolate raw material is melted via steel ball, milling fineness can be 20-25um.
Principle:
1.Ball mill&Conche machine combination system, is made up of ball mill,conche machine,slurry circulation pump, mangnetic filter and insulation slurry pipeline.
2. Chcoclate raw materials( coca powder, cocoa butter, cocoa butter replacer,milk powder, sugar powder,etc.)are first into the grinding machine and start to premix. Afer premixing is completed, start ball mill and slurry circulation pump to transfer the mixed materials from conche machine to the ball mill,and then return to the conche machine for fine grinding and refining after refining by the ball mill,after several circles, the final chocolate grdinging is completed.
3. ball size and material : SS304 or bearings. 8-10mm
4.motor brand: ABB or Siemens.
5. control box brand: Schneider
7. temperature control brand: Siemens
PRODUCT SPECIFICATIONS
Item | model | grinding time | power | machine size |
conche | 50kg/batch | 16-22hr | 2.7kw | 1200x800x1100 |
conche | 500kg/batch | 16-22hr | 14kw | 2650x1070x1350 |
conche | 1000kg/batch | 16-22hr | 28kw | 2900x2100x1630 |
conche with ball miller | 1000kg/batch | 2-4hr | 55kw | |

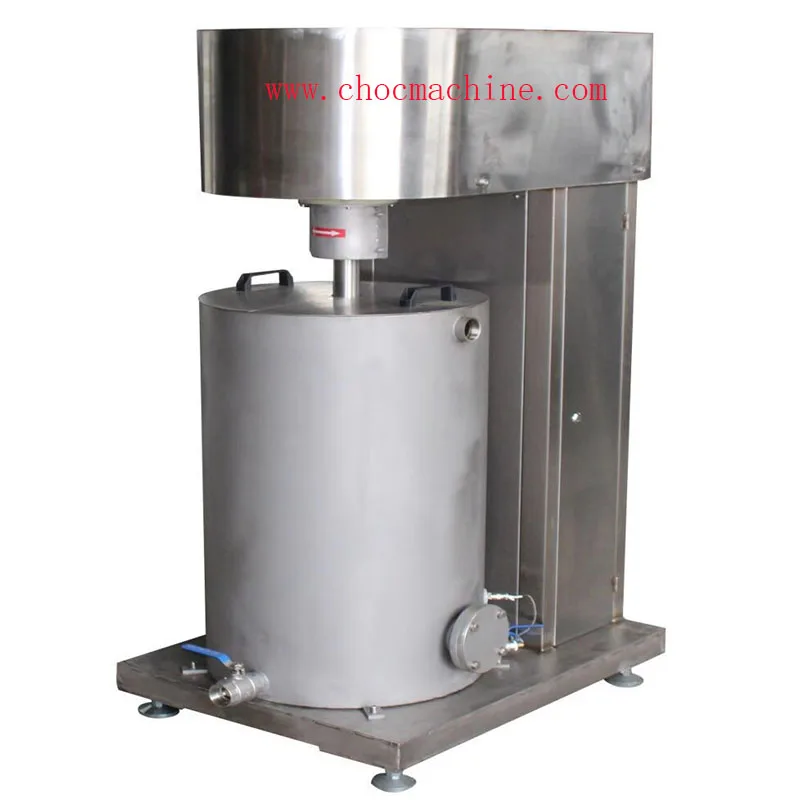

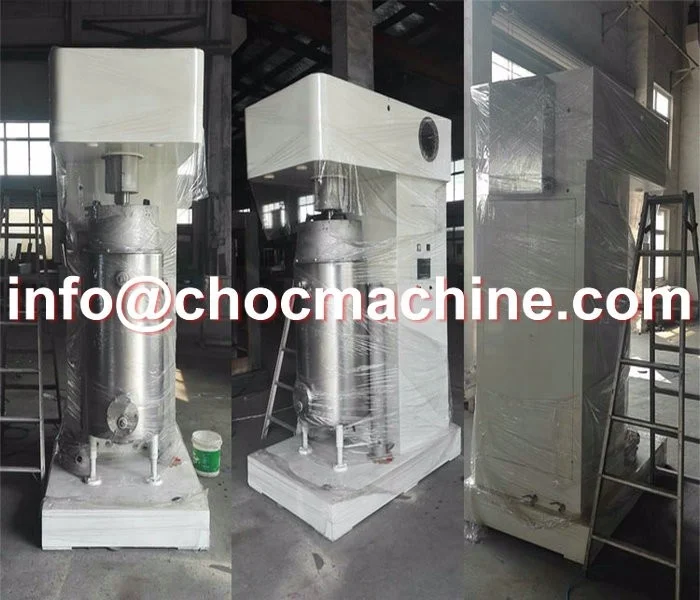

ball miller | 20kg/batch | 3-4hr | 2.7kw | 600x700x800 |
ball miller | 50kg/batch | 3-4hr | 3kw | 600x800x900 |
ball miller | 100kg/batch | 3-4hr | 7.5kw | 800x1000x1500 |
ball miller | 300kg /batch | 3-4hr | 33kw | 1800x1200x2500 |
ball miller | 500kg/batch | 3-4hr | 45kw | 2000x1500x2500 |
ball miller | 1000kg/batch | 3-6hr | 55kw | 2500x1800x2500 |
FEATURES AT A GLANCE

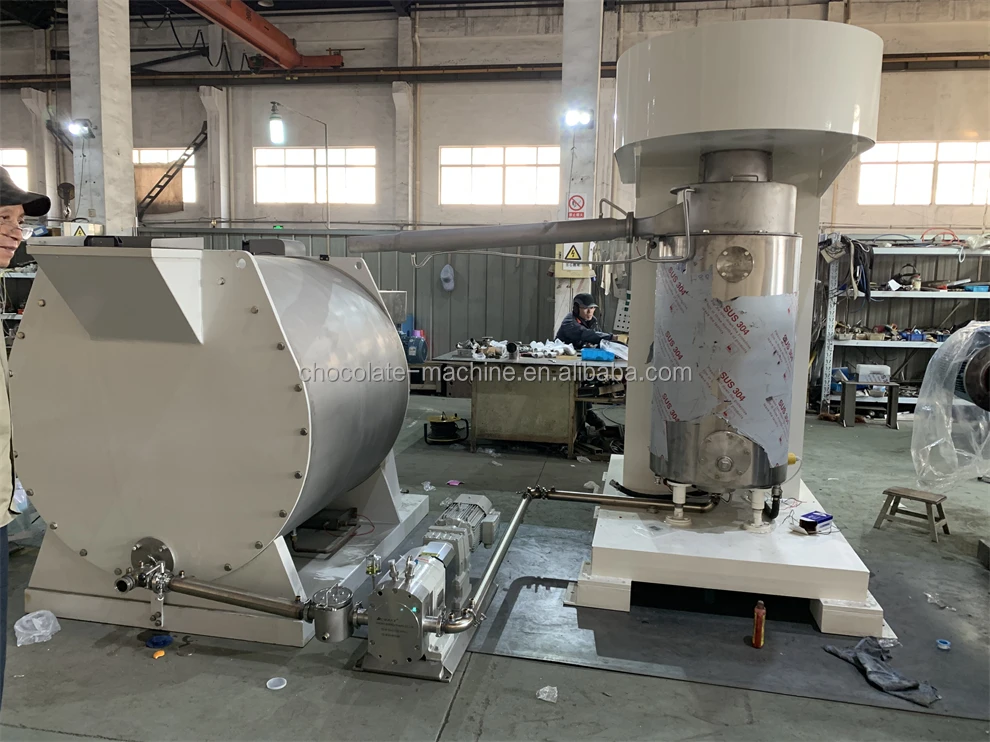

conche with ball miller
consist of conche ball miller and pump magnetic filter
conche mixing material
ball milling grinding material .
delivery tank after finished grinding .
Model :50kg/500kg/1000kg
grinding time: 16-22hr/batch
fineness: 22-25um
knife thickness: 5mm
Chocolate spread making machine
conche refiner- pump delivery-tank-pump-depositor line.
PRODUCT CONFIGURATION
Right chocolate conche
front conche
left conche
50kg model conche refiner
500kg model conche refiner
1000kg model conche refiner
Successful Project
chocolate conche installed at customer factory

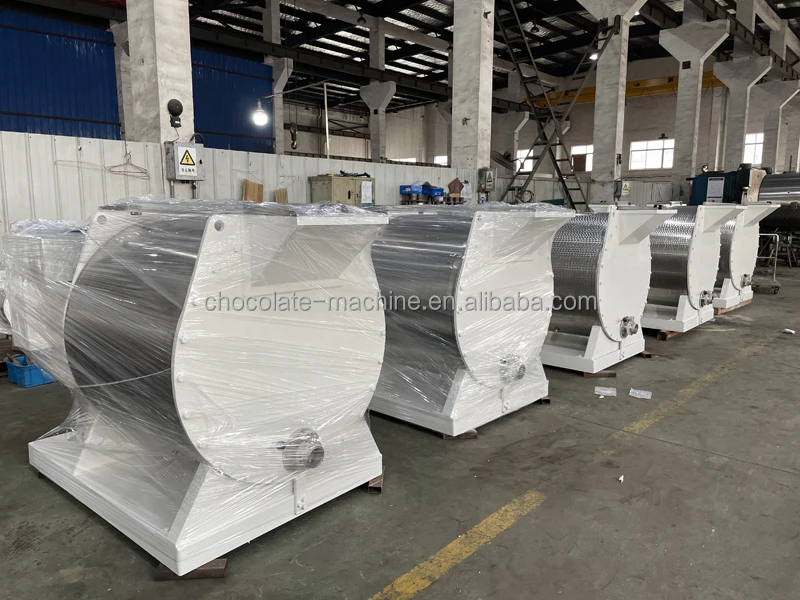

6SET conche installed
connect pipe before wrap machine

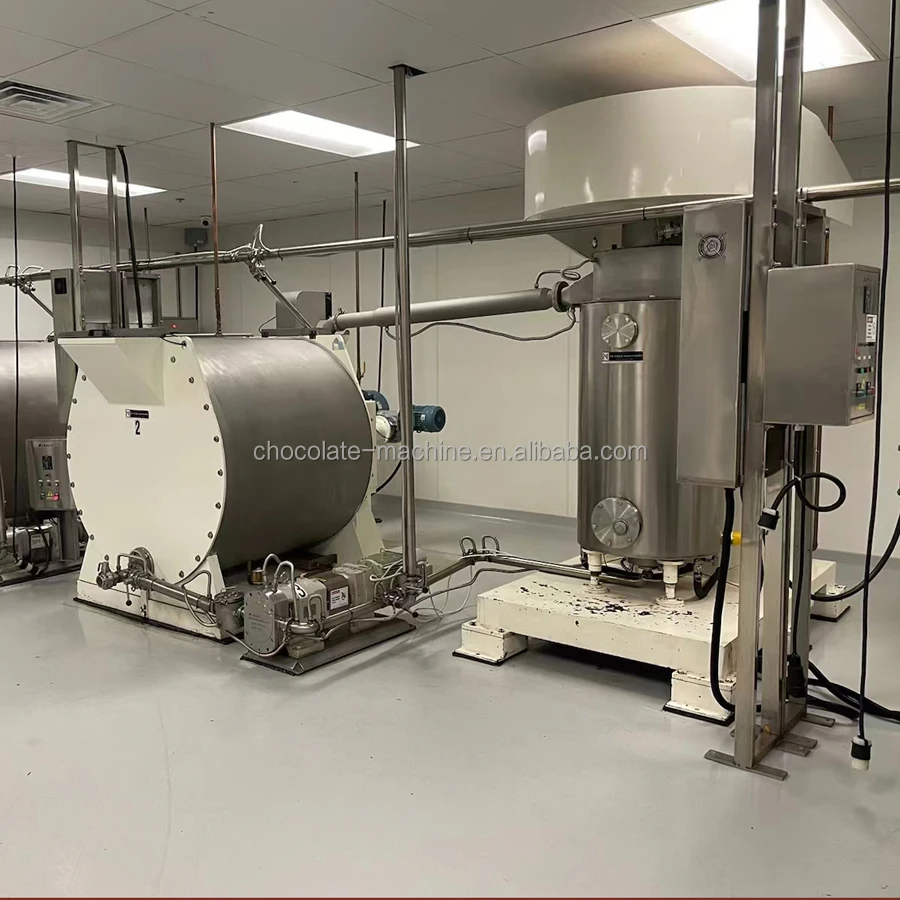

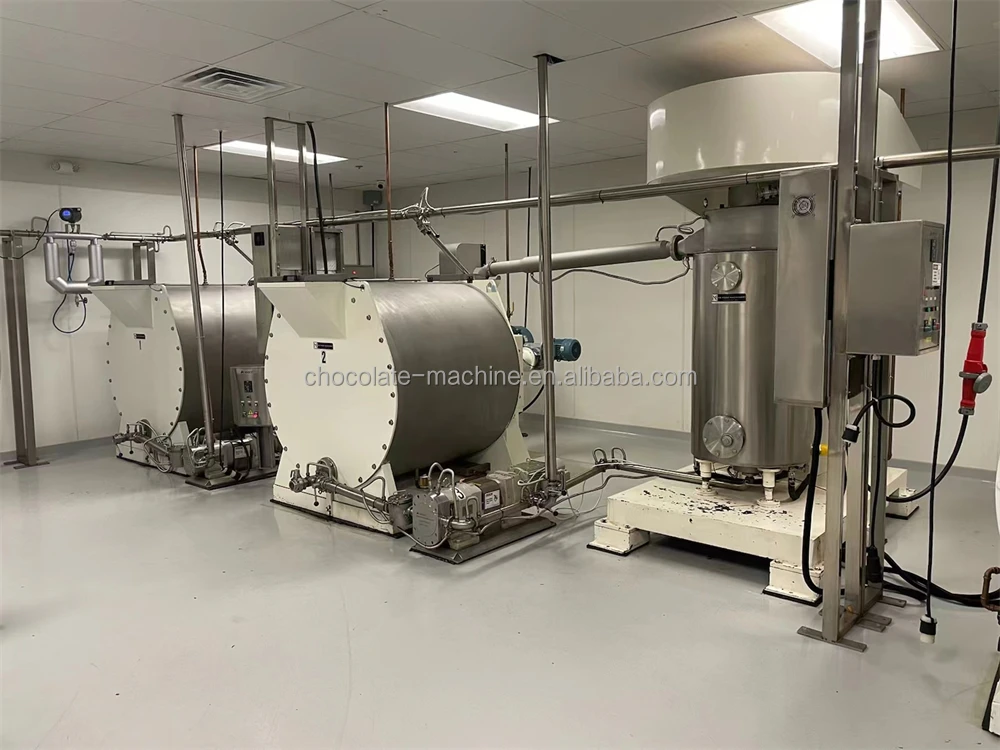

3set conche two set ball miller export to USA

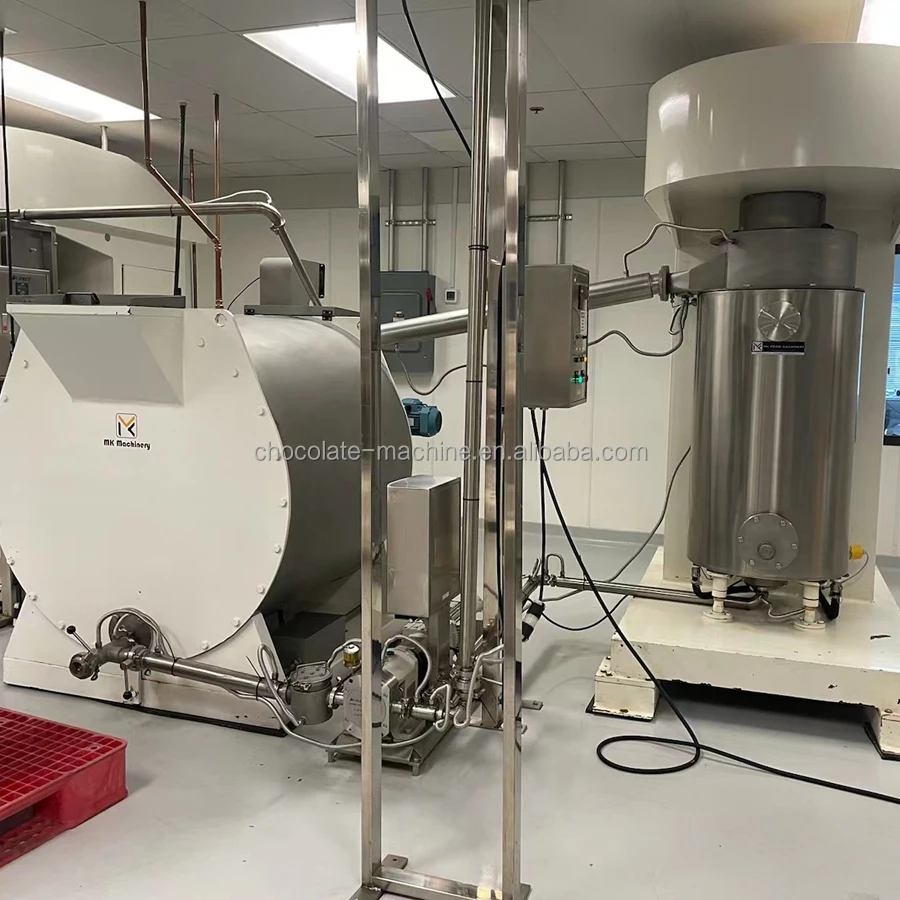

Project in USA
Project in Spain
Project in Russia
