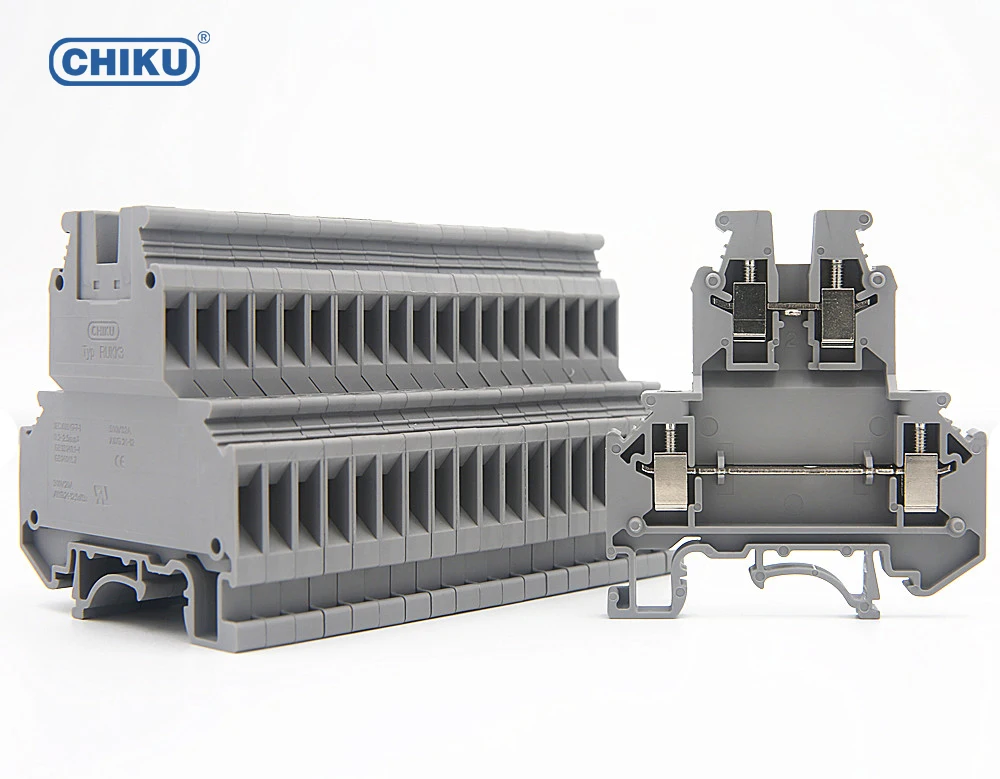

CHIKU RUKK3 Double levels terminal block Din Rail Terminal Connector Screw Clamp 600V 20A 2.5mm2
- Category: >>>
- Supplier: Jiangxi Huntec Electrical Technology Co. Ltd.
Share on (62544178000):
Product Overview
Description
Product Description

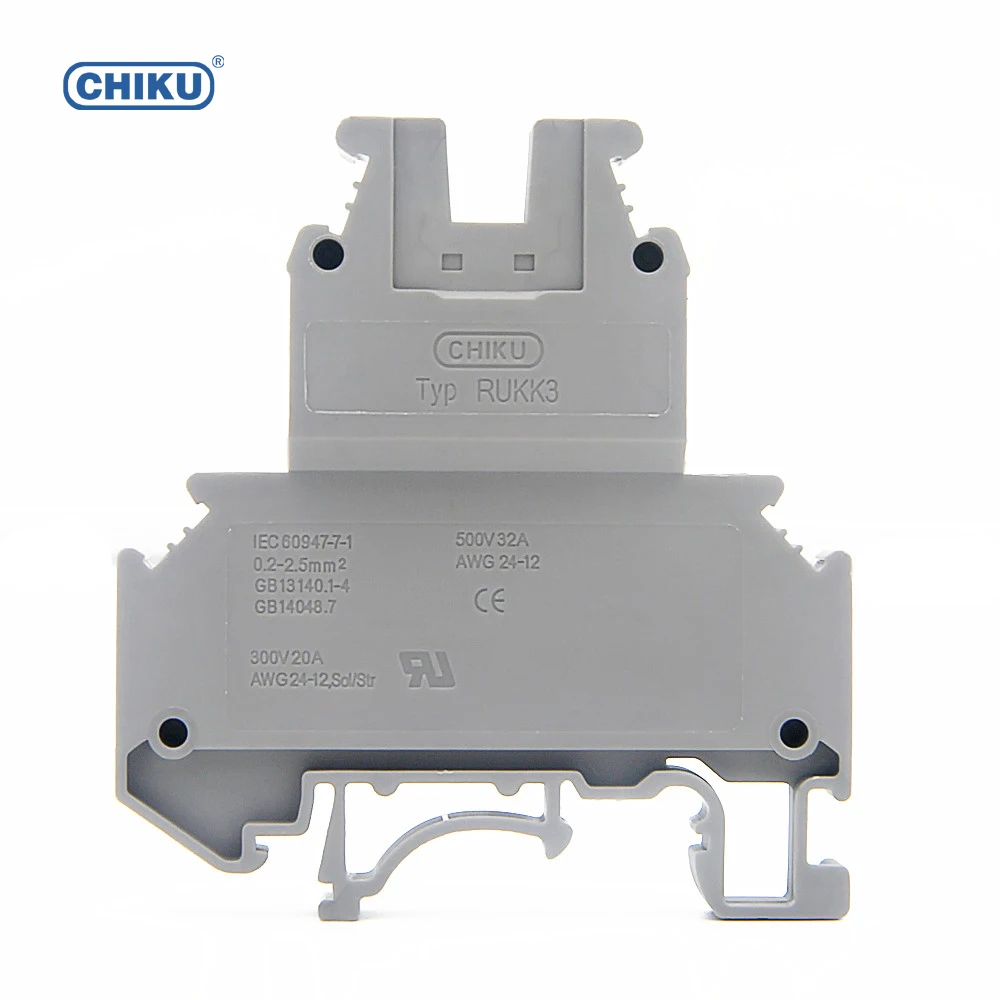

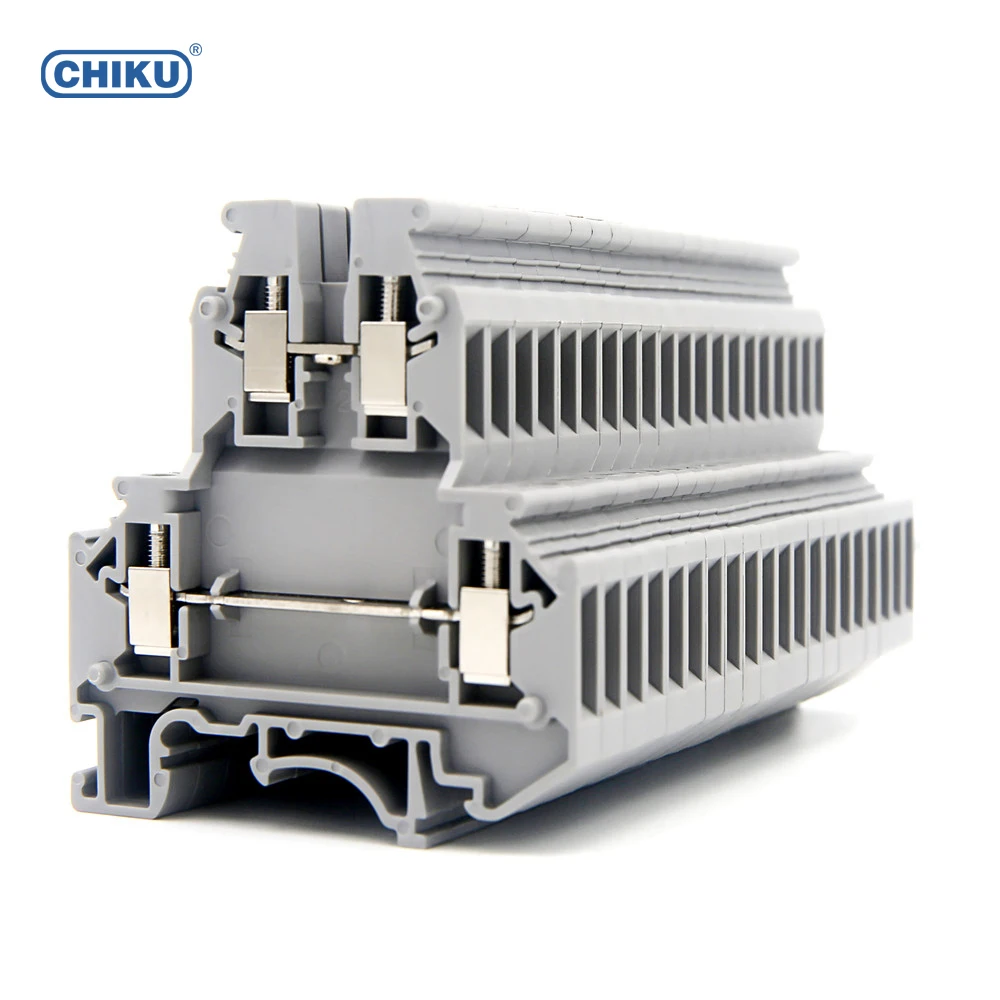

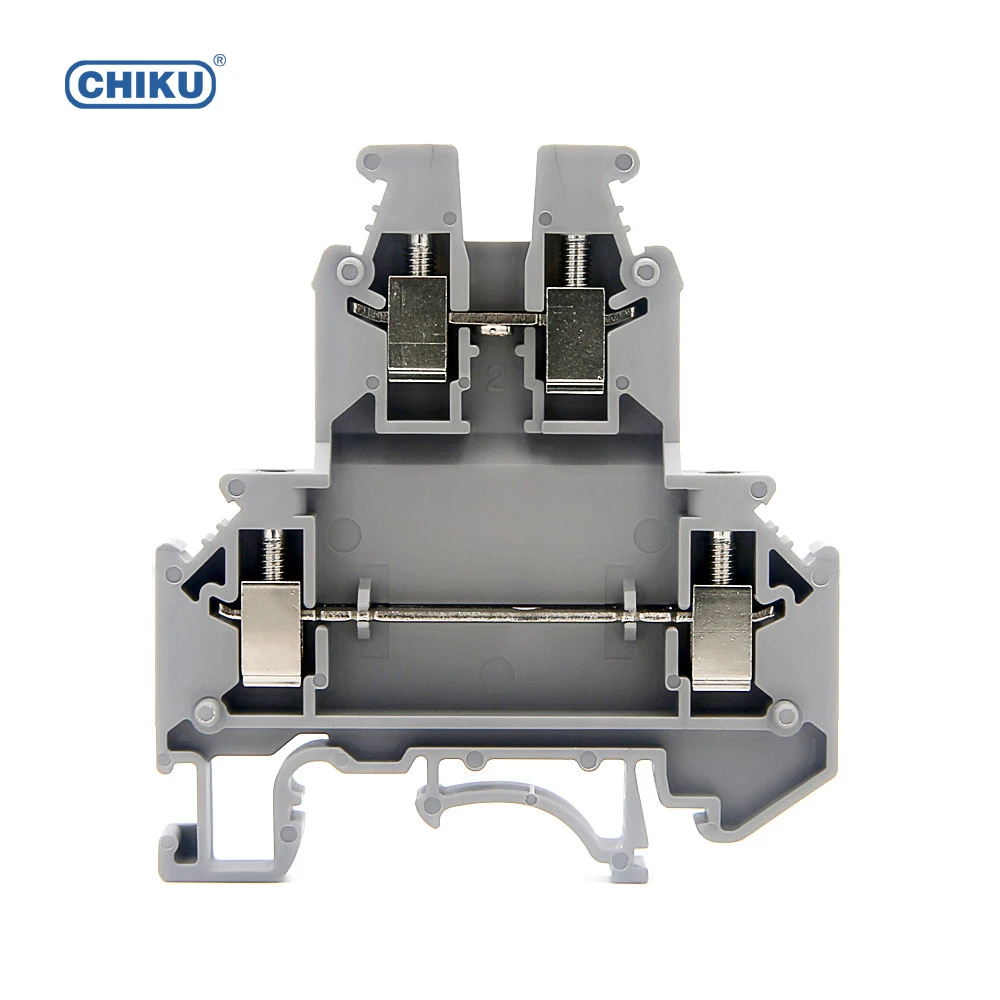

RUKK 3 Double levels terminal block Din Rail Terminal Connector Screw Clamp 600V 20A 2.5mm2 , Thickness 5.2 mm, 32 A / 2.5 mm
Specification:
RUKK 3
General
Number of levels | 2 |
Number of connections | 4 |
Nominal cross section | 4mm² |
Color | gray ,blue, orange |
Insulating material | PA |
Flammability rating according to UL 94 | V0 |
Rated surge voltage | 6Kv |
Degree of pollution | 3 |
Connection in acc. with standard | GB30847/IEC 60947-7-1 |
Rated operational current | 32A |
Rated operational voltage | 500V |
Rated current max. | 32A |
Rated voltage max. | 500V |
Temperature index | 130RTI/120TI |
Packaging & Shipping
Company Information
FAQ
A1:Our company is verified by ISO9001,ISO14001,OHSAS 18001 CE,UL, ROSH, CQC,EX and etc, and we have more than 79 Patents.
Q2. What is your terms of payment?
A2: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A3: EXW, CNF, CIF,CPT,FCA,FOB,DDU.
Q4. How about your delivery time?
A4: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity.
Q5. Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings. We have in-house tooling workshop.
Q6. What is your sample policy?
A6: We can supply most of samples if there are parts in stock, customers should cover the courier cost which will be refunded after orders placed.
Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% shipment inspection before delivery.
Q8: How do you make our business long-term and good relationship?
A8: We keep good quality and competitive price to ensure our customers benefit.
